DC24-100V to 24V 2A Buck Power Conversion Module

Specifications:

Input voltage: 24V~100V (input must be larger than output)
Output voltage: 24V
Output current: 2A (maximum peak) long time current within 2A
Conversion efficiency: 96% (maximum)
Output ripple: <20mA
Output accuracy: ±0.1V
No-load current: 1mA
Operating temperature: -40°℃~+125°℃
Working humidity: 20%~90%

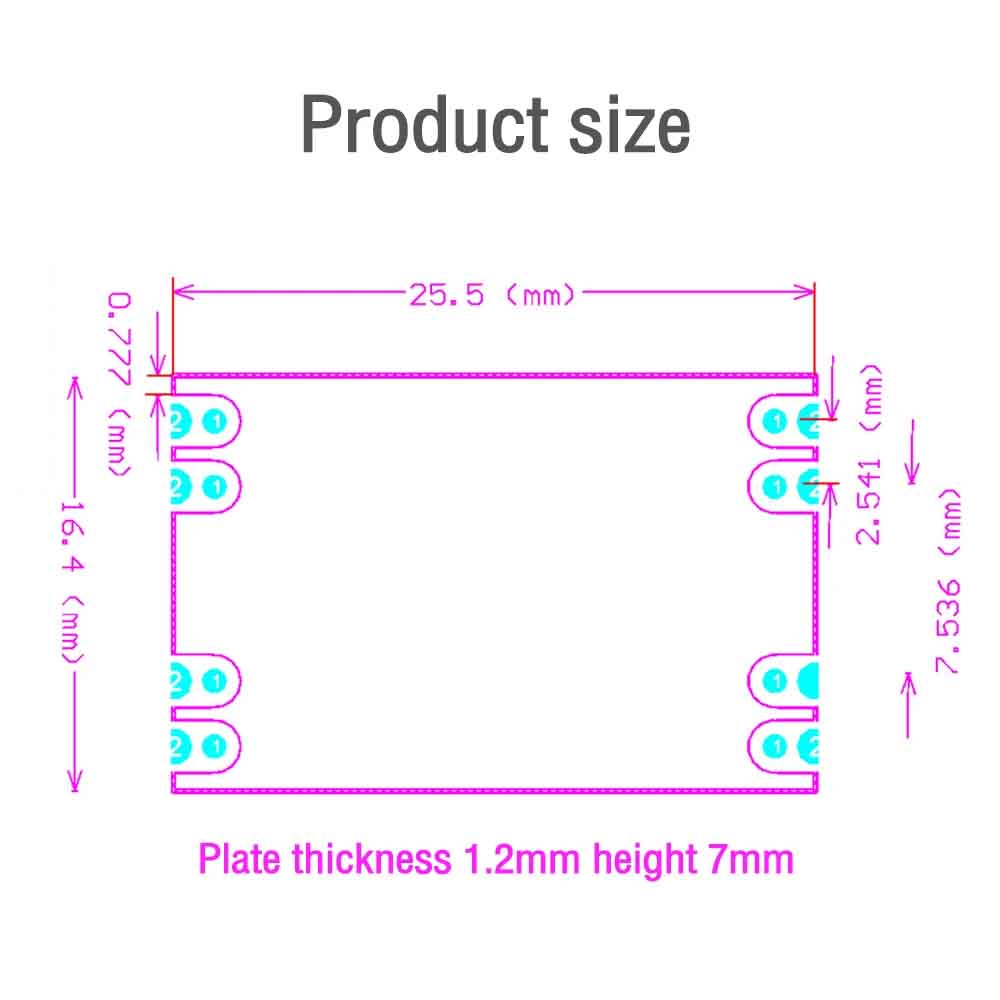

Size: 25.5*16.5*7mm(L*W*H)
Number of pcb layers: 2 layers
Shutdown function: with shutdown function
Heat dissipation mode: natural heat dissipation
Installation method: welded wire, SMD
Whether with isolation: without isolation
Operating frequency: 1MHz

SKU: RDNA-414.3

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹175.01 (Inc. GST)
₹148.31 (+18% GST Extra)

Only 2 left in stock

Compare

Add to wishlist

18 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

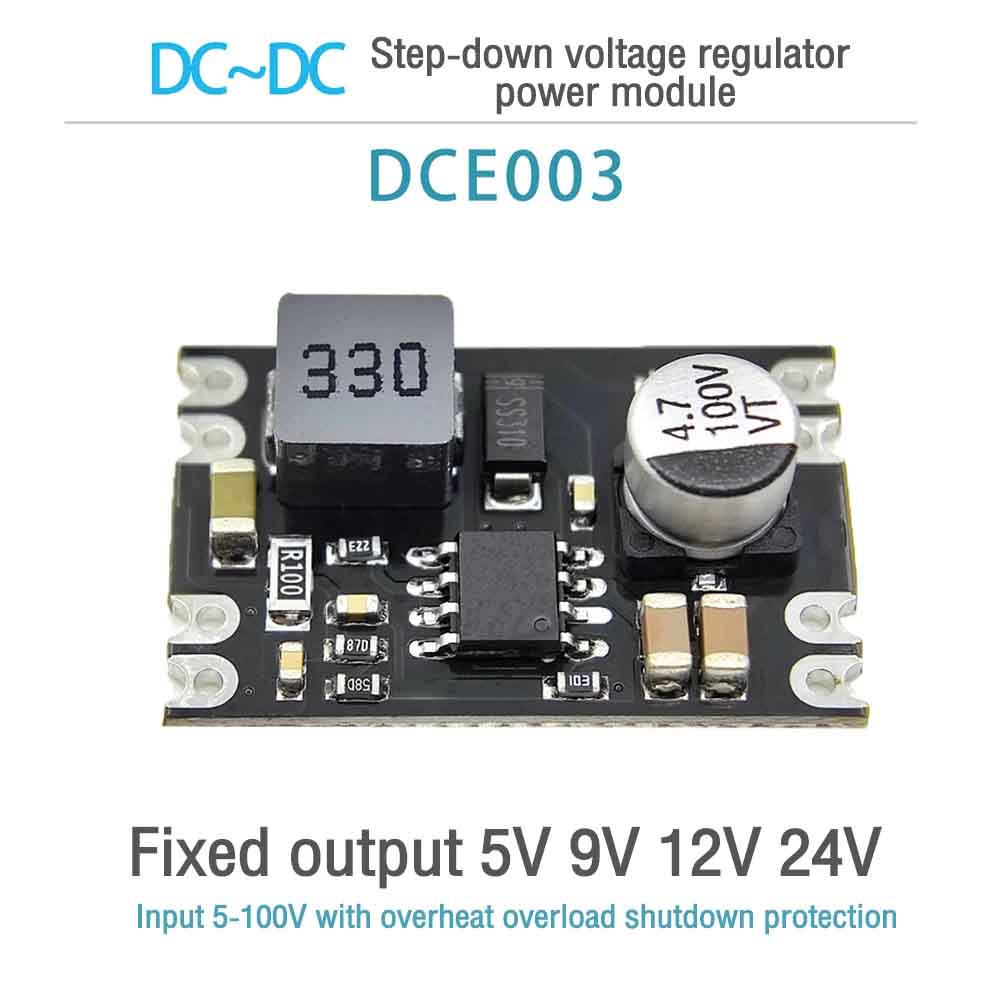

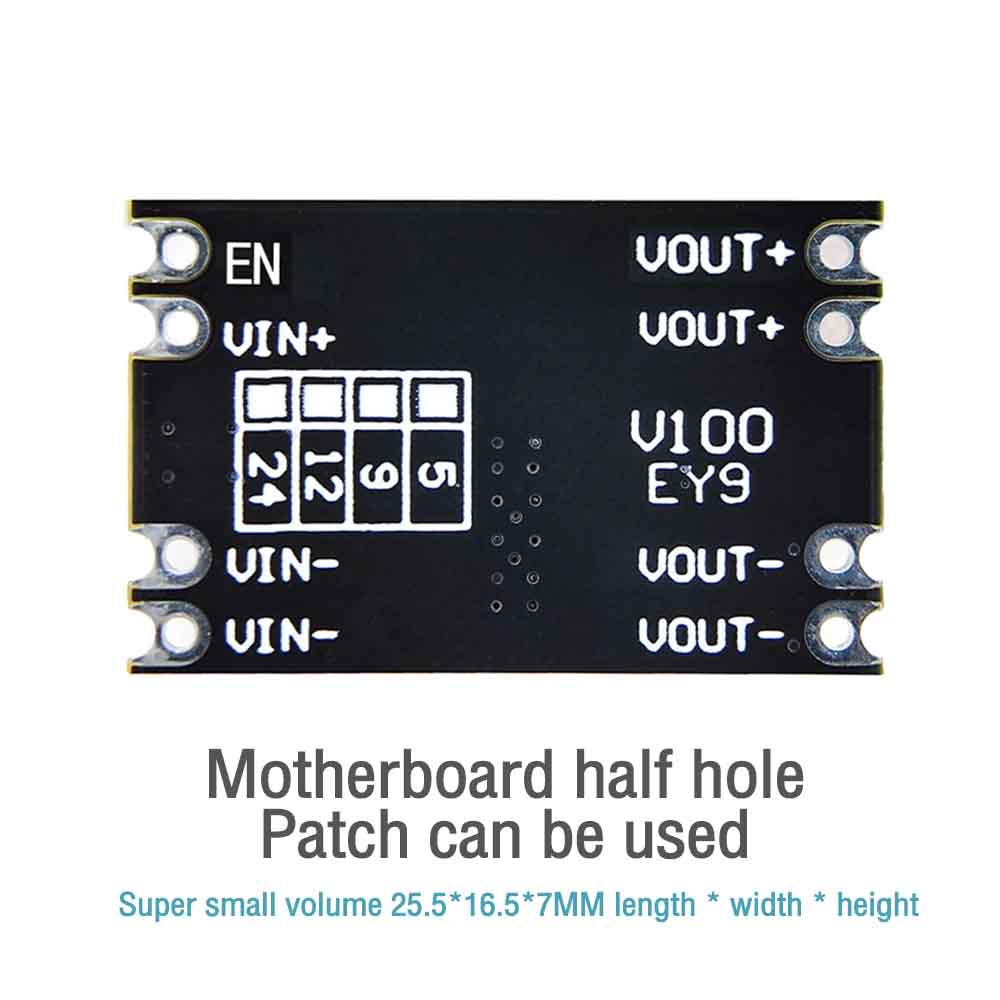

Fixed output 24V, input 6-100V with overheat and overload shutdown protection. The Mainboard half-hole can be used in SMD, ultra-small size 25.5*16.5*7MM. DC-DC step-down module is a kind of device to convert high DC power into low voltage electrical energy, the input voltage must exceed the output voltage (with pressure difference). It adopts microelectronics technology and has high efficiency and a small size. It is easy to operate, easy to install, etc.
