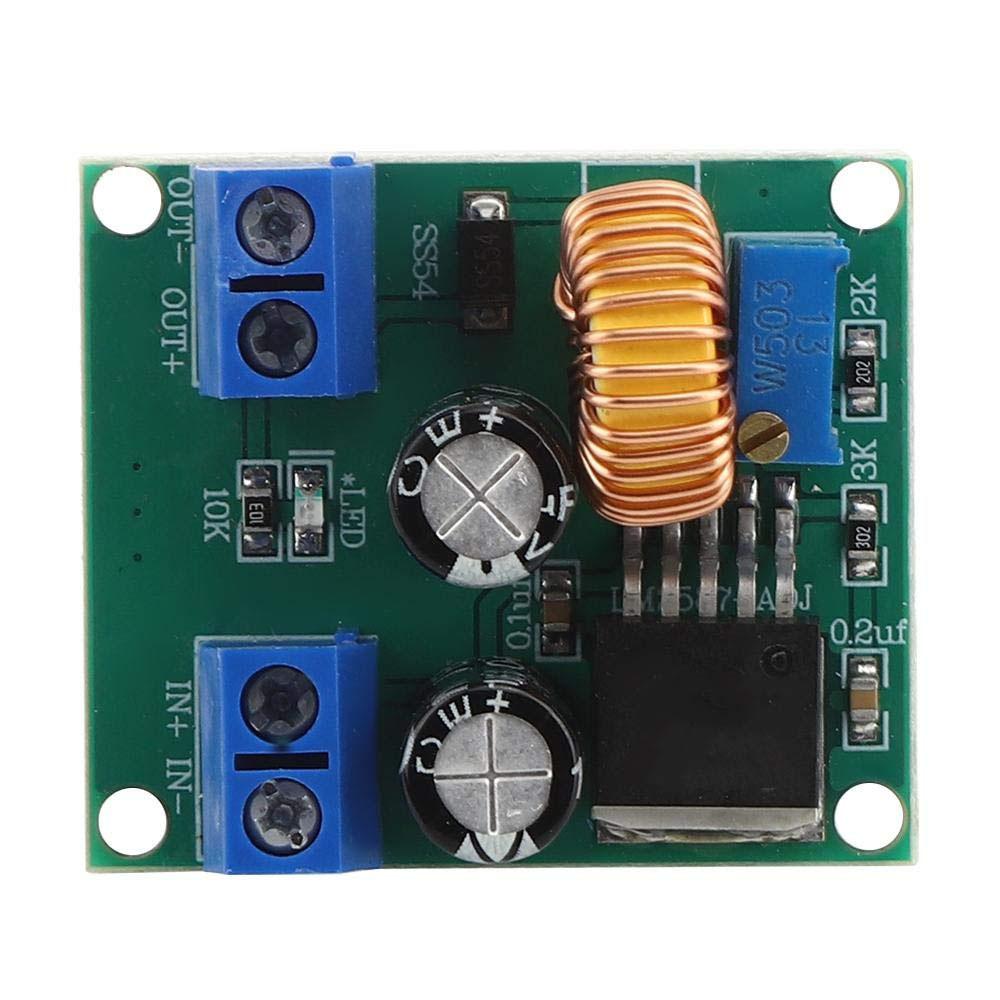

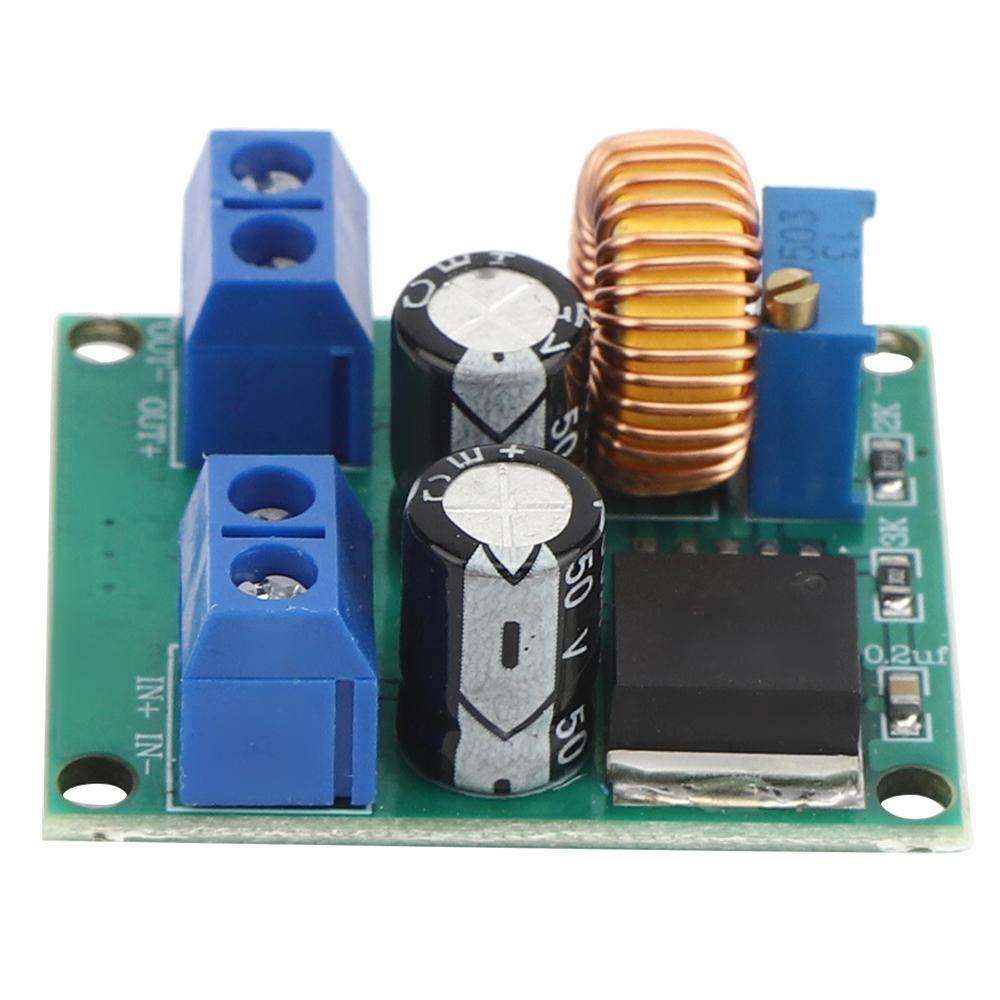

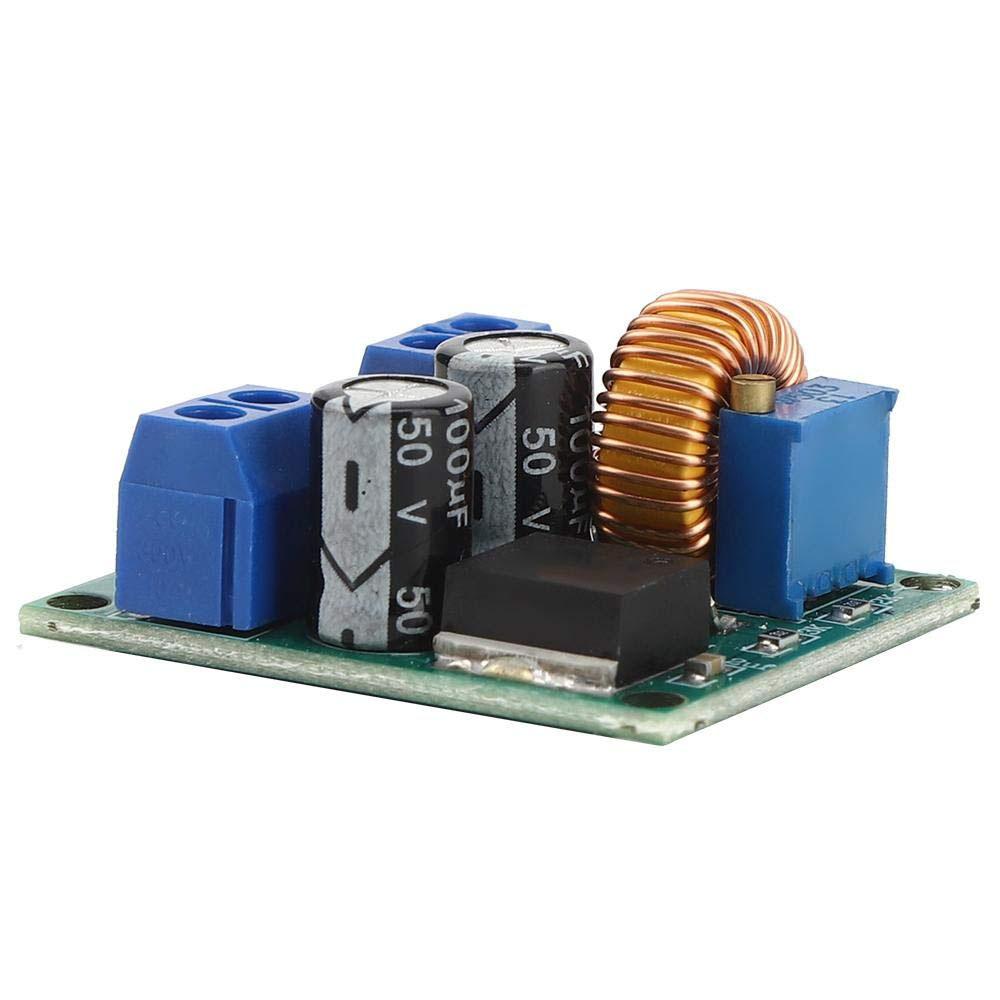

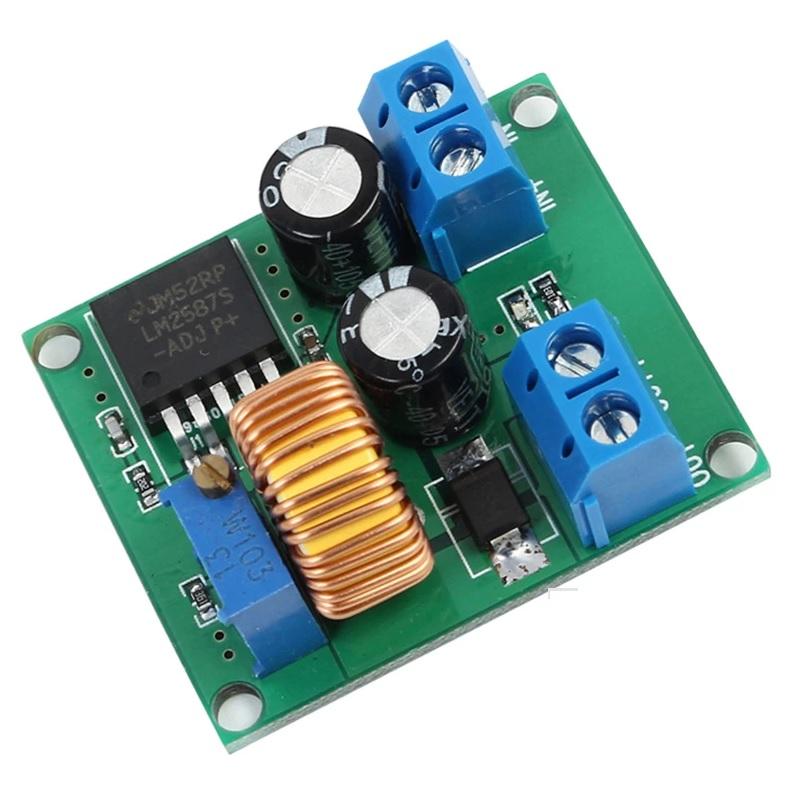

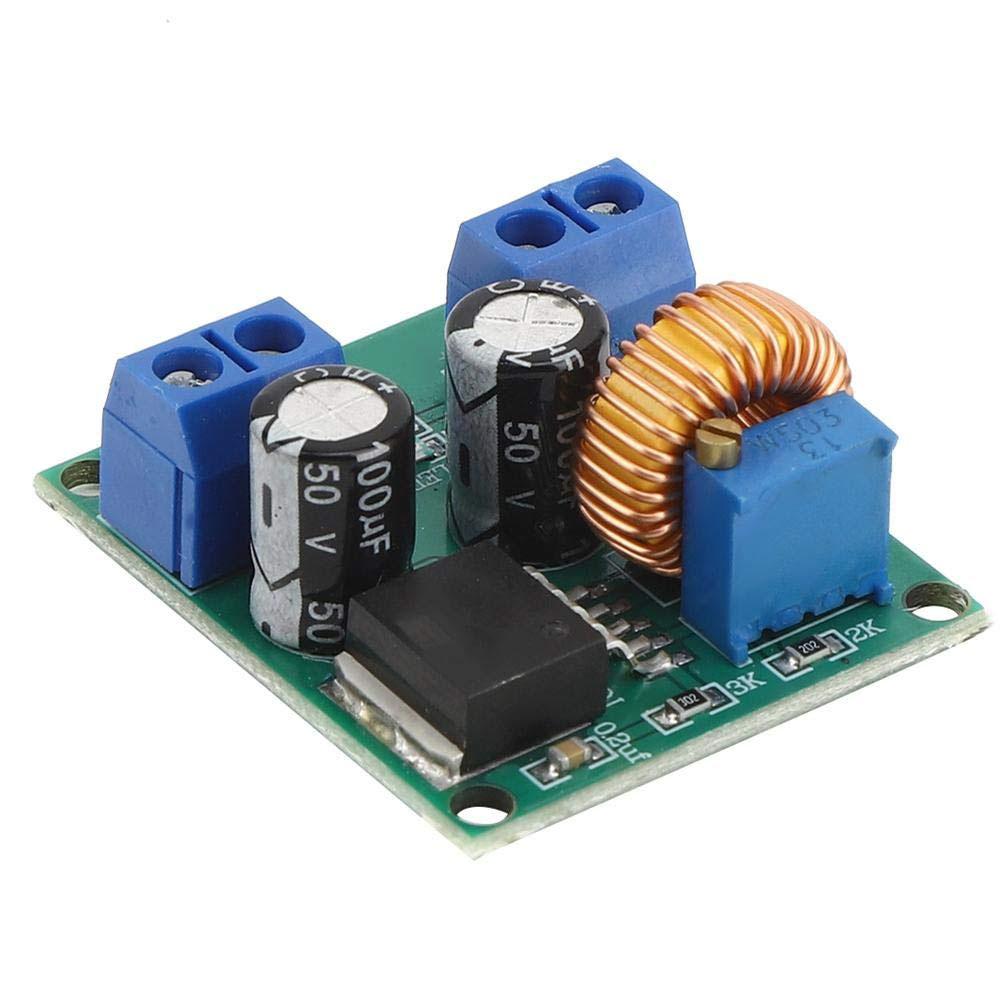

DC-DC Adjustable Step-up Module 3V5V12V to 19V24V30V36V High Power Boost Voltage Stabilized Power Supply Module

Specifications :

  • Module Properties: Non-isolated boost (BOOST)
  • Rectification: Non-Synchronous Rectification
  • Input Voltage Range: 3V ~ 12V
  • Output Voltage RAnge: 19V ~ 36V (Note: If you want to get the max voltage, you should make the input current as least 3A)
  • Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
  • Conversion efficiency: <94% (greater the pressure, the lower the efficiency)
  • Switching frequency: 400KHz
  • Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
  • Load Regulation: ± 0.5%
  • Voltage Regulation: ± 0.5%
  • Operating Temperature: -40 ? ~ +85 ?
  • Dimensions: 43mm * 21mm * 14mm (L * W * H)
SKU: RDNA-WX19.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

283.20 (Inc. GST)
240.00 (+18% GST Extra)

In stock

In stock

17 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This is  is a non-isolated step-up boost voltage converter featuring adjustable output voltage, high efficiency. It converts input voltage of 3-12V DC to an output voltage of 19-36V DC.

Features:-

  • Wide input voltage 3-12V DC, optimum operating voltage range is 19-36V DC
  • Wide Output voltage 19-36V DC;
  • Built-4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)

Package Includes:

1 x DC-DC Adjustable Step-up Module
