DC 12V Dual LED Display Timing Delay Relay Module Cycle Timer Digital 20A 0-999 Seconds Minutes Hours Cycle Time Control Switch

Specifications:

Parameter setting is simpler
Small and exquisite appearance
Direct output type
Wide application
Timing range: 0~999 (seconds, minutes, hours) Minimum unit: 1 second

SKU: RDNA-F349

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹481.01 (Inc. GST)
₹407.63 (+18% GST Extra)

In stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

16 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

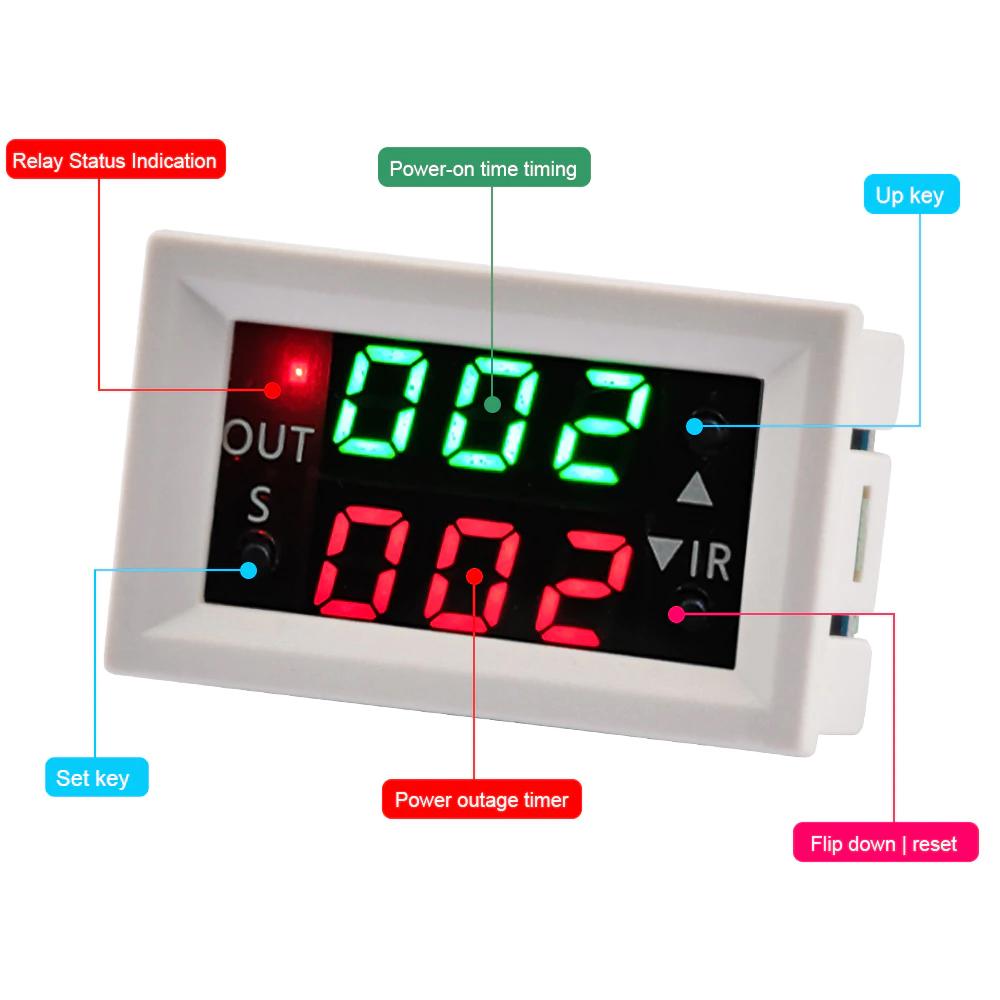

This is a Digital Timer Relay module With a dual display. In this Module, you will get a two-timing Section Timing time T1, timing time T2 where you can set your time as per your priority and you can change the time in this chosen timing format 0-999s,0-999min,0-999h.

This Module works on this particular mode delay on, delay-off, timing on, timing off, cycle on, cycle off.

Product Instructions:

Please pay attention to your first use. You need to wait for 6s after your setting data, the module will save the date you have set after 6s.

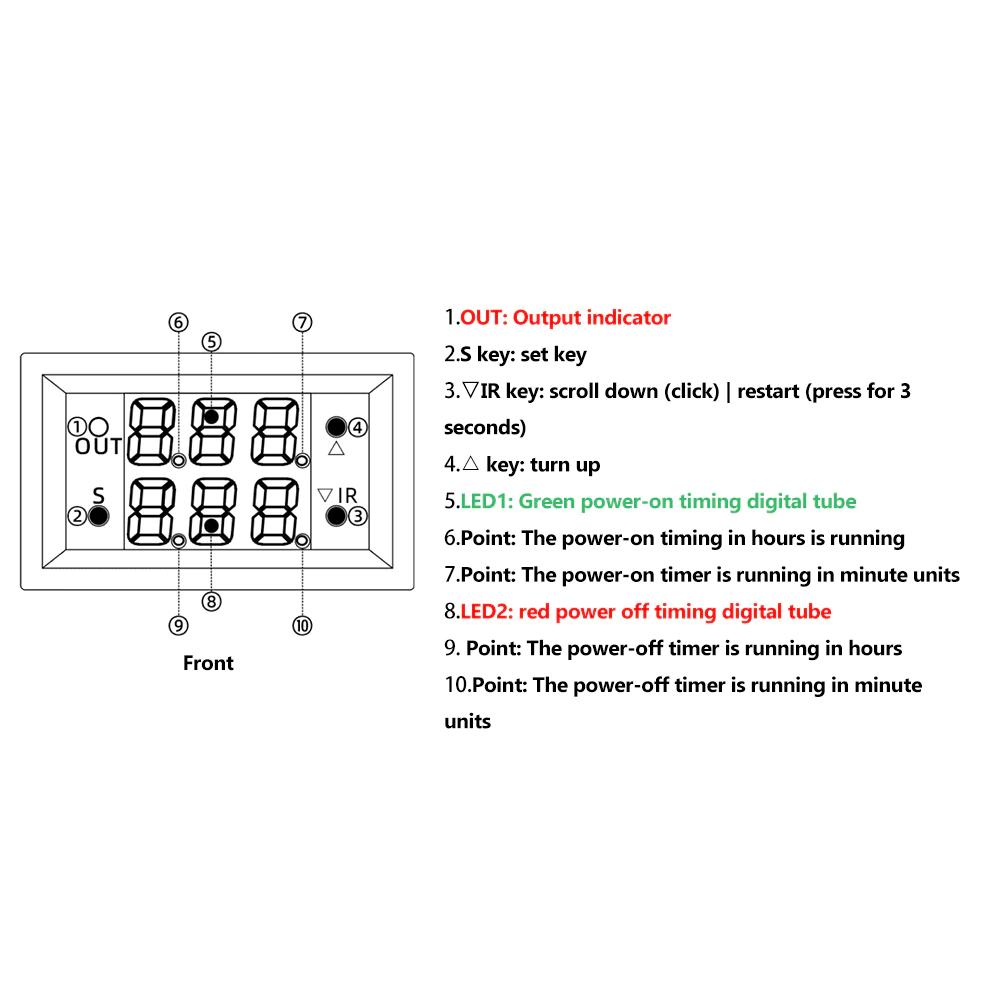

Short press button SET: If you start the time setting mode, the Nixie tube will blink. You could adjust the time T1 and T2 by button+ and button-. Please wait for 5s after your set date, the module will save the date you have set after 5s.

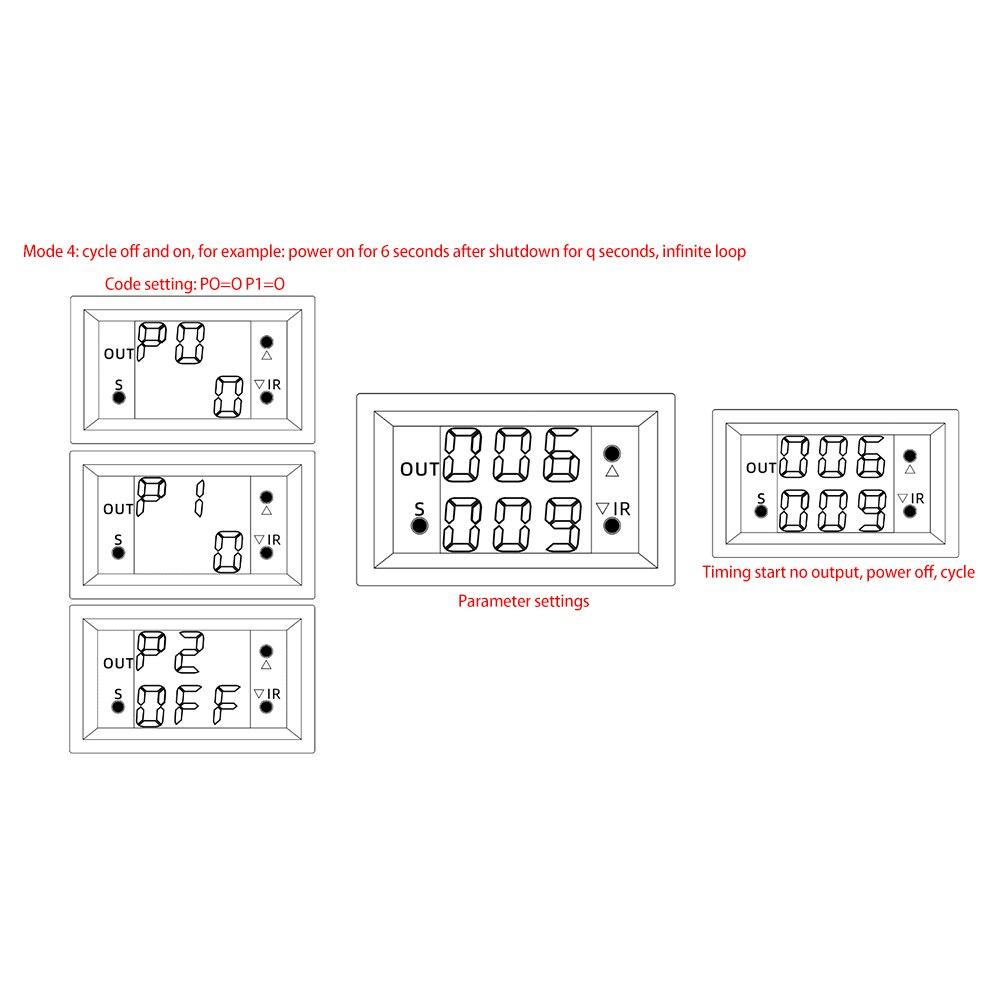

Long press button SET: if you start the parameter setting mode. There is two group parameter for your choice: P0 and P1. You could switch P0 or P1 by short press SET. Under the parameters P0 and P1, you could set the timing mode by the button+ and button-.

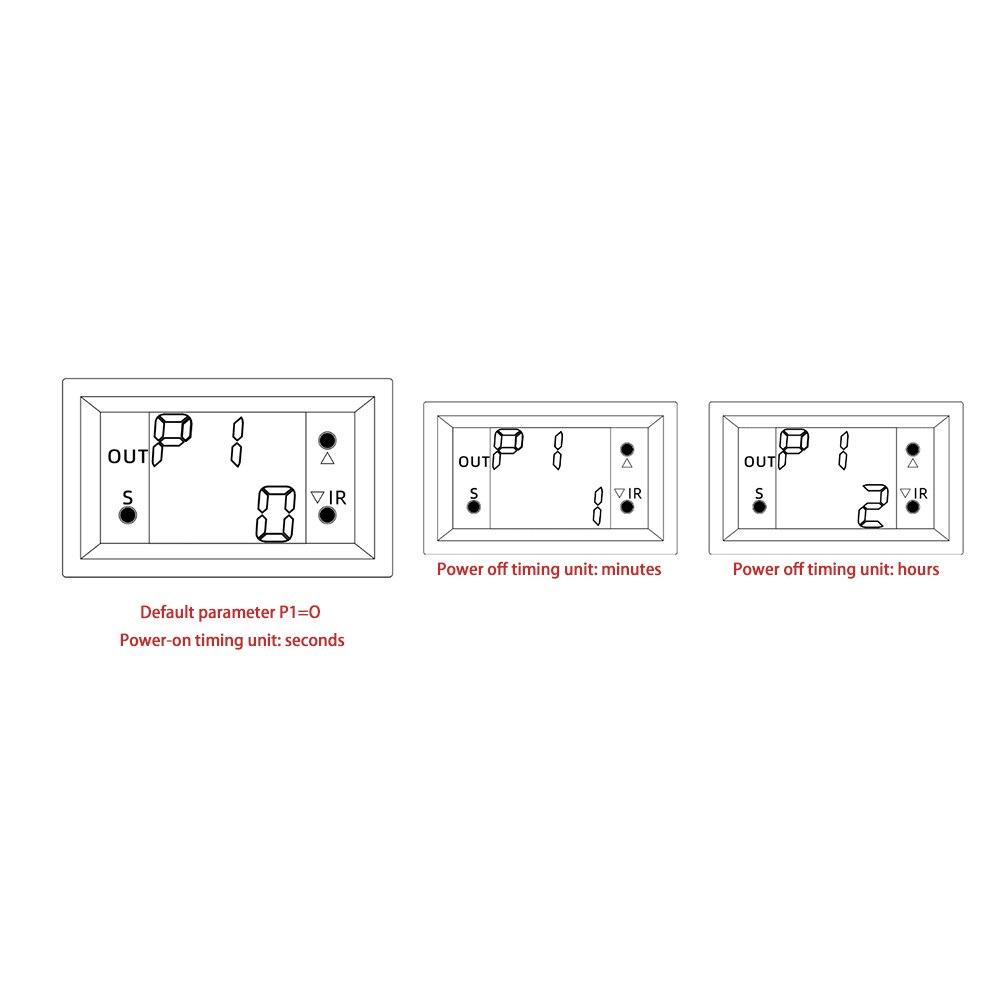

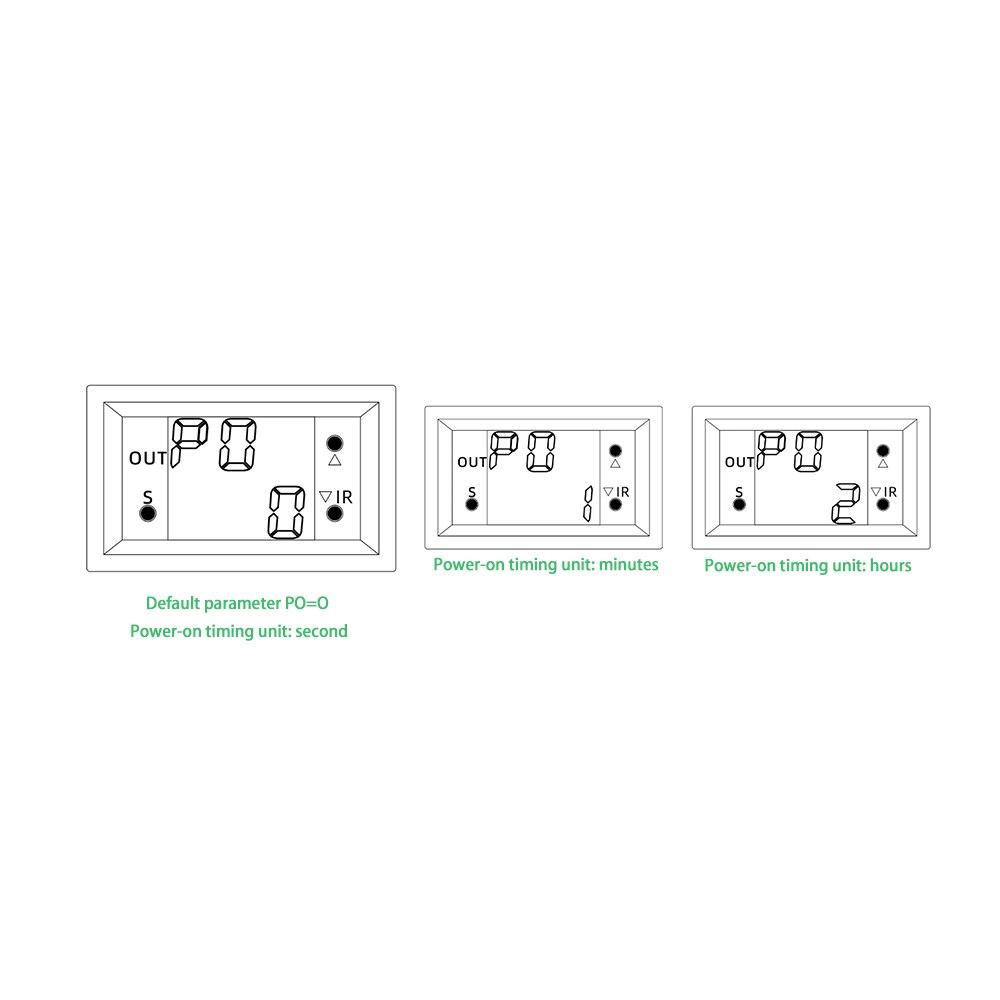

P0–0: Timing time mode : 0—999s.
P0–1: Timing time mode : 0—999min.
P0–2: Timing time mode : 0—999h.

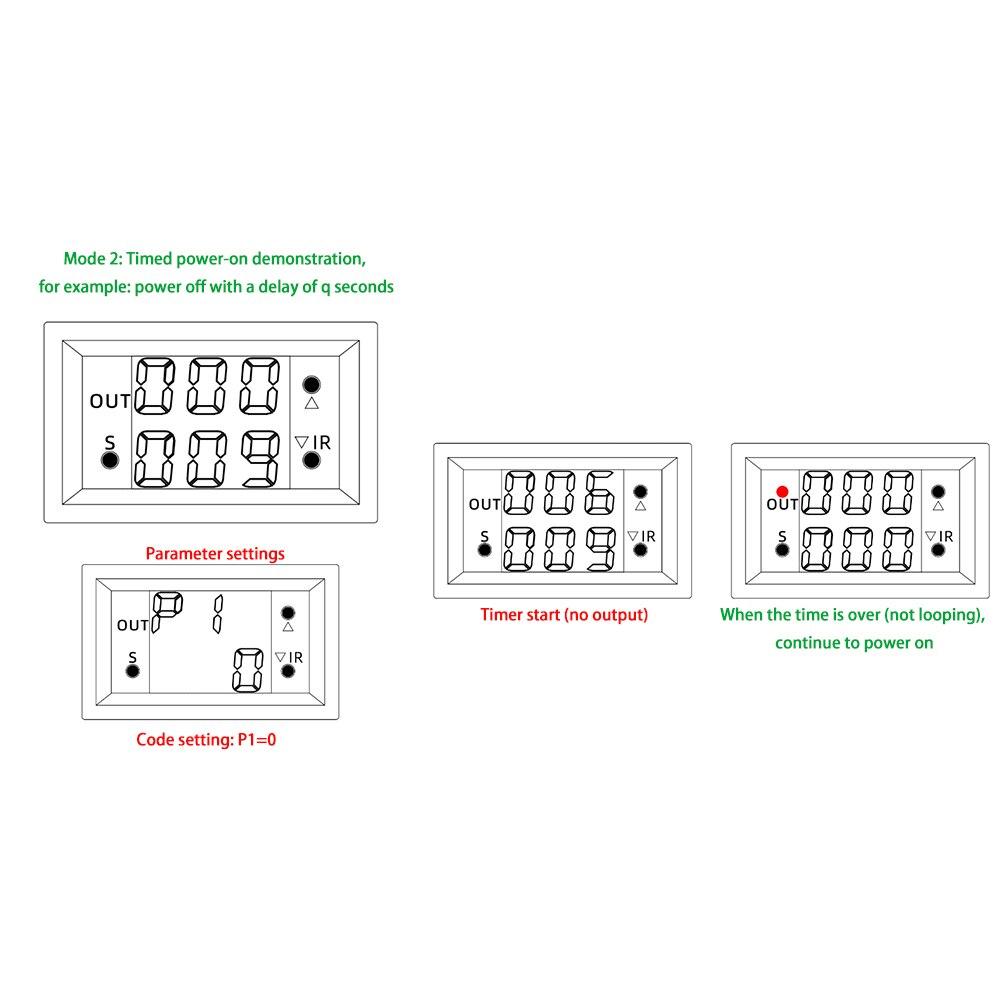

P1–0: The relay will connect after you delay the T1 time.
P1–1: The relay will disconnect after you delay the T1 time.
P1–2: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time, it is finished.
P1–3: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time, it is finished.
P1–4: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time, it is cyclic.
P1–5: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time, it is cyclic.

DC 12V Dual LED Display Timing Delay Relay Module Cycle Timer Digital 20A 0-999 Seconds Minutes Hours Cycle Time Control Switch

Parameter:

Product weight: 30g

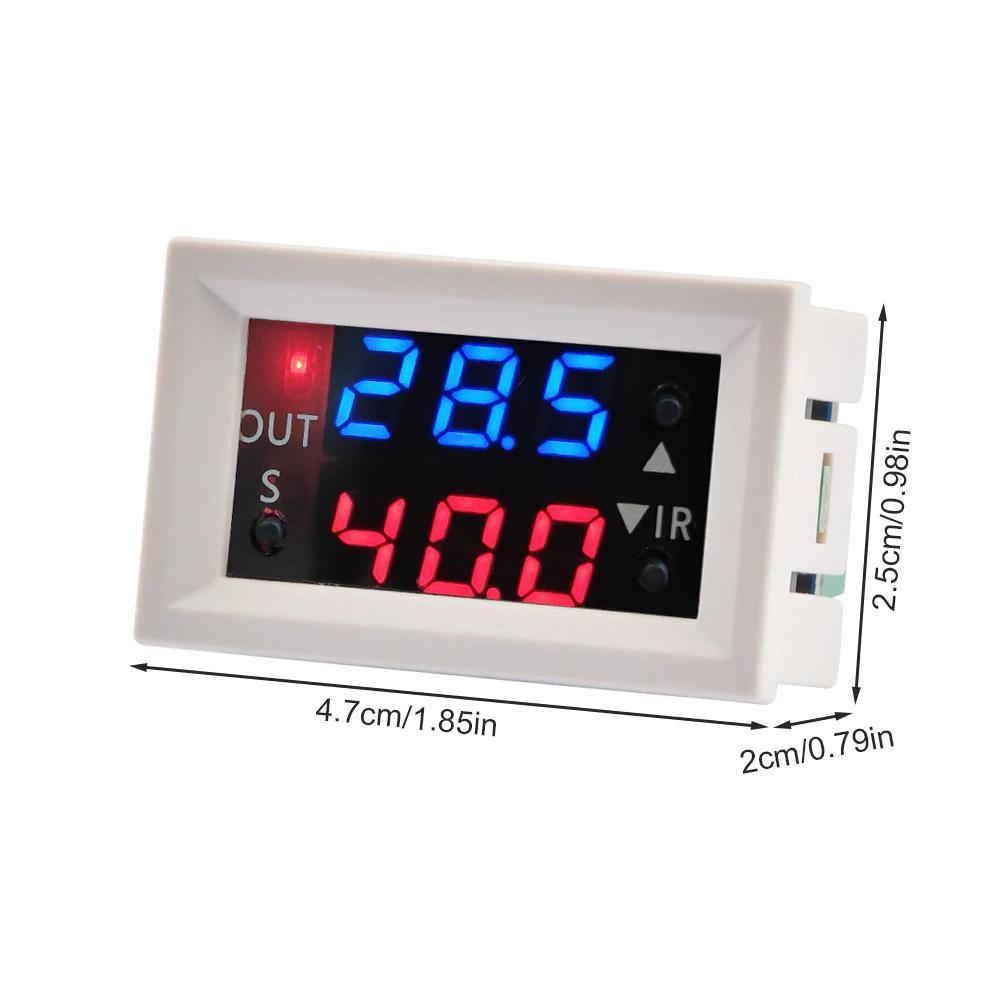

Product size: 48X29X34mm
Mounting opening: 45.5×26.1mm
Timing range: 0~999 (seconds, minutes, hours) Minimum unit: 1 second
Technical parameters: DC12V 2OA MAX 240W MAX
Working humidity: 35%~85%
Working temperature: -10~60℃

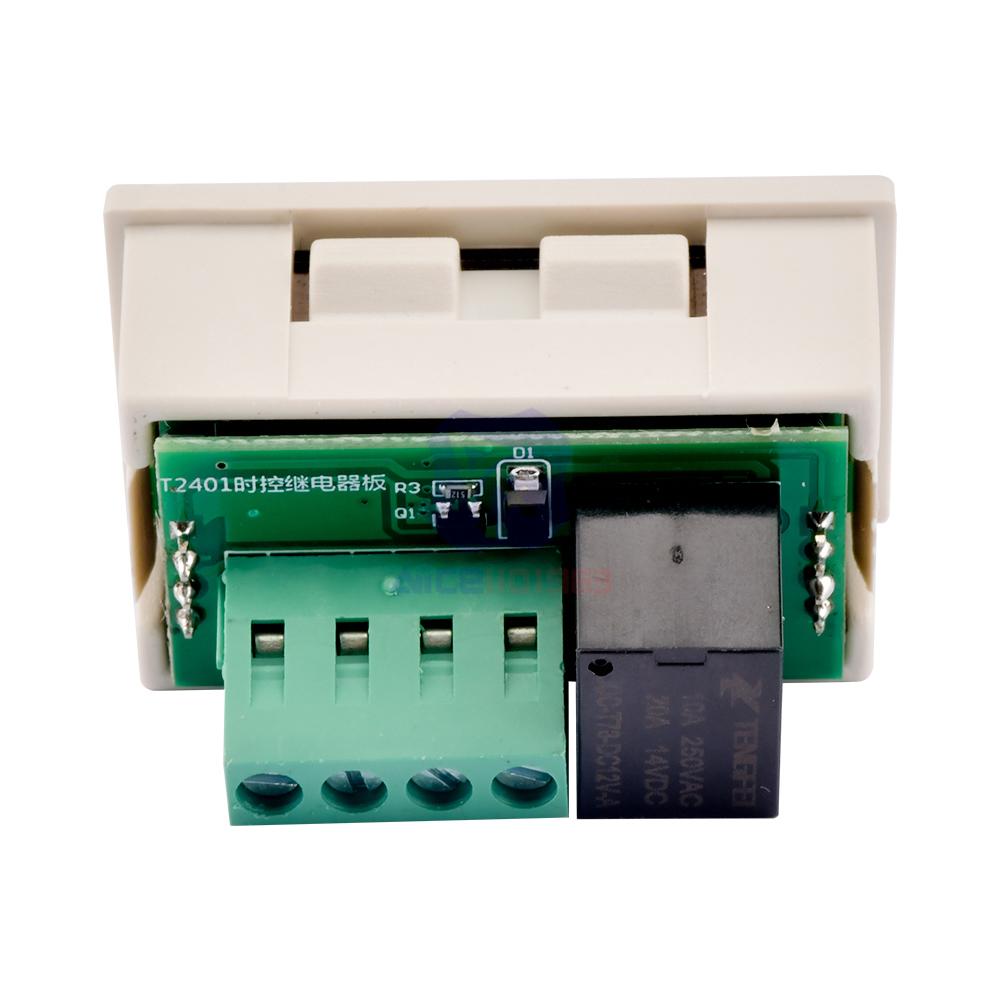

Size unchanged, compatible with installation, convenient for direct output wiring, green start and red stop, easy to set up, appearance patent

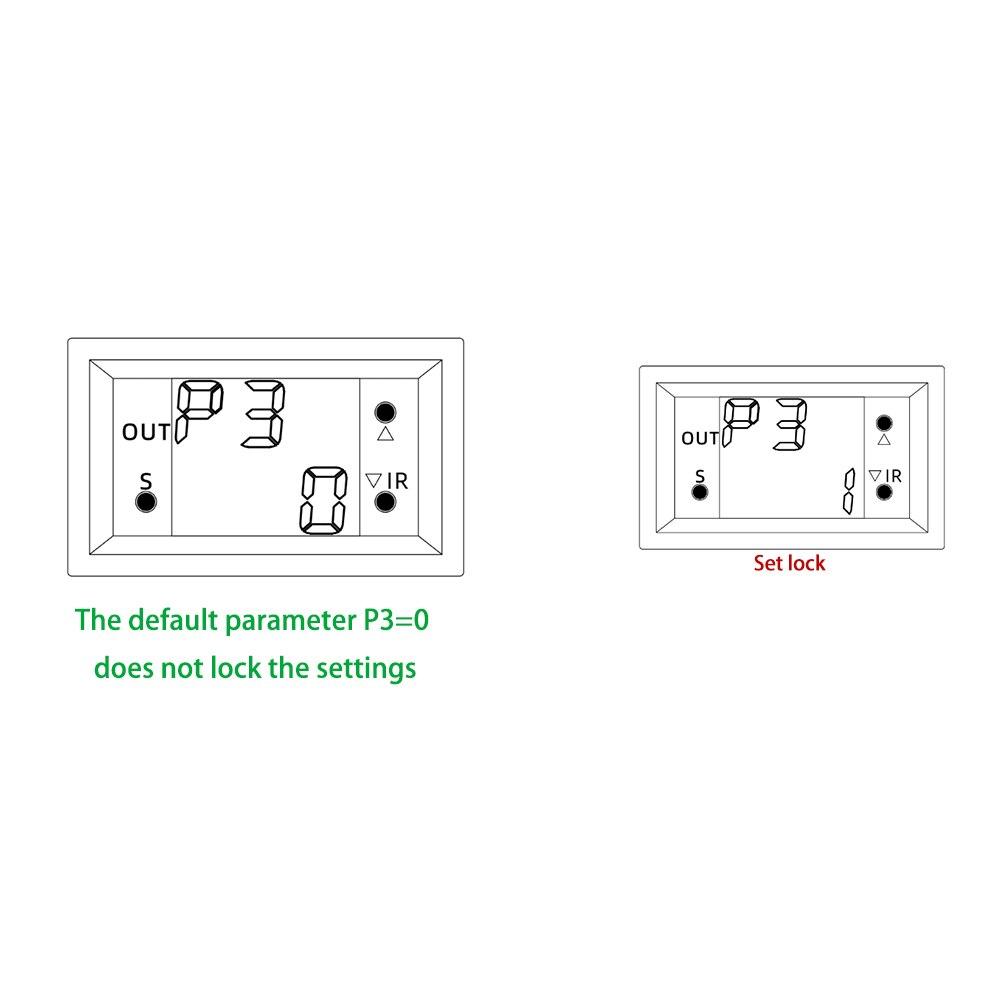

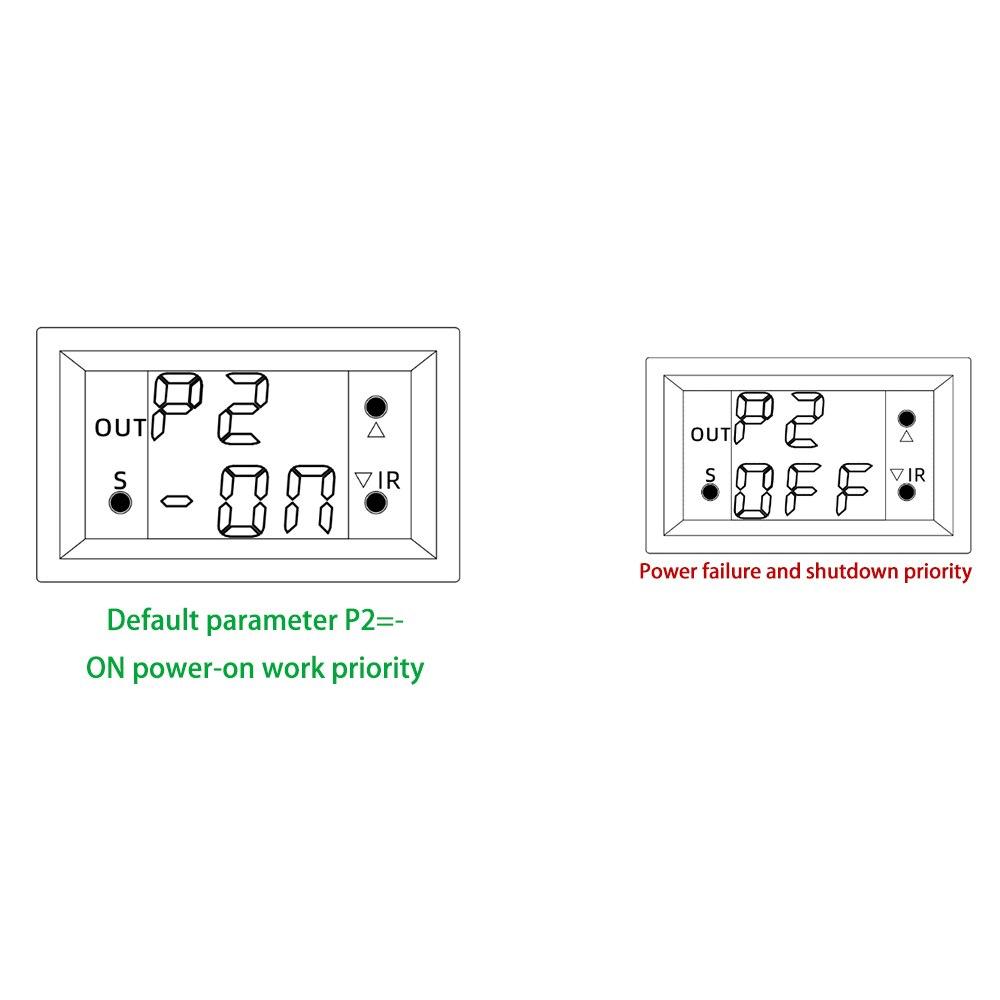

Code menu introduction

Press and hold the S button for 6 seconds to enter the code menu

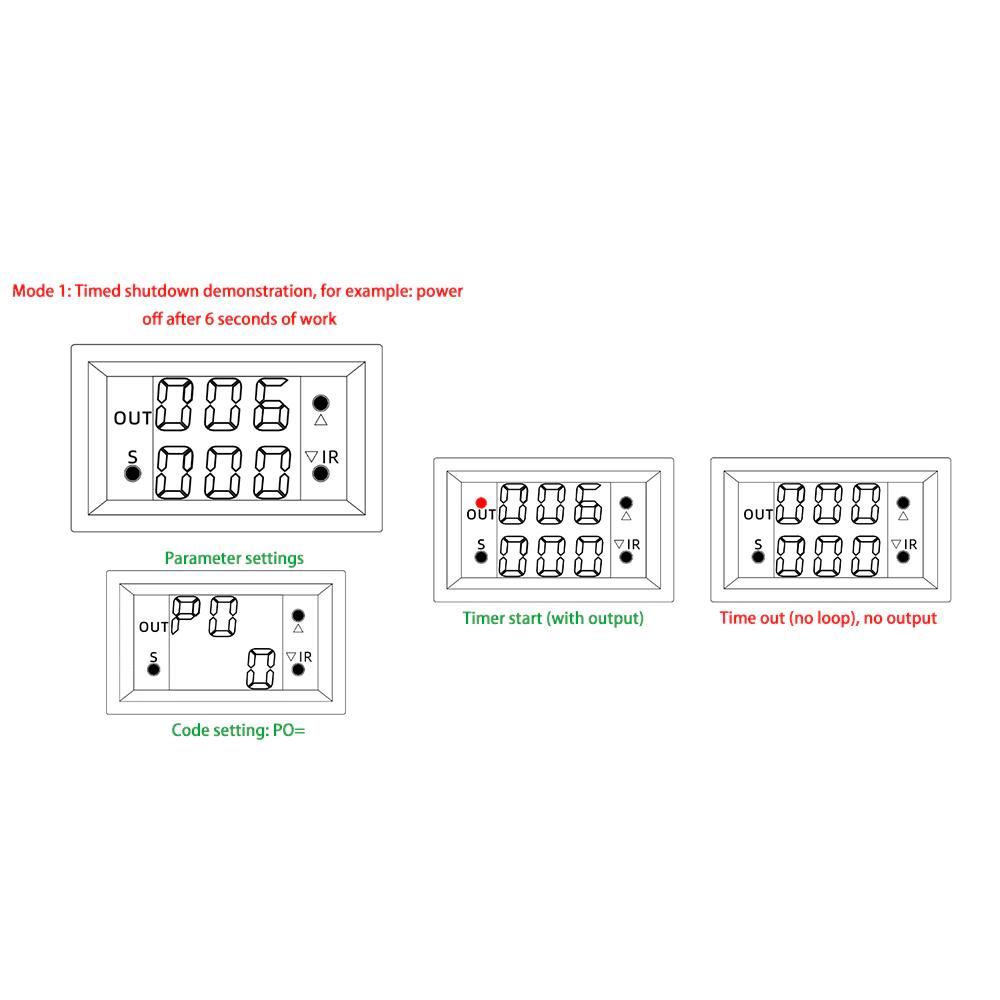

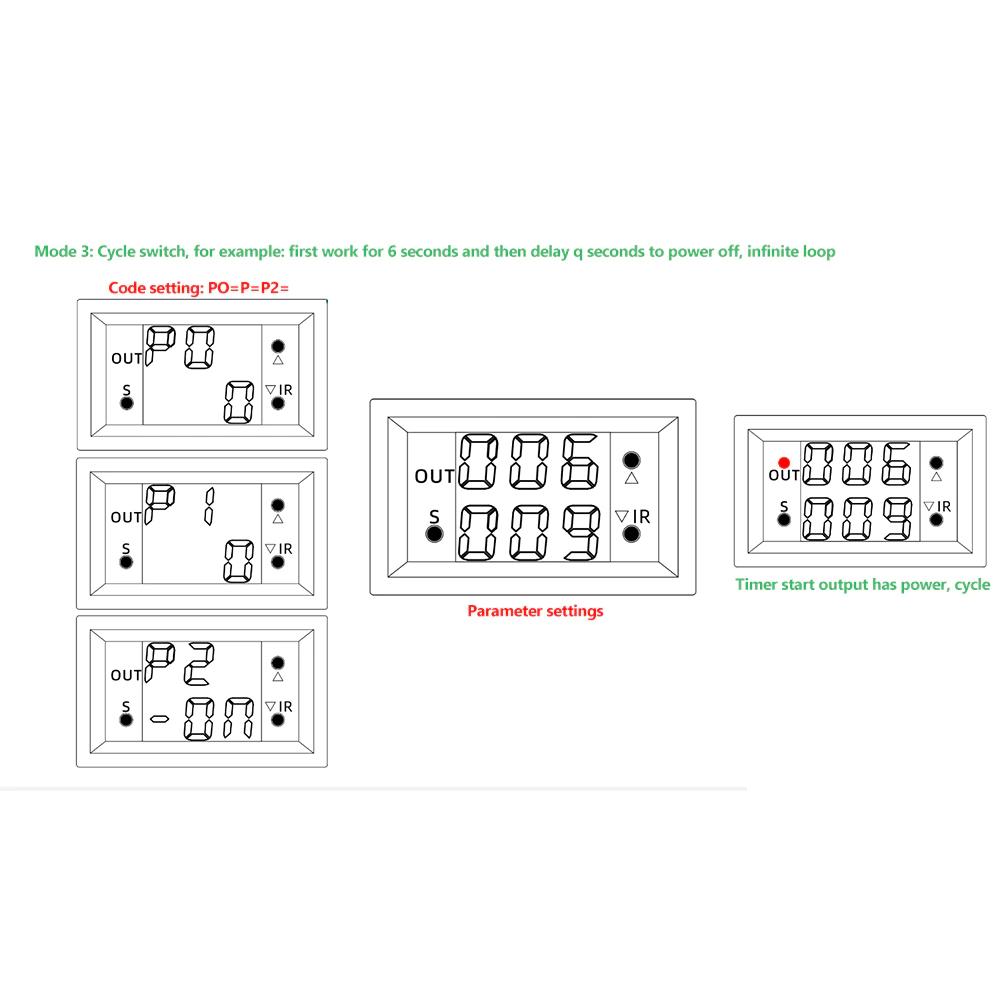

Mode setting demo
Double-click the S key to enter the parameter setting mode

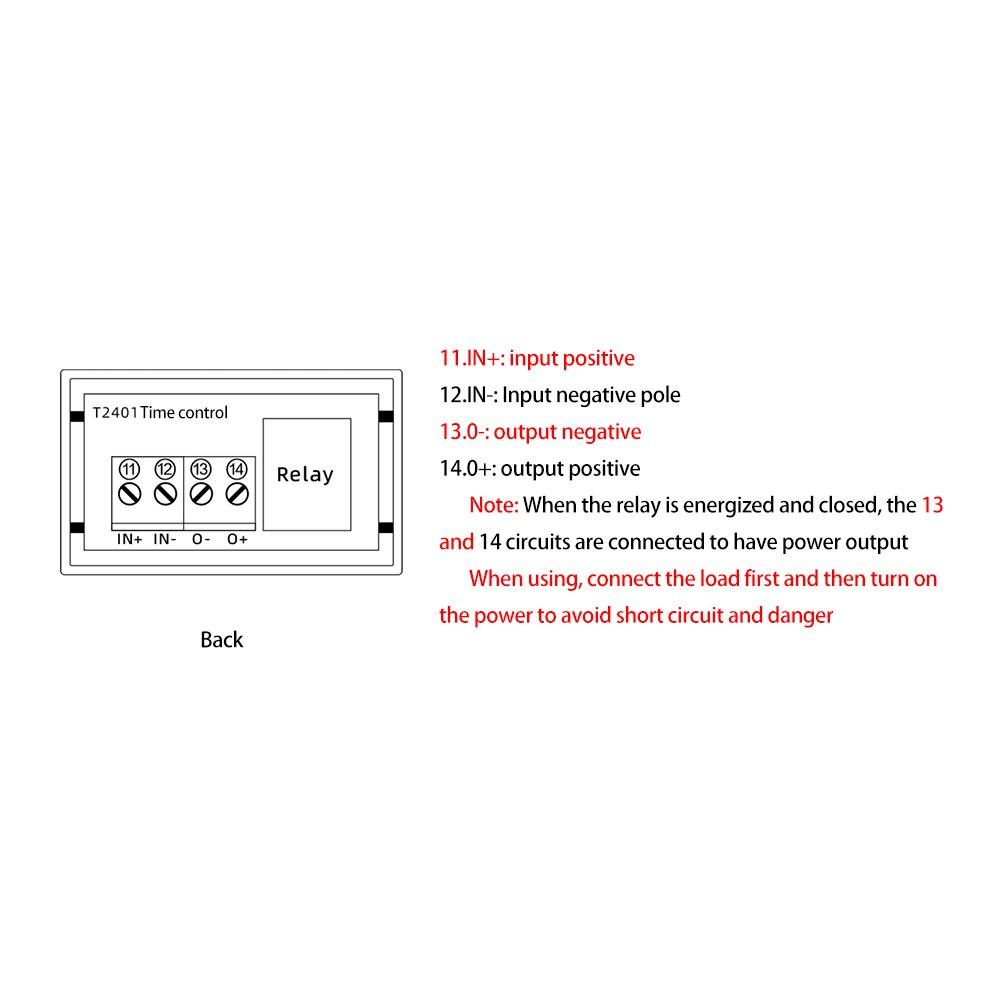

Safety warning

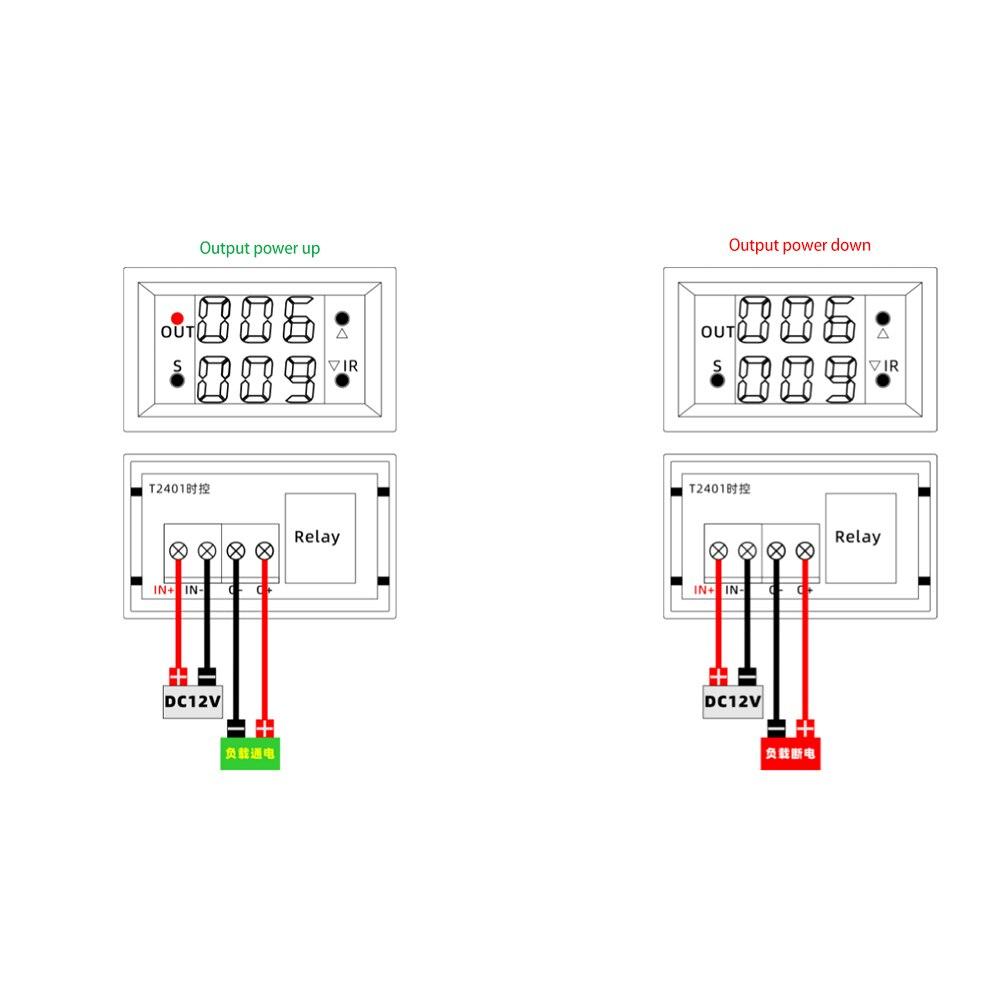

The output is active, connect the load and then power on to avoid short circuit

Packing List:

1 x DC 12V Dual LED Display Timing Delay Relay Module Cycle Timer Digital 20A 0-999 Seconds Minutes Hours Cycle Time Control Switch
