DC 12V Bluetooth 2 Channels Relay Module Remote Control Mobile Phone Switch Wireless Relay Module

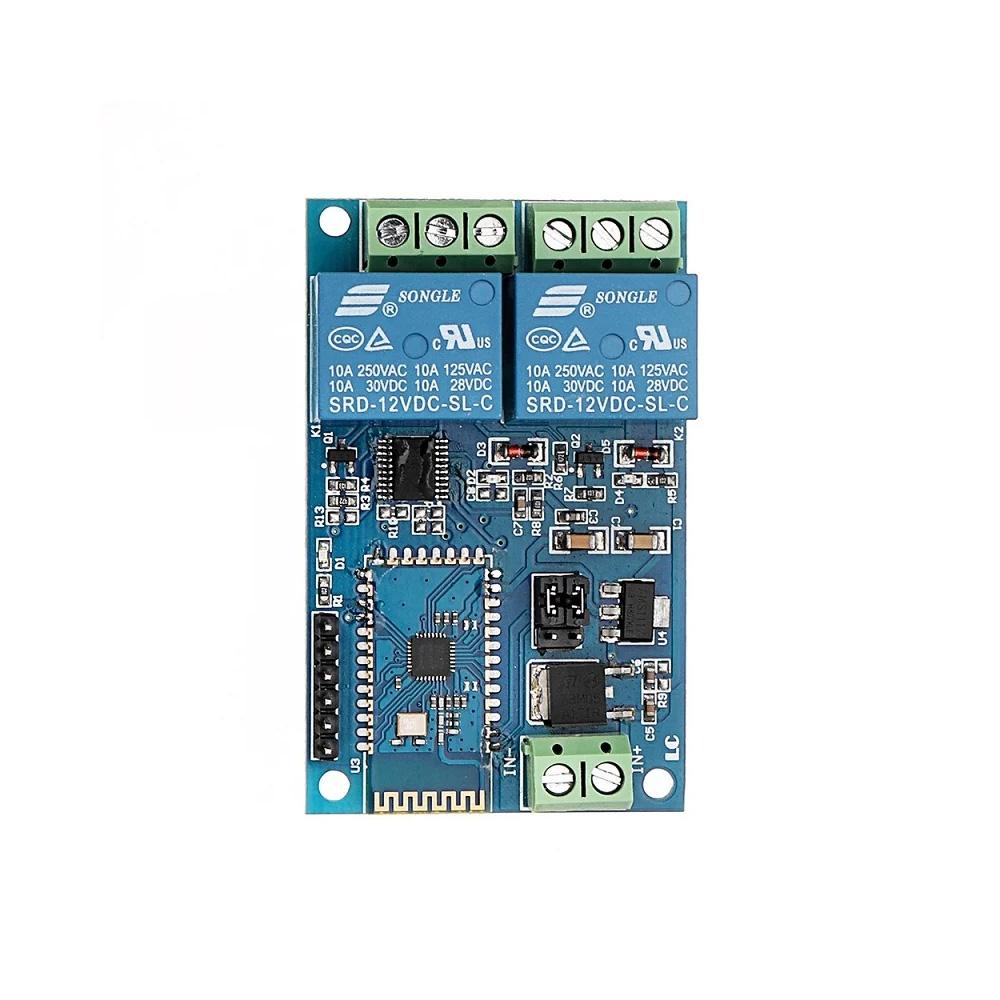

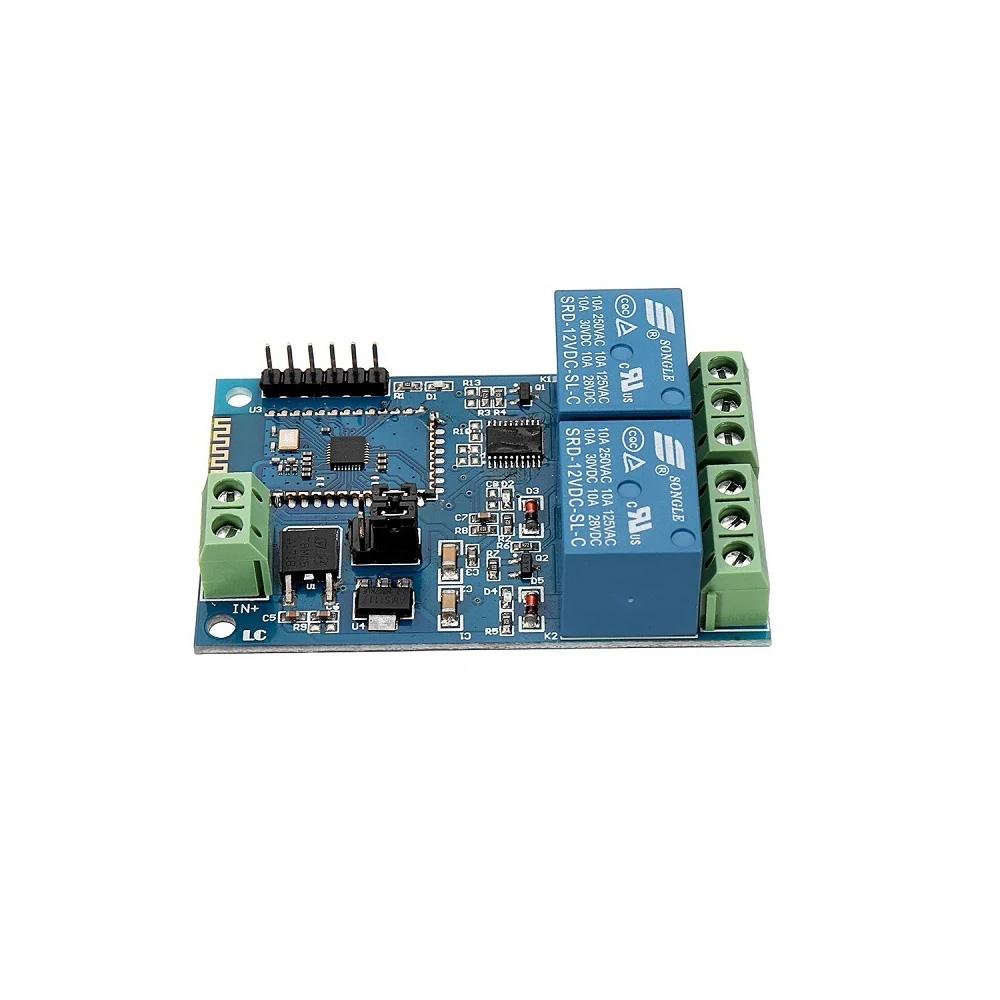

The DC 12V 2-Channel Bluetooth Wireless Control Relay Module contains 2 relay channels that operate on 12VDC to handle the appliances of 230VAC or 30VDC up to the 10A current. The relay module comes with an onboard integrated SPP-C Bluetooth serial slave module, which can be used to control relay switching by sending commands via the mobile phone APP or by your customise Bluetooth remote with very easy to set up.

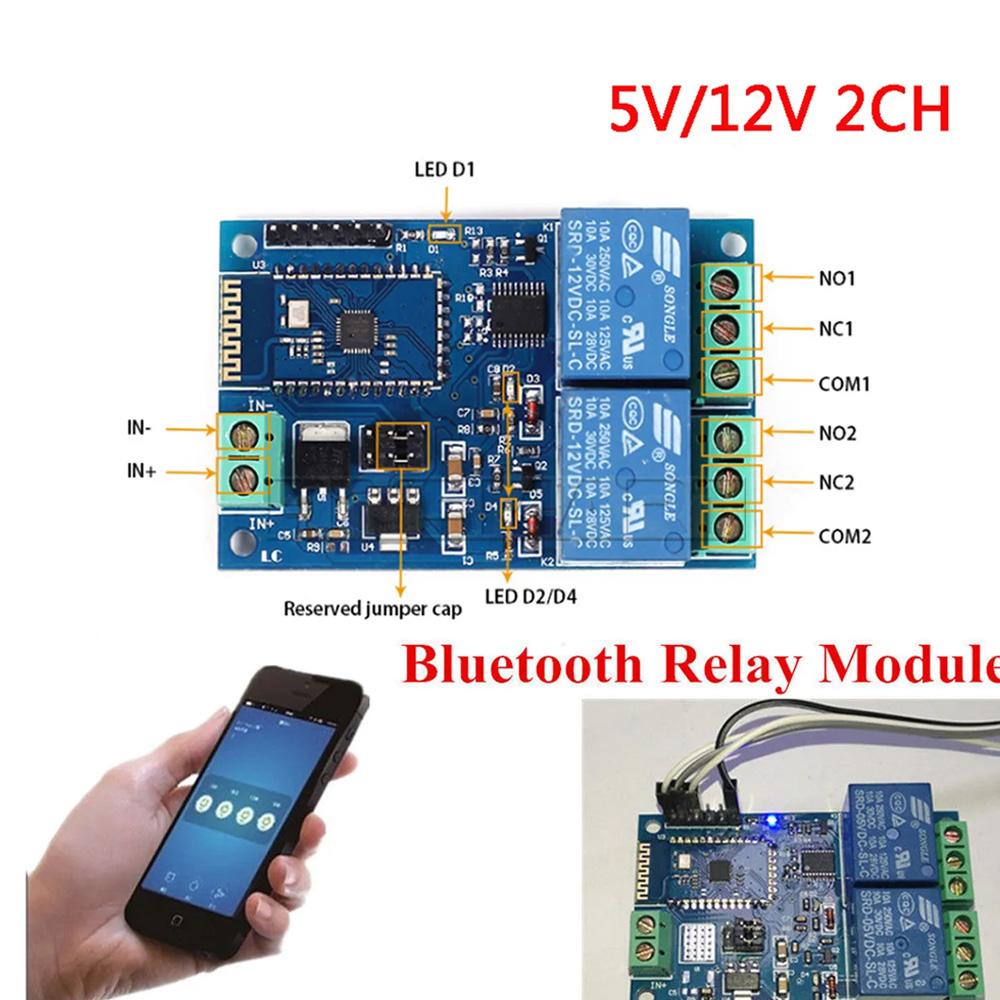

LED Indications:

LED D1(Blue): Bluetooth state indicator:

1. D1 blink slowly-Search Module over Bluetooth and wait till pairing
2. D1 Continue ON means a connection established and ready to use

LED D2/D3/D4/D5 (Red): Relay indicator
These LEDs will show the status of Relay ON-OFF individually

Features:

1. Easy to set up and pair with Android Phone
2. Effective control distance(on open area): 10m
3. On-board 12V, 10 A / 250 v AC 10 A / 30 v DC relay, absorb 100000 times continuously.
4. Module with diode effusion protection short response time
5. Weight: 40 gm approx

Packing List:

1 x DC 12V Bluetooth 2 Channels Relay Module Internet Smart Remote Control Mobile Phone Switch Wireless Relay Module
