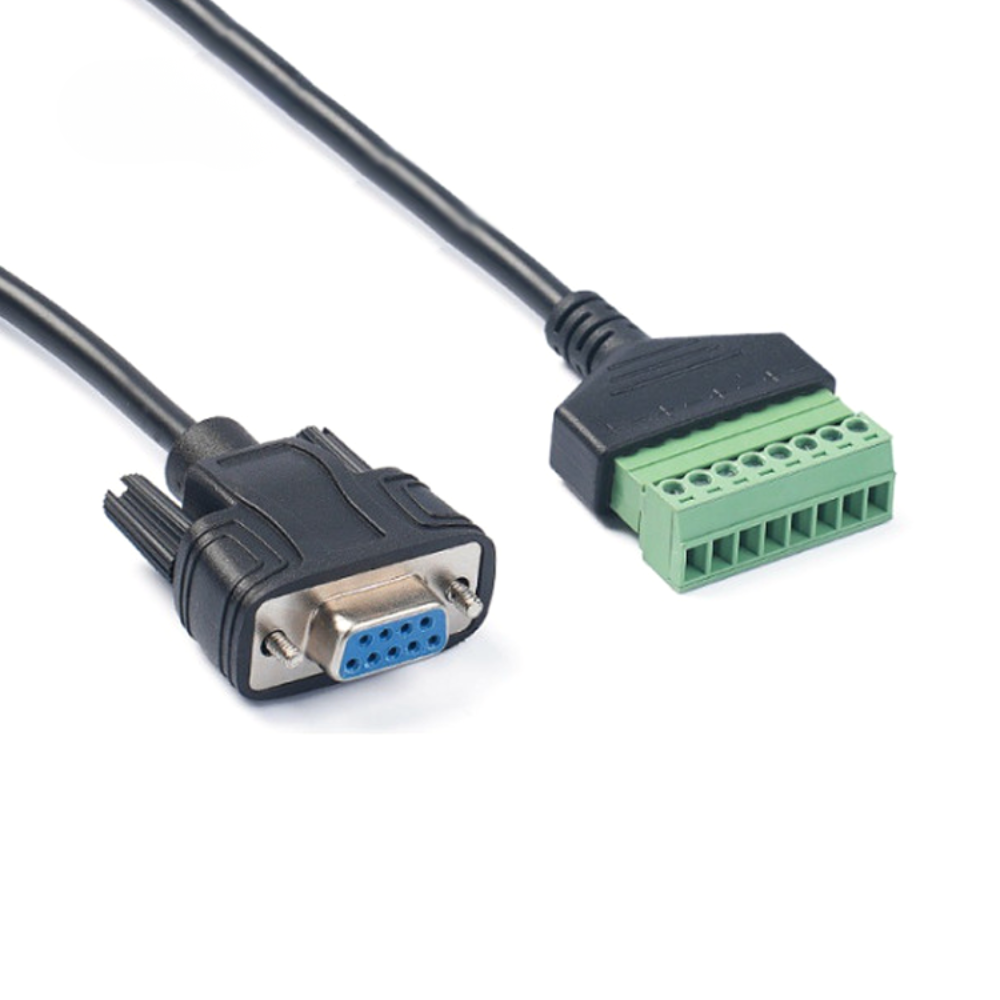

DB9 RS232 Serial to 8P Terminal Screw Adapter Converter DB9 Female with 8pin Terminals Block Plug Cable - Image 1

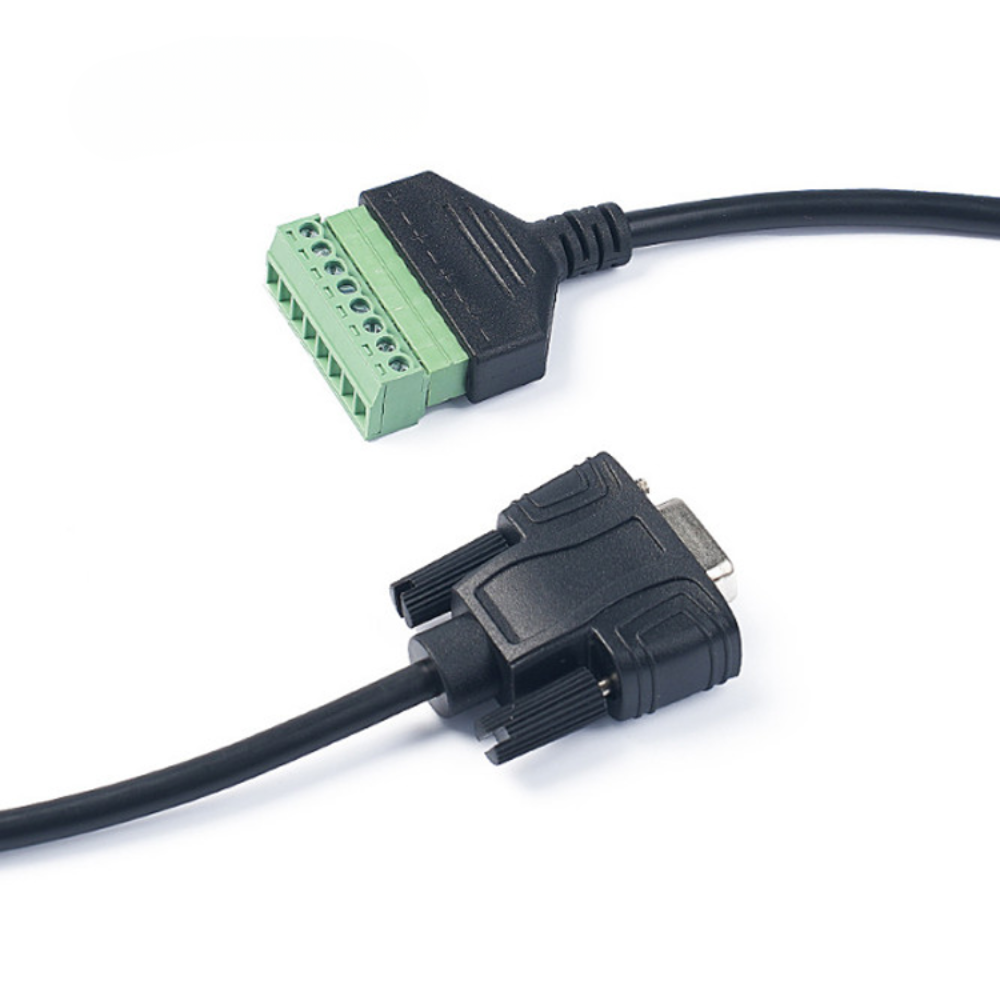

DB9 RS232 Serial to 8P Terminal Screw Adapter Converter DB9 Female with 8pin Terminals Block Plug Cable - Image 2

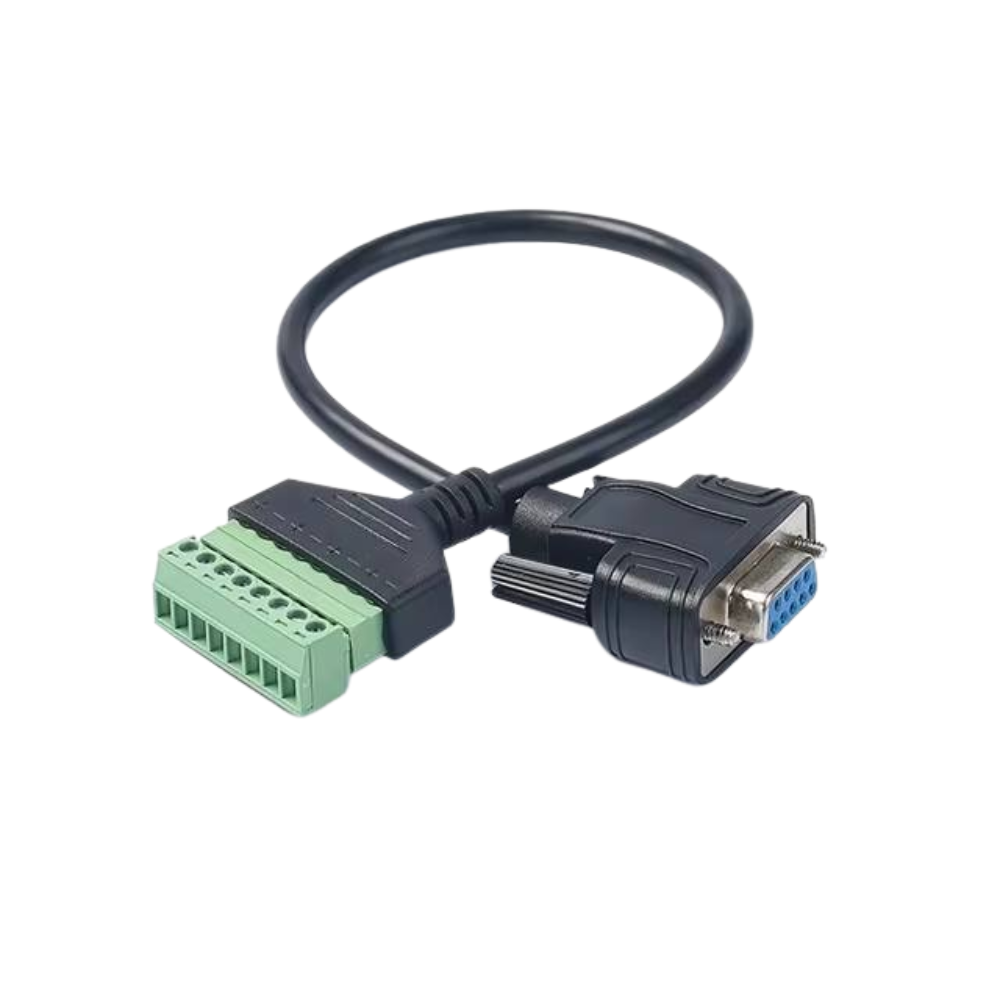

DB9 RS232 Serial to 8P Terminal Screw Adapter Converter DB9 Female with 8pin Terminals Block Plug Cable

Specifications

Connector type: DB9 Female (9-pin D-Sub) → Screw-terminal block with 9 positions.
Terminal block: 9 positions (one for each DB9 pin).
Supported wire size: 22-14 AWG for the screw terminals.
Terminal pitch (spacing): ~3.96 mm.
Screw hole diameter (for terminal block screws): ~2 mm.
Board size (example): ~40 mm × 37 mm × 15 mm.
Mounting hole diameter: ~3 mm.
Material: PCB board with all-copper DB9 seat (for better contact), anti-oxidation.
Colour: Green board (some variants) or Black shell version.
Protocol support: RS232 and RS485 (in many listings).
Housing/variant: Some versions include shell + nut + wire-clamp/strain-relief. For example: dimensions 55 × 34 × 21 mm for the shell version.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹258.99 (Inc. GST)
₹219.49 (+18% GST Extra)

Only 2 left in stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

19 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The DB9 RS232 Serial to 8P Terminal Screw Adapter Converter with a DB9 Female Connector is designed to facilitate connections between devices that use RS232 serial communication and those utilizing a terminal block. This adapter is a practical solution for many applications in industrial automation, telecommunications, and data acquisition systems. Below are details regarding its features, specifications, and applications:

Features

DB9 Female Connector:
- The adapter features a DB9 female connector, which allows it to connect to devices with a corresponding male DB9 connector, facilitating a reliable RS232 communication link.
8-Pin Terminal Block:
- Comes equipped with an 8-pin terminal block. Each pin features a screw terminal, enabling secure and easy wiring connections without the need for soldering.
Easy Installation:
- Designed for straightforward installation. The screw terminals make it easy to connect wiring by simply inserting the wire into the terminal and tightening the screw.
Durable Design:
- Generally constructed from high-quality plastic with metal terminals, ensuring long-lasting durability and reliable conductivity.

Specifications

Connector Type: DB9 Female
Terminal Block: 8-pin screw terminal block
Material: Typically made from robust plastic and conductive metal components.
Cable Length: Varies by product; commonly available in different lengths to suit various needs.

Applications

Industrial Automation:
- Ideal for connecting serial devices in industrial settings, such as PLCs (Programmable Logic Controllers), sensors, and machinery that requires RS232 communication.
Telecommunications:
- Useful in networking setups where devices need to communicate using serial protocols, enabling seamless integration.
Data Acquisition Systems:
- Facilitates the connection of equipment collecting data from sensors or other devices, simplifying the wiring process.
Legacy Device Integration:
- Perfect for retrofitting older equipment that relies on RS232 connections, allowing for easier integration with newer technologies.
