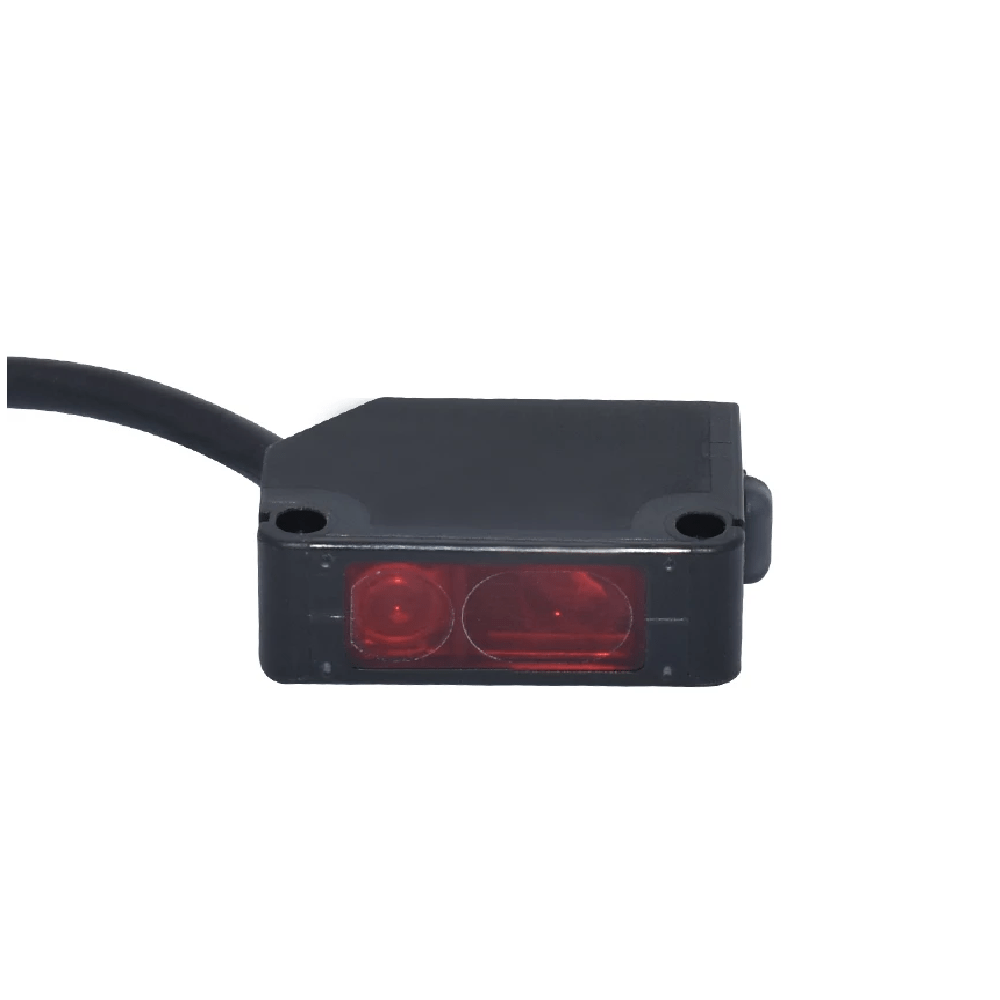

Panasonic CX-444 NPN Diffuse Photoelectric Sensor – Original

Specifications :

Sensor Style : Block
Detection Type :Diffuse
Detection Range: 15 mm → 100 mm
Output Type : NPN
Electrical Connection :Cable 2 m
Maximum DC Voltage :24V
Light Source :LED
Maximum Current :100 mA
Response Time : 1 ms
Housing Material : PBT
Series :CX-400
Minimum Operating Temperature:-25°C
Maximum Operating Temperature:+55°C

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹2,854.99 (Inc. GST)
₹2,419.49 (+18% GST Extra)

Only 2 left in stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

10 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

A photoelectric sensor emits a light beam (visible or infrared) from its light-emitting element.A reflective-type photoelectric sensor is used to detect the light beam reflected from the target.A thrubeam type sensor is used to measure the change in light quantity caused by the target crossing the optical axis. The Panasonic CX-444 is a reliable NPN diffuse photoelectric sensor designed for a range of industrial automation applications. This sensor is known for its accuracy in detecting objects without the need for reflectors, making it a versatile choice for various environments.

Key Features:

Type: NPN Diffuse Photoelectric Sensor
Sensing Method: Diffuse reflection (detects objects based on the light reflected from them)
Detection Range: Typically around 0 to 2 meters, depending on the object size and surface characteristics
Output Type: NPN output, suitable for sinking current applications
Voltage Supply: Usually operates at 10-30V DC, allowing for adaptability to different machine systems
Response Time: Fast response time, typically in the range of milliseconds, making it suitable for high-speed applications
Adjustment: Some models may include adjustable sensitivity settings to optimize for specific detection tasks
Output Configuration: Provides a stable output signal when an object is detected, simplifying integration into existing control circuits
Housing Material: Durable construction for industrial applications, often with an IP rating (Ingress Protection) suitable for various environments
Mounting Options: Various mounting configurations available to ease installation in different setups

Applications:

Material Handling: Ideal for detecting the presence of packages or objects on conveyor systems.
Automation Equipment: Used in automated machinery for position feedback, object detection, and counting applications.
Quality Control: Employs in production lines to ensure the presence of products and to verify correct positioning.
Safety Applications: Can be utilized in curtain systems or gates for safety interlocking.

Advantages:

Tool-Free Installation: Designed for easy setup and maintenance, facilitating quick changes in production environments.
Versatile Detection: Capable of detecting a wide variety of materials (plastic, metal, cardboard, etc.), providing flexibility in design.
Durability: Built to withstand harsh industrial conditions, ensuring long-term reliability.

Always consult the manufacturer’s specifications and datasheet for precise technical details and installation guidelines to ensure optimal performance in your specific application.

CX-444 Datasheet

You may also like :

Other Proximity Sensor

Package Includes:

1 x CX-444 Panasonic Diffuse Photoelectric Sensor
