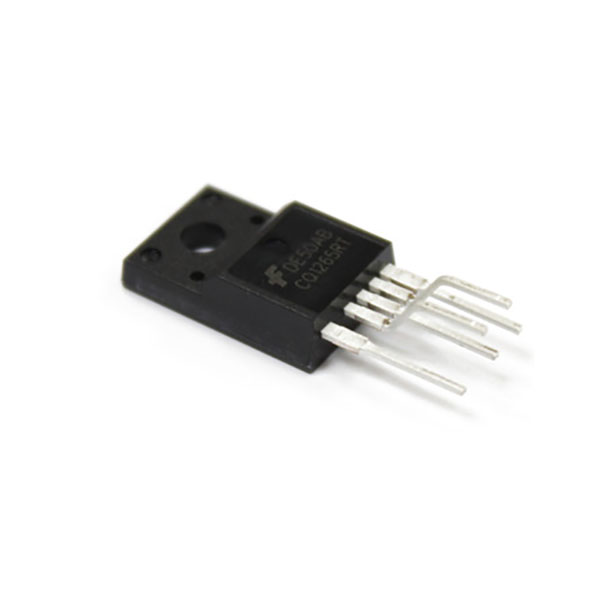

CQ1265RT IC

Name: CQ1265RT IC
SKU: RDNA-100.4
Availability: InStock

Features:

• Optimized for Quasi-Resonant Converter (QRC)
• Advanced Burst-Mode Operation for under 1W Standby
Power Consumption
• Pulse-by-Pulse Current Limit
• Over Load Protection (OLP) – Auto Restart
• Over Voltage Protection (OVP) – Auto Restart
• Abnormal Over Current Protection (AOCP) – Latch
• Internal Thermal Shutdown (TSD) – Latch
• Under Voltage Lock Out (UVLO) with Hysteresis
• Low Startup Current (typical : 25uA)
• Internal High Voltage SenseFET
• Built-in Soft Start (20ms)
• Extended Quasi-Resonant Switching

SKU: RDNA-100.4

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹59.00.Current price is: ₹56.00. (Inc. GST)
₹47.46 (+18% GST Extra)

In stock

0 days 00 hr 00 min 00 sc

In stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

15 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

In general, a Quasi-Resonant Converter (QRC) shows lower EMI and higher power conversion efficiency compared to a conventional hard-switched converter with a fixed switching
frequency. Therefore, a QRC is well suited for noise-sensitive applications, such as color TV and audio. Each product in the FSCQ-Series contains an integrated Pulse
Width Modulation (PWM) controller and a SenseFET, and is specifically designed for quasi-resonant off-line Switch Mode Power Supplies (SMPS) with minimal external components. The PWM controller includes an integrated fixed frequency oscillator, under voltage lockout, leading edge
blanking (LEB), optimized gate driver, internal soft start, temperature-compensated precise current sources for a loop compensation, and self protection circuitry. Compared with a
discrete MOSFET and PWM controller solution, the FSCQSeries can reduce total cost, component count, size, and weight, while simultaneously increasing efficiency, productivity, and system reliability. These devices provide a basic platform that is well suited for cost-effective designs of quasi-resonant switching flyback converters

Datasheet available here.

Package Include:

1 x CQ1265RT IC
