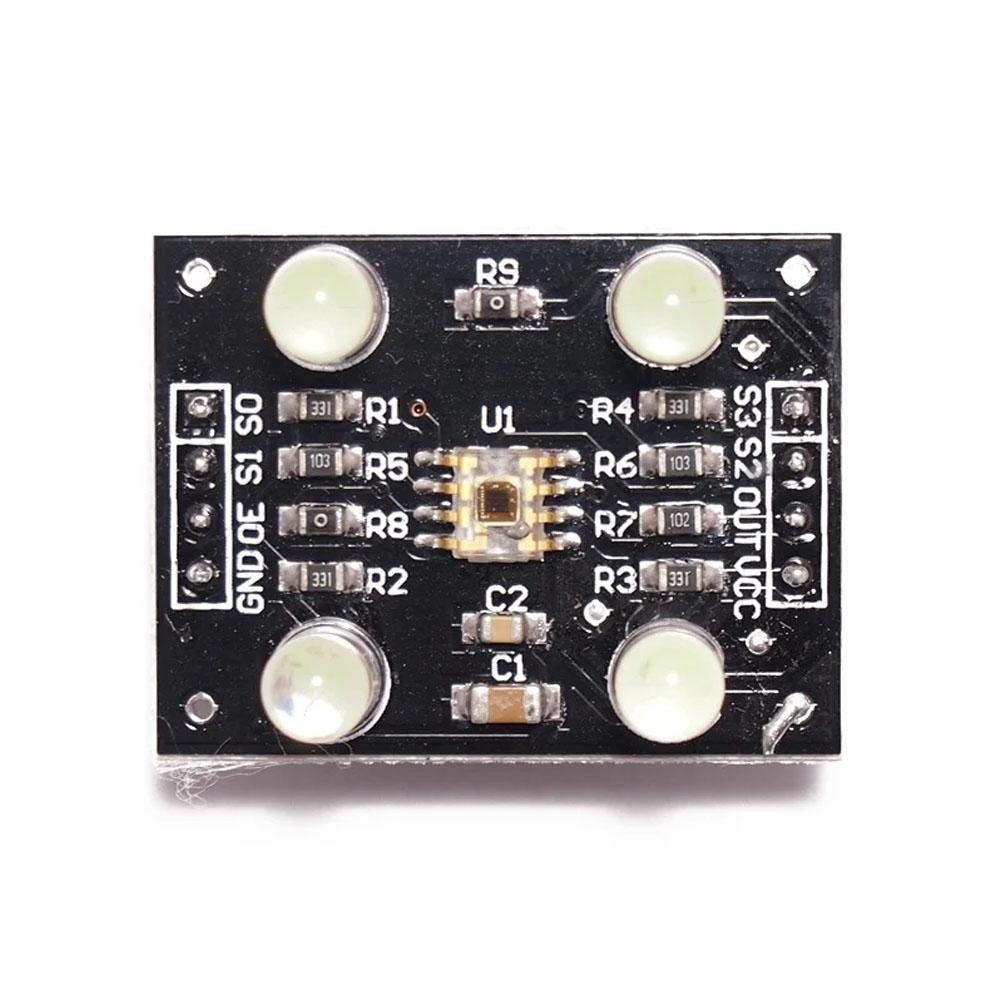

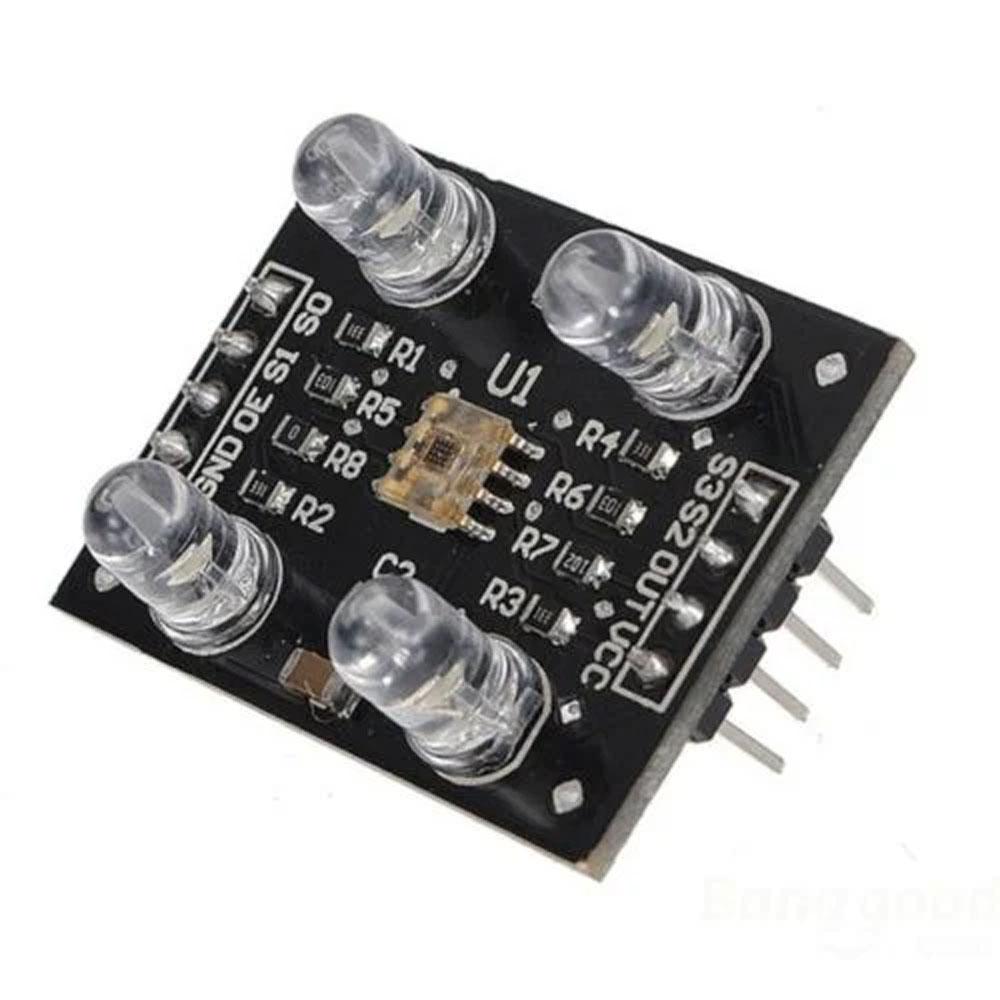

TCS3200 Color Recognition Sensor Module for MCU Arduino

Specifications:

  • Input voltage: (2.7V to 5.5V)
  • Interface: Digital TTL
  • High-resolution conversion of light intensity to frequency
  • Programmable colour and full-scale output frequency
  • No need of ADC(Can be directly connected to the digital pins of the microcontroller)
  • Power down feature
  • Working temperature: -40oC to 85oC
SKU: RDNA-RS20

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

518.02 (Inc. GST)
439.00 (+18% GST Extra)

In stock

In stock

20 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

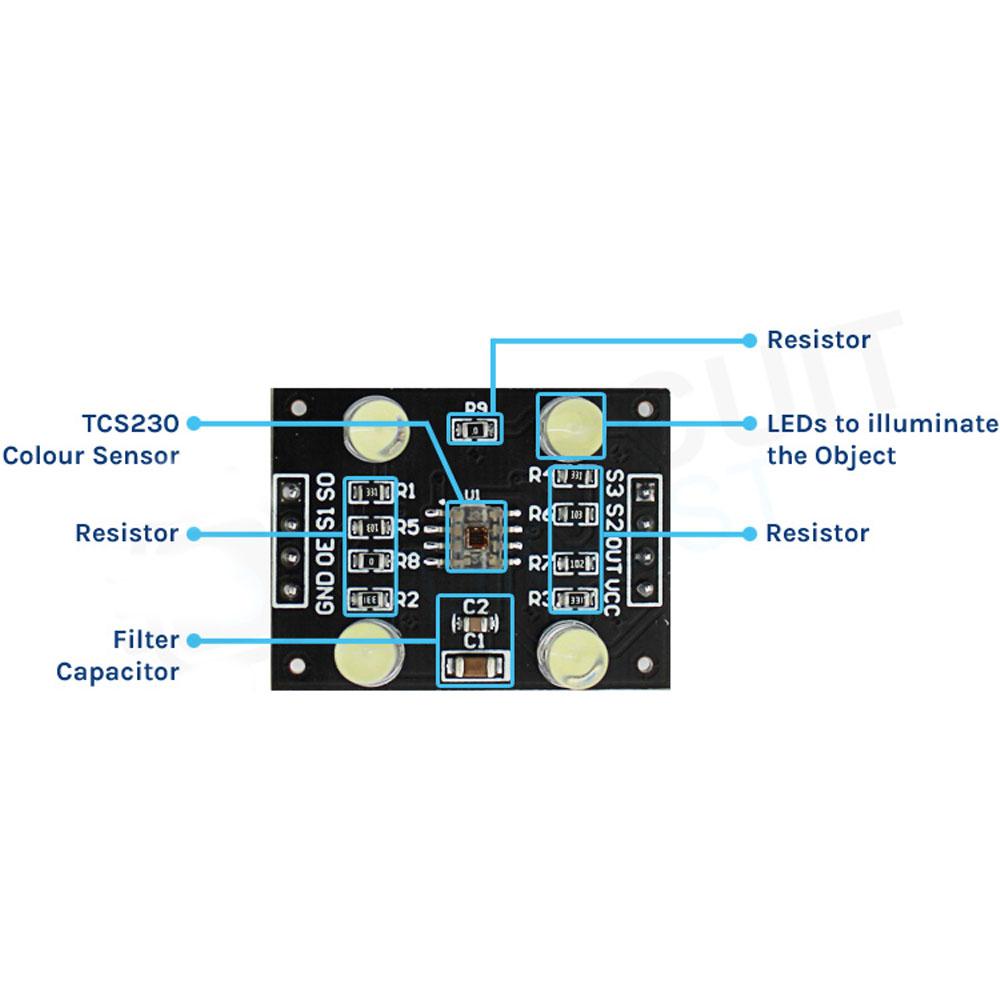

The sensor has four different types of filter covered diodes. In the 8 x 8 array of photodiodes, 16 photodiodes have Red filters, 16 have Blue filters, 16 have Green filters and the rest 16 photodiodes are clear with no filters. Each type can be activated using the S2, S3 selection inputs. Since each photodiodes are coated with different filters each of them can detect the corresponding colors. For example, when choosing the red filter, only red incident light can get through, blue and green will be prevented. By measuring the frequency, we get the red light intensity.  Similarly, when choose other filters we can get blue or green light.

We can also set the frequency scaling option by using the S0, S1 select lines. Normally, in Arduino 20% frequency scaling is used.

Refer to the Datasheet below for more Detail.

Datasheet available here.

Package Include:

1 x TCS3200 Color Recognition Sensor Module
