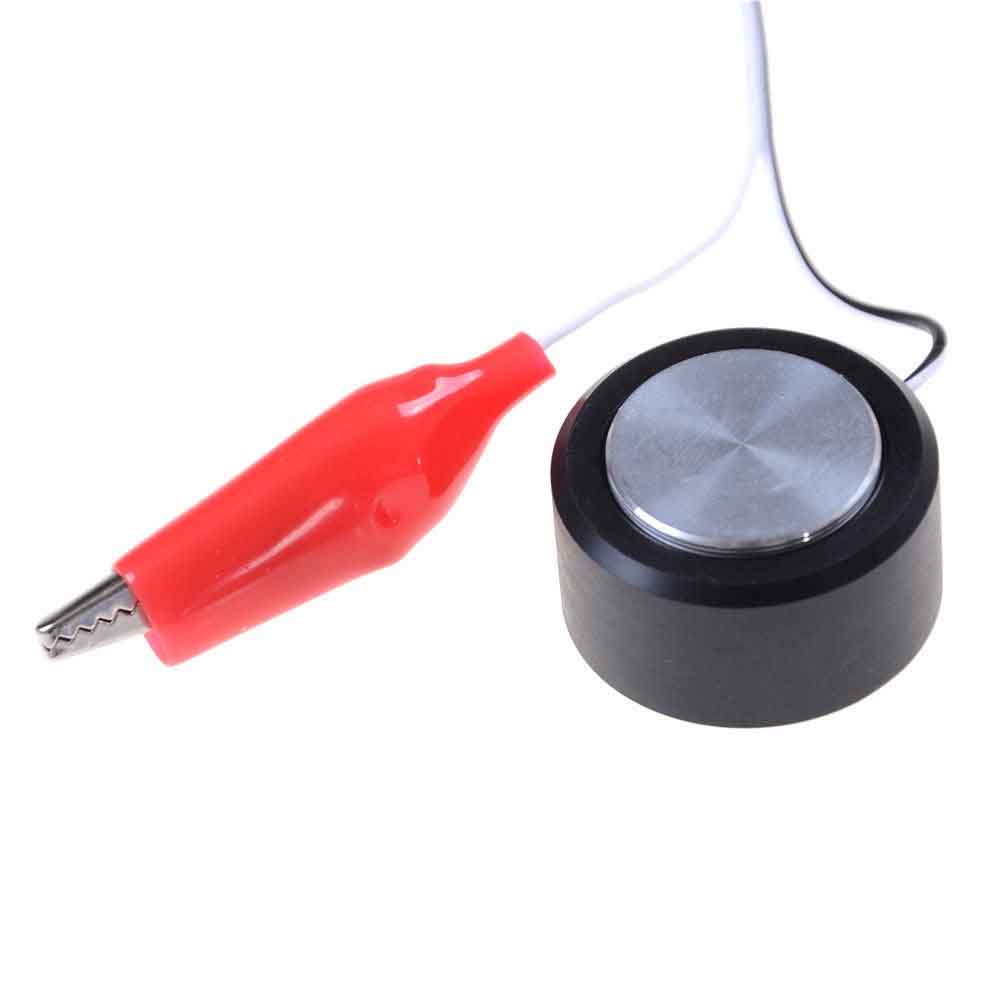

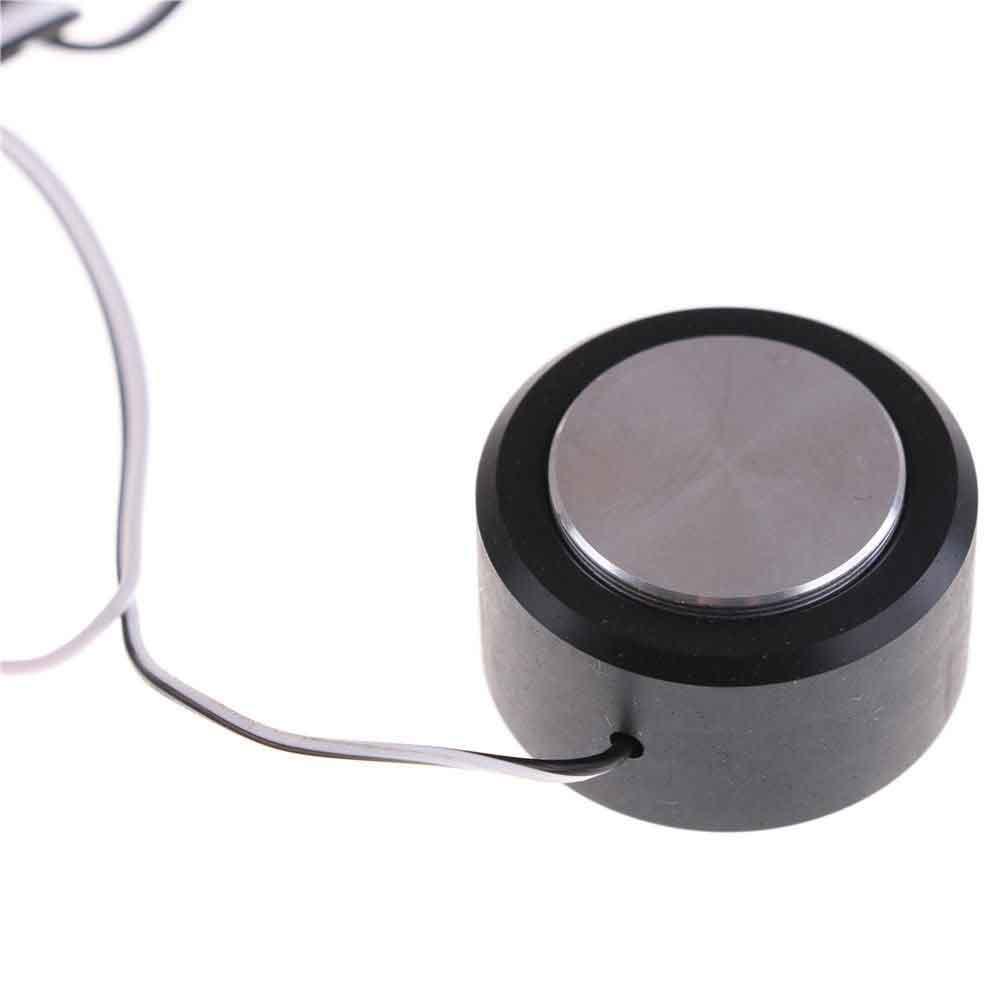

CNC Z-Axis Router Mill Touch Plate Mach3 Tool Setting Probe

CNC Z-Axis Router Mill Touch Plate Mach3 Tool Setting Probe Milling Tool Pro

CNC Z Axis Router Mill Touch Plate Mach3 Tool Setting Probe New Milling Hot Kit
These touch plates make setting your tool height and zeroing your z-axis a breeze. These are fully functional in Mach 3 and many other CNC controller software.
Two ways to connect this item:
If your interface board has the limit switch port or other probe port, you can connect it to that port
If your interface board does not have that port, your driver board has that port, you can connect it to the driver board’s limit switch port
Then in the Mach 3, you need to setup the probe(Mach3 — Config—Ports and Pins—Input signals Probe enabled , the pin number type the one you use) and the Auto-Tool-Zero. in the attachment, it is the code, you can edit it as your requirements 　

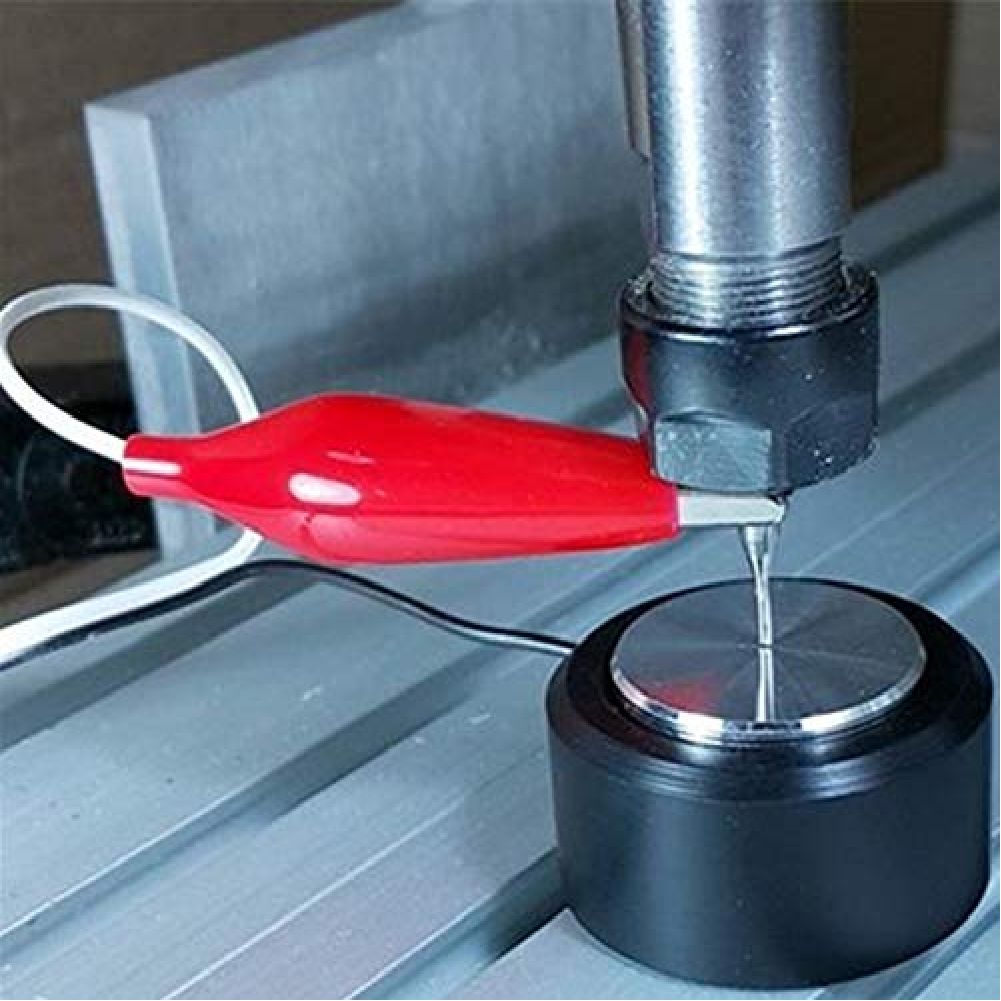

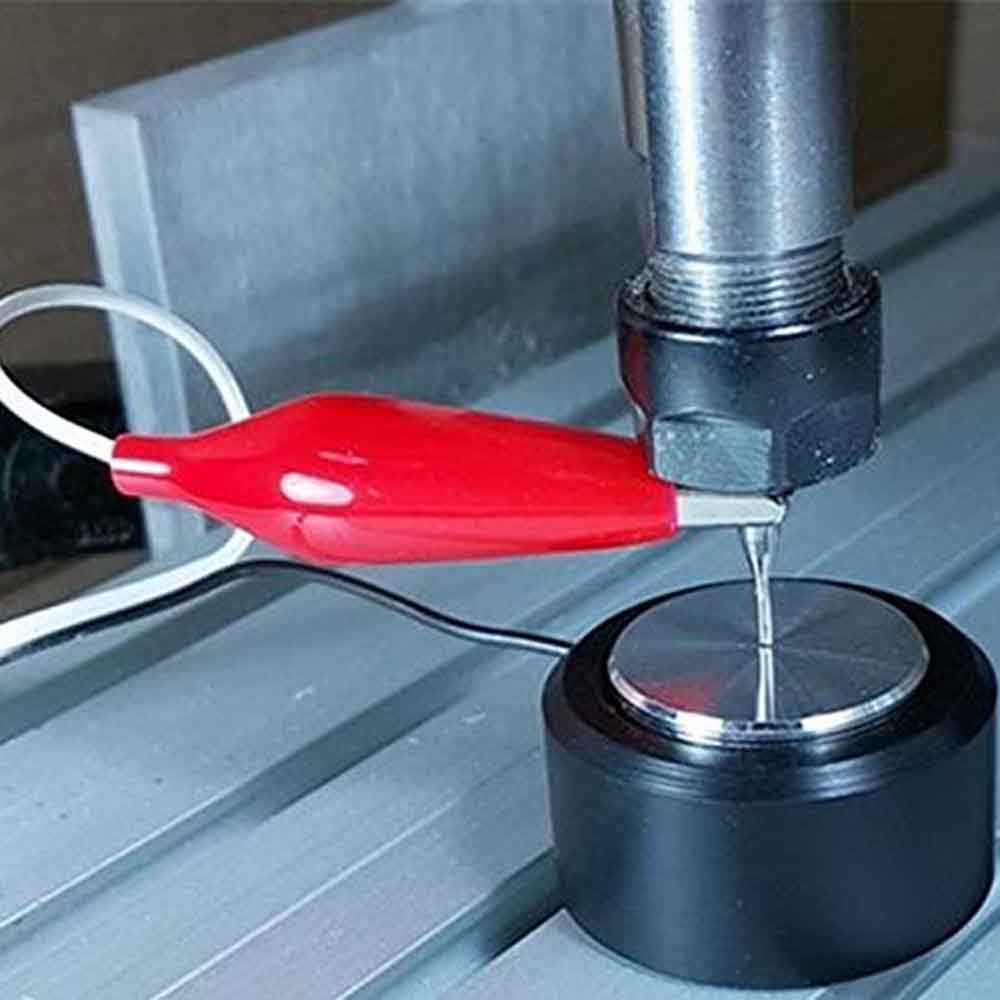

Usage:
The wire connect on the control panel interface.
The clip and the control board GND (negative) is connected.
The tool can be clamped portion of the operation when the knife with a clip.
When the tool contacts the knife that the process is complete.

Note:
Manual measuring, please allow 0-1cm error,thank you. Due to the difference between different monitors, the picture may not reflect the actual color of the item

Package Includes:

1 x CNC Z-Axis Router Mill Touch Plate Mach3 Tool Setting Probe Milling Tool Pro
