CNC 500W Spindle Motor Kit 11000RPM Spindle Integrated Control Box For 500W Spindle Router CNC Engraving Machine

Specifications:

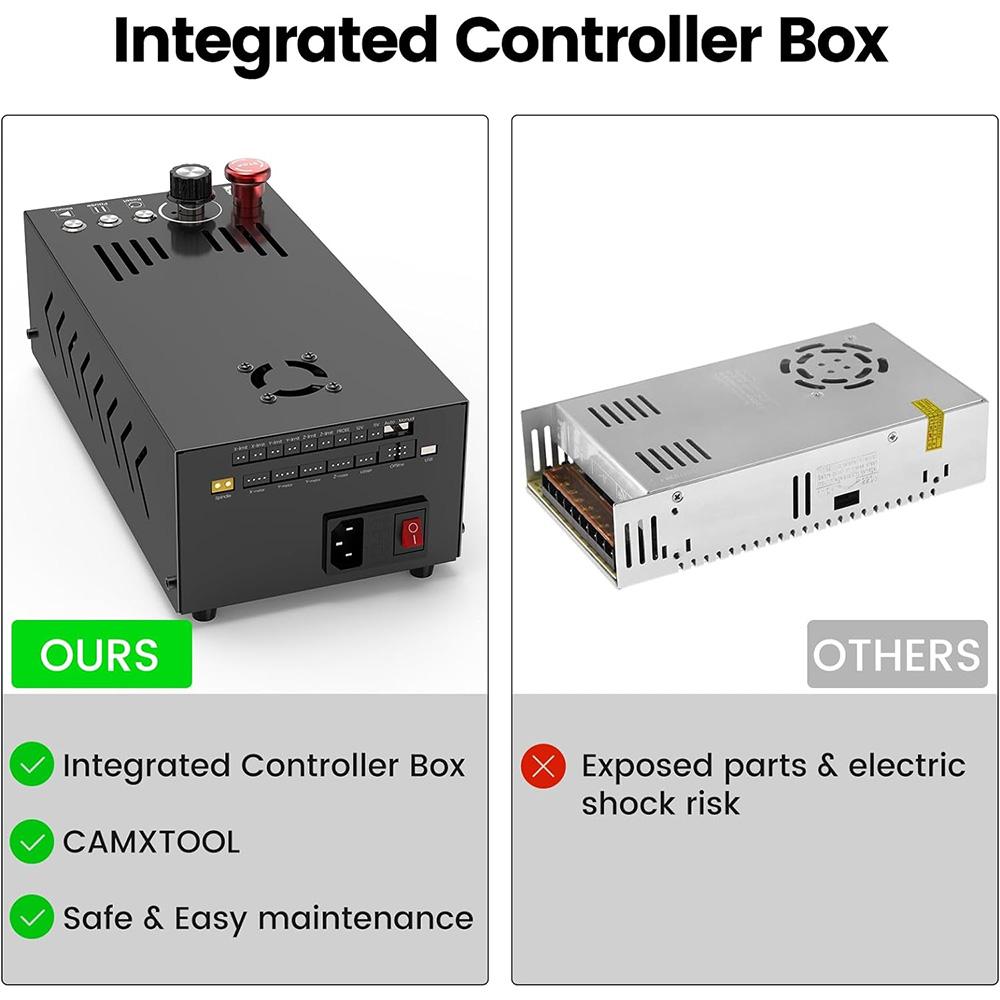

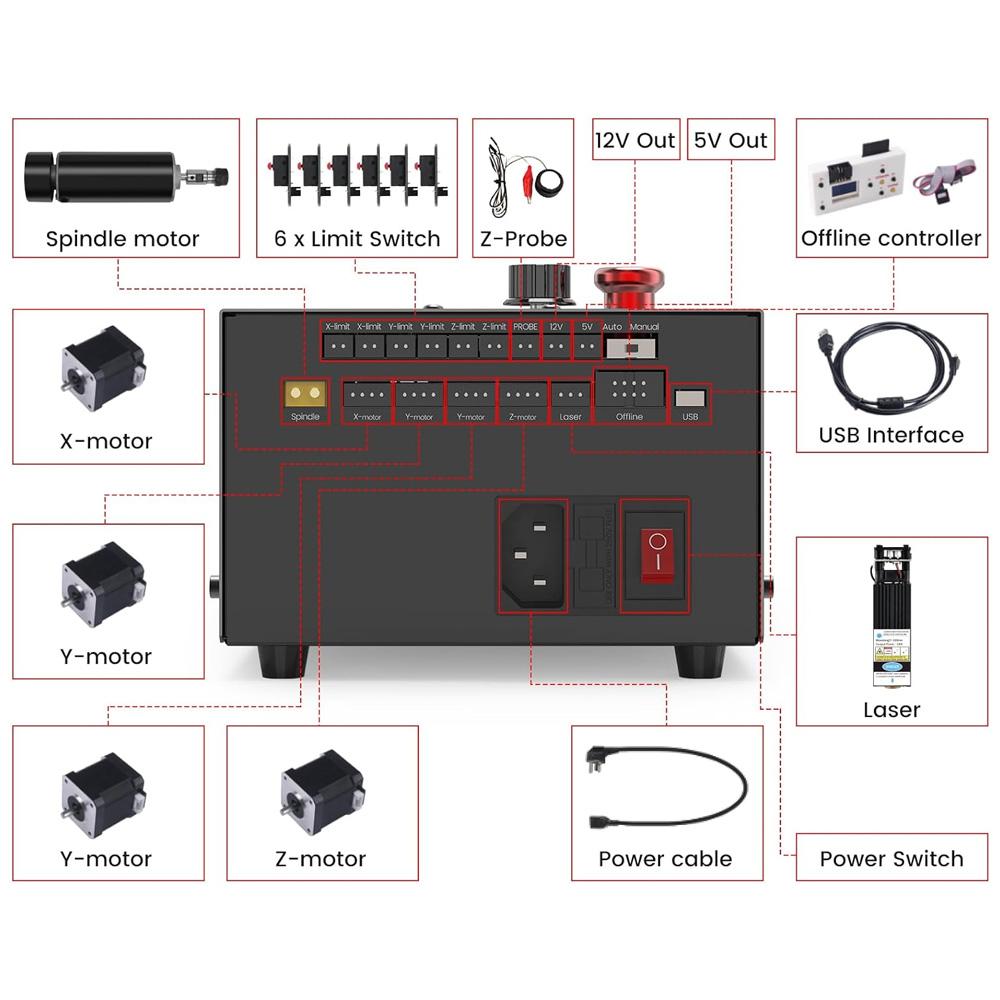

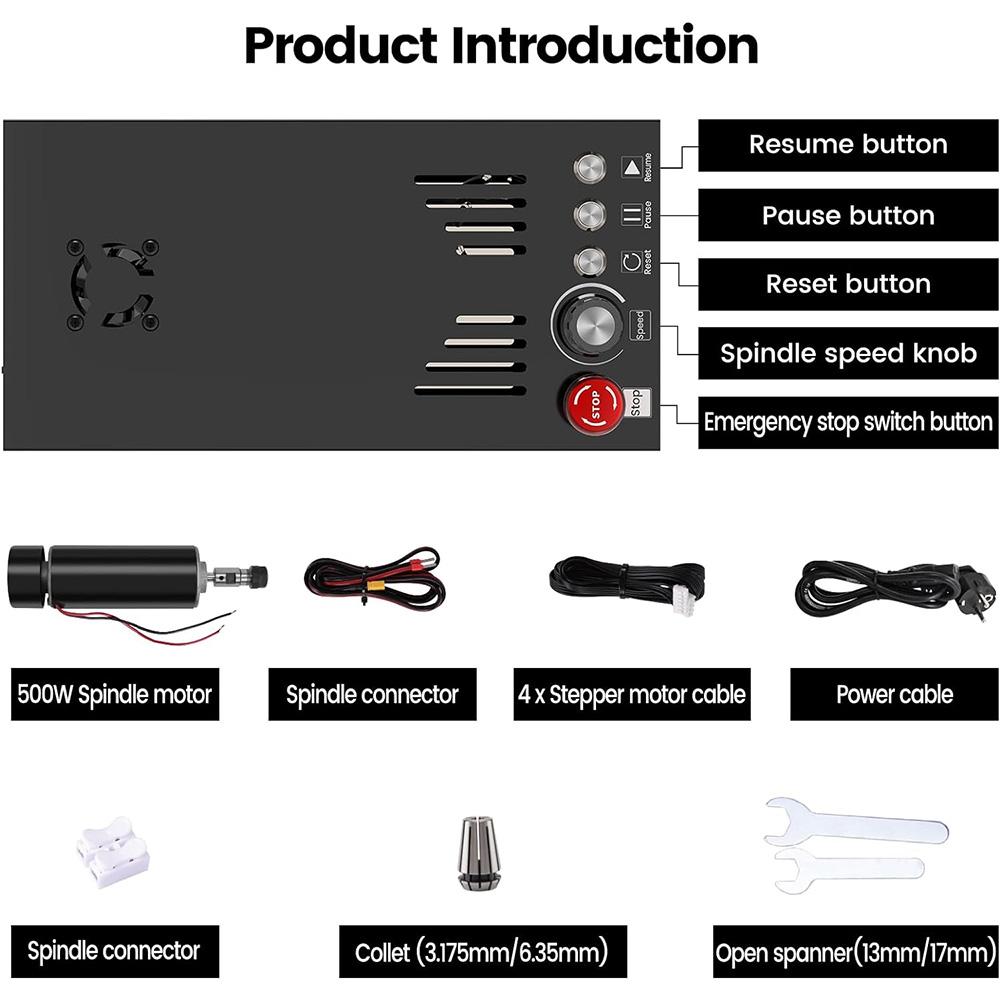

Enhance Safety: The control box supports emergency stop, pause running, continue running, reset, and manual adjustment of spindle speed function, can be adapted to 3020PLUS, 4540, 3018MAX
Meeting Your Needs: The spindle integrated control box motor features low noise and low electromagnetic interference, It is Compatible with GRBL, and CANDLE-control software and is ideal for CNC machining

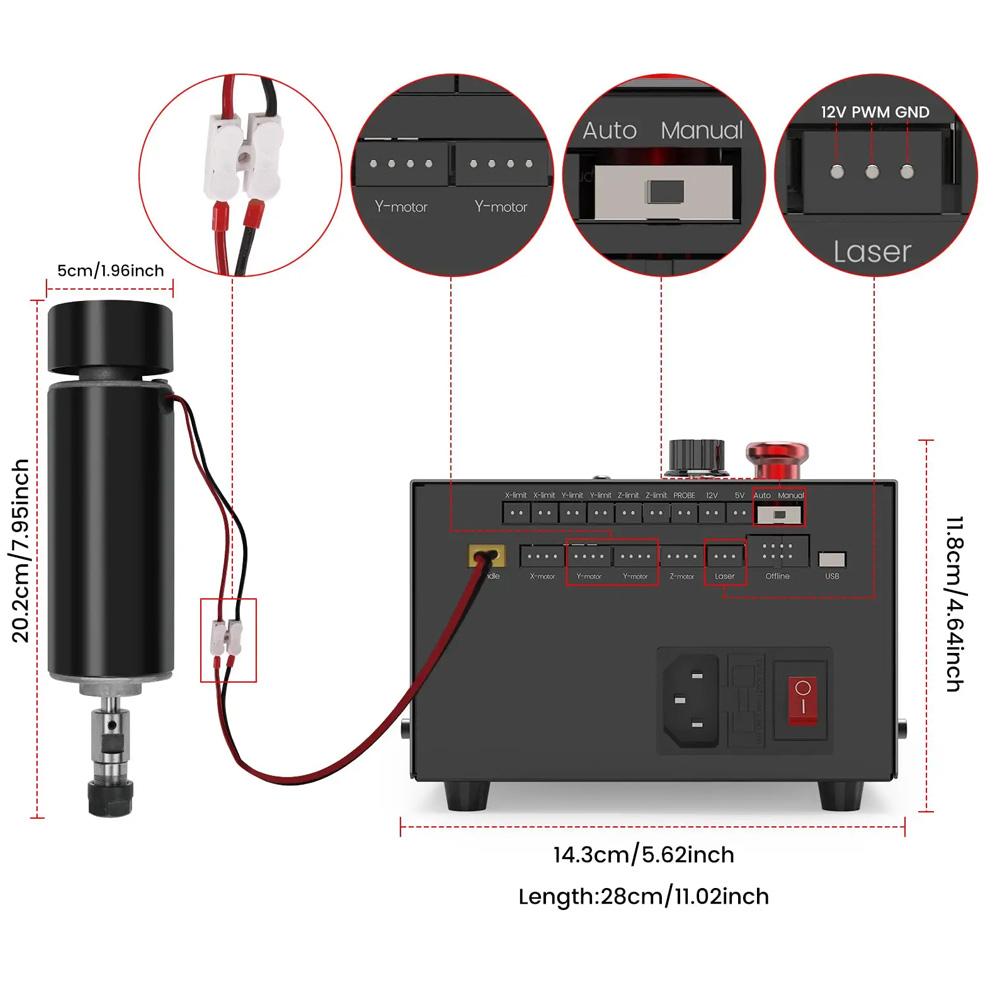

CNC Spindle kit: This spindle comes equipped with an air-cooled function, which can work for a long time. Air-cooled spindle: Power: 500W; Voltage: 110V; Idling Speed: 11000r/min; Diameter: 52mm
Spindle Motor Driver: This power regulator can adjust 110 or 220v according to customers’ needs. Adopt pulse width technology to make the speed more stable, and the speed is high under low-speed

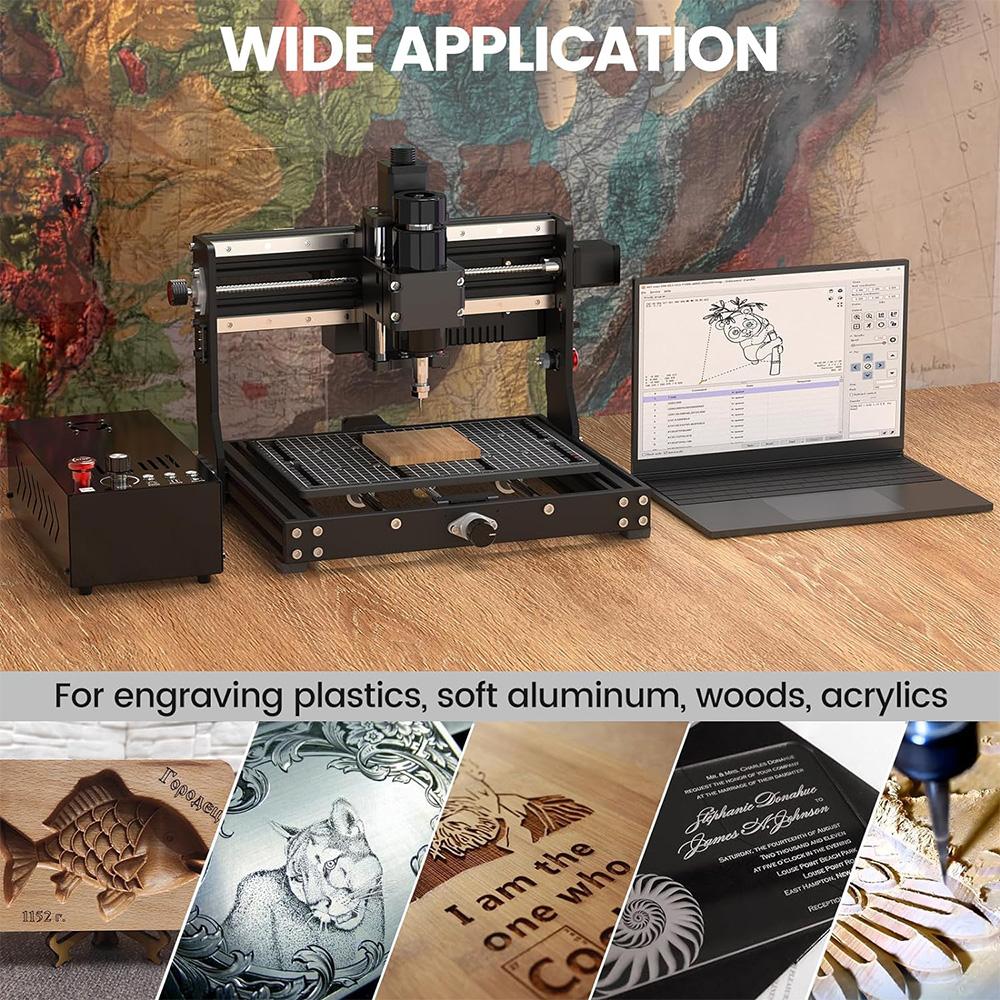

Wide Application: Kinds of drilling and engraving materials, such as plastics, soft aluminium, brass, acrylics, PVC, PCB, wood, plywood, nylon

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹18,290.00 (Inc. GST)
₹15,500.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

20 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The control box supports emergency stop, pause running, continue running, reset, and manual adjustment of spindle speed function, and can be adapted to 3020PLUS, 4540, 3018MAX. Meeting Your Needs: The spindle-integrated control box motor features low noise and low electromagnetic interference. Compatible with GRBL, CANDLE-control software, ideal for CNC machining. CNC Spindle kit: This spindle comes equipped with an air-cooled function, which can work for a long time. Air-cooled spindle: Power: 500W; Voltage: 110V; Idling Speed: 11000r/min; Diameter: 52mm. Spindle Motor Driver: This power regulator can adjust 110 or 220v according to customers’ needs. Adopt pulse width technology to make the speed more stable, and the speed is high under low speed. Wide Application: Kinds of drilling and engraving materials, such as plastics, soft aluminium, acrylics, PVC, PCB, wood, plywood, and nylon.

Specifications:

Number of Axes: 3
No. of Spindles: Single
CNC or Not CNC
Place of Origin: China
Weight (KG): 3
Key Selling Points: High Safety Level
Applicable Industries Other
Range of Spindle Speed(r.p.m): 1 – 11000 rpm
Positioning Accuracy (mm): 0.1 mm
Travel (X-Axis)(mm): 430 mm
Travel (Y-Axis)(mm): 380 mm
Repeatability (X/Y/Z) (mm): 0.1 mm
Spindle Motor Power(kW): 0.5
Product name: CNC Machine Integrated Control Box
Product material: Metal Sheet
Application: For CNC machine
Keywords: High Safety Level

FAQ

1. Q: Can this carve Bronze or Aluminium blocks, or it can just engrave Stainless Steel?

A: Yes, it can carve metals, Depth per pass and feed rate will need to be adjusted for different metals. We recommend a depth per pass of 0.1mm and a feed rate of 120mm/min for stainless steel, a depth per pass of 1mm and a feed rate of 300mm/min for wood. The lower the speed, the more stable the work. Note: When engraving metals, the temperature of the metal will be extremely high due to the huge friction between the milling cutter and the metal, so please keep adding lubricating oil during the engraving process.

2. Q: I am a New to CNC, what should I do to start an engraving project with this router machine?

A: We provide a free control software Candle grbl which is fine to start and get it going. It’s then a personal choice afterwards what you go to, Easel is fairly simple but loads of options. Fusion 360 is good but is expensive. Please note that the Candle is just a control software, can only read G-code files, and does not support design pictures. So, we need to use other software to design images and make G-code files, Most of our customers use Easel to design G-code file and then use Candle or UGS to control the machine.

3. Q: Once I create Gcode in Easel, do I transfer them to the controller with a usb drive/sd card?

A: Yes, you can run the file in Candle, or transfer the file to a usb drive/sd card and run it in the controller.

4. Q: Is this product good for a total beginner?

A: We recommend professionals to buy this machine, the new starter is not recommended. The CNC itself is not a problem, it’s the software part that’s the difficulty. You can go to YouTube to learn a lot of the basics. It takes more patience, but worth it.

Packing List:

1 x CNC 500W Spindle Motor Kit 11000RPM Spindle Integrated Control Box For 500W Spindle Router CNC Engraving Machine
