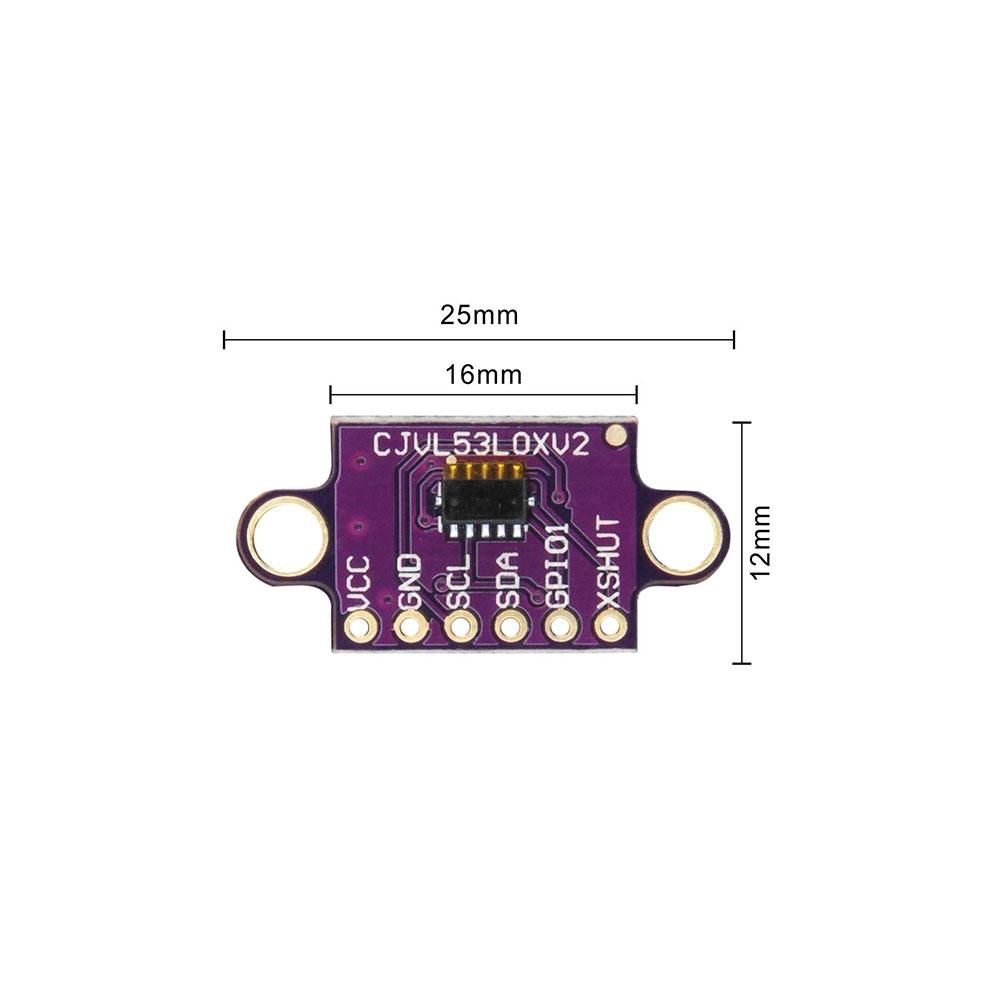

CJVL53L0XV2 Laser Ranging Sensor Time-of-Flight (ToF)

The VL53L0X (sometimes GY-VL53L0XV2, CJVL53L0XV2, or VL53L0XV2) laser rangefinder uses a 940nm laser and the time-of-flight principle to approximate the distance between the sensor and a target object.

Time of Flight Distance Sensor-VL53L0X is a high speed, high accuracy and long range distance sensor based on VL53L0X.

The VL53L0X is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectance unlike conventional technologies. It can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, opening the door to various new applications.

The VL53L0X integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST’s second generation Flight Sense patented technology.

The VL53L0X’s 940 nm VCSEL emitter (Vertical Cavity Surface-Emitting Laser), is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distances, higher immunity to ambient light, and better robustness to cover glass optical crosstalk.

Datasheet available here.

You may also like :

Arduino Uno

Included in the VL53L0X Package:

• 1x VL53L0X Sensor
• Solder Pins
