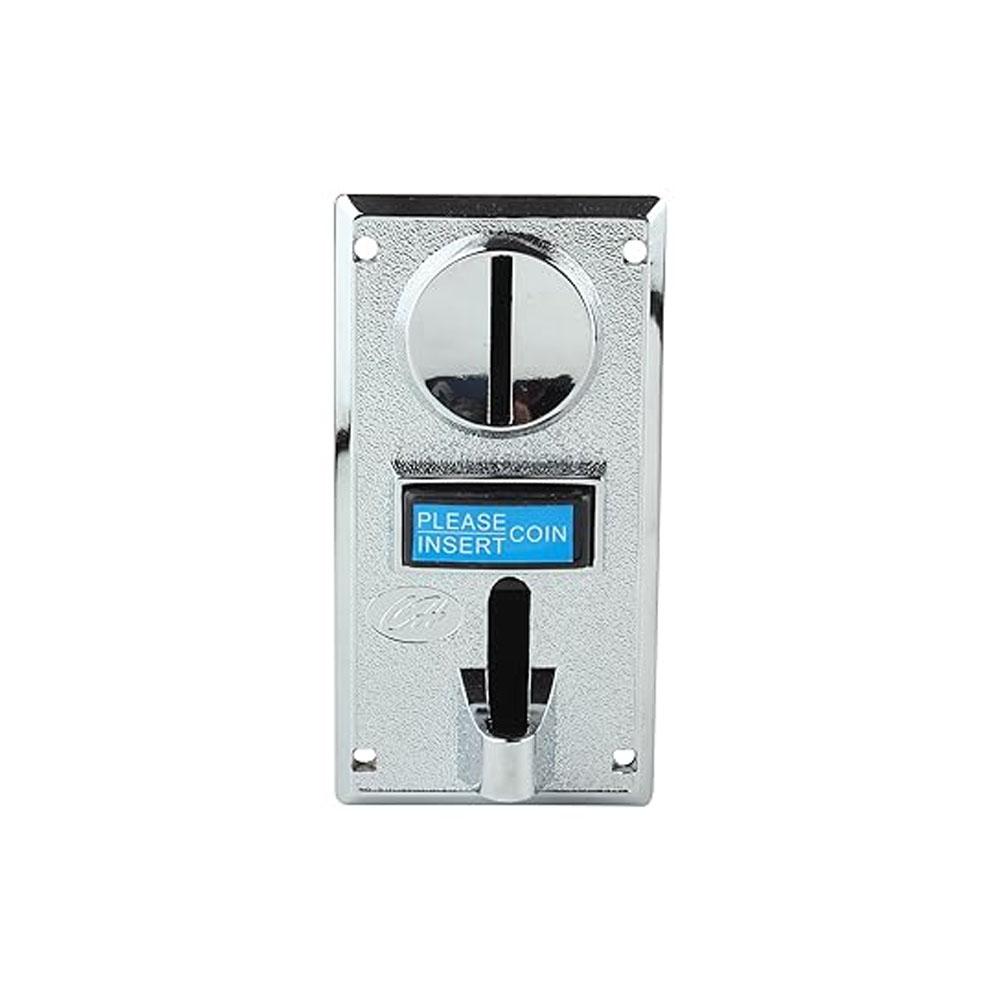

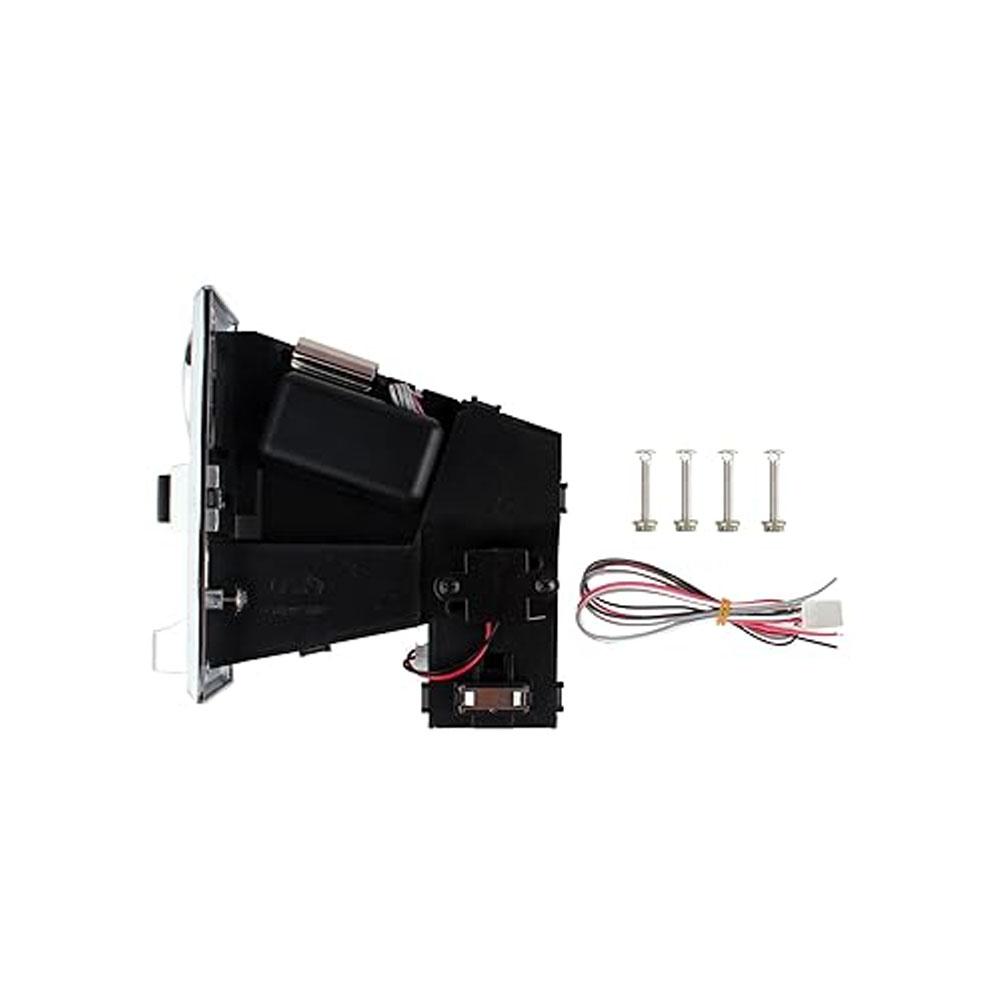

CH-926 Multi Coin Acceptor Selector

Specifications:

Identify accuracy rate: 95%
Diameter: 15mm-29mm
Thickness: 1.8mm-3.0mm
Applicable to all kinds of coins
Atmospheric pressure: 80Kpa-106Kpa
Operating voltage: DC12V ± 10%
Working current: 50mA
Moment maximum current: 350mA (less than 0.5S)
Humidity: ≤95%
Storing temperature: -20℃–+85℃
Operating temperature: -15℃–+60℃
Recognition speed: ≤0.6sec
Recognition: 99.5%
Canning material: PC plastic

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹2,970.06.Current price is: ₹1,534.00. (Inc. GST)
₹1,300.00 (+18% GST Extra)

Out of stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

16 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Are you trying to make a quick dime from electronics? Why limit yourself to dimes? This coin acceptor will take three different kinds of coins! Whether you’re building your own arcade cabinet or just charging admission to your house, this programmable coin acceptor makes it easy to monetize your next project.

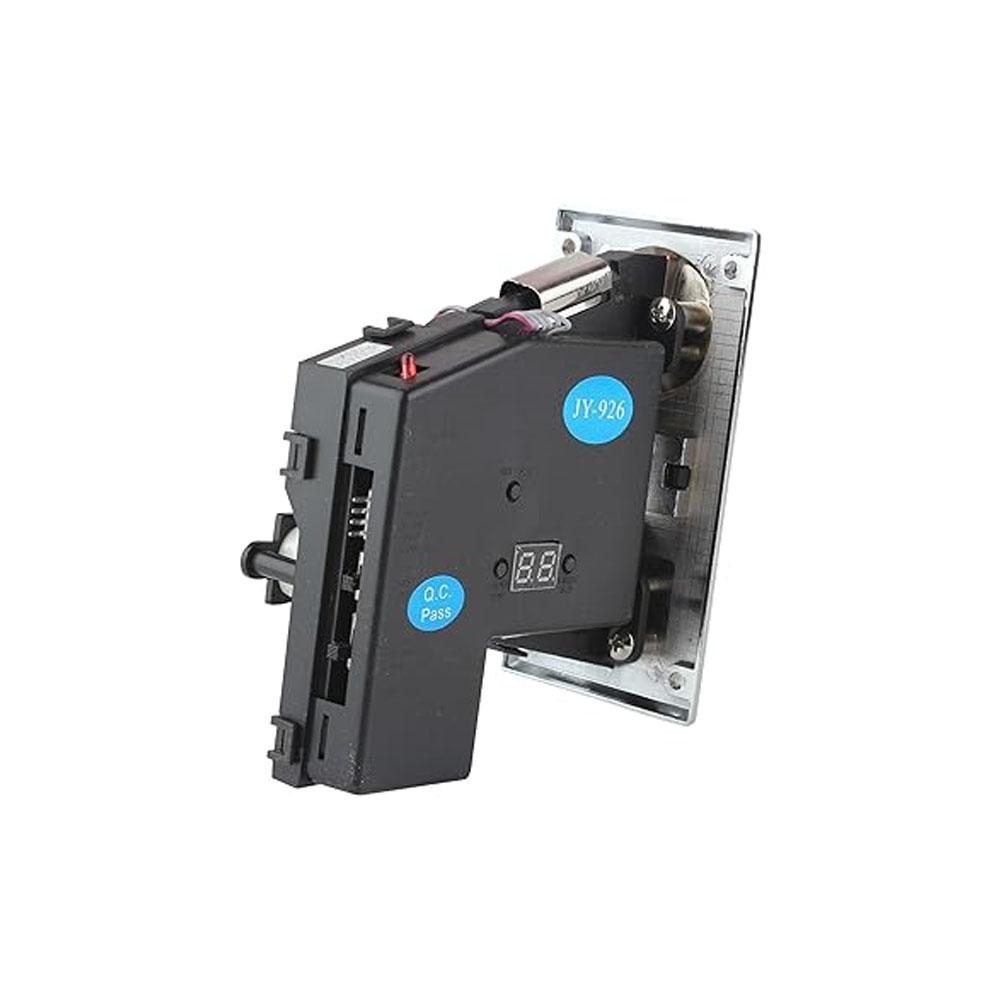

The sensors in this coin acceptor use the thickness, diameter, and fall time of the coins to identify them and it’s fully programmable so you’re not limited to any particular type of currency. Simply use the buttons and 7-segment display on the side of the unit to select a coin profile, insert a bunch of coin samples (or the same one, over and over) and you’re good to go! After you’ve programmed the coin profiles, the coin acceptor will recognize them and report when each type is inserted, rejecting other coins.

This coin acceptor also has a coin inhibitor, so your controller can tell the coin acceptor not to take any more coins. All you need to get the coin acceptor working is a pocket full of change, a 12VDC supply, and somewhere for the change to fall after it’s accepted.

So maybe you won’t get rich building your own vending machines but access control using different sizes of tokens might be cool, or even a virtual vending machine where you can buy MMORPG items. There are a ton of cool coin-operated projects just waiting to be built! This module will be able to tell counterfeits if they have a different thickness, diameter and have a different fall time to the coins that it’s programmed for. It’s not going to have a magnetic signature detector in there that will read the field of the coin or anything. It’s just a simple mechanical sorting device.

Instructions:
1. Pressing the setting key(8), and then you will see the letter E
After that, you can press the accurate key or broaden key to increase or decrease the numerical value.
After setting up, please press the setting key to confirm.
2. Appearing the letter H (the quantity of sampling for various currency values).
3. Appearing the letter P (the numerical values for signal output of various currency values).
4. Appearing the letter F (the precision of various currency values).
5. By parity of reasoning, the setting is finished with your chosen currency.
When the letter E is shown, please turn off the power and it will reopen again.

Datasheet of CH-926 Multi Coin Acceptor Selector

Package Includes:

1 x CH-926 Multi Coin Acceptor Selector
