Capacitive Fingerprint Sensor SEN0348 (Without Wire)

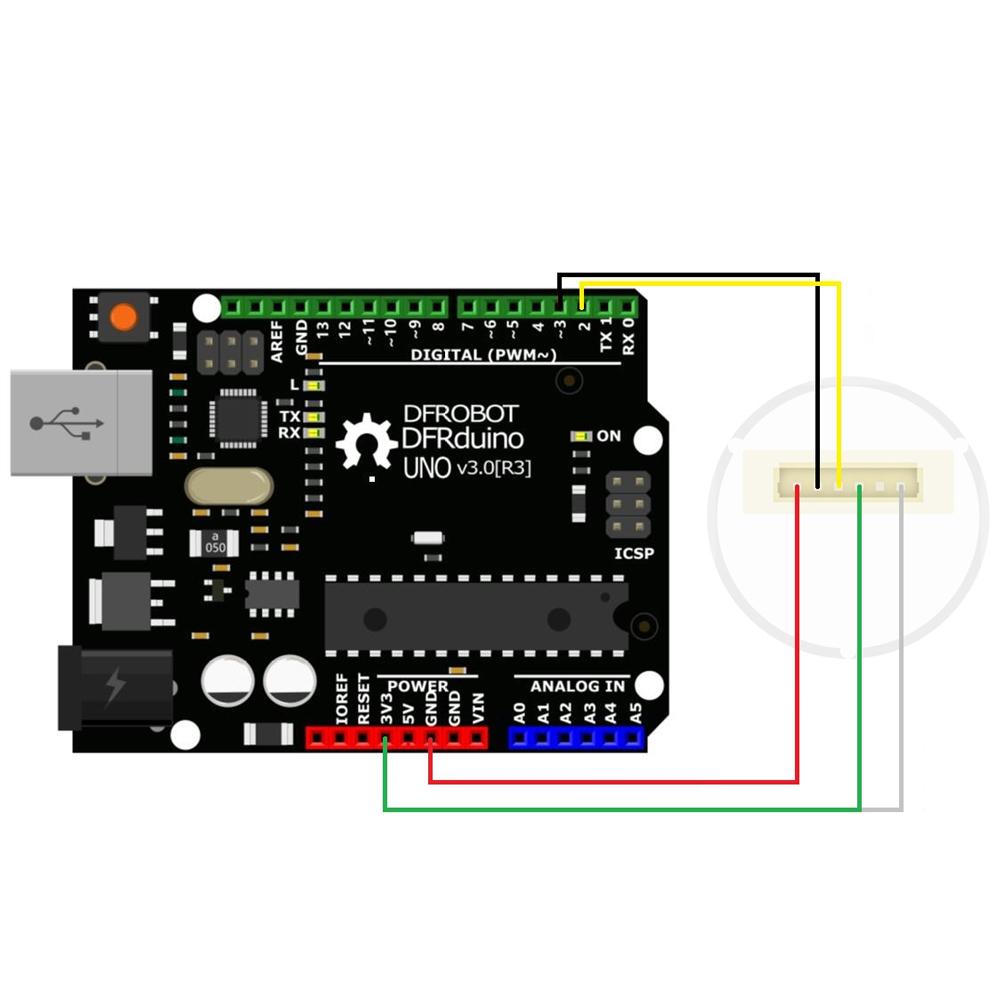

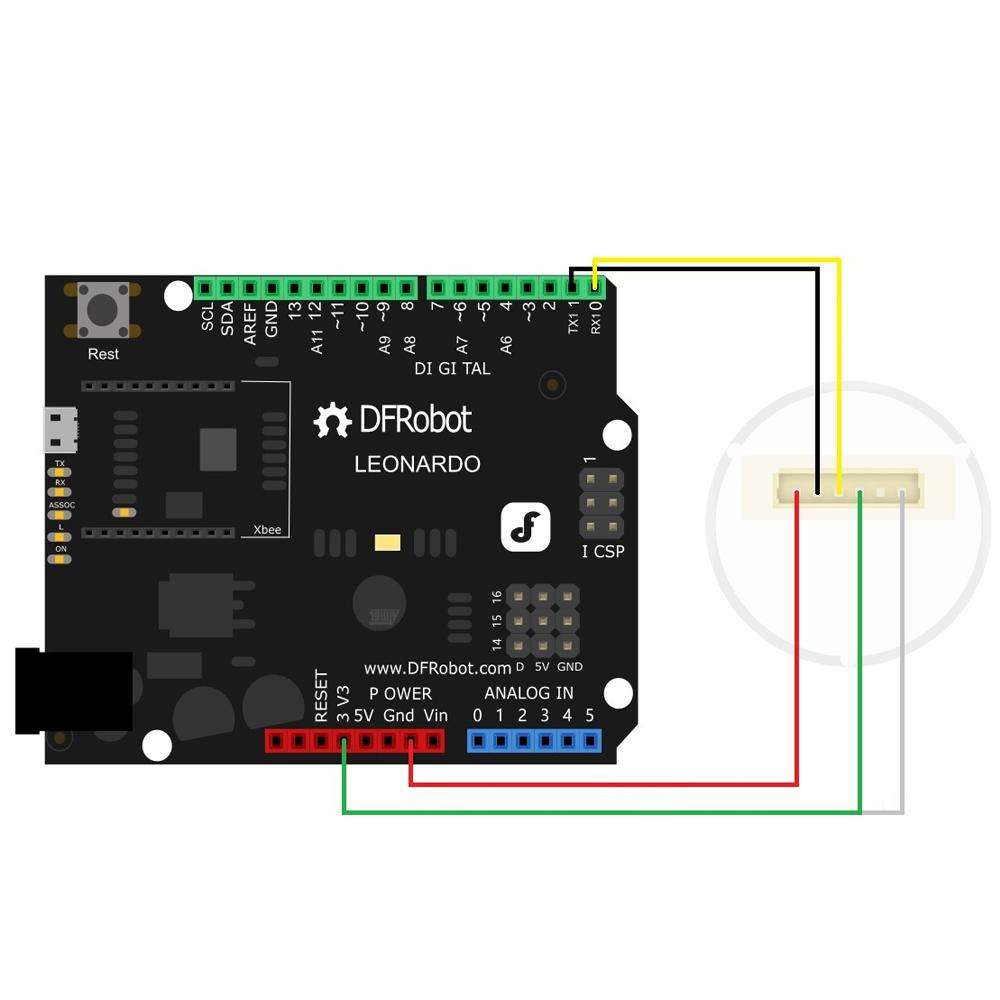

This capacitive fingerprint sensor supports fingerprint capture, image processing, fingerprint storage, fingerprint comparison and so on. Taking ID809 high-performance processor and semiconductor fingerprint sensor as the core, the sensor adopts built-in IDfinger6.0 algorithm, which can complete all fingerprint identification work independently. The product supports UART communication. When working with Arduino library, it can easily realize functions like fingerprint registration, fingerprint deletion, etc. Also, we provide an upper computer software to help users operate this sensor conveniently.

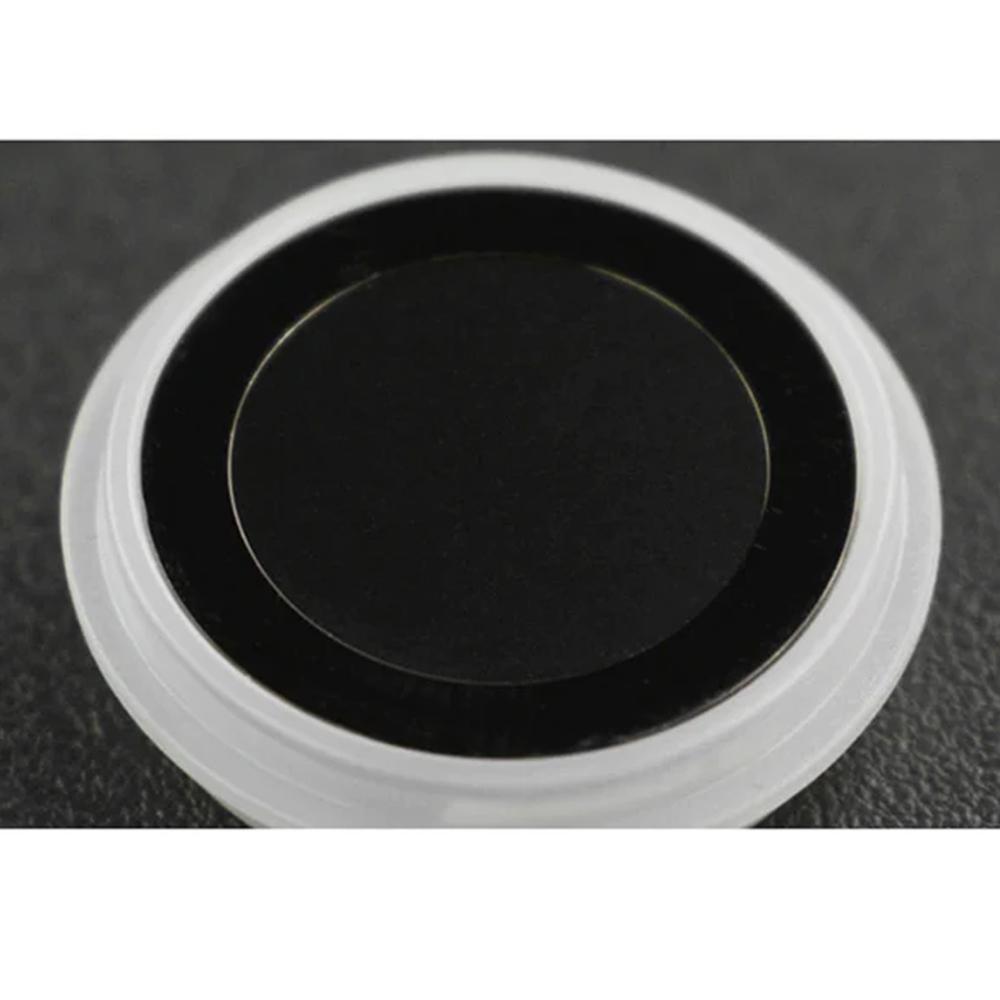

This fingerprint sensor comes with round breathing LEDs and has a simple structure, small size, and delicate appearance. The sensor offers fast recognition speed and high security. What’s more, it supports 360 degree arbitrary angle recognition and deep self-learning function, high performance and low power consumption.

Application :

• Fingerprint door-lock
• Drawer Lock
• Identity Recognition
• Authorization

Fingerprint reader module with capacitive sensor. It uses an efficient processor and the IDfinger6.0 algorithm. It ensures quick identification and stability of operation, communicates via the UART interface. The module enables the implementation of projects including elements of access control to devices or data. The module supports many functionalities including: fingerprint registration, image processing, feature extraction, template generation, storing templates, matching and searching for fingerprints.

Sample programs can be found on the product Wiki page.

Features:

1. Perfect function: independent fingerprint collection, fingerprint registration, fingerprint comparison (1: 1), and fingerprint search (1: N) function.
2. Small size: small size, no external DSP chip algorithm, has been integrated, easy to install, less fault.
3. Ultra-low power consumption: low power consumption of the product as a whole, suitable for low-power requirements of the occasion.
4. Anti-static ability: a strong anti-static ability, anti-static index reached 15KV above.
5. Application development is simple: developers can provide control instructions, self-fingerprint application product development, without the need for professional knowledge of fingerprinting.
6. Adjustable security level: suitable for different applications, security levels can be set by the user to adjust.
7. Finger touch-sensing signal output, low effective, sensing circuit standby current is very low, less than 5uA.

Refer to the Datasheet below for more detail.

Datasheet available here.

Package Include:

1 x SEN0348 Fingerprint Module
