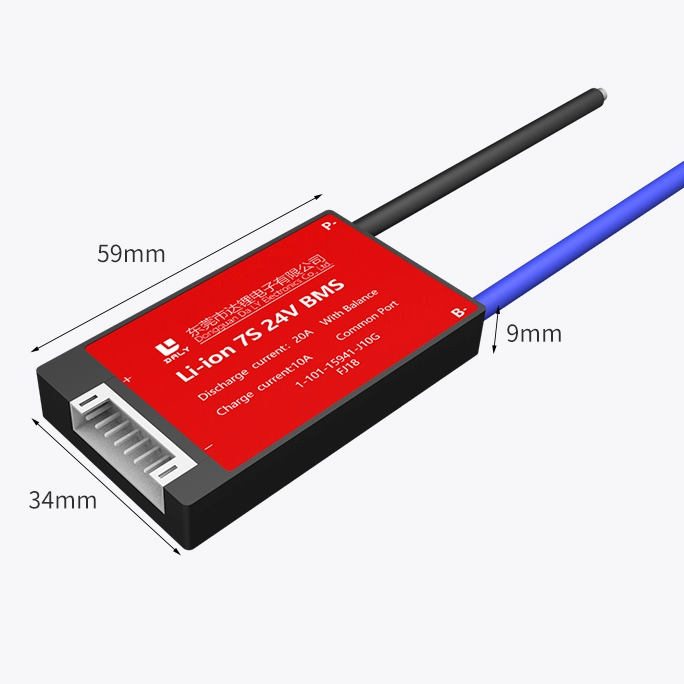

DALY BMS 7S 24V 20A for Lithium Ion Battery

Advantage:

1. Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.
2. Strong load ability, constant discharge current 10A/25/35A/45A/60A , use high voltage resistance, low inner
3. resistance power Mosfet. The heat sink will greatly help cooling.
4. IC itself has power balancing function. The circuit is simple and reliable.
5. Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection
6. Function is very reliable. Long time short circuit of the load won’t affect the PCB and the battery. Temperature protection during charging and discharging.
7. Extreme low power consumption. The consumption of the whole device is less than 50uA.
8. PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.

Package Include:

1 x DALY BMS 7S 24V 20A for Lithium Ion Battery
