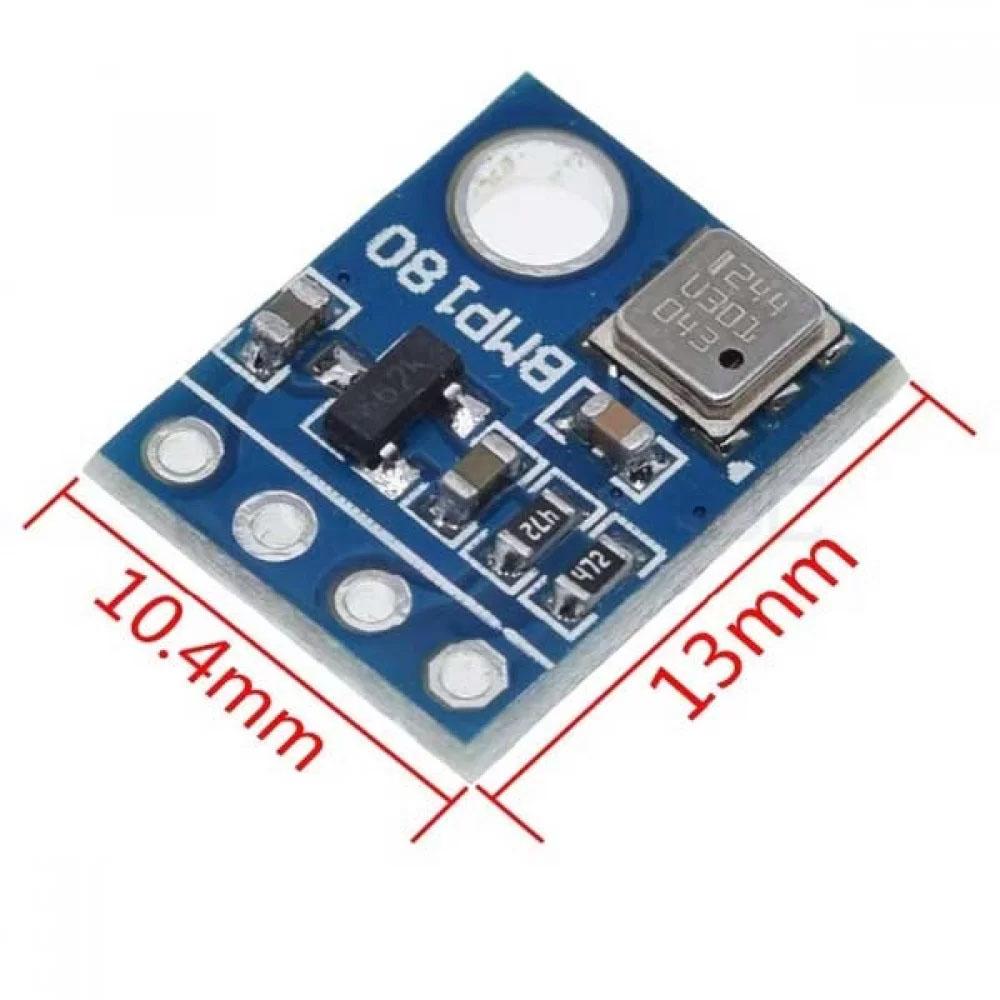

BMP 180 PRESSURE SENSOR

Specifications:

Vin: 3 to 5VDC
Logic: 3 to 5V compliant
Pressure sensing range: 300-1100 hPa (9000m to -500m above sea level)
Up to 0.03hPa / 0.25m resolution
-40 to +85°C operational range, +-2°C temperature accuracy
This board/chip uses I2C 7-bit address 0x77.
Compatible with Andriod Board.

SKU: RDNA-CD101

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹208.86 (Inc. GST)
₹177.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

10 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

BMP180 is one of the sensors of the BMP XXX series. They are all designed to measure Barometric Pressure or Atmospheric pressure. BMP180 is a high precision sensor designed for consumer applications. Barometric Pressure is nothing but the weight of air applied to everything. The air has weight and wherever there is air its pressure is felt. BMP180 sensor senses that pressure and provides that information in digital output.

Also, the temperature affects the pressure and so we need temperature compensated pressure reading. To compensate, the BM180 also has a good temperature sensor.

Refer to the Datasheet below for more details.

Datasheet available here.

Package Includes:

1 x BMP 180 PRESSURE SENSOR
