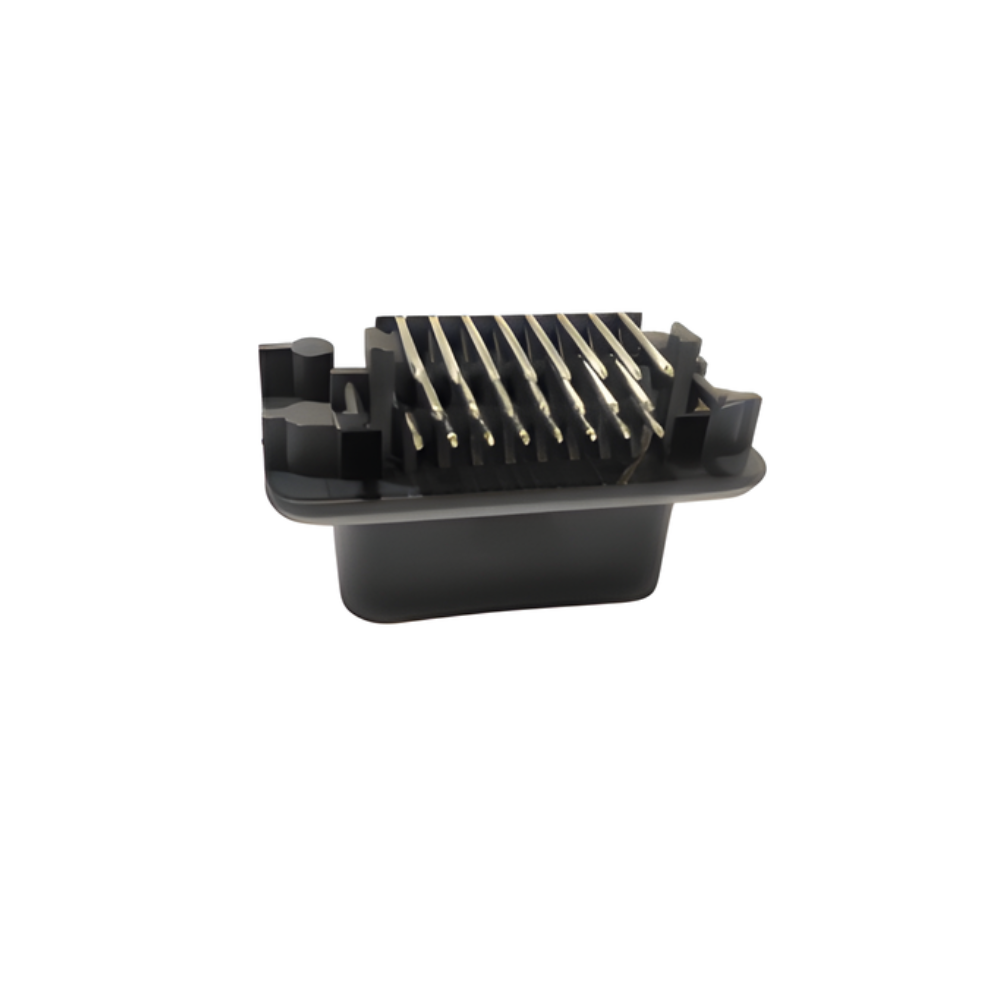

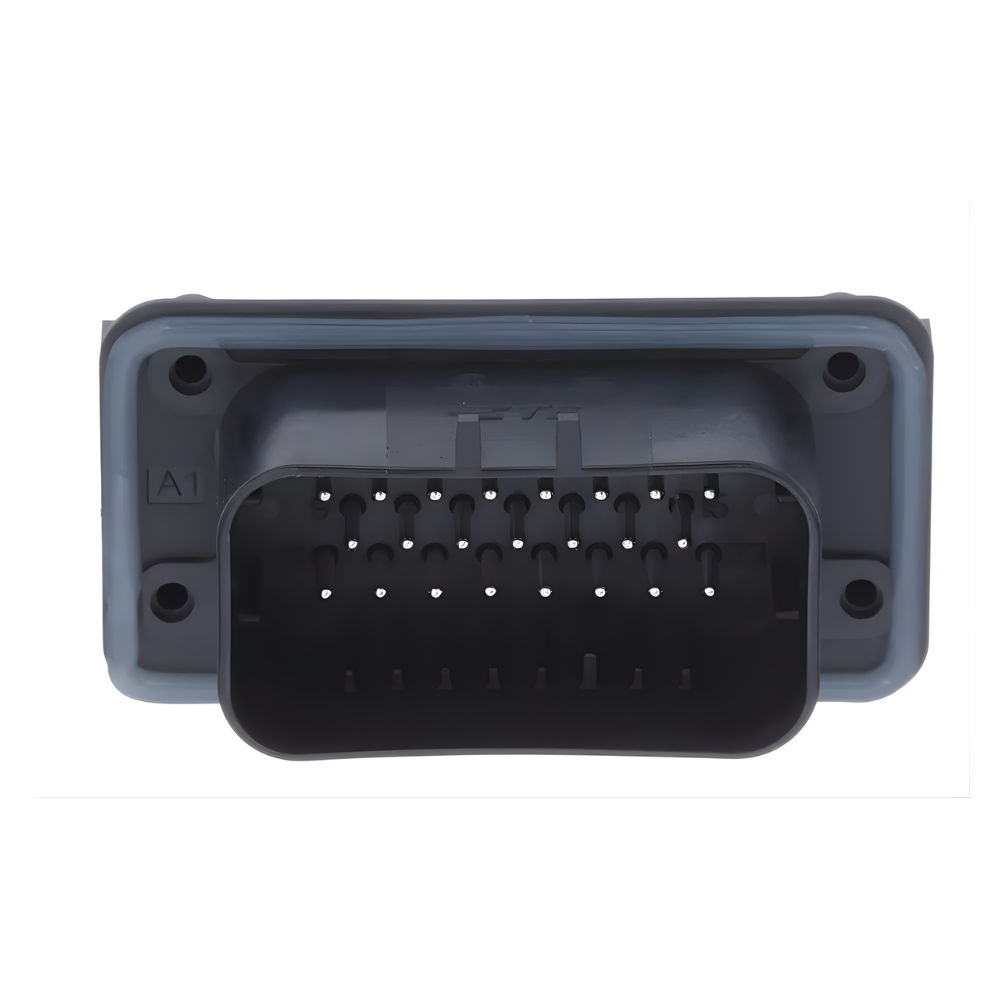

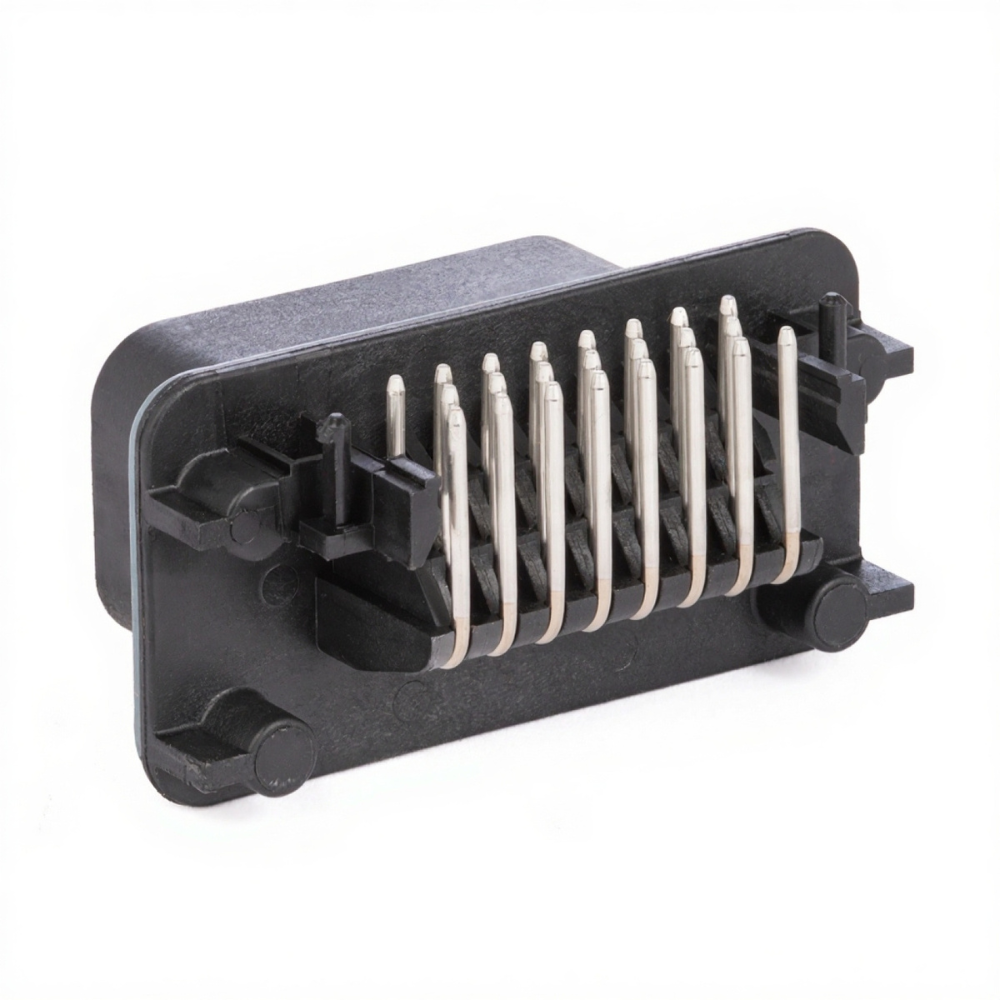

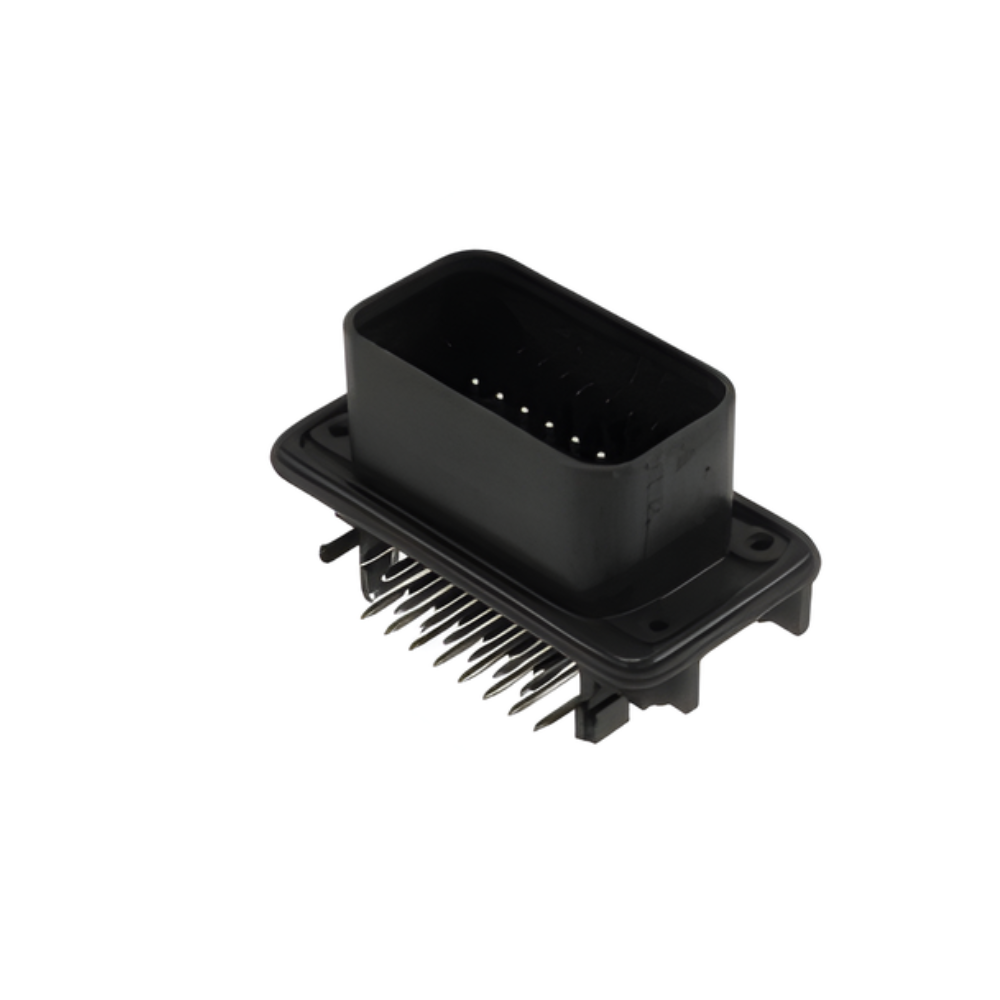

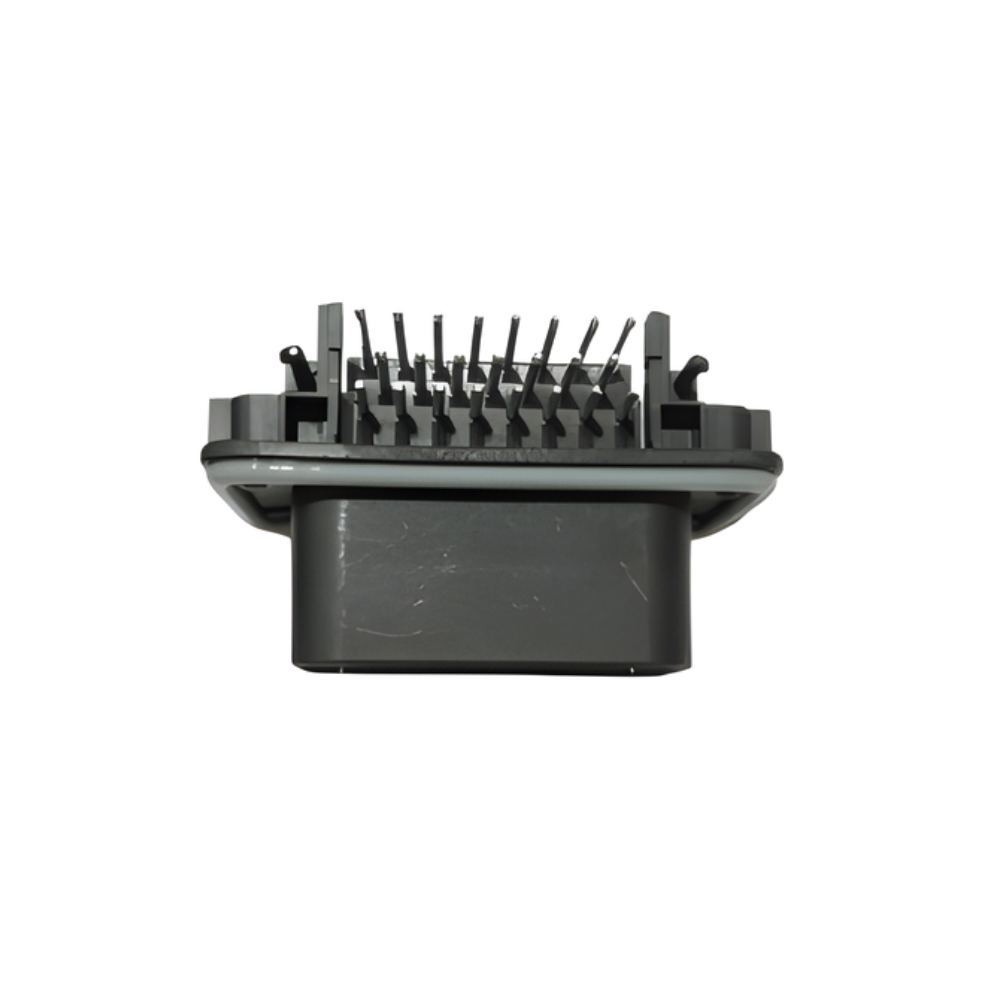

AMPSEAL 23Pin Male Right-Angle Housing

Specifications:

• Type: 23-Pin AMPSEAL Right-Angle Male Connector
• Application: Automotive ECU, engine systems, and industrial equipment
• Number of Pins: 23
• Orientation: Right-angle (90°) design for compact installation
• Connector Gender: Male
• Contact Type: Pin contacts (crimp type)
• Material (Housing): High-temperature resistant thermoplastic
• Contact Material: Tin or gold-plated copper alloy
• Waterproof Rating: IP67 – resistant to water and dust
• Rated Voltage: 12 V / 24 V DC (automotive standard)
• Current Rating: Up to 8–10 A per pin
• Operating Temperature Range: −40 °C to +125 °C
• Locking Mechanism: Secure latch system to prevent disconnection due to vibration
• Color: Typically black or gray housing
• Mounting Type: Cable or panel mount (depending on application)
• Durability: Over 100 mating cycles
• Resistance: Excellent resistance to vibration, oil, and corrosion
