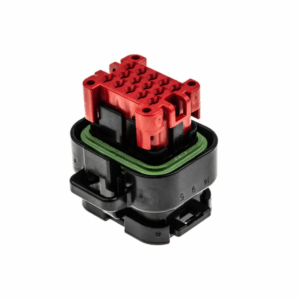

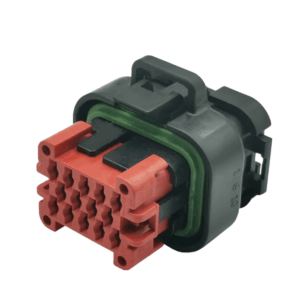

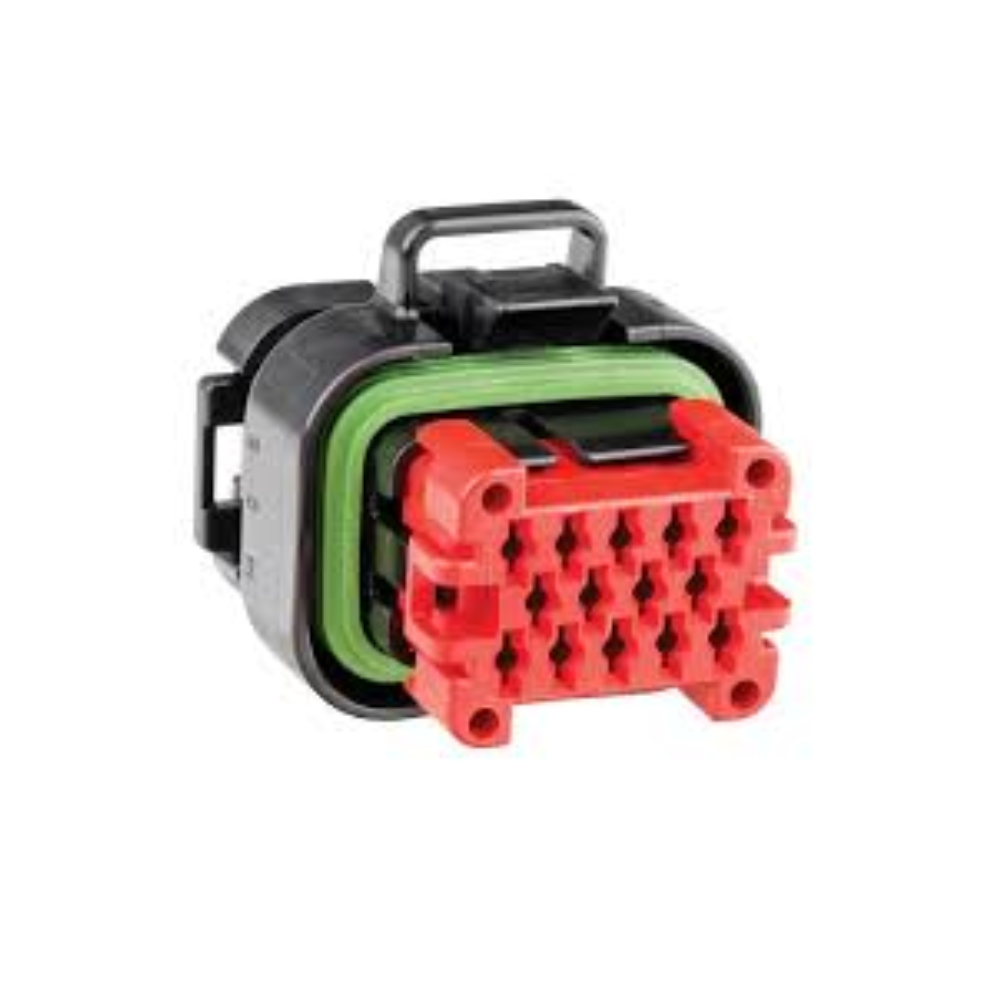

AMPSEAL 14 Pin Female Housing with Terminals

Specifications:

Make: Generic
Connector Series: AMPSEAL(Environmental Sealing System).
Pin Count: $\mathbf{14}$ Positions/Circuits.
Sealing: Environmentally Sealed (often meets $\text{IP}67 / \text{IP}69\text{K}$ standards).
Protection: Excellent resistance to moisture, dust, dirt, and chemicals.
Mating Mechanism: Positive Latch for secure connection under vibration.

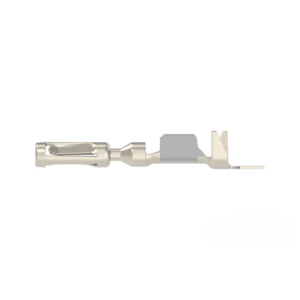

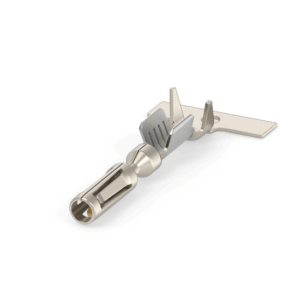

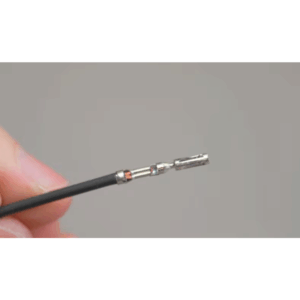

Terminal Size: Typically uses $\mathbf{1.3 \text{ mm}}$ terminals.
Current Rating: Suitable for low to medium current (power and signal) circuits – 17Amp
Wire Gauge Range: Compatible with standard automotive and industrial wire gauges (e.g., $20 \text{ AWG}$ to $14 \text{ AWG}$ ).
Operating Temperature: Wide operational range (e.g., $\mathbf{-40^{\circ}\text{C}}$ to $\mathbf{+125^{\circ}\text{C}}$ ).
Application: Used in harsh environments like automotive, off-road, and heavy-duty industrial equipment.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹411.99 (Inc. GST)
₹349.15 (+18% GST Extra)

Only 1 left in stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

16 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The AMPSEAL $14$ -pin Connector is a sealed, rugged electrical component designed specifically for low to medium-density wire-to-wire or wire-to-device applications operating in severe environments. Belonging to the highly reliable AMPSEAL family, this connector provides $14$ circuit positions in a compact housing. Its primary function is to deliver exceptional protection and reliability through an advanced environmental sealing system, featuring integrated silicone seals that prevent the ingress of water, dust, dirt, and chemicals.

Used extensively in sectors like heavy equipment, transportation, and industrial control, the $14$ -pin variant is valued for its space efficiency while maintaining the system’s characteristic resistance to high vibration and extreme temperatures, secured by a robust, positive latching mechanism.

Package Includes:

1 x AMPSEAL 14 Pin Female Housing with Terminals
