AMG8833 IR 8 * 8 Infrared Thermal Imager Array Temperature Sensor 7M Farthest Detection Distance with housing

5,723.00 (Including GST)

4,850.00 ( + 873.00 GST)

Specifications:

  1. Material: PCB
  2. Temperature accuracy:
  3. High performance type high gain: typical ±2.5℃ ±4.5
  4. High performance type low gain: typical ±3.0℃ ±5.4℉
  5. Human detection distance: 7m or less (reference value) 22.966 ft

Purchase this product now and earn 49 Points!

Compare
SKU: RDNA-342.4 Categories: ,

Share this product

Description

Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.

Features:

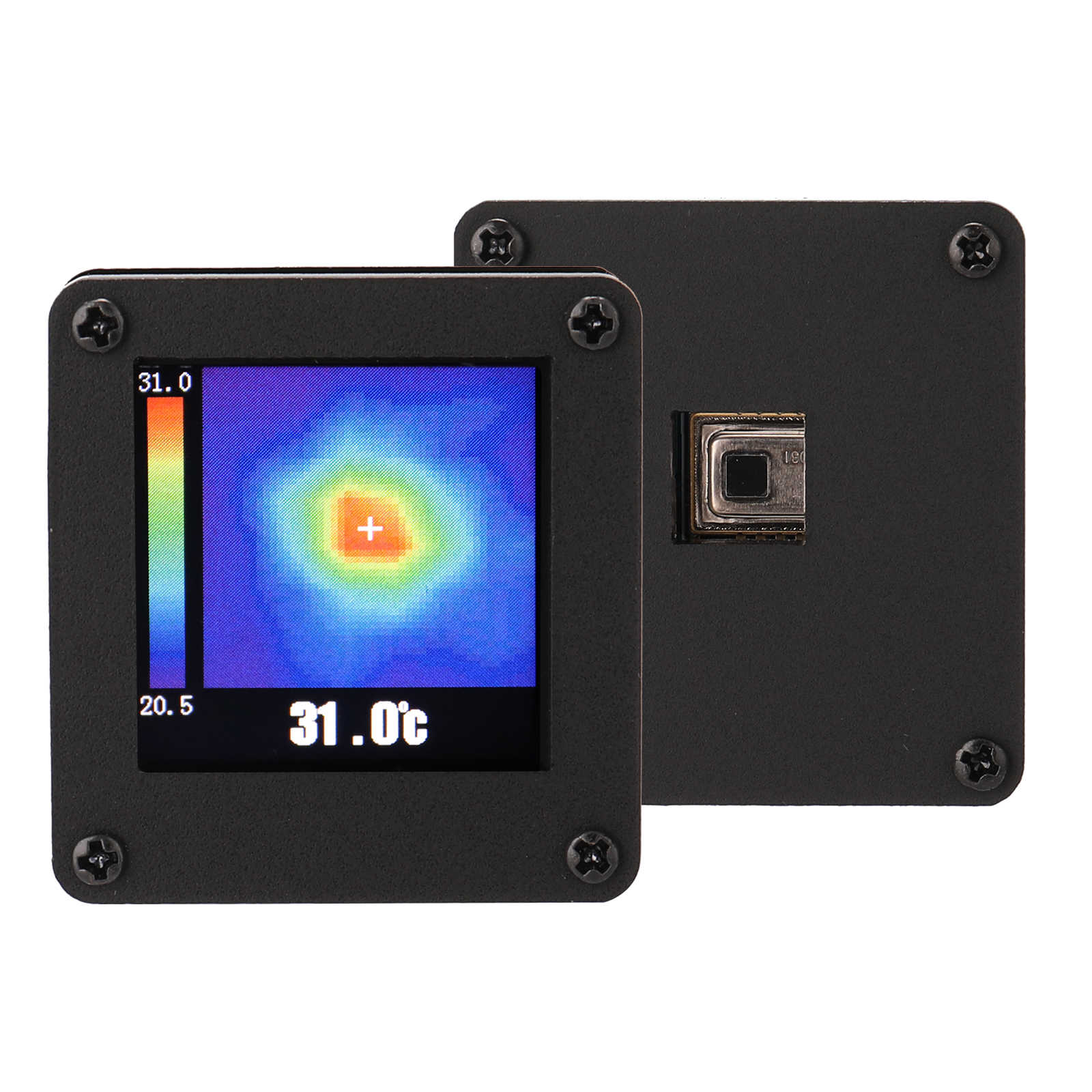

The module can be powered directly by USB 5V to produce infrared images.
Use AMG8833 infrared thermal sensor. The resolution is 8*8, and the farthest detection distance is 7 meters.
It can be applied to check electronic products.
Portable and compact, high performance, easy to use.

Specifications:
Material: PCB
Temperature accuracy:

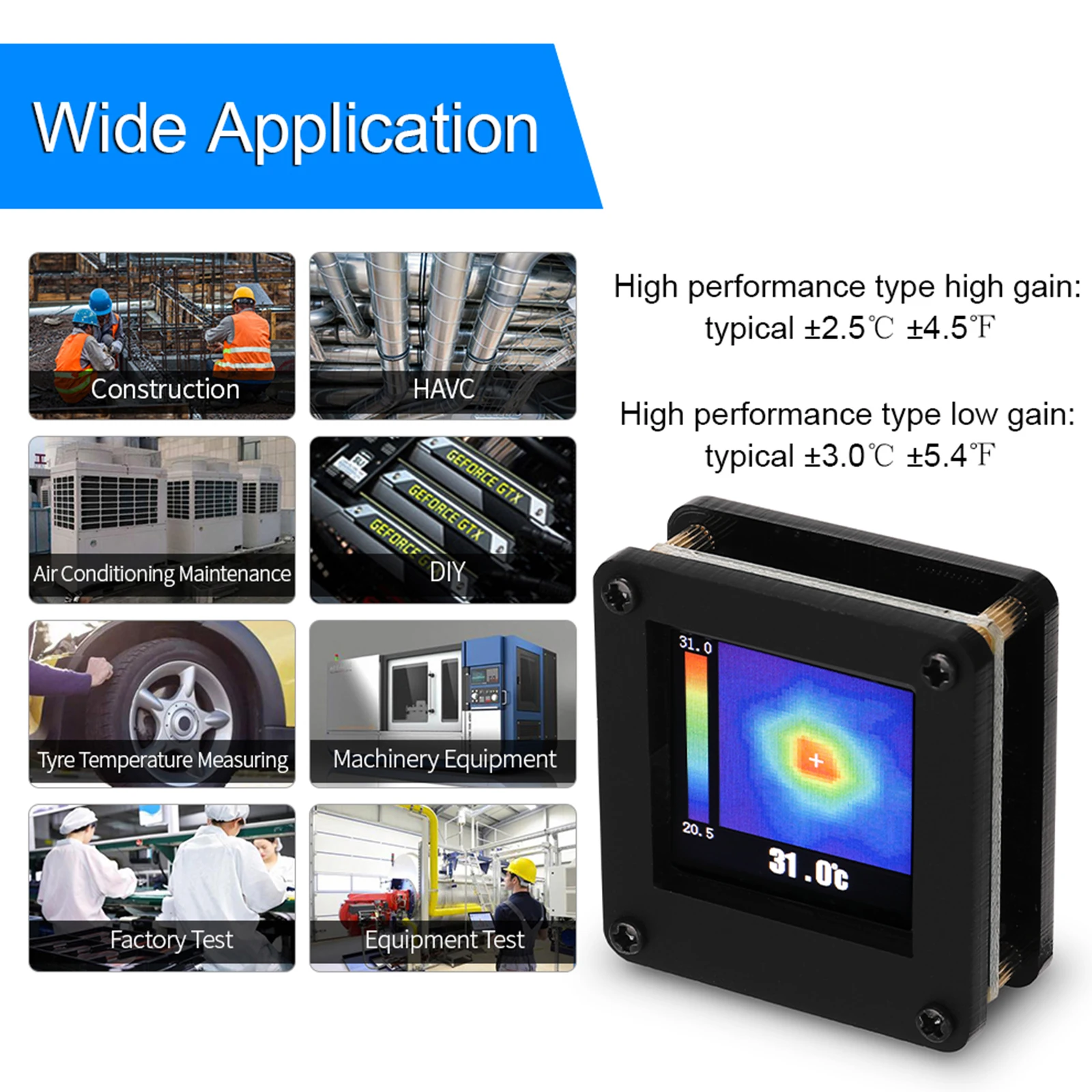

High performance type high gain: typical ±2.5℃ ±4.5℉
High performance type low gain: typical ±3.0℃ ±5.4℉
Human detection distance: 7m or less (reference value) 22.966 ft
NETD:
Typ. 0.05℃ 32.900℉ 1Hz
Typ. 0.16℃ 32.288℉ 10Hz
Viewing angle: typical 60°
Optical axis gap: within typical ±5.6°
Current consumption:
Typical 4.5mA (normal mode)
Typical 0.2mA (sleep mode)
Typical 0.8mA (stand-by mode)
Setup time:
Typical 50ms (time to enable communication after setup)
Typical 15s (time to stabilize output after setup)
Number of pixel: 64 (vertical 8 * horizontal 8 matrix)
External interface: 1²C (fast mode)
Frame rate: typical 10 frames/sec or 1 frame/sec
Operating mode: normal, sleep, stand-by (10 sec or 60 sec intermittence)
Output mode: temperature output
Calculate mode: no moving average or twice moving average
Temperature output resolution: 0.25℃ / 32.45℉
Number of sensor address: 2 (1²C slave address)
Thermistor output temperature range: -20℃~80℃ (-4℉~176℉)
Thermistor output resolution: 0.0625℃ / 32.1125℉

Package include :

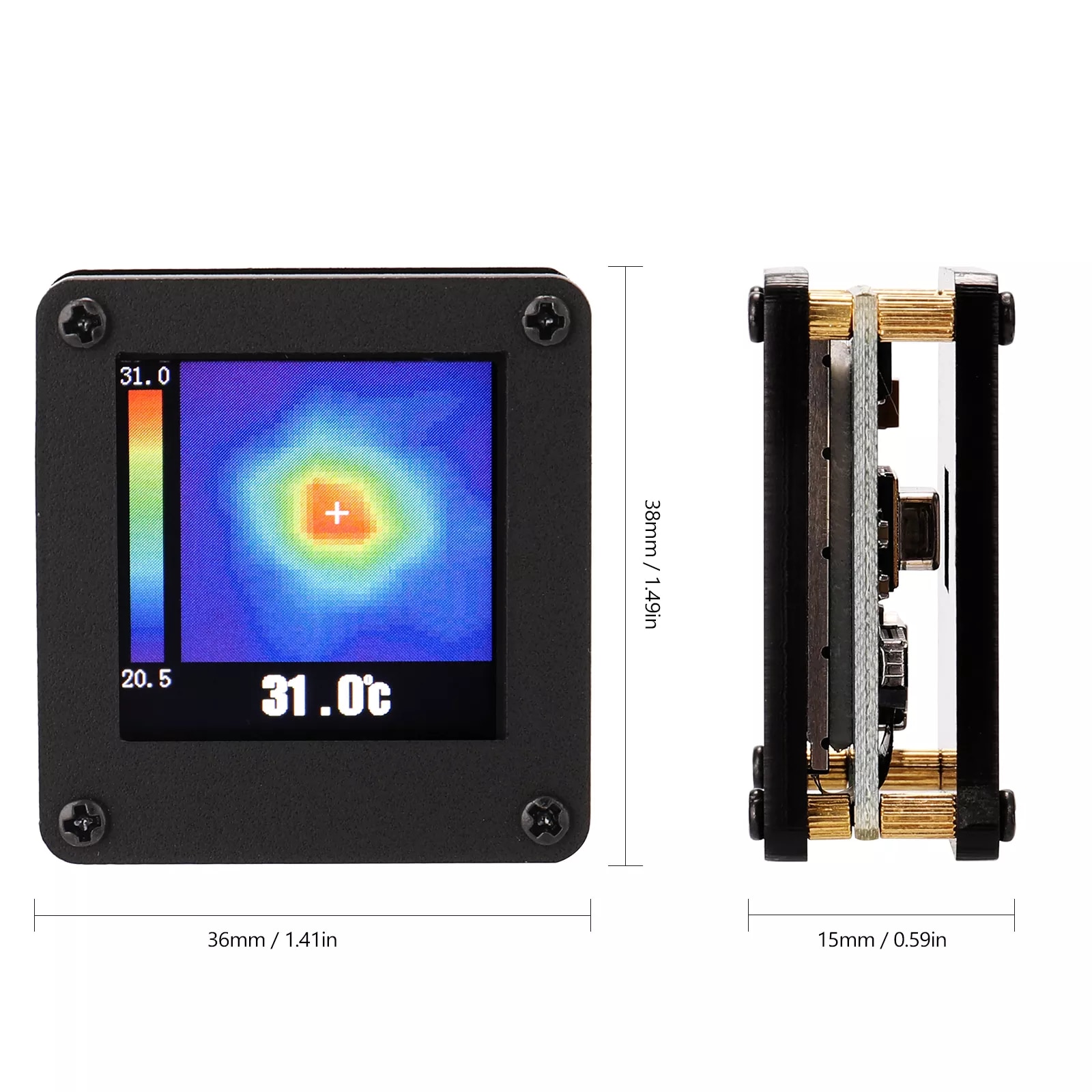

1 x AMG8833 1.8 Inch TFT Display Simple Portable Infrared Thermal Imager Temperature sensors Maximum Minimum Temperature Display
