Ai Thinker NF-01-S Wireless Transceiver

Specifications:

RF chip : Si24R1
module size: 28.6*15.3 unit : mm
Modulation mode GFSK/FSK modulation mode
Package : DIP-8
Interface : Adopt four-wire SPI interface
Transmission power : Maximum is 7 dBm
RSSI support : Support
Operating frequency : 2.4GHz ~ 2.525GHz
Voltage range : 1.9 ~ 3.6V, typical value 3.3
Data rate support : 2Mbps/1Mbps/250Kbps
Channel : 126 RF Channel
Antenna interface : On-board pcb antenna

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹99.00 (Inc. GST)
₹83.90 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

20 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

NF-01-S is a 5 mW power wireless transceiver integrated 2.4G module, embeddedSi24R1 RF chip; DIP-8 packages that can be quickly docked to existing products ; altitude medium rate (up to 2 Mbps), using SPI interface, high stability, high performance-price ratio. NF-01-S suitable for a variety of Internet of things occasions, widely used in wireless mouse, wireless remote control, somatosensory devices, active RFID, NFC, low-power ad hoc wireless sensor nodes are Internet of things applications Ideal product.

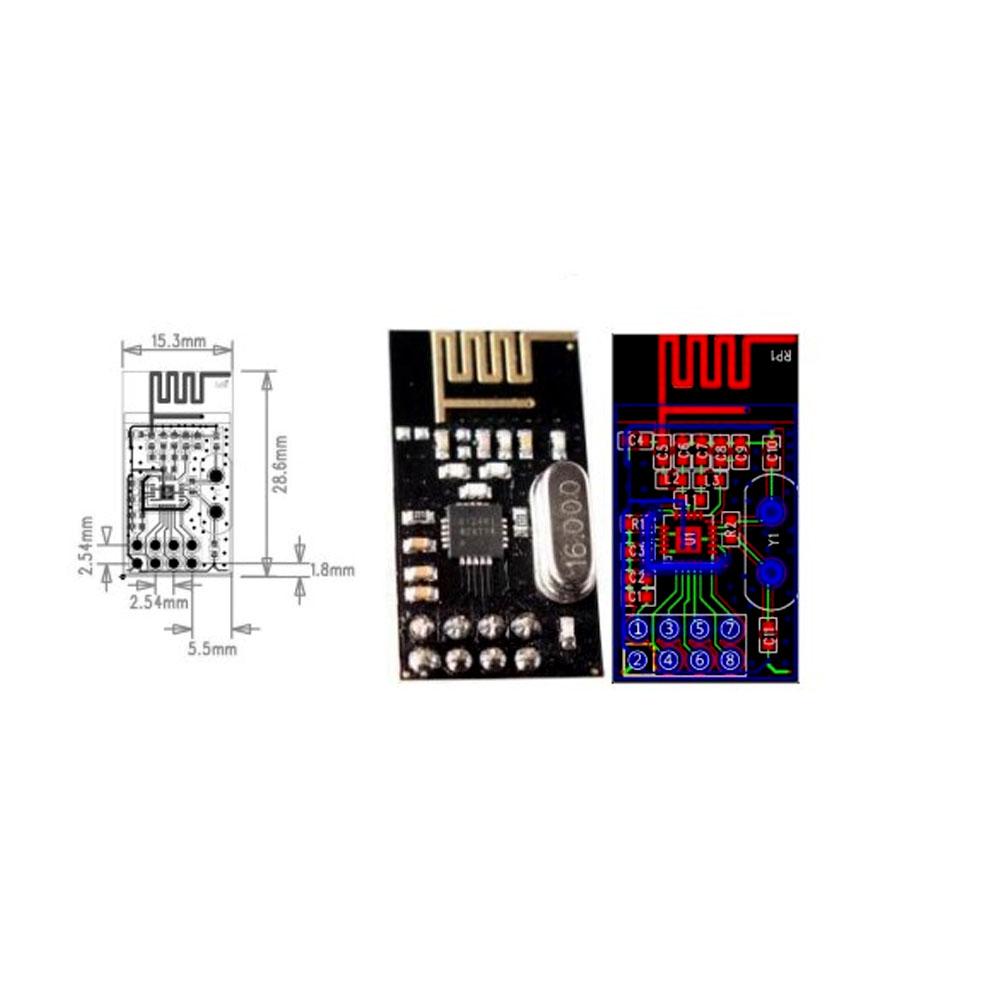

schematic :
