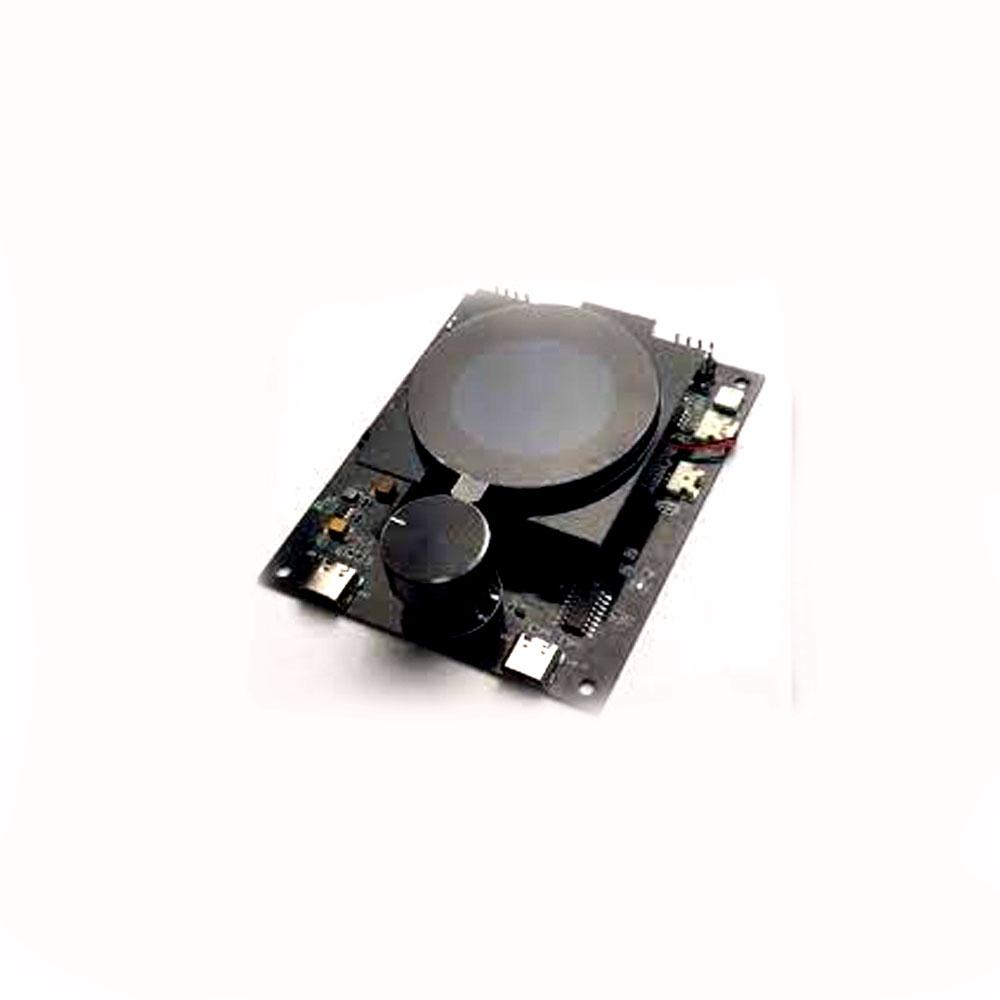

Ai Thinker AiPi-Knob with BL618(Ai-M61-32S module)

Specifications:

Model: AiPiSCP-Knob
Module: Ai-M61-32S
Circular screen: 1.28 inch
Length: 88mm
Width: 72mm
Height: 17mm

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹2,449.00 (Inc. GST)
₹2,075.42 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

16 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

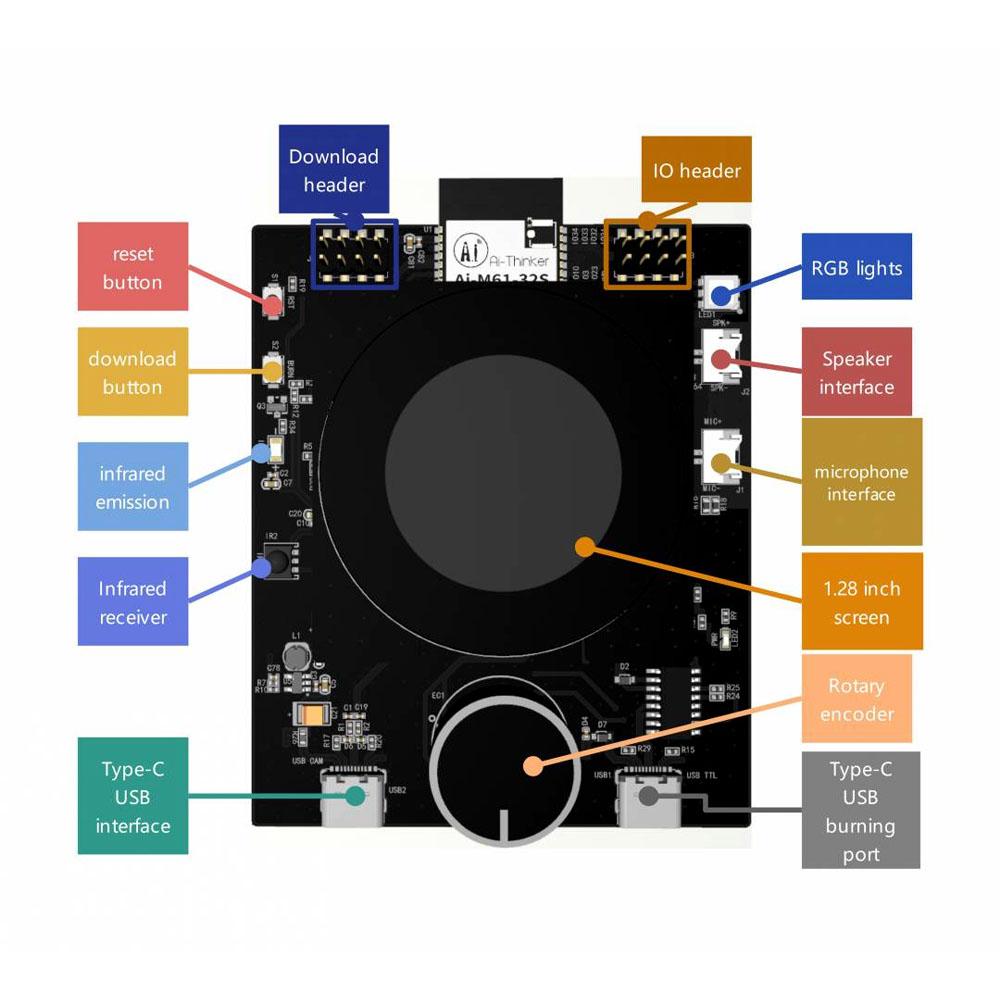

AiPi-Knob is a rotary encoder driver board (referred to as Knob) designed by the Ai-Thinker open source team, which integrates 1.28 circular screen, pin interface, rotary encoder, RGB light, built-in audio, infrared emission and infrared reception, download pin, IO pin, serial port download USB interface, and USB interface. AiPi-Knob factory has burned the firmware, and made four demonstration interfaces:

Washing machine interface
RGB light interface
TV control interface
Air conditioning control interface

The Ai-M61-32S module is equipped with a wealth of peripheral interfaces, specifically including DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO. AiPi-SCP-Knob integrates a screen pin interface, knobs, RGB lights, built-in audio, infrared emission and infrared reception, download pin, IO pin, serial download USB interface, and an outgoing USB interface.
