8S 29.6V 18650 Lithium Battery Equalizer Board 33.6V Polymer Battery Equalizer Board Connector

8S 29.6v li-ion lipo balancer board balancing board full charge battery balance board.

The balance board is suitable for the li-ion battery pack without balance functions, so as to equalize charge lithium battery charge function, make the battery pack each series charge at the same time.

The balancer is just an Auxiliary function, The balancing means when the battery is charging, each series battery need the same voltage. when ONE cell voltage gets 29.6V, the other cells not, the first cell voltage will discharge to wait for the other cells to rise to the same level.

Note: Battery internal resistance differences within 5 milliohms, the voltage within 0.03 V voltage, capacity vary within 50 ma Cut-off Voltage is according to the BMS setting.

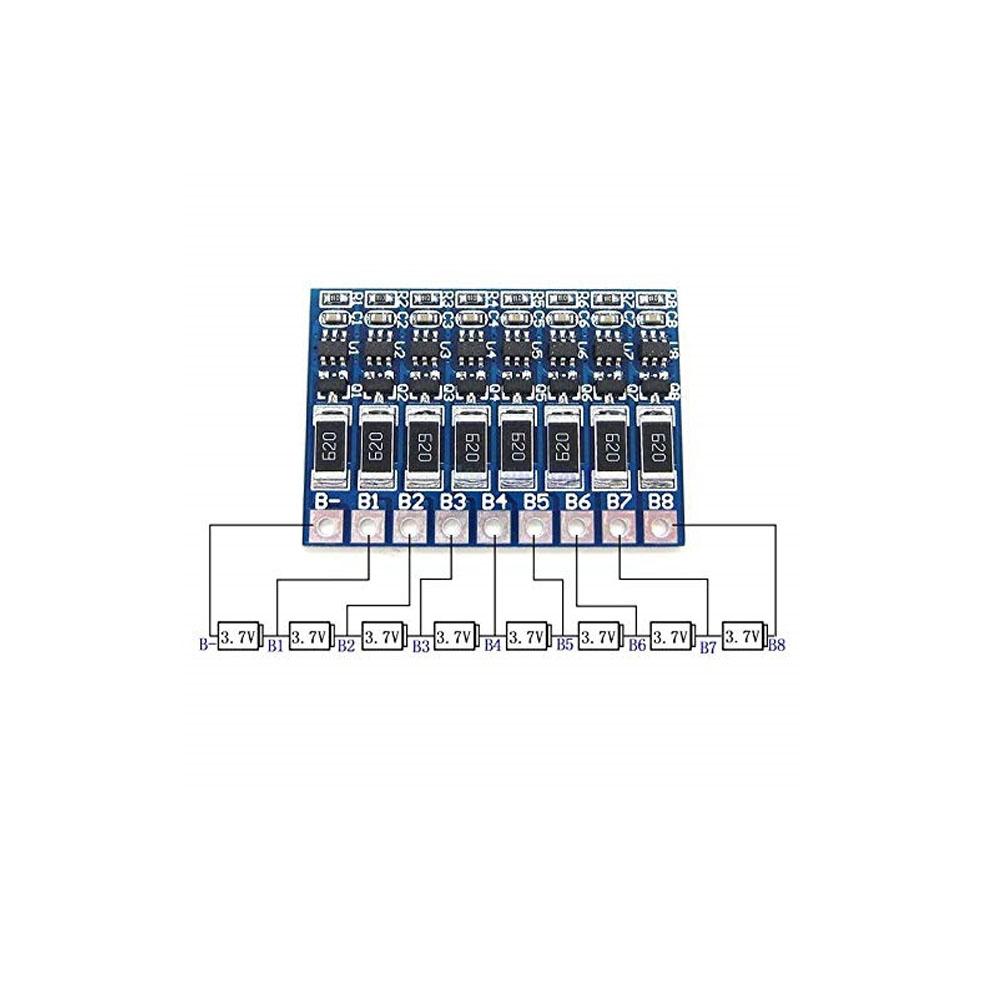

8S Cnnection instruction:

Product Size:  37.3 * 25.8 * 2.4mm

Solder Joint Description:

B – Connect the negative of the battery pack

B1 Connect battery 1 to the contacts in battery 2

B2 Connect battery 2 to the contacts in battery 3

B3 Connect battery 3 to the contacts in battery 4

B4 Connect battery 4 to the contacts in battery 5

B5 Connect battery 5 to the contacts in battery 6

B6 Connect battery 6 to the contacts in battery 7

B7 Connect battery 7 to the contacts in battery 8

Features :

1. Type: Voltage Regulator.
2. Supply Voltage: 29.6v
3. Dissipation Power:18650 Lithium Battery Balanced Function Board.
4. Operating Temperature: Discharge Shunt balanced 4.2V 66mA.
5. Application: 8s Lithium Battery Balanced Function Board.

Package Include:

1 x Lithium Battery Equalizer Board
