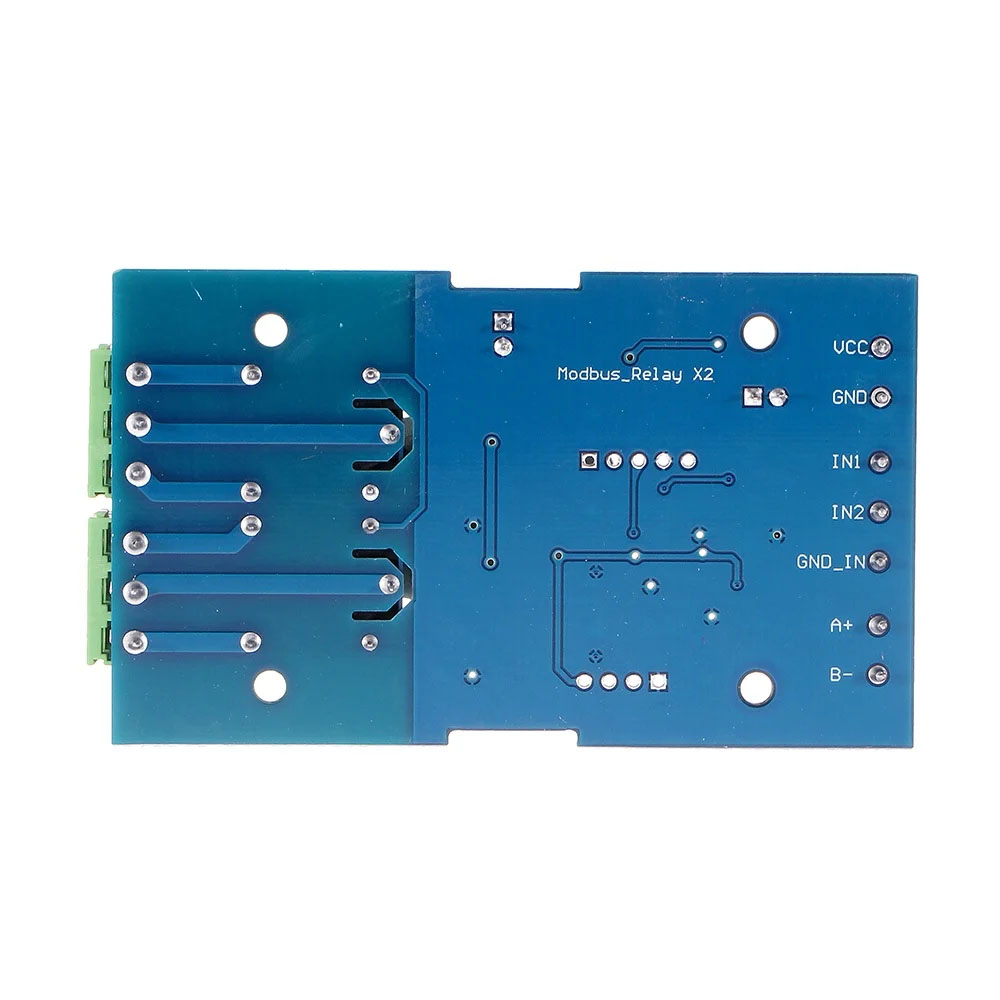

7-24V Modbus RTU 2, Channels Relay Module, RS485/TTL Anti-Reverse, Connection

Specifications:

On-board Chip: MAX485
Communication protocol: Modbus RTU protocol
Communication interface: Support RS485 / TTL UART interface
Operating Voltage: 5VDC
No. of Channel: 2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹674.96 (Inc. GST)
₹572.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

13 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

LC 2 channel Modbus relay module equipped with mature and stable 8-bit MCU and RS485 level communication chip adopt standard MODBUS RTU format RS485 communication protocol, It can realize 1-way input signal detection and 2-way relay output, can be used for digital detection or power control occasions.

Features:

On-board mature and stable 8bit MCU and MAX485 level conversion chip
Communication protocol: support standard Modbus RTU protocol
Communication interface: Support RS485 / TTL UART interface
Communication baud rate: 4800/9600/19200, default 9600bps, support power saving
Photocoupler input signal range: DC3.3-30V (This input cannot be used for relay control)
Device address: range 1-255, default 255, support power-down save
Onboard one 5V, 10A / 250V AC 10A / 30V DC relay.
Continuously attract 100,000 times, with diode leakage protection, short response time
Onboard relay switch indicator
Supply voltage: DC7-24V, with input anti-reverse protection
