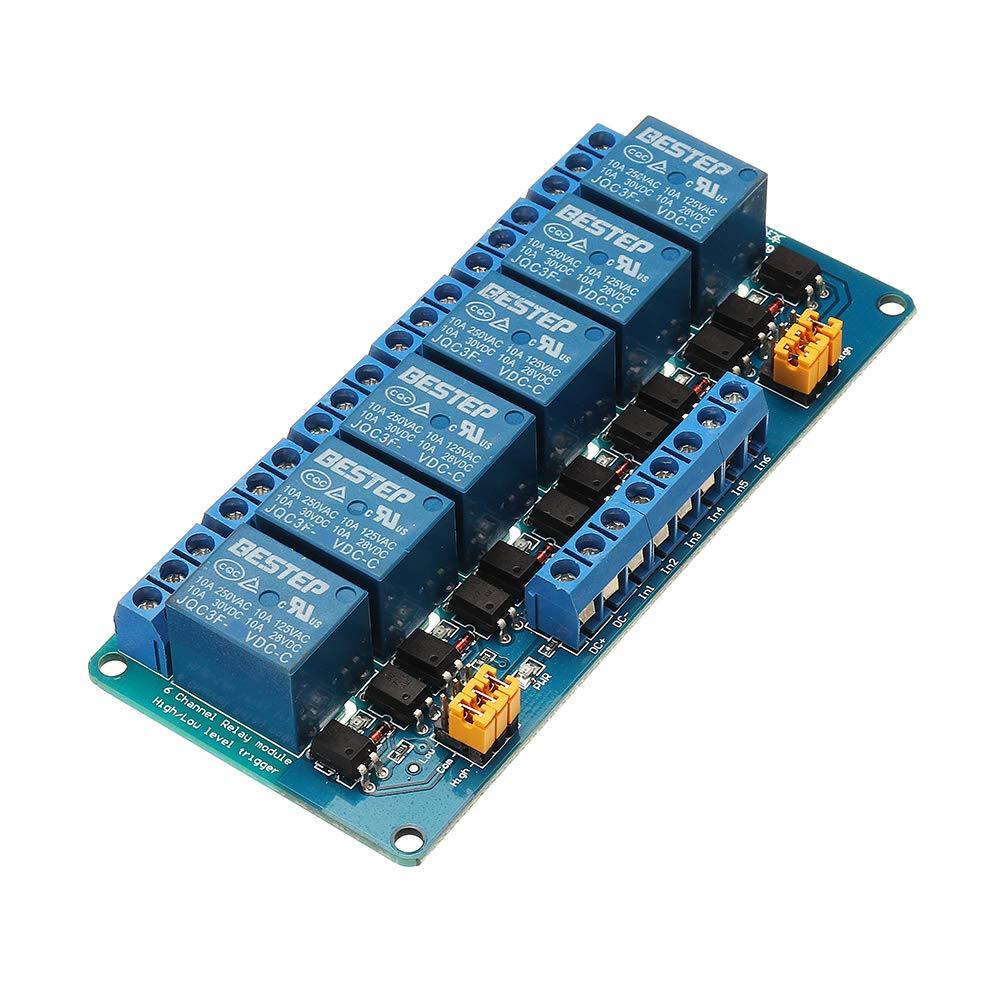

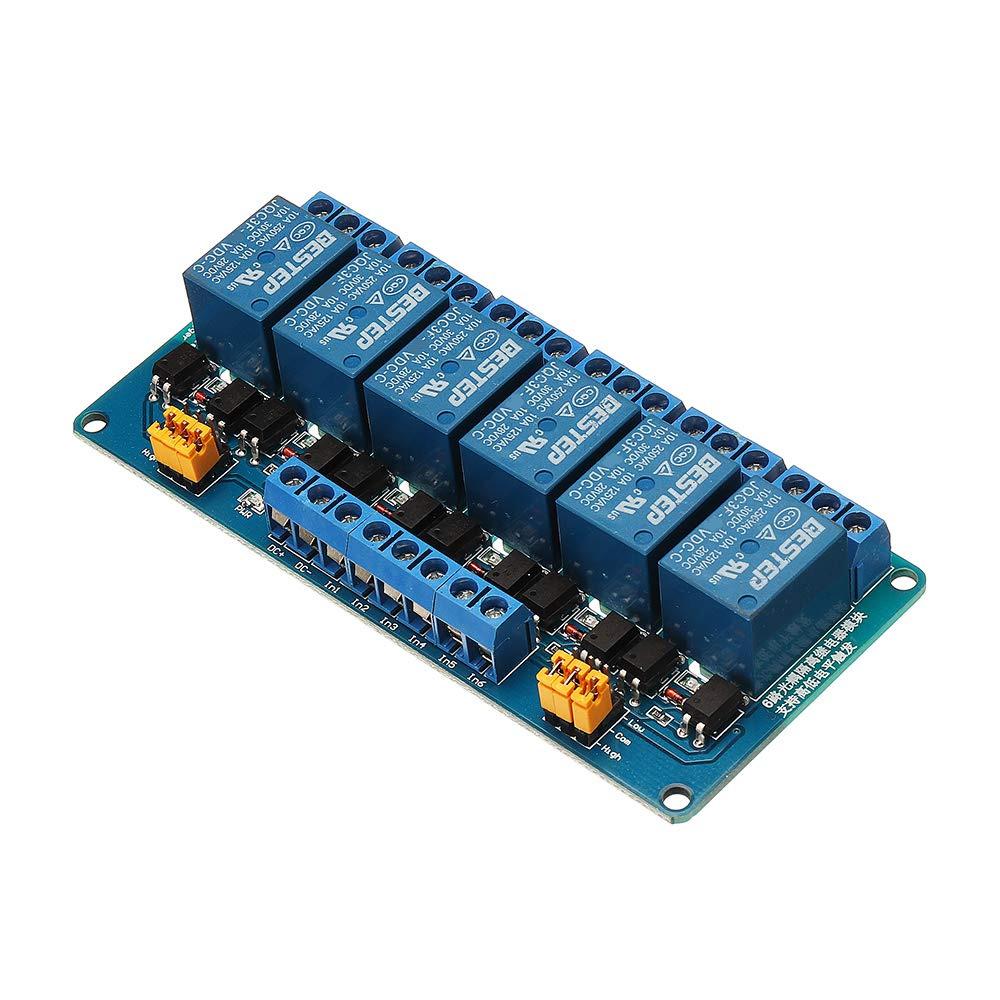

6 Channel 5V Relay Module High and Low Level Trigger - Image 1

6 Channel 5V Relay Module High and Low Level Trigger - Image 2

Click to enlarge

6 Channel 5V Relay Module High and Low Level Trigger

Specifications:

BESTEP 6 Channel 5V Relay Module High And Low-Level Trigger
With good performance and high-quality material, it may work for a long time.
Provide full protection from dust, shock, scratches bumps and other daily damage
Completely fits and works
Simple and easy, comfortable, easy to carry

SKU: RDNA-E514

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹450.00.Current price is: ₹427.99. (Inc. GST)
₹362.71 (+18% GST Extra)

In stock

0 days 00 hr 00 min 00 sc

In stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

19 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

A 6-channel 5V relay module with high and low level trigger functionality is designed for switching multiple circuits in electronic projects. This module contains six independent relays that can be controlled by digital signals from microcontrollers such as Arduino, Raspberry Pi, or other logic devices. Each relay can switch high power loads, providing safe and reliable operation with optocouplers that isolate control signals from high voltage outputs. Supporting both high-level and low-level triggers, this module offers flexibility in various applications, from home automation to industrial control system

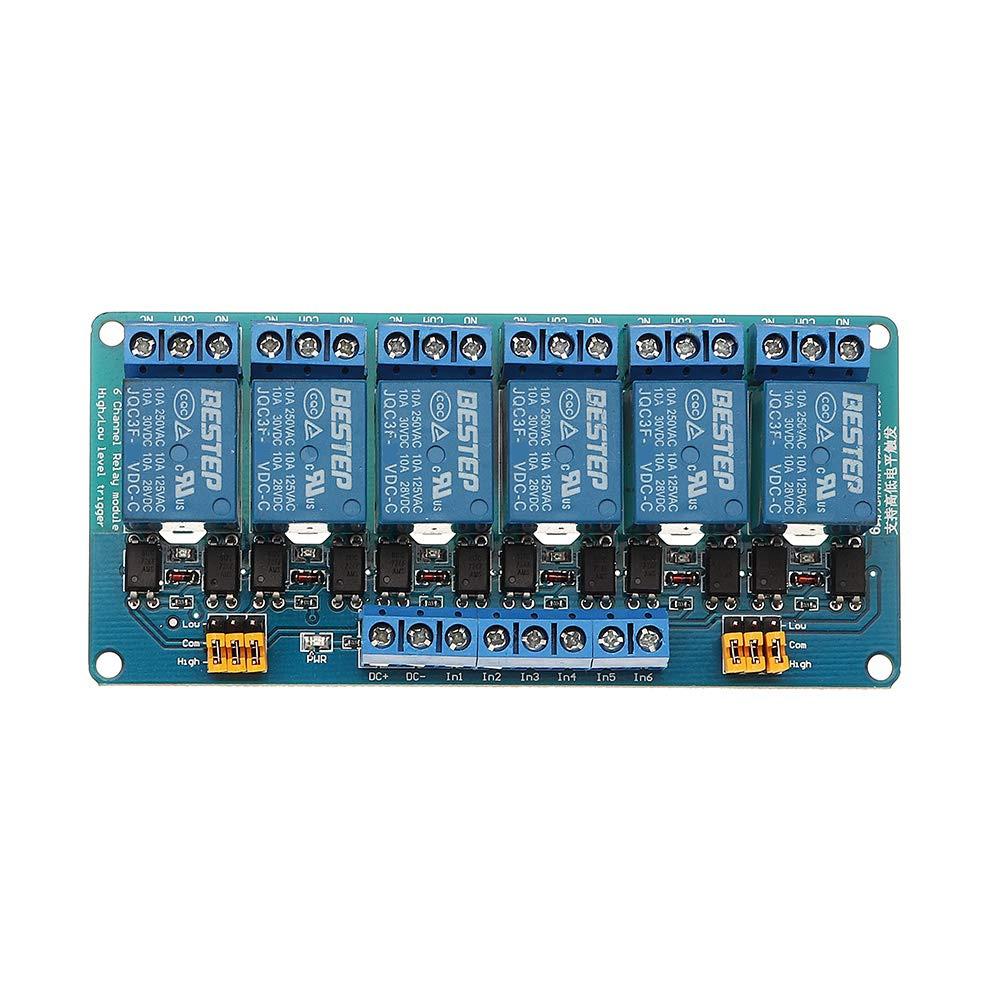

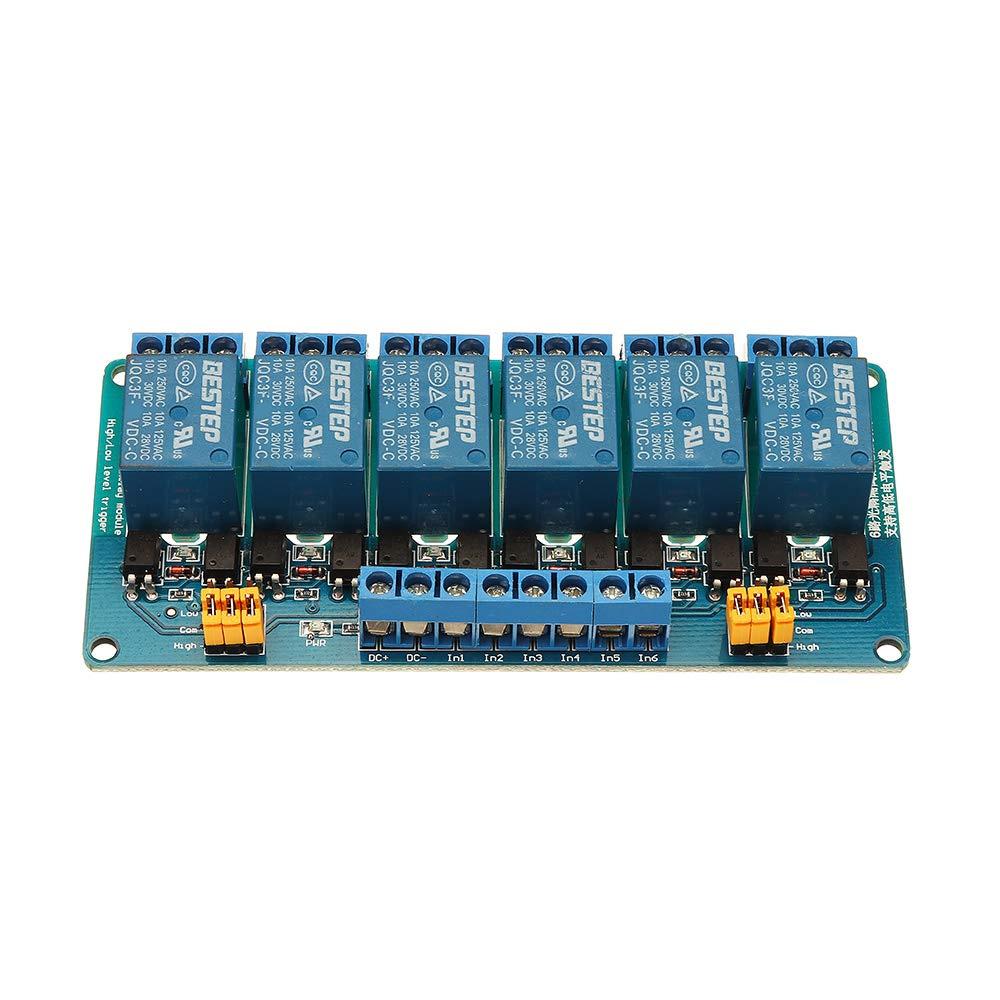

Module interface:

DC+: Connect the power-positive pole
DC-: Connect the power negative pole.
IN1-IN6: According to the setting of each way, the corresponding relay operating can be controlled by high or low levels.

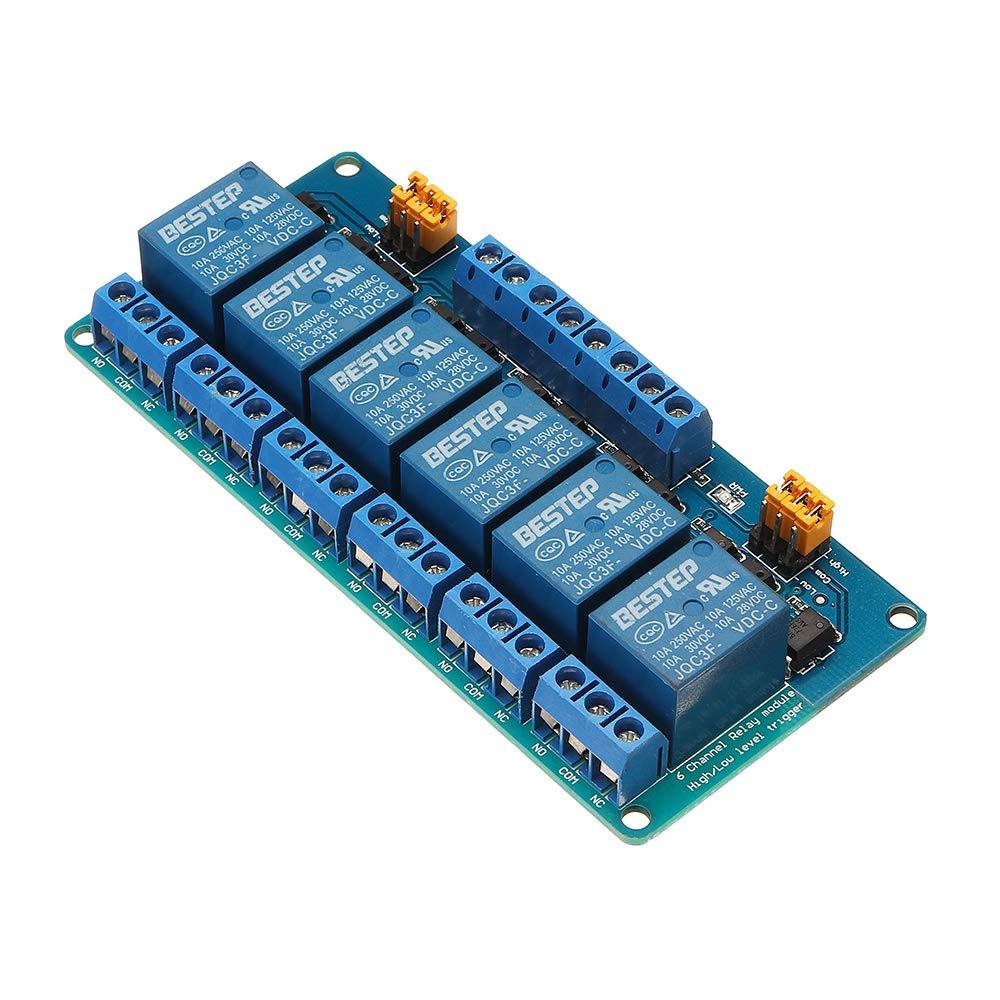

Relay output:

There is an 18-wire interface, all interfaces can be directly connected to load to facilitate user use.

NO1–NO6: Relay normal open, the relay suspends before pulling in, and then short-connect with the COM.
COM1–COM6: Relay common interface
NC1–NC6: Relay normal close, short connected with COM before pulling in and suspended after pulling in.

High and low-level trigger options:

S1-S6 is the high-level trigger selection of relay 1 Channel – 6 Channel.
When COM is short-connected with LOW, the corresponding relay is a LOW-level trigger, while when COM is short-connected with the high end is a high-level trigger.

Packing List:

1 x BESTEP 6 Channels 5V Relay Module High and Low Triggering
