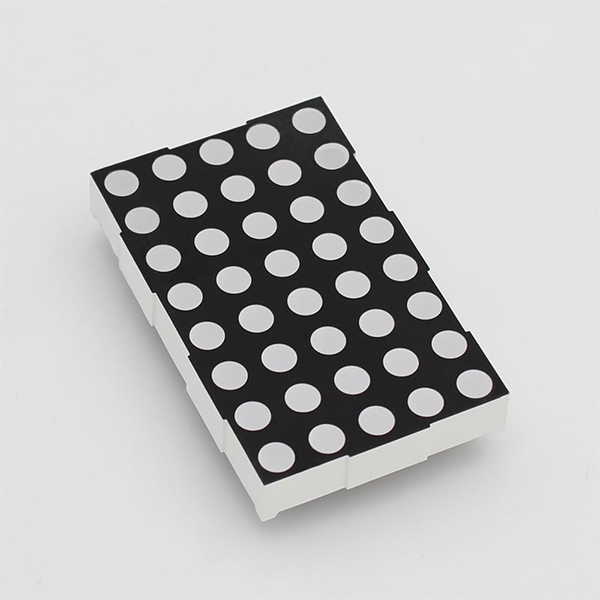

Dot Matrix 5×7 Array 3mm led display Red – Common Cathode

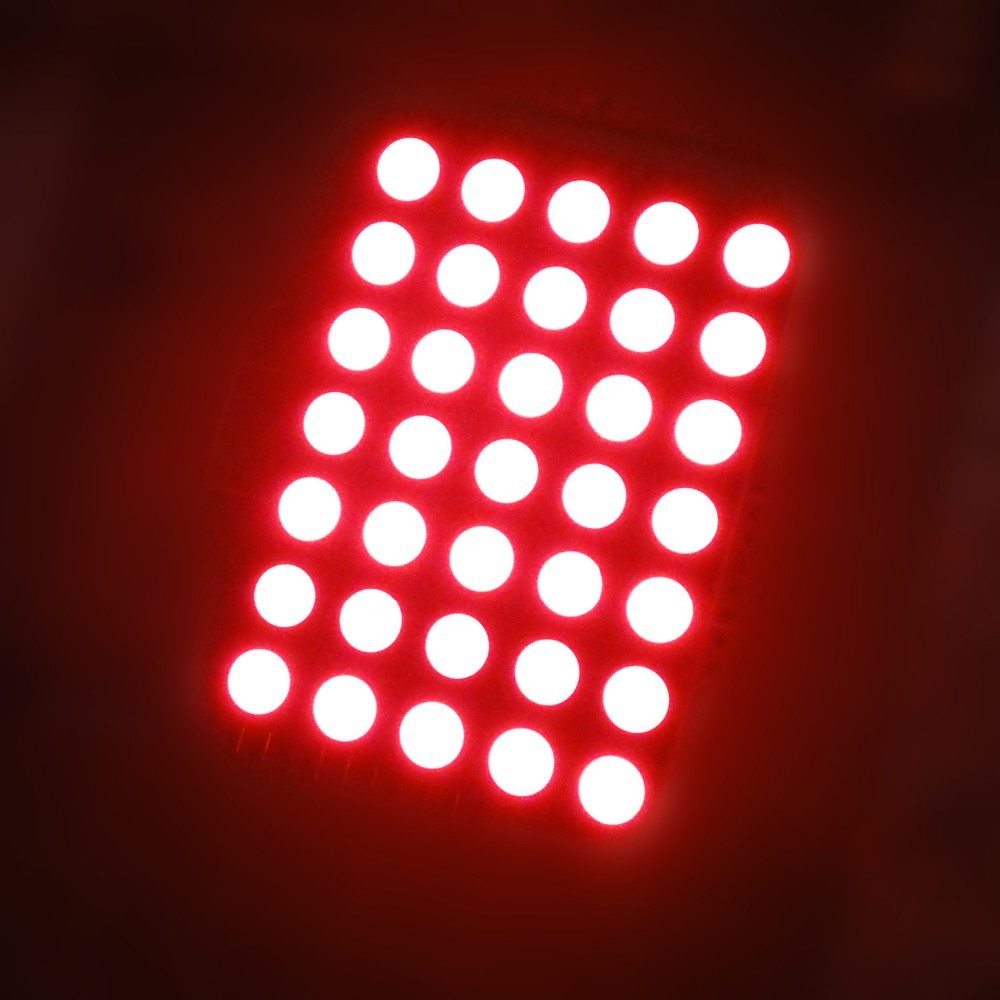

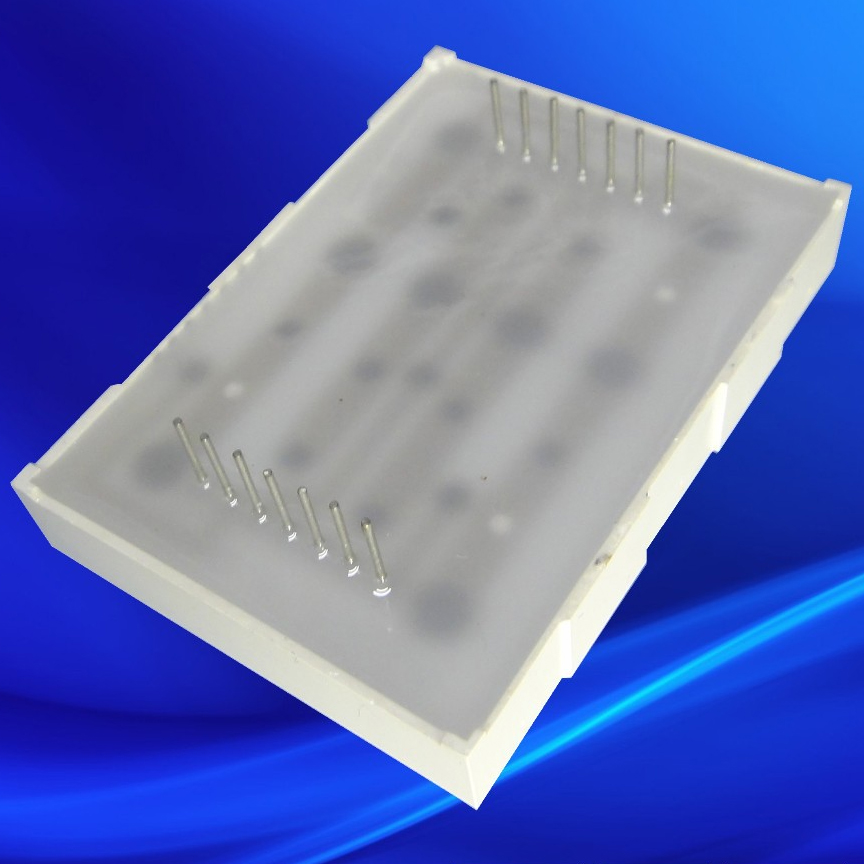

The 5×7 LED matrix module is a very useful and low-cost way to add display in your electronic circuits. It has 14 pins to achieve a different combination to ON/OFF the LEDs. It fits properly into any standard solderless breadboard. It is a Great display for electrical and test equipment. The diameter of the Led is about 3mm with a common cathode configuration which emits Red colour. The Exact dimensions of this module are shown in the Schematic image.

These Displays are always in high demand in the DIY community as well as in  Industrial Projects due to their multipurpose uses and cheap cost.

Package includes:

1 x 5×7 Array 3mm led dot matrix display Red – Common Cathod
