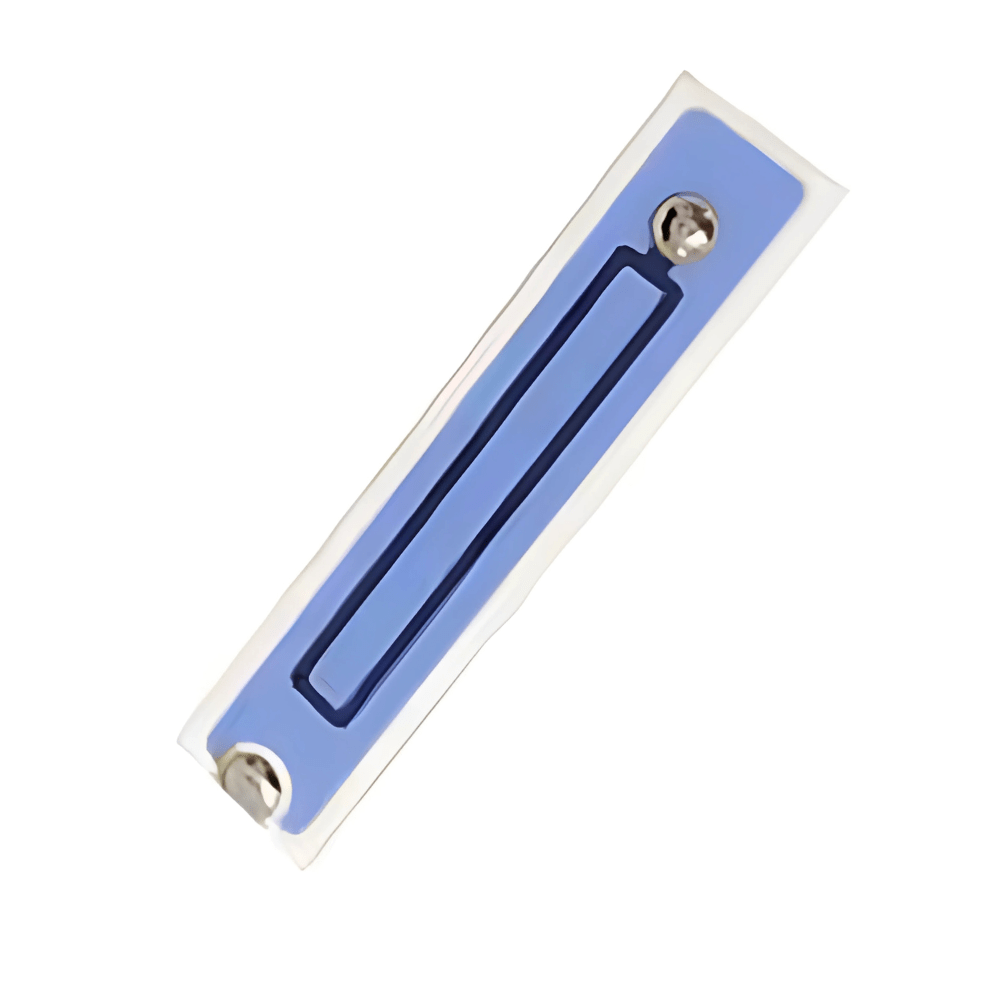

500mg/h 70 x 15mm Ceramic Ozone Plate

Specifications:

Ozone Output: 500g per hour (g/h), indicating the amount of ozone the plate can generate.
Material: Ceramic, which provides durability and efficiency in ozone production.
Moisture-Proof: Designed to resist moisture and prevent damage from humid environments, improving longevity.
Long Life: Enhanced lifespan compared to regular ozone plates, ensuring prolonged use and consistent performance.
Voltage: Usually operates at high voltage (around 3-5kV), but specific voltages can vary depending on the manufacturer.
Dimensions: Varies depending on the model, but typically in the range of 100mm x 50mm or similar.
Temperature Range: Can generally withstand temperatures ranging from –10°C to 50°C.
Efficiency: Optimized for high ozone output with low power consumption.
Application: Used in home or industrial ozone generators for air and water treatment.

SKU: RDNA-20.6

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹265.00 (Inc. GST)
₹224.58 (+18% GST Extra)

Only 2 left in stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

20 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The “500mg/h 70 x 15mm Ozone Plate” is a component designed for ozone generation systems. It features a plate measuring 70mm in length and 15mm in width, constructed to facilitate efficient ozone production. The specification “500mg/h” indicates that the plate is capable of generating approximately 500 milligrams of ozone per hour under optimal operating conditions. Such ozone plates are typically used in applications like air purification, water treatment, sterilization, and odor removal, where ozone’s oxidative properties are utilized to eliminate contaminants and pathogens. The compact size and specific ozone output make this plate suitable for small to medium-scale ozone generators.

Application

It is used in household air purifier, air fresher, home air purifier, Dryer, dishwasher, shoe cabinet, household disinfectant cabinet, oxygen bar, dehumidifier, refrigerator, domestic appliance and so on.

Features

1. High-voltage and high-frequency corona discharge, small size transformer, low consumption rate of electricity.

2. Epoxy potting, Dampproof, Waterproof, Corrosion proof transformer.

3. Easy to maintain and install.

4. Long-life ceramic plates are made through green production on 96% aluminum oxide ceramics, with silk-screen discharge resistance of tungsten and molybdenum and other agents, flattened and tin-treated on electrodes after co-firing to high temperature 1650 ℃. High temperature co-firing electrodes and circuits never fall off, and are with excellent moisture and oxidation resistance.

Package Include:

1 x 500mg/h Ozone Plate
