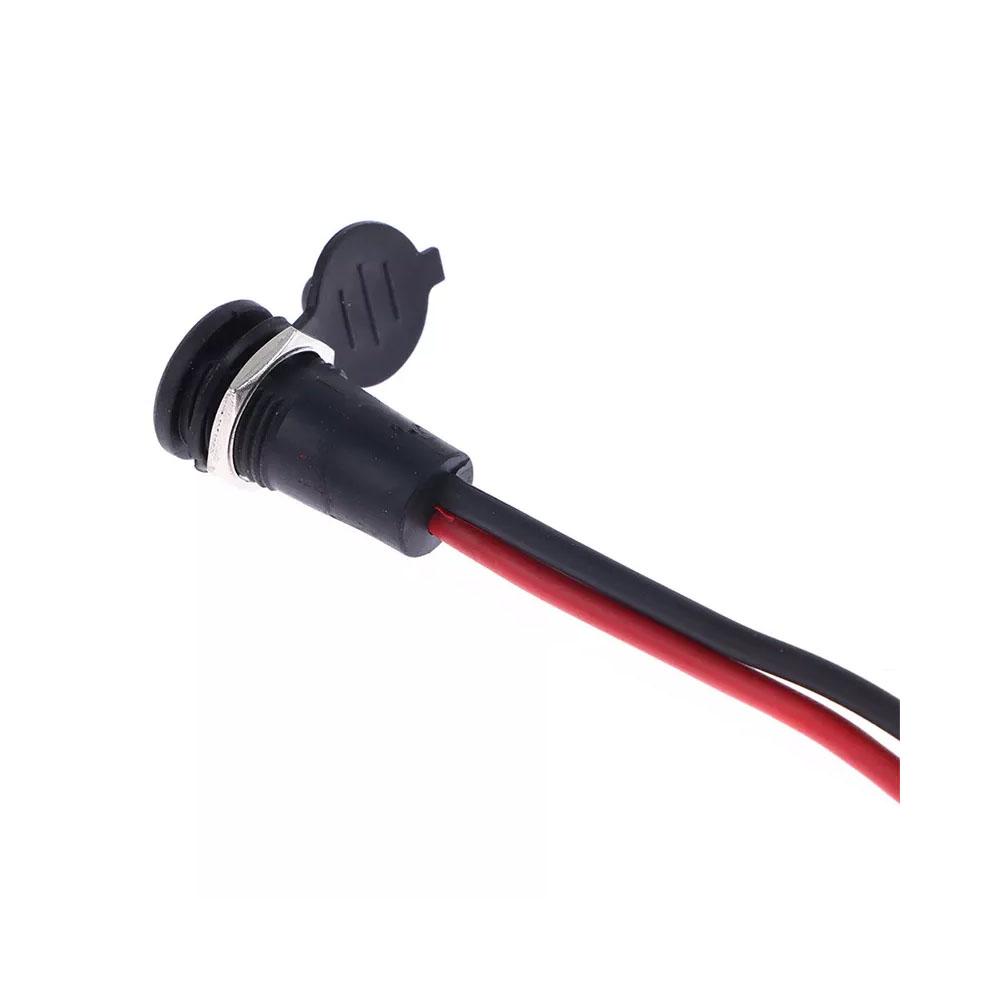

5.5*2.1Mm Dc Socket High Current All Male Female Power Plug Connector

Specifications:

Connector Type: Male Plug and Female Socket
Dimensions:
- Outer Diameter: 5.5mm
- Inner Diameter: 2.1mm
Current Rating: Up to 5A
Voltage Rating: Up to 24V DC
Material:
- Housing: High-quality plastic or metal
- Contacts: Nickel-plated or gold-plated brass
Mounting Type:
- Male Plug: Cable mount, soldering
- Female Socket: Panel mount, cable mount, PCB mount
Durability: Rated for up to 5000 insertion/extraction cycles
Temperature Range: -20°C to +70°C
Certifications: Commonly CE, RoHS compliant
Features:
- Polarized for correct polarity
- Locking mechanism (available in some models) for secure connections

SKU: RDNA-CS36.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹141.60 (Inc. GST)
₹120.00 (+18% GST Extra)

Only 2 left in stock

Compare

Add to wishlist

14 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The 5.5*2.1mm DC socket and plug connectors are designed to provide reliable, high-current power connections for a wide range of electronic devices. These connectors feature a 5.5mm outer diameter and a 2.1mm inner diameter, accommodating up to 5A of current and up to 24V DC, making them suitable for high-current applications such as powering laptops, LED lighting, CCTV systems, and various portable electronics.

Package include:

1 x 5.5*2.1Mm Dc Socket High Current All Male Female Power Plug Connector.
