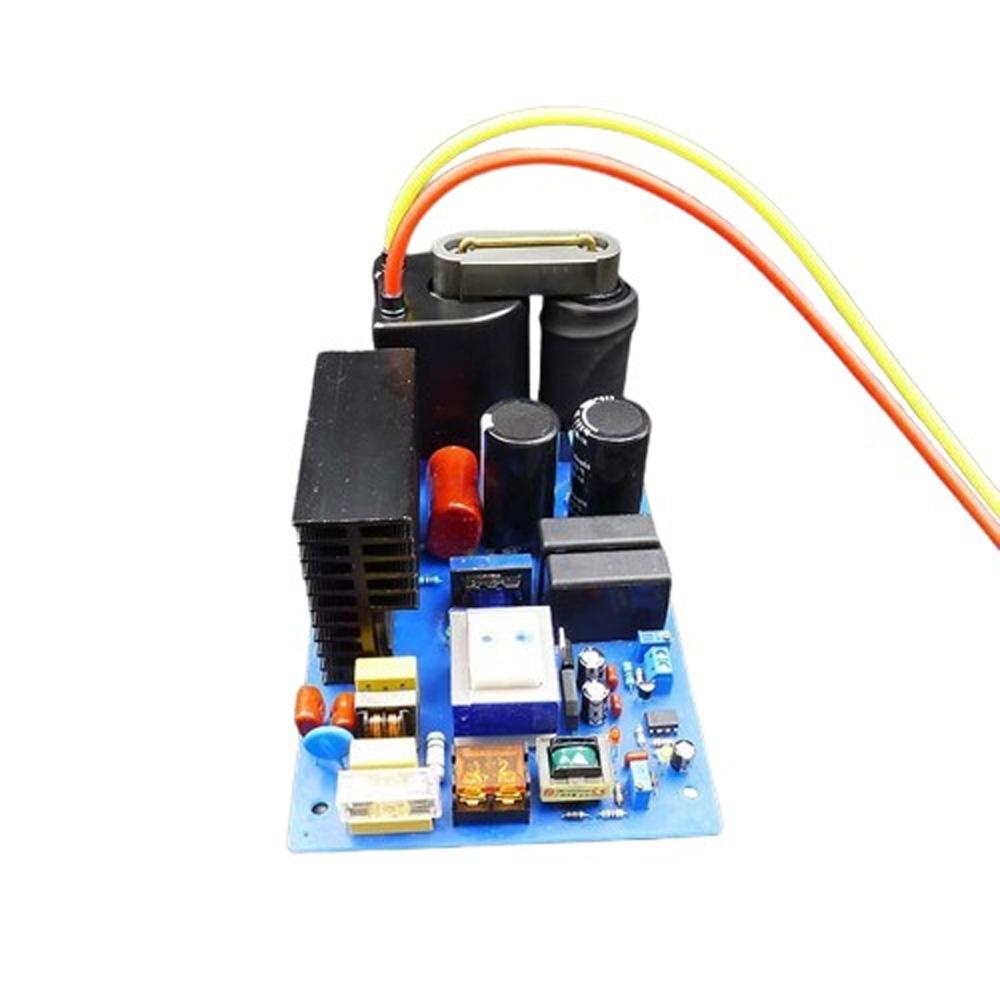

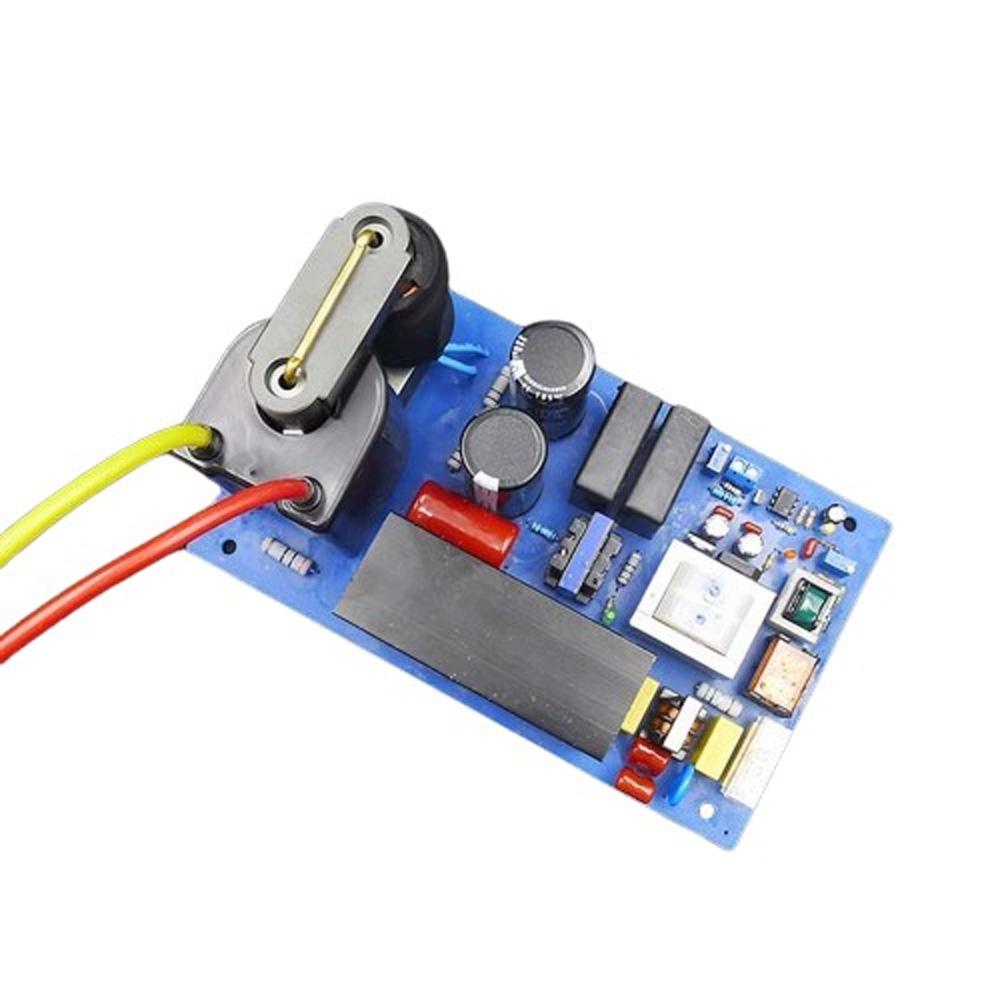

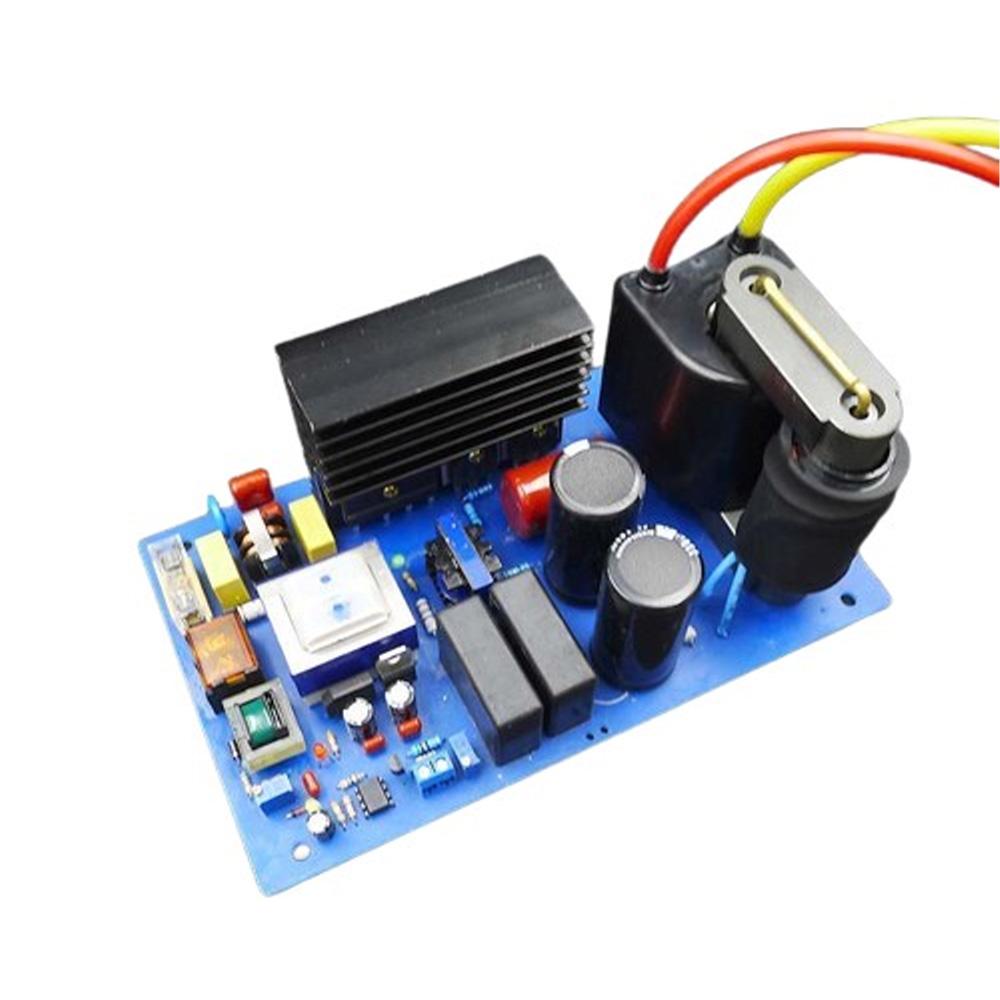

400w Ozone Generator Transformer

7,080.00 (Inc. GST)6,000.00 (+18% GST Extra)

Specifications:

  • Input :220V/110V AC
  • Power: 400W (adjustable)
  • Frequency: 16khz
  • Size of Transformer: 205*120*90mm
  • Output: 3.1kv-6.5kv
  • Use: This kind can suit for  20g to 80g ozone tube

Out of stock

Notify Me when back in stock

Compare
SKU: RDNA-G4.29 Categories: ,

Share this product

Description

Installation method:

1. The four fixed holes for the power supply are installed in an insulated place, and the distance between the entire power supply and the metal chassis is greater than 3CM.

2. The two high-voltage lines are not divided into positive and negative levels, and can be connected to the two high-voltage terminals of the ozone load according to the characteristics of the ozone load. The two high-voltage lines cannot be combined together, cannot cross, and cannot be entangled or connected with other lines. After the ozone load, if the high-voltage line is too long, it needs to be cut as short as possible and connected to ensure its safety and installation aesthetics, so that the failure rate is greatly reduced.

3. The chassis where the power supply is installed should be well ventilated to allow convective air circulation.

4. Electronic instruments and other originals should be far away from the high-voltage power supply by more than 15CM (high voltage will interfere with normal data such as the instrument.

Usage: Single group of any ozone generator load below 30G/H. Adjust the internal adjustment on the power supply according to different loads to achieve perfect matching.

installation

Package Included:

1 x  400w Ozone Generator Transformer
