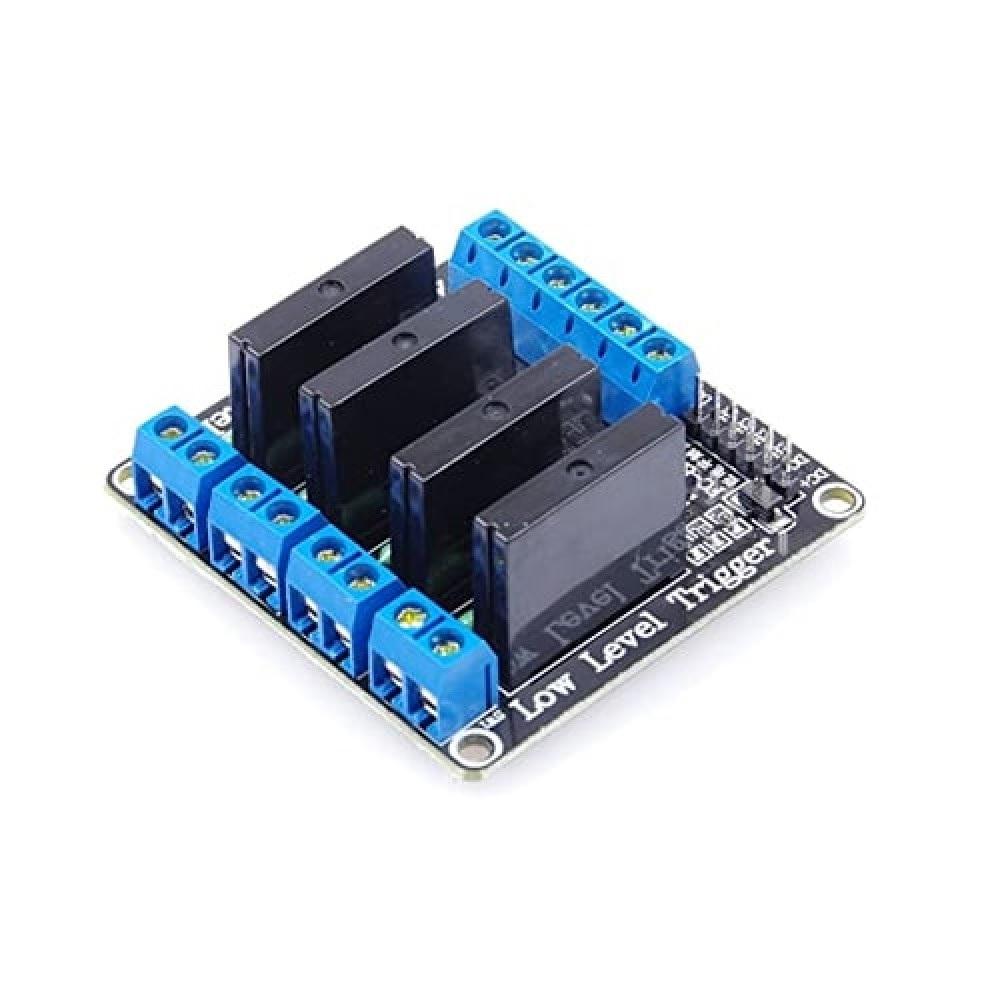

4 Channel 24V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse

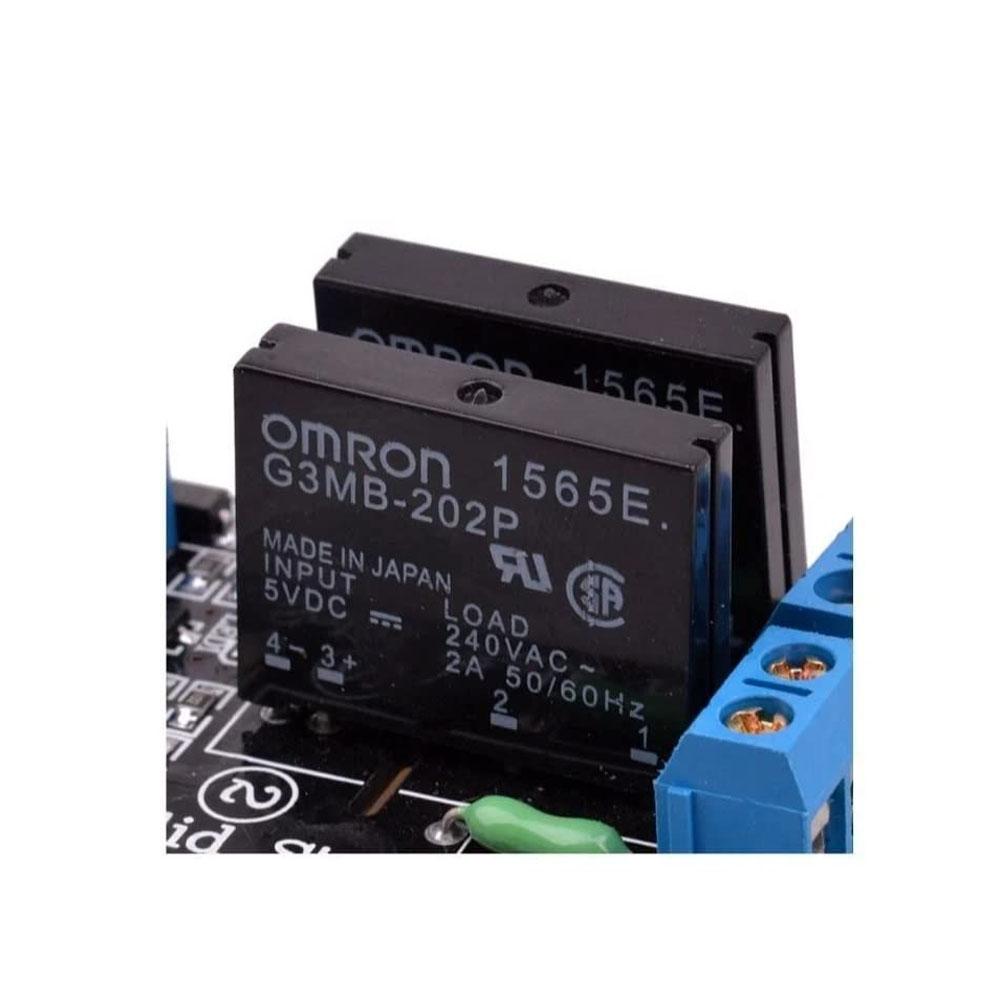

This is 4 Channel 24V Solid State Relay Module. A solid-state relay (SSR) is just what it sounds like; an IC that acts like a mechanical relay. They allow you to control high-voltage AC loads from lower voltage DC control circuitry. They accomplish this by using infrared light as the contact, a solid-state relay is really just an IR LED and a photo Triac sealed up into a little box. Solid-state relays have several advantages over mechanical relays.

A Solid State Relay is similar to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan compared to the traditional mechanic relay.

When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring this will turn on or off the connected load.

Input Parts :

1. DC+: connected to VCC (Supply power according to relay voltage)
2. DC-: connected to GND
3. DC+:connect power positive
4. DC-:connect power negative
5. CH1:relay module signal trigger point (Effective low-level trigger)
6. CH2:relay module signal trigger point (Effective low-level trigger)
7. CH3:relay module signal trigger point (Effective low-level trigger)
8. CH4:relay module signal trigger point (Effective low-level trigger)

Package Includes:

1 x 4 Channel 24V Relay Module Solid State Low-Level SSR DC Control 250V 2A with Resistive Fuse
