36/48V to 12V 60A 720W Power Module DC-DC Buck Converter Waterproof Regulator

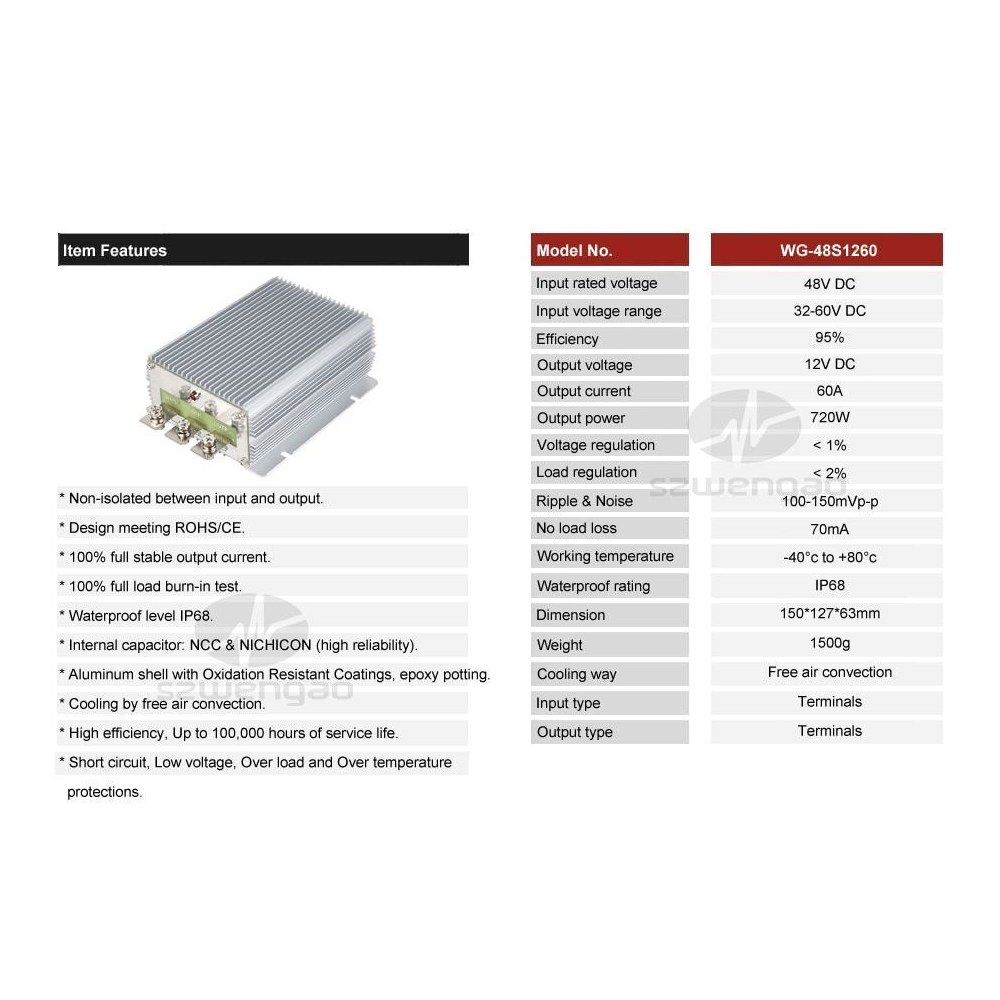

Specifications:

Model No: WG-48S1260
Wide input voltage from 30V to 60V
The stable output voltage is 12V
Cooling by free air convection
IP68 waterproof, Epoxy pong, An-vibration, Dustproof
Over current protection, Over voltage protection, Over temperature protection
Surface mountable
Operating temperature: -35 ° C to +80 ° C
Non-isolated, Design meeting RoHS / CE

SKU: RDNA-G7.4

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹8,258.82 (Inc. GST)
₹6,999.00 (+18% GST Extra)

Only 1 left in stock

Compare

Add to wishlist

18 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This highly efficient switch mode step-down DC-DC converter converts an input voltage of 48 VDC nominal (range 35 VDC to 60 VDC) to a highly regulated output voltage of 12 VDC nominal. This DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent, short-circuit and overvoltage protection. It is widely applicable in different industries like Rail transit, communications, electrical equipment, ships, renewable energy, LED markets, etc.

Note:

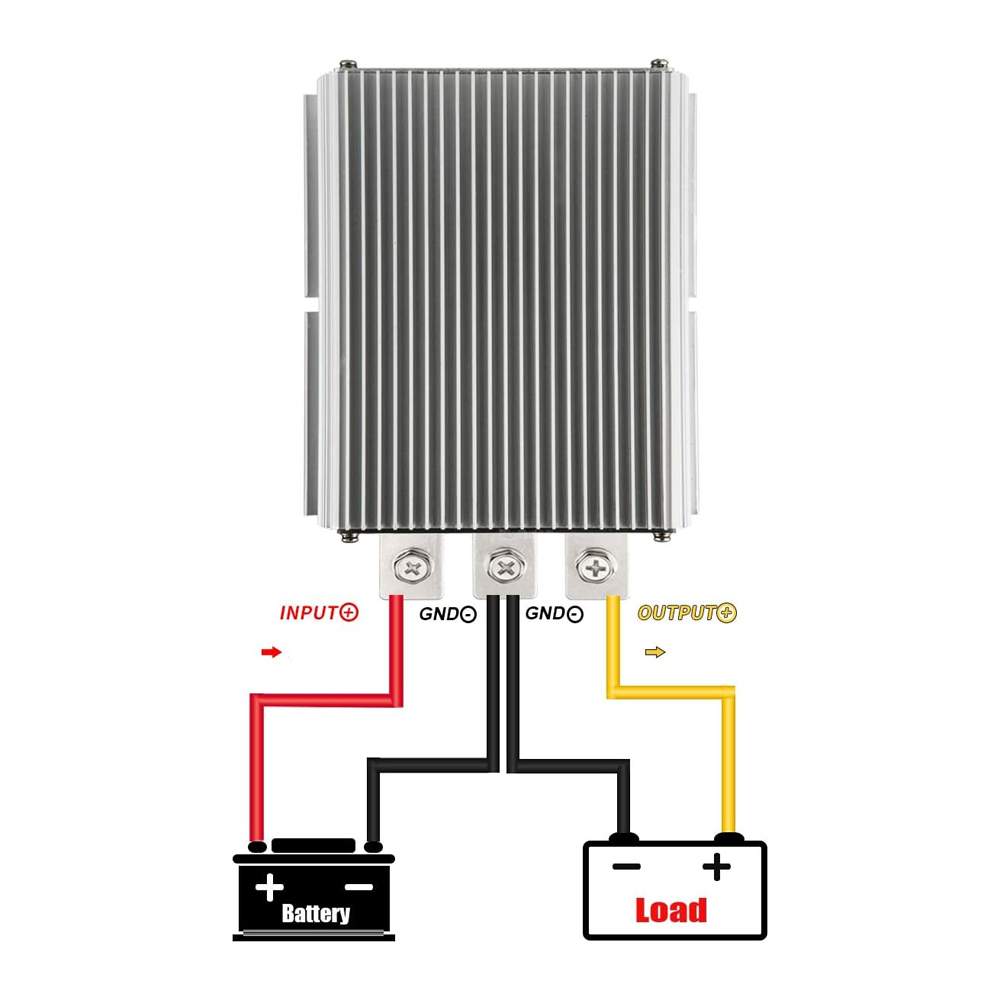

a. Be sure to make correct connections according to the product nameplate and wire markings. Wrong connections can cause damage to the product and even lead to dangers such as fire.

B. To ensure safety, a fuse should be connected to the input terminal to prevent permanent damage caused by the wrong connection of positive and negative poles and overvoltage. Some products have fuses installed before leaving the factory, and for current reasons, you’d better match fuses for those that don’t.

Packing List:

1 x 36/48V to 12V 60A 720W Power Module DC-DC Buck Converter Waterproof Regulator
