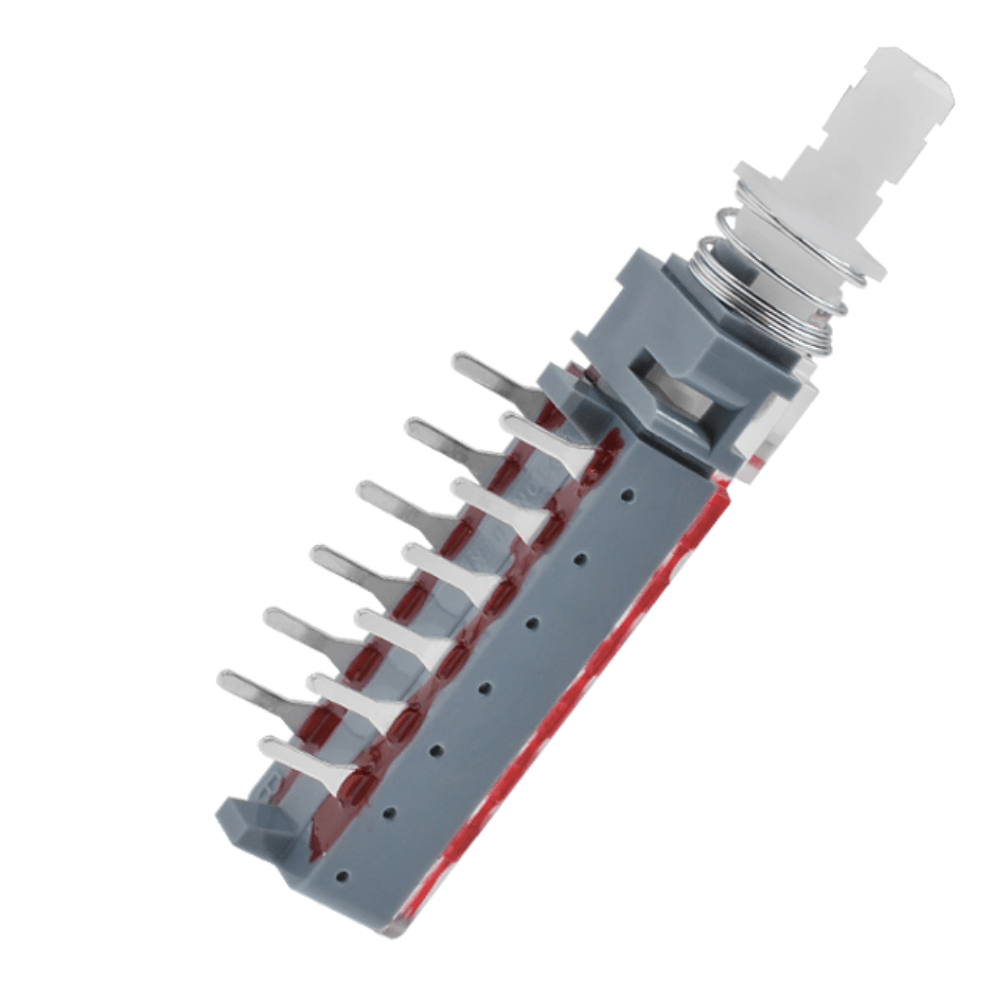

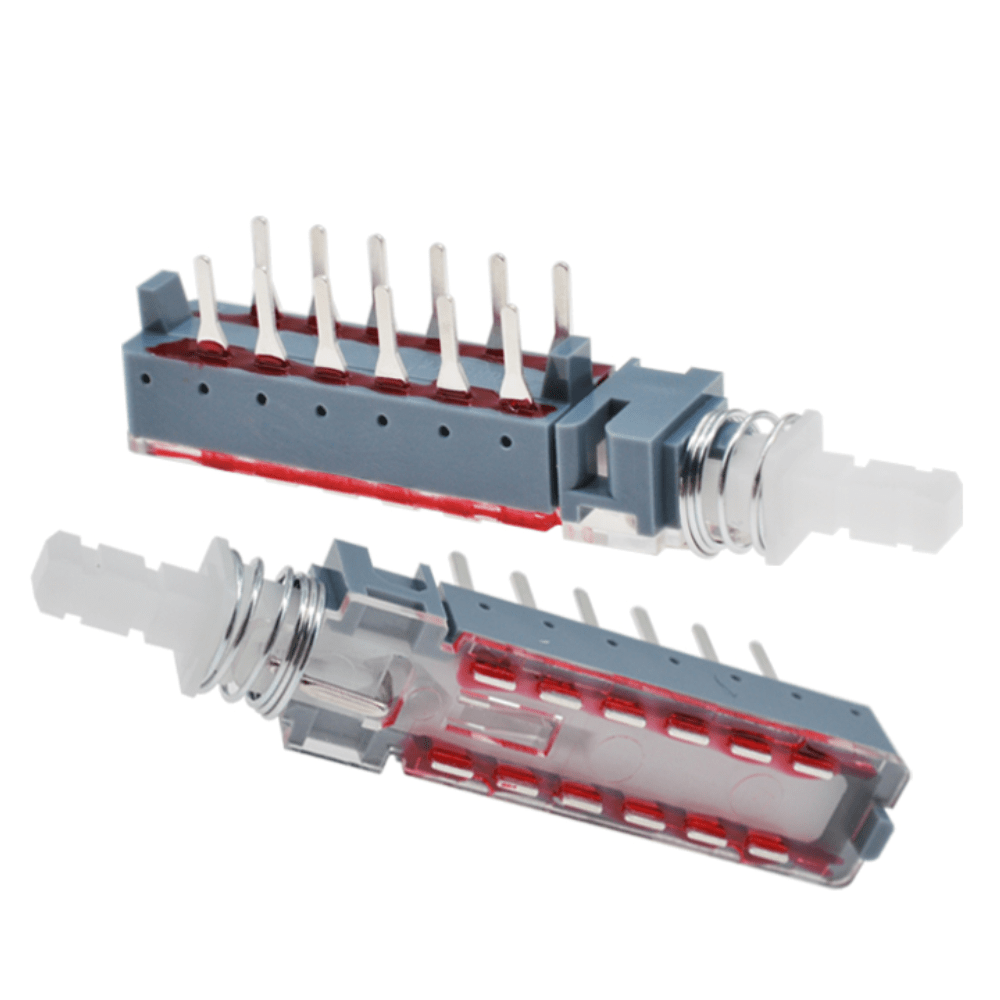

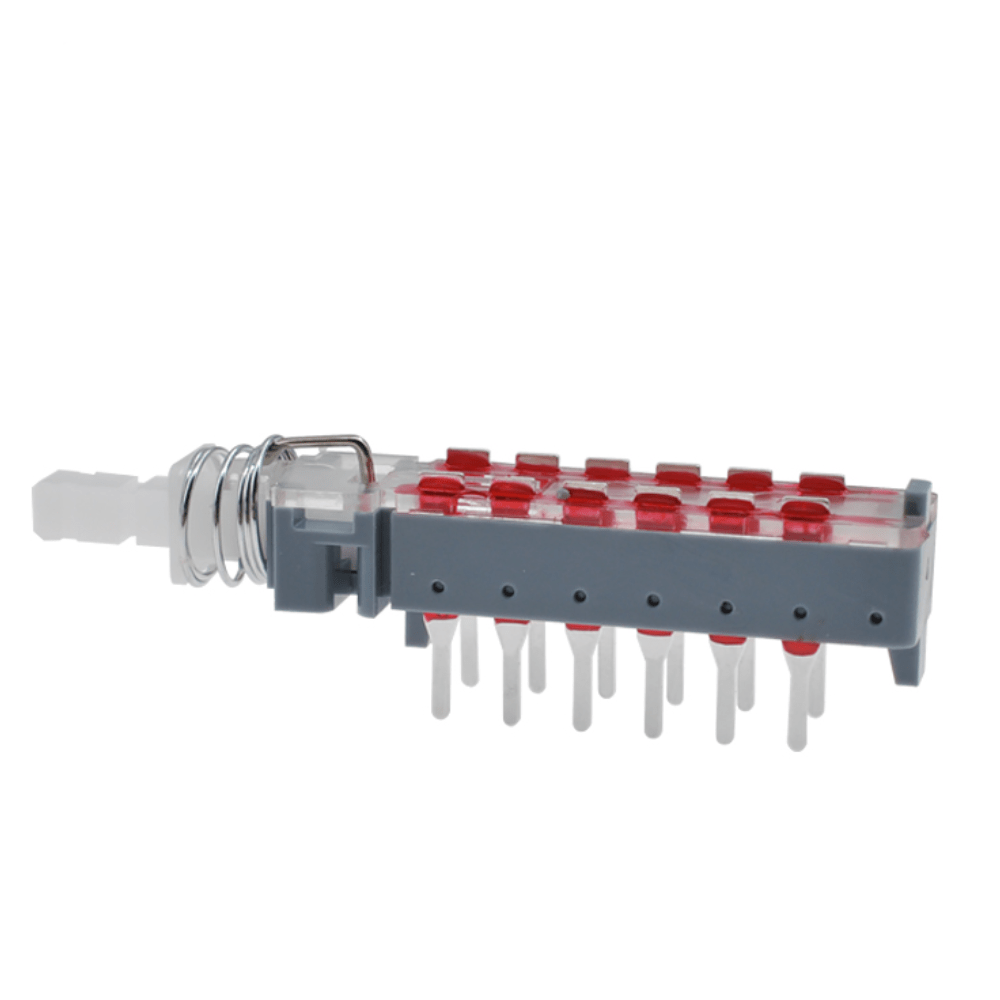

30V DC Push Button Switch 4P2T 3.5mm Travel Push Button Switch
Specifications:
- Model Number : PBN-S4C35-AAG
- Electrical Rating : 0.1A 30VDC 10000cylce or 1A 25VDC 5000cycle
- Operating Temp : -10℃ to +60℃ 10T60
- Contact Resistance : 50mΩ Max. (initial)
- Insulation Resistance : 100ΩM Min.
- Operating Force : 550±150gf
- Dielectric Strength : 250VAC for 60 ± 5 sec.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
₹277.30 (Inc. GST)
₹235.00 (+18% GST Extra)
In stock
In stock
For bulk orders or B2B inquiries, please contact us at: [email protected]
15
People watching this product now!
-
Pick up from the RoboticsDNA Store in Pune / Dunzo
To pick up today
Free
-
Same Day Delivery in Pune
(Mon-Sat) (Please Place Order Before 1:30 PM)
Rs. 99
-
via Delhivery.com (Express Mode)
Our courier will deliver to the specified address
3-5 Days
Rs. 149
-
via Delhivery.com (Surface Mode)
Our courier will deliver to the specified address
4-7 Days
Rs. 69
Payment Methods:
Description
The PBN DC push button switch rating is “0.1A 30VDC 10000cylce” & “1A 25VDC 5000cycle”, which is suitable for many kinds of devices as the signalization, like the audio limiter, machine dashboard, etc.
-
PBN series push button switch
-
Product Model: PBN-S4C35-AAG
-
Product applications: Precision instruments, industrial equipment, household appliances, etc.
The PBN DC push button switch rating is “0.1A 30VDC 10000cylce” & “1A 25VDC 5000cycle”, which is suitable for many kinds of devices for signalization use, like the audio limiter, machine dashboard, and so on. The PBN-S4C35-AAG has 4 poles current with 12 pin PCB terminal but if you need other types of terminals or other parameters, please feel free to contact us. Meanwhile, the travel-to-lock of this model is 3.5mm and the 2.5mm also is optional.

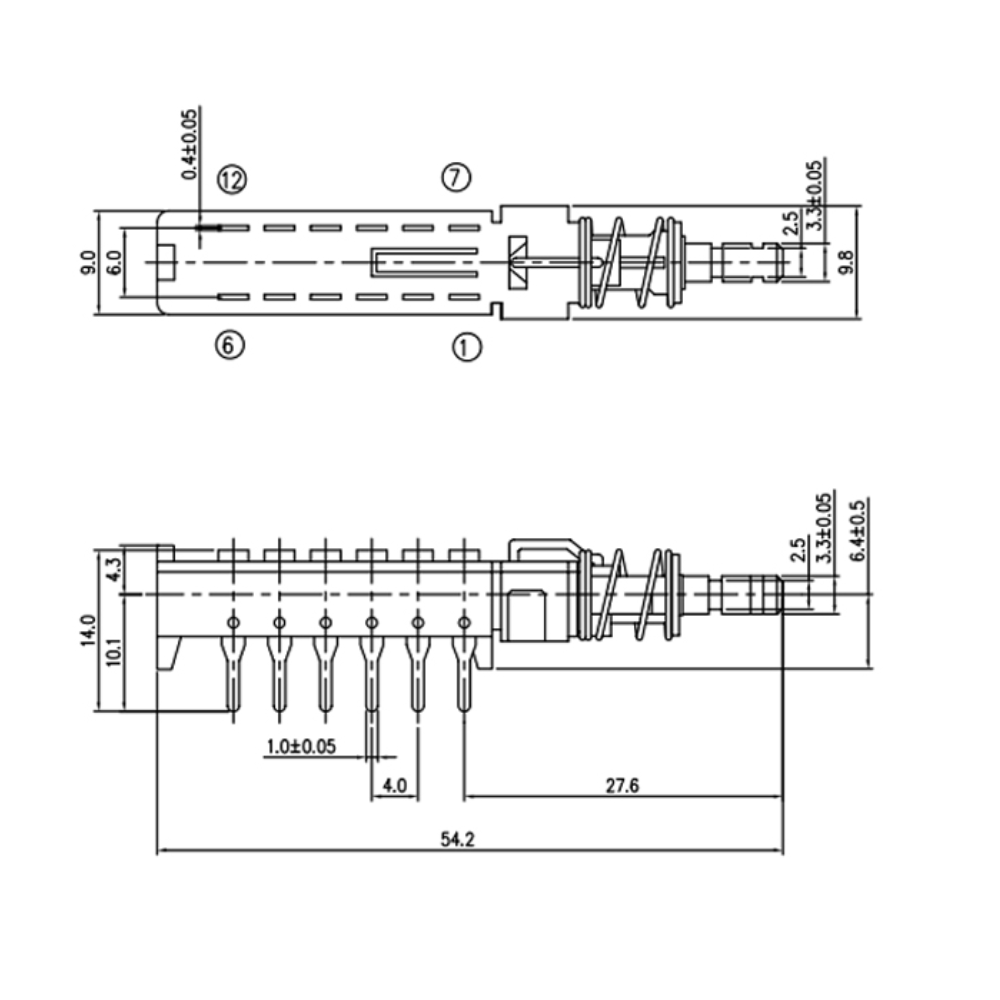

Welcome to contact us to have more information, the sample or drawing is welcome before your ordering.
Packing List:
1 x 30V DC Push Button Switch 4P2T 3.5mm Travel
