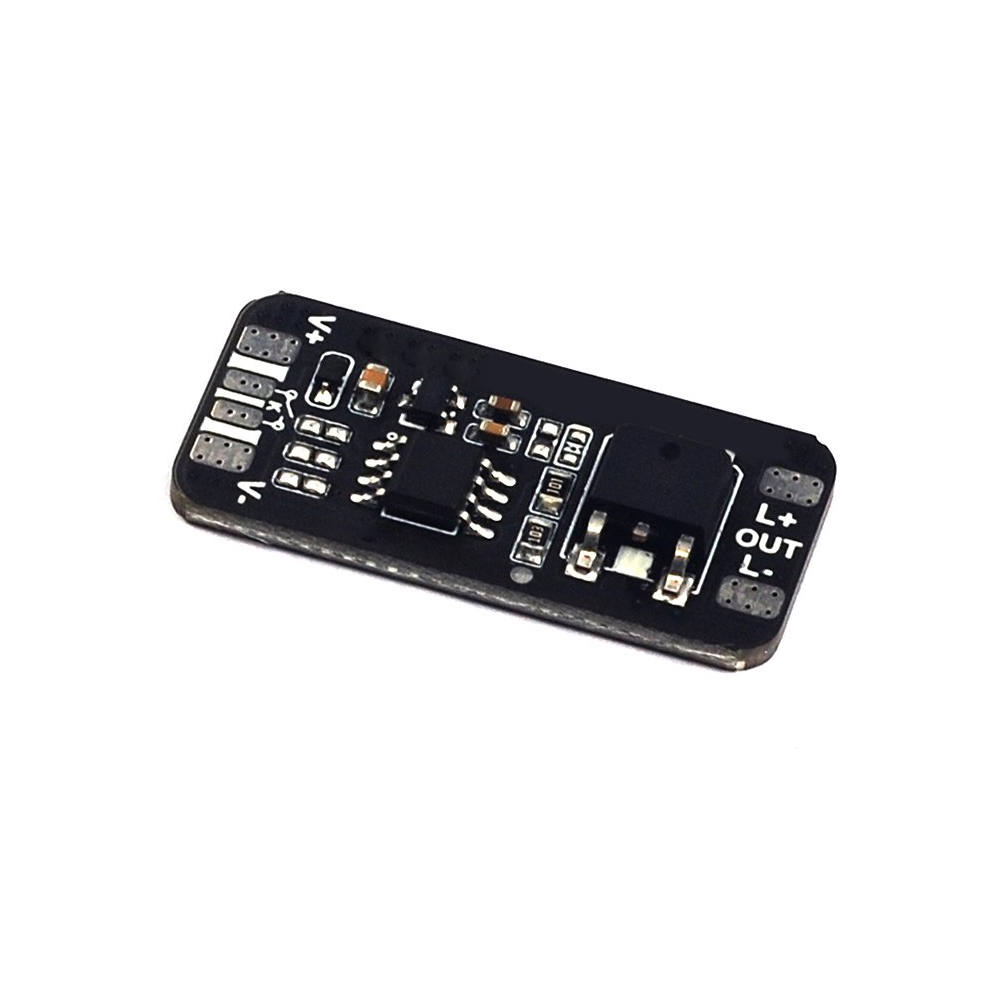

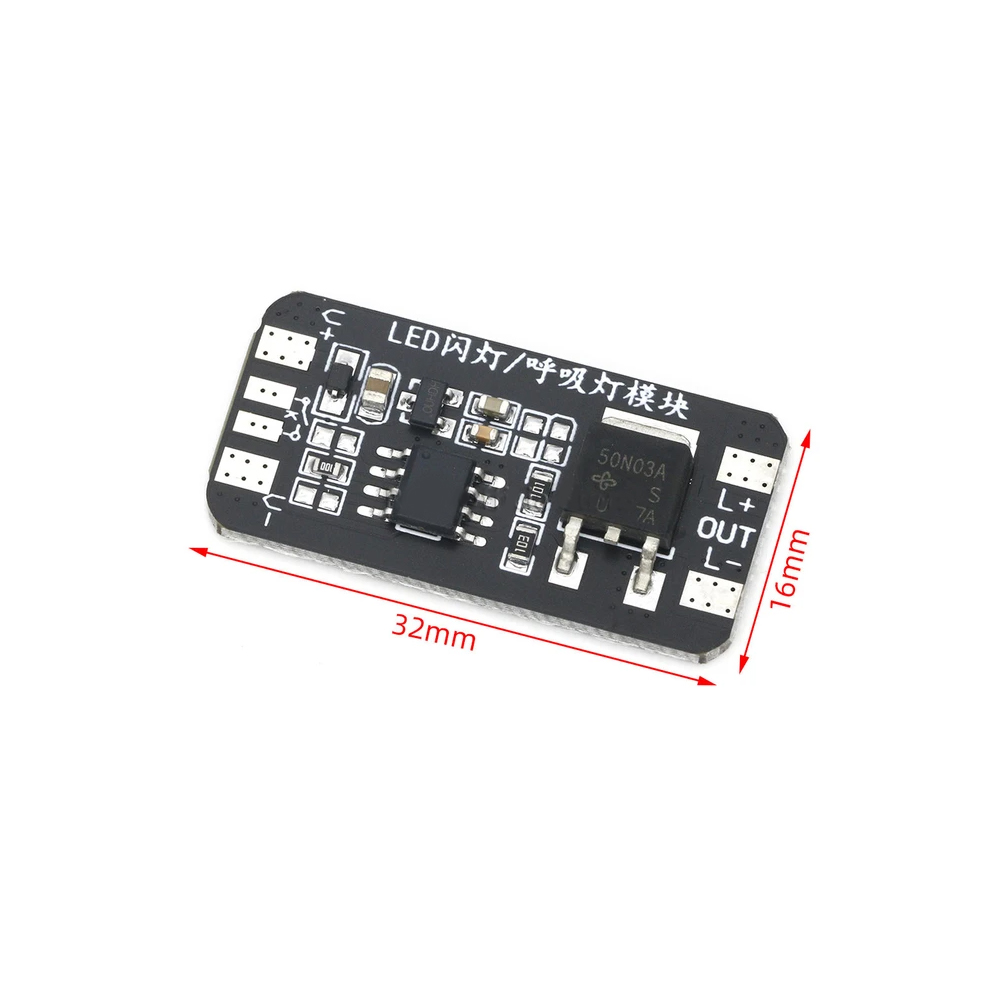

3-24V Breathing Lamp Module LED Light Slow Flash Mode

Specification:

  • Input voltage: universal input DC 3-24V
  • Output voltage: equal pressure output
  • Wiring port: V+V- is the DC voltage input terminal, LED+LED- (L+L-) is the output connected to the load light source terminal
  • Load power: within 6A maximum, maximum power 72W
SKU: RDNA-105.10

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

377.60 (Inc. GST)
320.00 (+18% GST Extra)

Only 2 left in stock

Only 2 left in stock

12 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The board is in the DC constant voltage working mode. When connecting the LED light source, a series resistor must be connected to limit the current. Otherwise, the input will maximize the output and accelerate the light decay of the light source. The board has input reverse connection protection, no output short circuit protection, pay attention to checking the wiring and then power on.

Operating mode:

: Breathing light mode: fade out and brighten breathing atmosphere light

:1Hz slow flash mode: 1-second slow flash, 1-second flash once, 1 second one beat can be used as timing

:3Hz flash mode: flash 3 times per second, with an interval of 1.5 seconds

Mode selection:

: Breathing light mode: 3H short circuit or no connection (default delivery mode)

:1Hz slow flash mode: 1H-bit short-circuit (short-circuit with tin or paste 0-10KR resistor)

:3Hz slow flash mode: 2H-bit short-circuit (short-circuit with tin or paste 0-10KR resistor)

Wide Application:

Breathing light mode, 1Hz slow flash, 3Hz fast flash function. Driving constant voltage LED lights, automotive halogen lights, suitable for installing all kinds of LED flashing light atmosphere occasions, holiday lighting string lights, Christmas lighting decorations, vehicle taillight warning indicators, automotive ambient lights, road construction maintenance warning indicators, advertising pattern flashing words card, star chasing name light card, etc. occasions where the flashing light function is required.

Packing List:

1 x 3-24V Breathing Lamp Module LED Light Slow Flash Mode
