2WD Ultrasonic Obstacle Avoidance Car Kit with Programming Code For Kids

Specifications:

Communication : Chipset: Type C NANO ATmega328p controller
Power supply: 2 removable 3.7V lithium batteries
Input: Ultrasonic module (HC-SR04)
Motor drive: L9110S Module
Maximum output current : 2A
Maximum power consumption : 25W (T=75°C)
Programming language: CC++
Car Structure: Acrylic
Motor voltage range: 1-3V
Motor shaft length: 10mm
Speed: 6.0V 100rpm/min
Drive mode: motor control is driven by L298N
Control mode: programming control
Assembly status: Kit disassembled
Instructions Manual: Yes
Package: Robot Kit for Arduino
Support APP control: Android and iOS
Model Number: ZYC0055
Brand name : TSCINBUNY
Code: Yes
Tutorial: Yes
Professional After-sales Support
Starter/Beginner: Yes

SKU: RDNA-AB75.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹2,098.99 (Inc. GST)
₹1,778.81 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

15 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

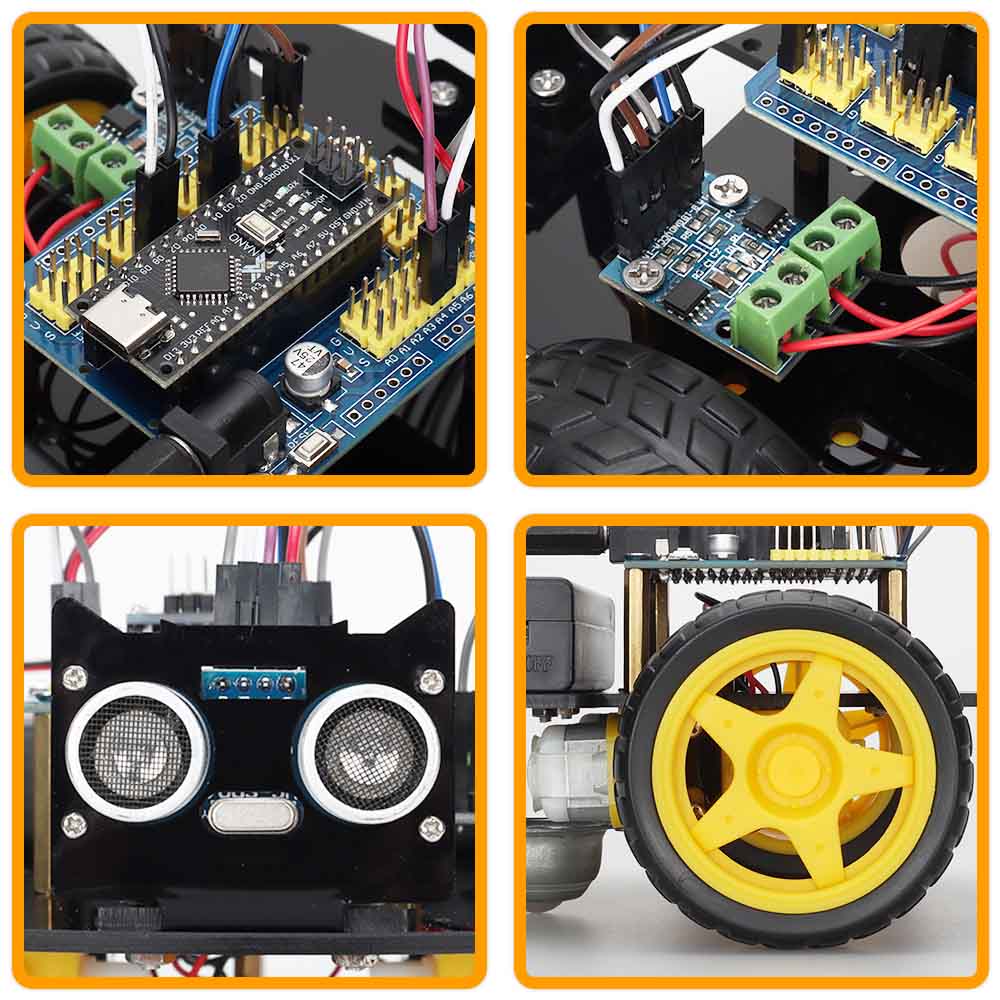

This smart car is developed based on the Type C development board and is equipped with the L9110S motor drive module, which can realize ultrasonic obstacle avoidance function. In addition, the output interface of the L9110S motor drive module adopts wiring terminals to facilitate the connection of the drive motor. The input terminal of the driver board can be connected to the pin on the expansion board through Dupont wire. The smart car adopts a welding-free installation design. Use copper posts and screws to secure the structure between the parts. The circuit connection between each module is made by Dupont wire, which is simple and convenient. The trolley uses 65mm plastic wheels and runs smoothly. We use DC geared motors with higher power.

Application:

Arduino Project, Kids & Adults Stem Projects, Expert & Starter

Improve your digital skills:

Computational Thinking Skills-Embedded System Skills (Electronic Hardware and Software)-Programming Skills-Mechanical Skills-Robotics Skills

By having this kit, you will learn the following:

1) What is Embedded System and Robotics.

2) What is open-source programming and its components.

3) How to control outputs with open source programming.

4) How to read inputs with open source programming.

5) How to make a robot to avoid obstacles.

6) How to make a line following robot, and many more!

What will students and children learn?

The basics of electronic circuit The machine interface method Solving and debugging programming problems Software architecture practical robotics using IED Programming creativity Programming practices Programming collaboration Step-by-step tutorials, user manuals and instructions

For Downloading Program’s And Manual

NOTE: This robot is without batteries, and the battery is sold separately, and the Battery type is 18650 3.7v, with no capacity limit, there is a link for downloading instructions, if you can’t find it, please do not hesitate to contact us.

* Product Images are shown for illustrative purposes only and may differ from the actual product.

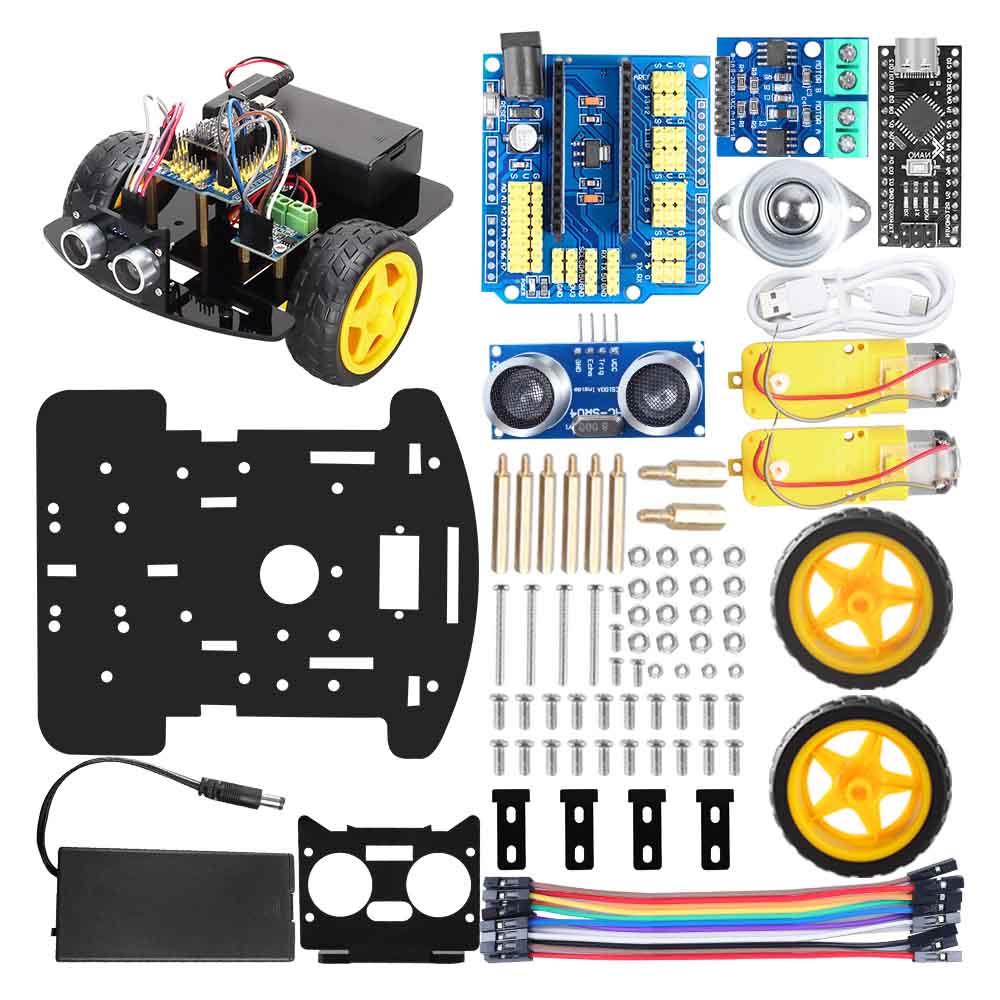

Packing Include :

1 × Type-C microcontroller board
1 × Expansion board
1 × HC SR04 ultrasonic sensor module
1 × L9110s motor drive board
1 × Ultrasonic fixed bracket assembly
2 × TT engine with wheel
1 × Two 18650 battery holders
1 × universal caster
20 × M3 * 8 flat head screw
4 × M3 * 30 round head screw
Nut 16 × M3
4 × M3 * 12 flat head screw
Copper Column 6 × M3 * 25
Copper column 2 × M3 * 10 + 6
12×10cm Female to Female Jumper Wire
1 × black robot chassis
