24-380V SSR-10VA Solid State Voltage Regulator 01

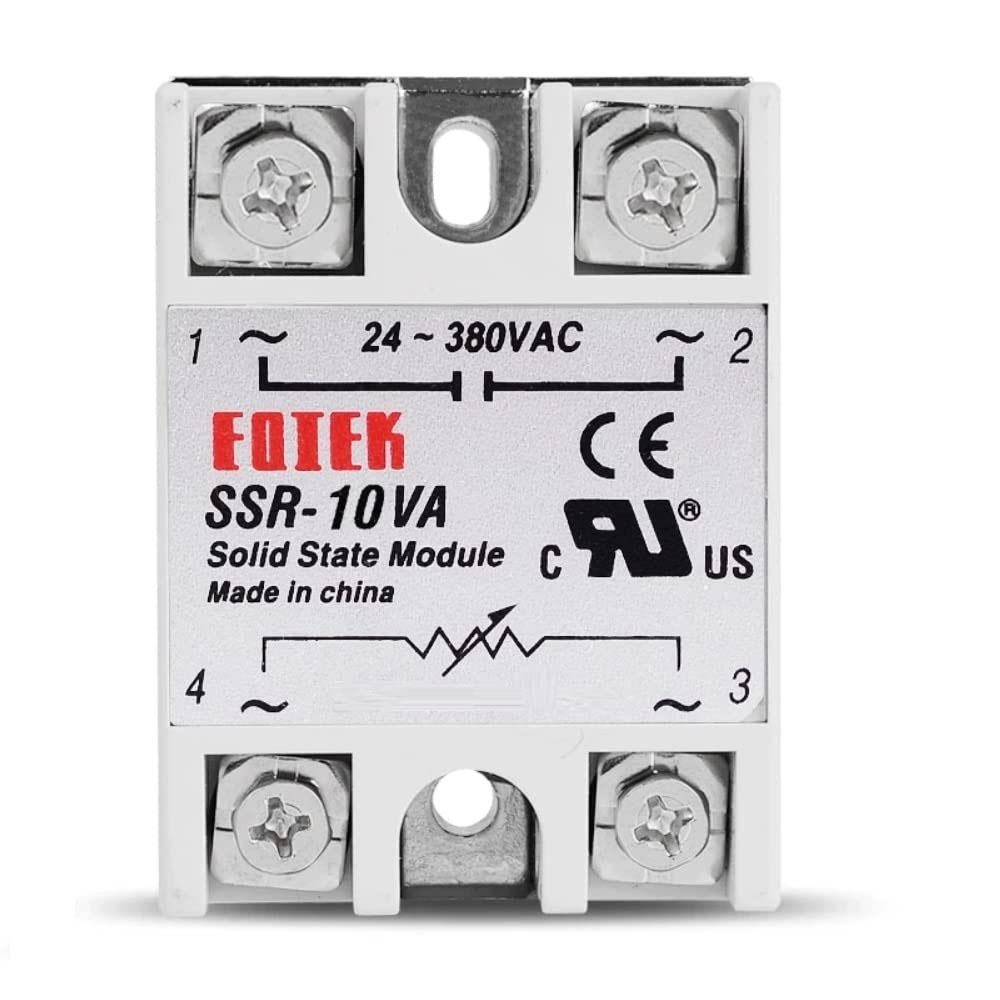

24-380V SSR-10VA Solid State Voltage Regulator

Specifications:

Product: Voltage Regulator
Dielectric Strength: Over 2.5kVA / 1 min
Trigger resistance: 470-560KΩ
Switching Voltage (VAC):24-380
Operating Temperature Range (C):-20 to 85
Long service life and high reliability
Reduced electromagnetic interference
Highly reliable, compact size designed to offer users maximum simplicity

SKU: RDNA-UV42.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹425.01 (Inc. GST)
₹360.17 (+18% GST Extra)

Only 2 left in stock

Compare

Add to wishlist

17 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This is an SSR-10VA Solid State Relay Module 500Ω/24-380VAC 100VA. A solid-state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low-voltage signal which is isolated optically from the load.

The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.

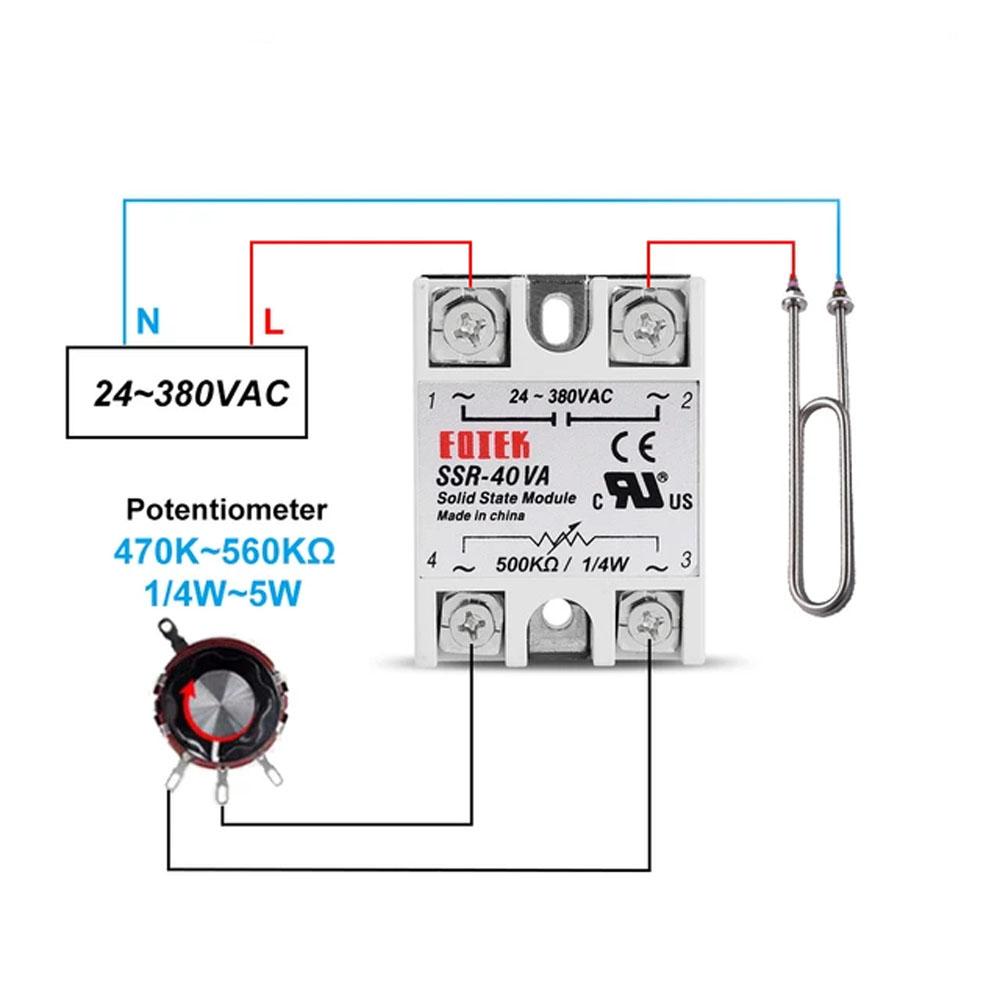

In this particular SSR, the power output is controlled by the trigger angle of the trial with a variable resistor of 500KΩ. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Packing List:

1 x 24-380V SSR-10VA Solid State Voltage Regulator
