2 Wires 2A Circuits 250Rpm Miniature Capsule Slip ring 240V For Monitor Robotic

Specification:

Make: MOFLON
Model: MMC182
Voltage: For power = 0~240VAC/VDC / For signal = 0~240VAC/VDC
Circuits: 2 Wires
Housing Material: Engineering Plastics
Work Humidity:0~85% RH
Work Temp.: -30℃~80℃
Contact material: Gold plated ring-Gold plated brush
insulation resistance: ≥100MΩ/500VDC
Lead Length: Approx.Standard 300mm(adjustable
Electrical noise: ≤0.01Ω
Work-life: Depending on speed and working environment.

*Product Images are shown for illustrative purposes only and may differ from the actual product.

SKU: RDNA-94.13

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹998.99 (Inc. GST)
₹846.61 (+18% GST Extra)

In stock

Compare

Add to wishlist

20 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

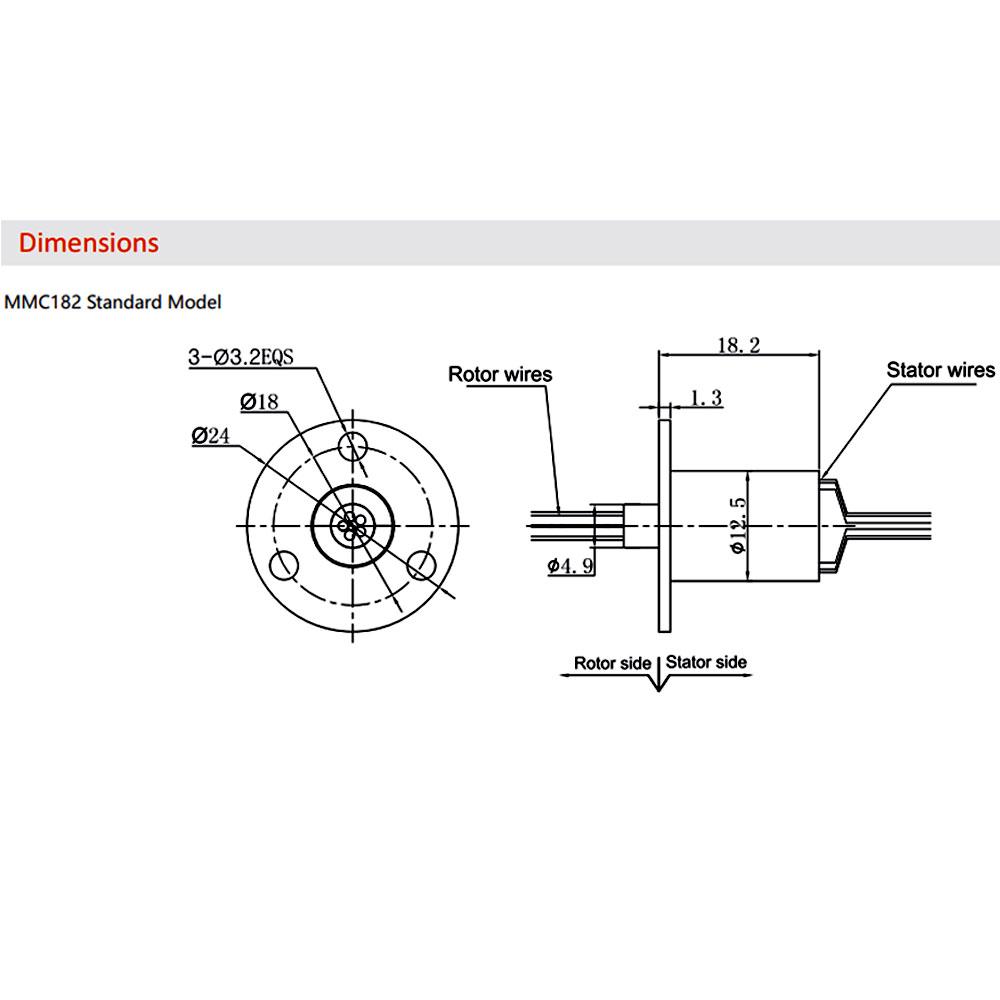

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints. Slip rings are small and compact with standard, off-the-shelf. Colour-coded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90° V-groove ring design for each ring. MMC182 slip rings are small and compact with OD 12.5mm * L 18.2mm, standard, off-the-shelf. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

Packing List:

1 x 1 Slip Ring Capsule 2 Wire 5A 12.5mm 2 Circuit MMC182
