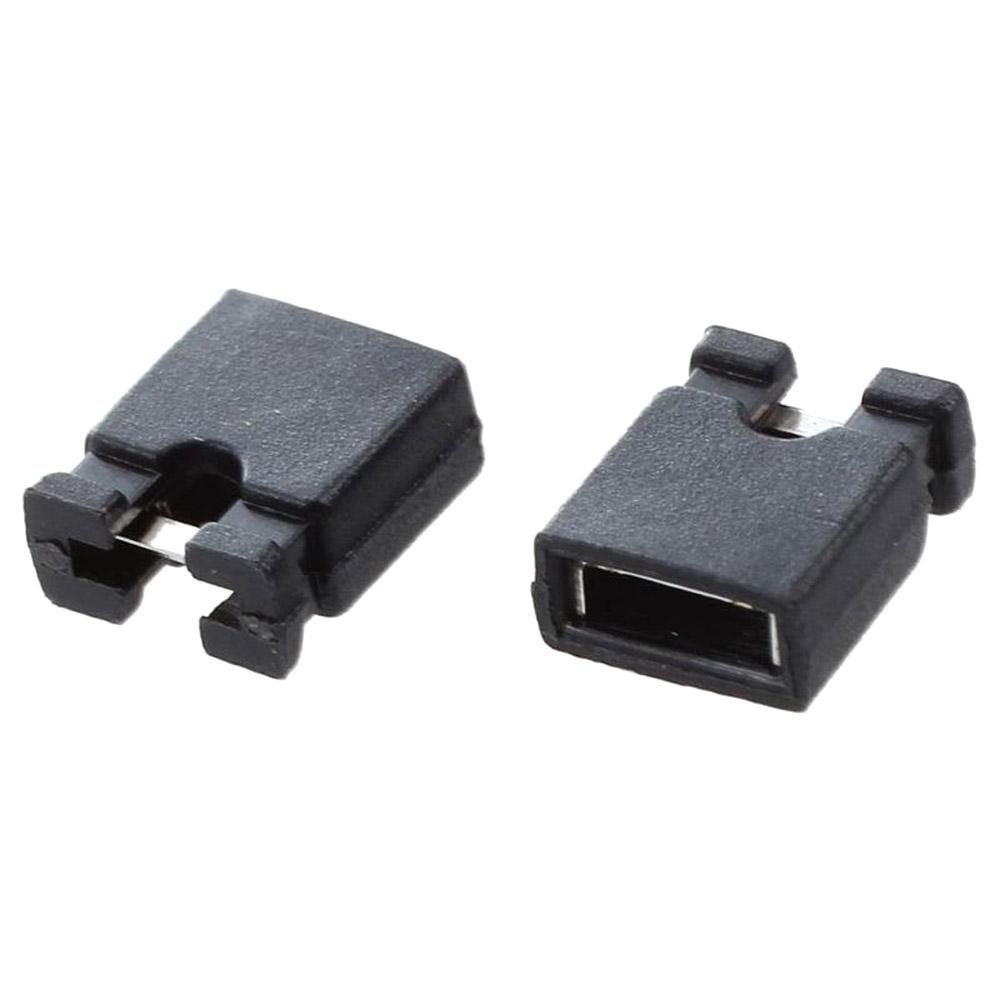

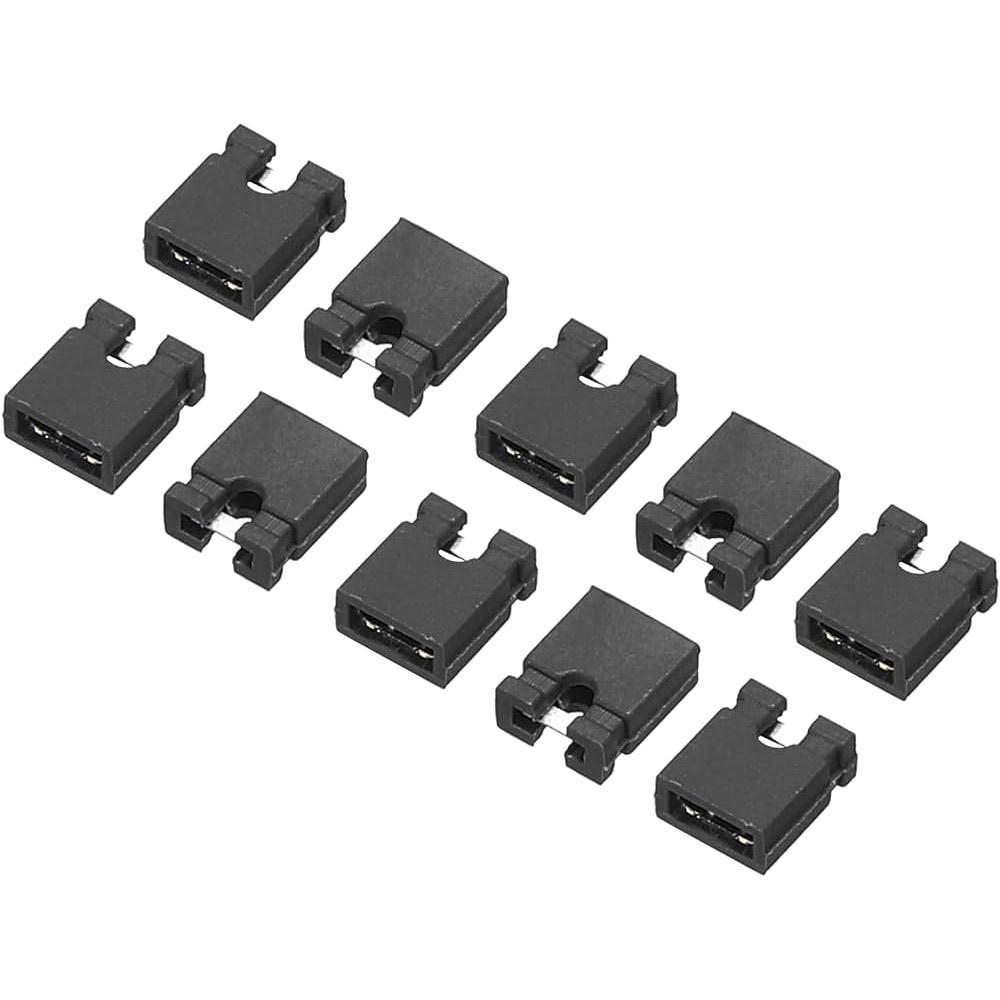

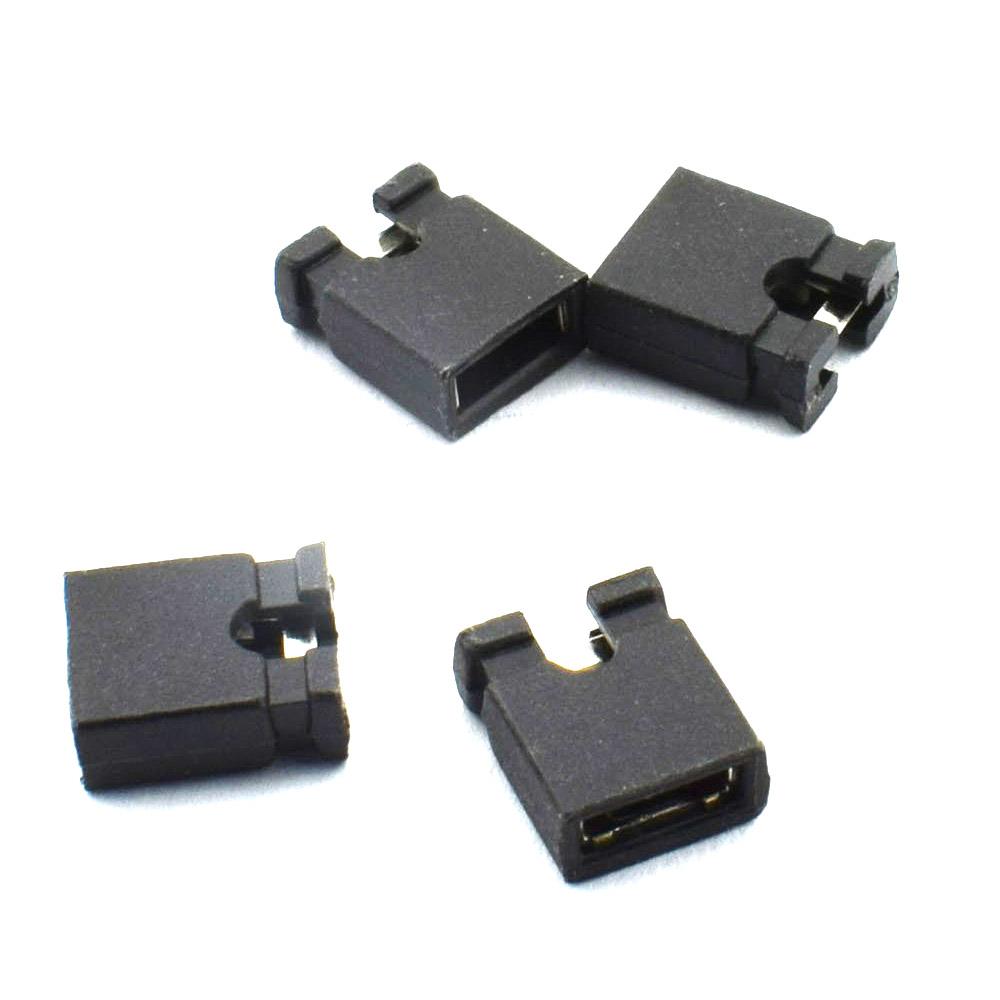

2 Pin Black Jumper Cap Pack of (5 Pieces)

Specifications:

Position- 2 Pin
Height -6 mm
Pressure Resistance- 500V AC/ minute
Contact Thermal Resistance -20mOhm (Maximum)
Dielectric Resistance -1000 MOhm
Accessory Type: Shunt
Type: Shorting Jumper
Termination Style: Through Hole
Mounting Angle: Straight
Contact Material: Copper Alloy
Current Rating: 2 A
Housing Material: Thermoplastic
Operating Temperature Range: – 25 °C to + 105°
Color Black

SKU: RDNA-C3.11

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹23.60 (Inc. GST)
₹20.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

11 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

2 Pin Shunt – 2.54mm Pitch – Jumper Cap – Black Color

In many of the PCB Boards and sensors we use various shorted caps and headers to select the mode it is working in. It can be used to change the I2C address and either turn on the backlight on a LCD or you can use it to connect to use it as makeshift pull up or pull-down resistors. This Jumper shorted Cap is designed for 0.1 inch/2.55 mm spacing boards which is standard and this shunt can handle the maximum current that flows through the board as it is made up of copper alloy and it has a maximum current rating of 2A. Its housing is made up of thermoplastic which will save you from the electric shocks and prevent the damage if stray wire touches it or static electricity.

You may also look for:

Package Include:

5 x 2 Pin Jumper Cap
