2 Phase 12Nm JK86HSN120 Easy Servo Motor with HSD57 Hybrid Servo Driver

The 2 Phase 12Nm JK86HSN120 Easy Servo Motor with HSD57 Hybrid Servo Driver is commonly used in CNC machines, 3D printers, robotics, industrial automation, and other applications requiring precise and controlled motion. The combination of the servo motor and driver provides high torque, accuracy, and reliability, making it suitable for demanding motion control tasks.

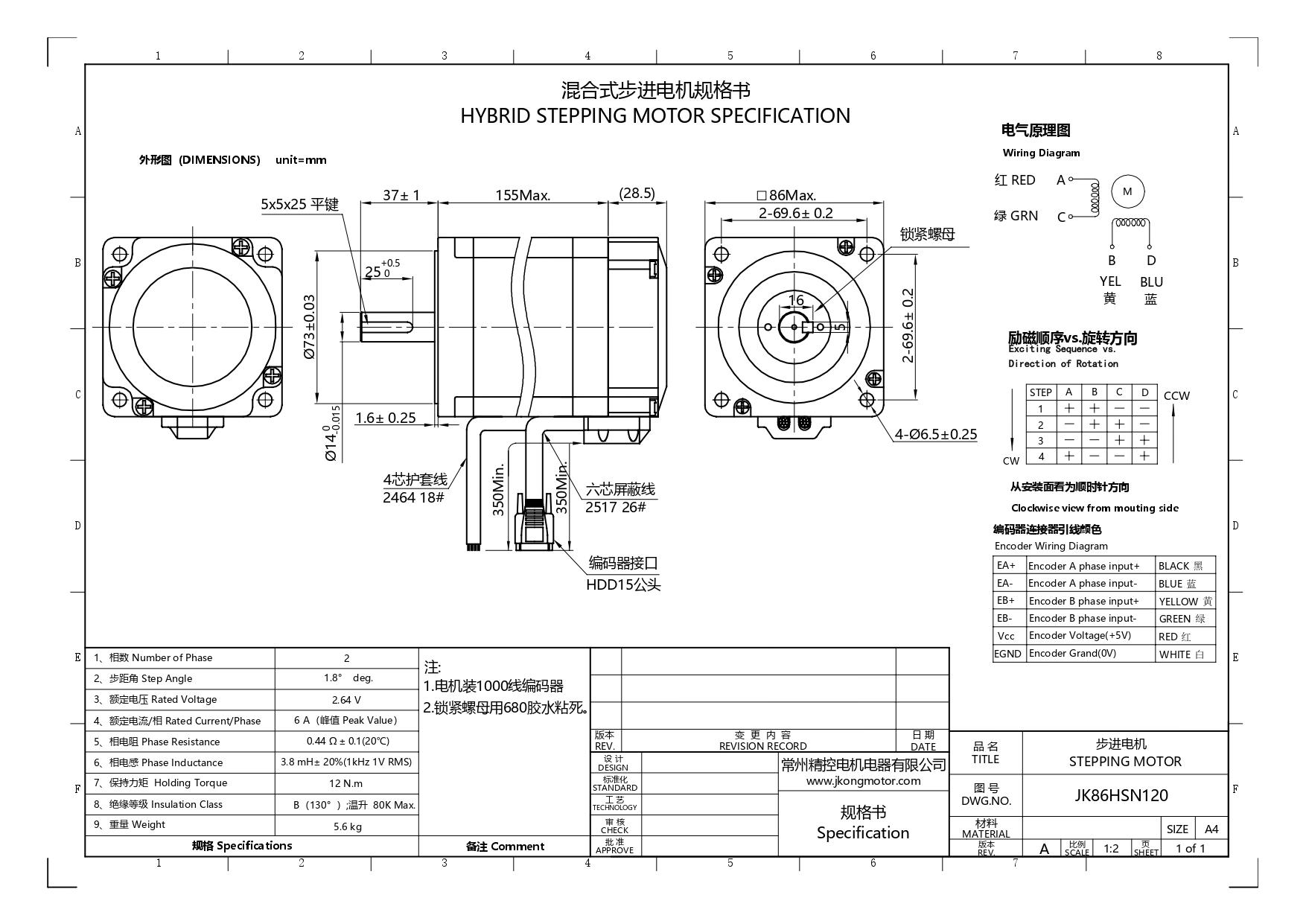

Motor Specifications:

1. Motor Type: 2-phase hybrid stepper motor with built-in encoder
2. Holding Torque: 12 Nm (Newton-meters)
3. Step Angle: 1.8 degrees per step
4. Phase: 2-phase (bipolar)
5. Rated Voltage: Typically 4.0 VDC
6. Rated Current: Varies based on application and voltage
7. Shaft Diameter: Standard size compatible with various coupling mechanisms
8. Encoder Resolution: Typically a high-resolution encoder for accurate position feedback
9. Frame Size: Standard NEMA frame size, e.g., NEMA 34
10. Mounting: Typically includes standard mounting holes for easy integration
11. Insulation Class: Generally designed for Class B or higher insulation
12. Operating Temperature: Suitable for various operating environments
13. Construction: Rugged construction for durability and reliable performance
14. Connector: Equipped with a compatible connector for wiring

HSD57 Hybrid Servo Driver:

1. Driver Type: Hybrid servo driver
2. Control Mode: Closed-loop position control
3. Power Supply Voltage: Typically 24-60 VDC
4. Output Current: Adjustable based on motor requirements
5. Microstepping: Typically supports microstepping for smoother motion
6. Feedback: Compatible with encoder feedback for accurate position control
7. Protection: Includes over-current, over-voltage, and other protection features
8. Communication: May support various communication interfaces for configuration
9. DIP Switches: Includes DIP switches for certain parameter settings
10. Cooling: Equipped with a cooling mechanism to prevent overheating
11. Size: Compact size for easy integration into control cabinets or enclosures
12. Status LEDs: Includes LEDs for indicating various operating statuses
