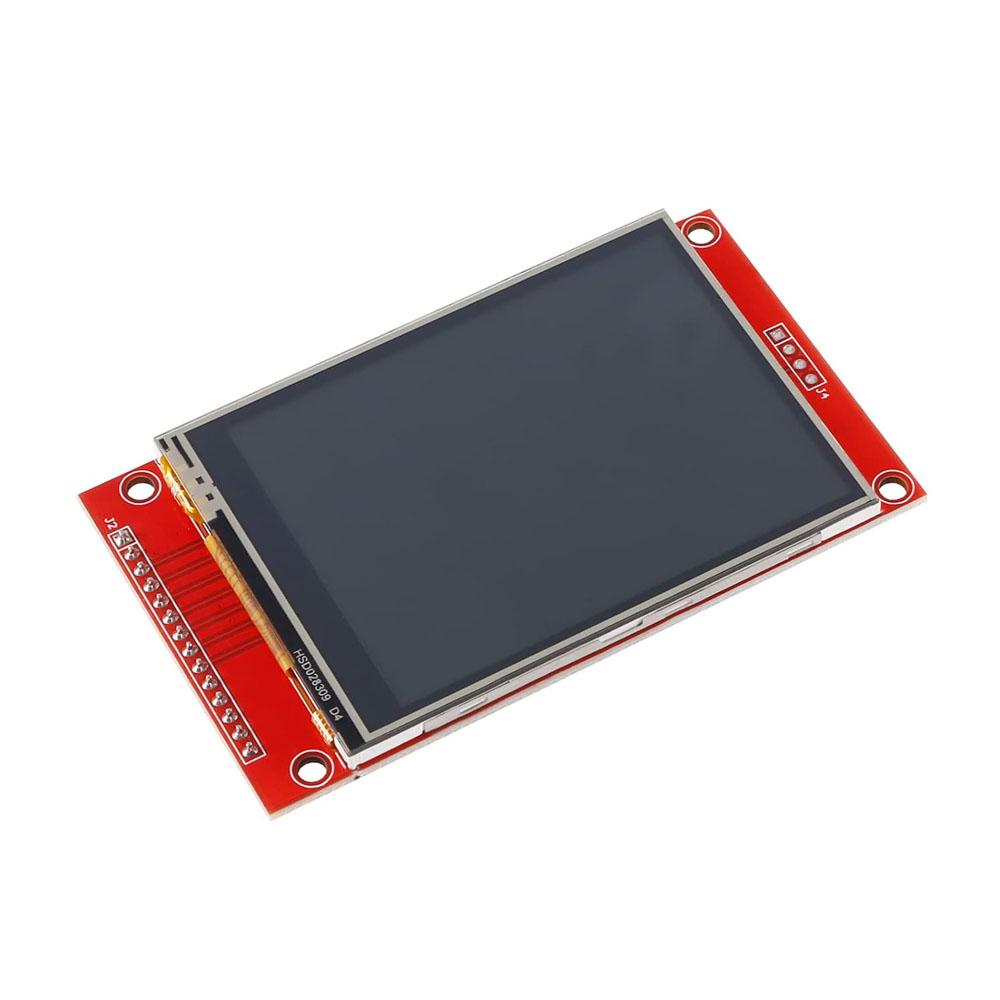

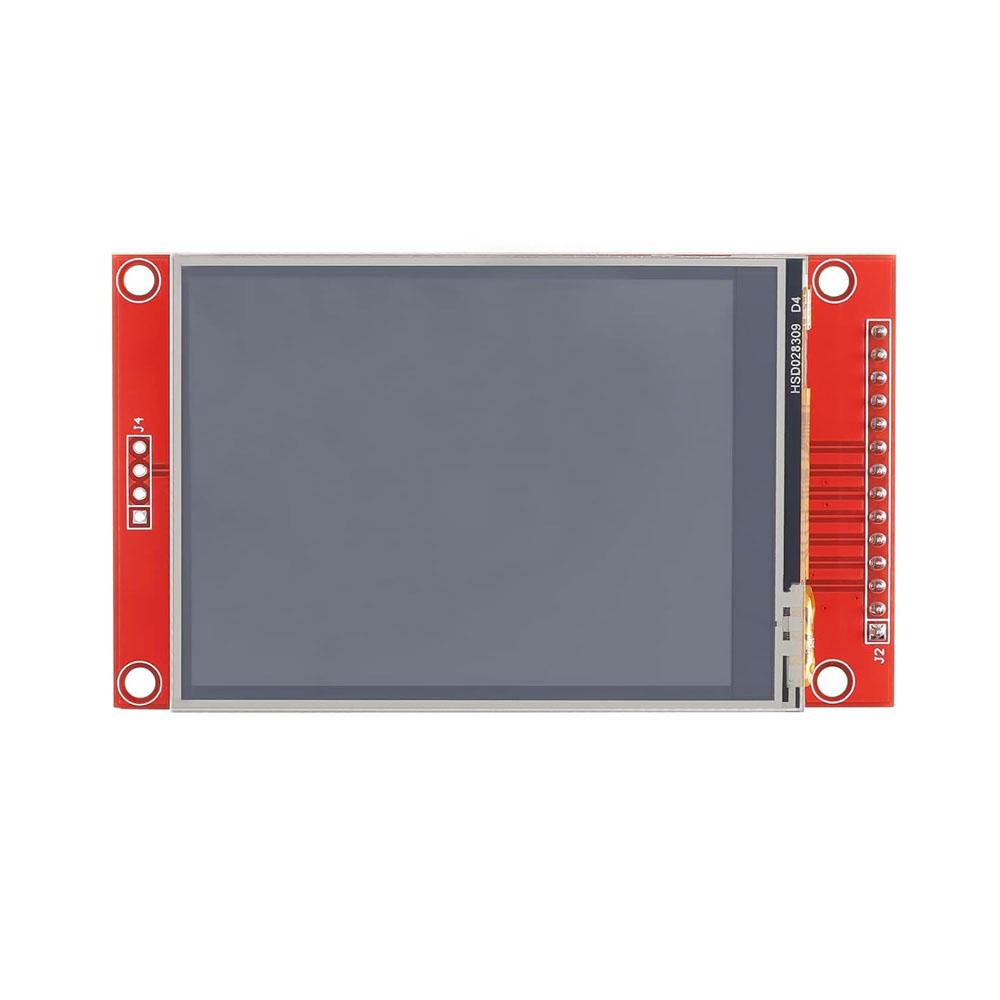

2.4 inch SPI Interface 240×320 Touch Screen TFT Colour Display Module

1,148.14 (Inc. GST)973.00 (+18% GST Extra)

Specifications

  1. It is a 2.4″ SPI TFT LCD Screen Module
  2. 10pins interface.
  3. The LCD drive ic is ILI9341.
  4. It’s a 240 * 320 (resolution),

In stock

Compare
SKU: RDNA-K3.2 Categories: ,

Share this product

Description

This 2.4-inch SPI Interface 240×320 Touch Screen TFT Display Module has always been one of the hot products in DIY industry and LCD is basically the necessary products during all projects, at the same time, serial port modules are also the popular ones because it takes few IO and the usage is simple. This section of the 2.4S-inch TFT LCD serial SPI integrated features of compact, SPI interface.

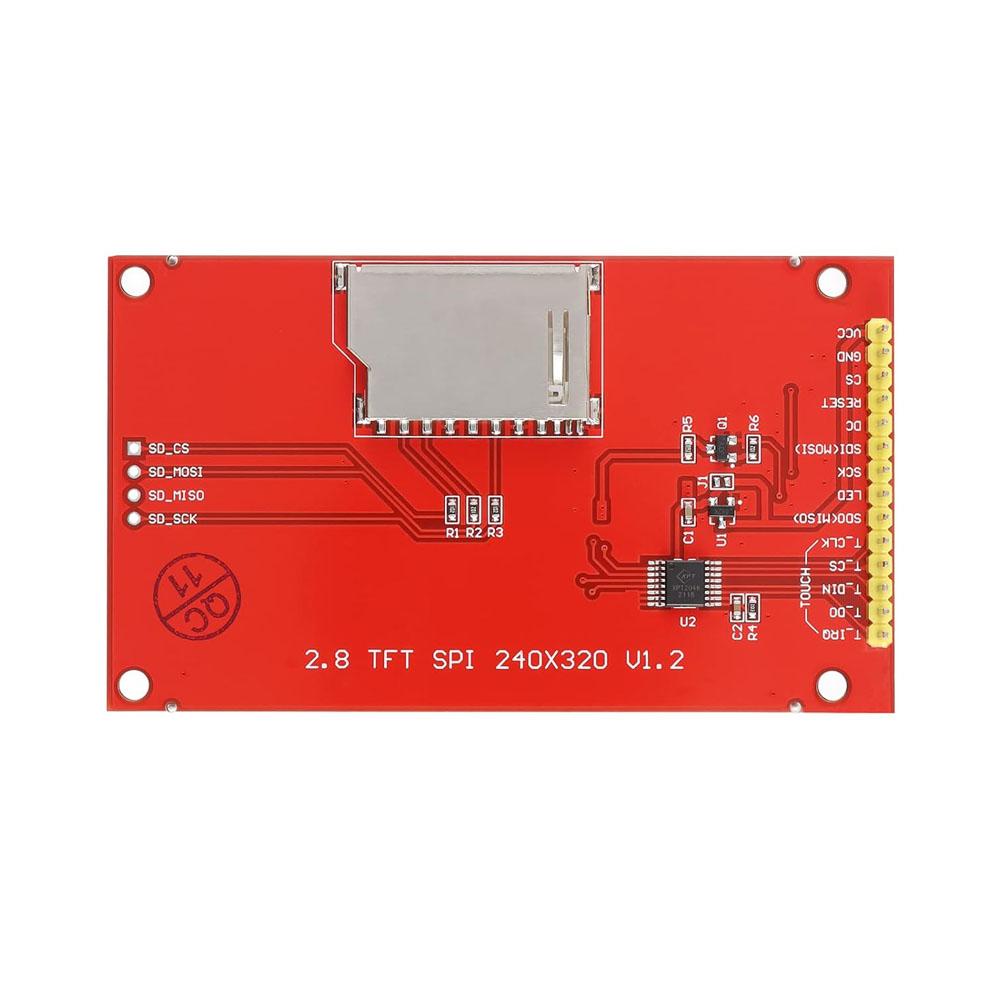

Pin Description:

  1. SDO: Serial clock output
  2. LED: 3.3V IO and Power Supply pin
  3. SCL: Serial clock input
  4. SDA / SDI: Serial data input
  5. DC: Data / Command selection
  6. RST: Reset, Low level active
  7. CS: Chip Selection, Low level active
  8. GND: Ground
  9. VDD33: 3.3V Power Supply pin
  10. UTFT Support

Features:

  1. It is a 2.4″ SPI TFT LCD Screen Module
  2. 10pins interface.
  3. Not just an LCD break but include SD card (2GB),
  4. The LCD drive ic is ILI9341.
  5. It’s a 240 * 320 (resolution),
  6. 2.4 inch TFT LCD screen.
  7. The LCD has a wide viewing angle, the contrast is also very suitable.
  8. The display interface is serial, it just needs 5 wires (CS, RS, SCL, SDA, RST) for controlling.
  9. SDcard use hardware SPI interface (CS / MOSI / MISO / SCK), Not solder pins.
Operating Voltage3.3V to 5V
Display Size2.4″
Driver ICILI9341
BacklightWhite
Color Depth262K/65K
Resolution (Pixel)240 x 320 RGB
Shipment Weight0.08 kg
Shipment Dimensions8 × 4 × 1 cm

Package Includes:

1 x 2.4-inch SPI Interface 240×320 Touch Screen TFT Display Module

1 x Stylus Pen
