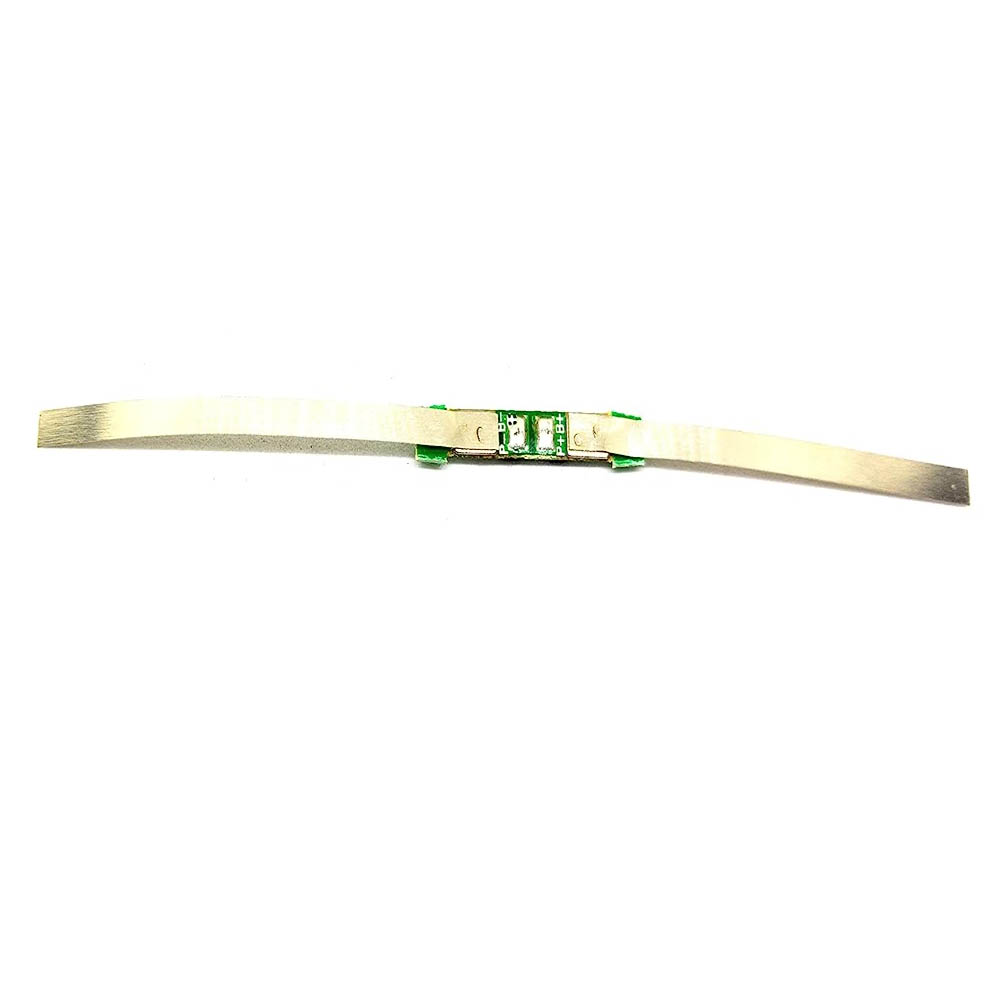

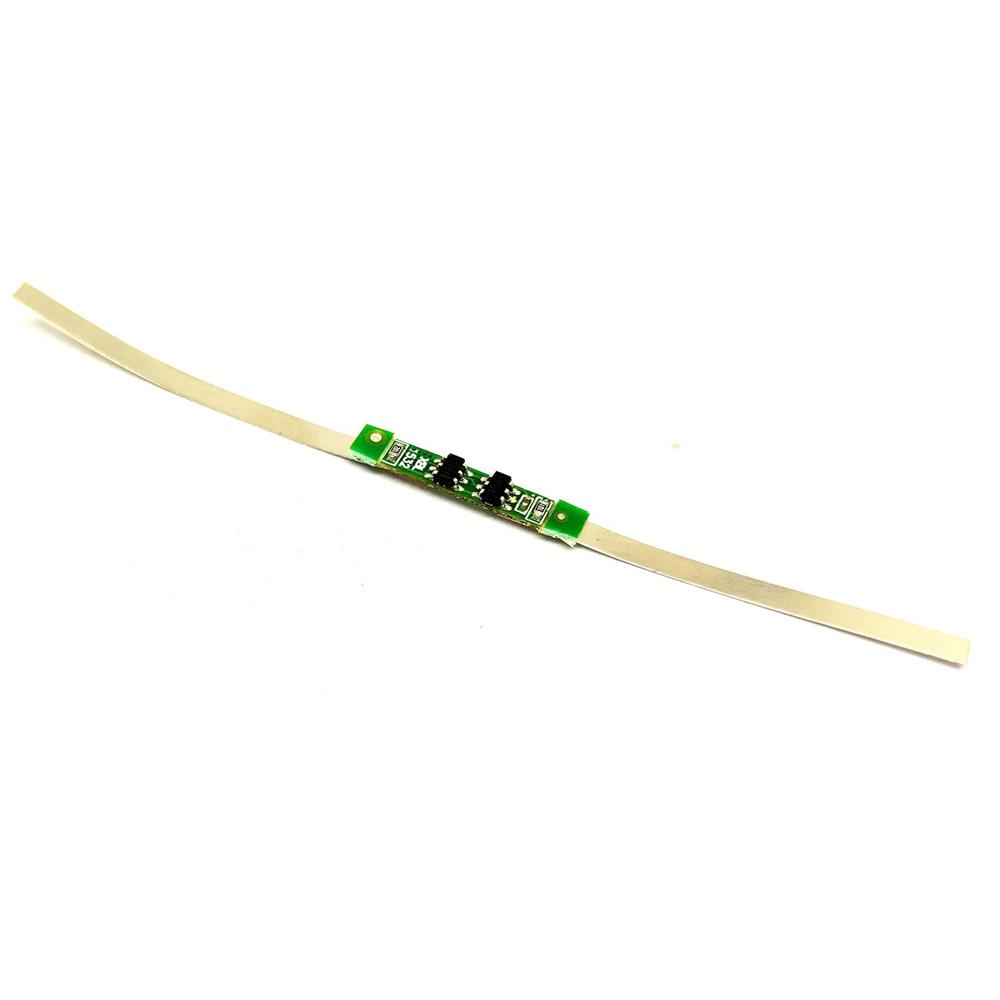

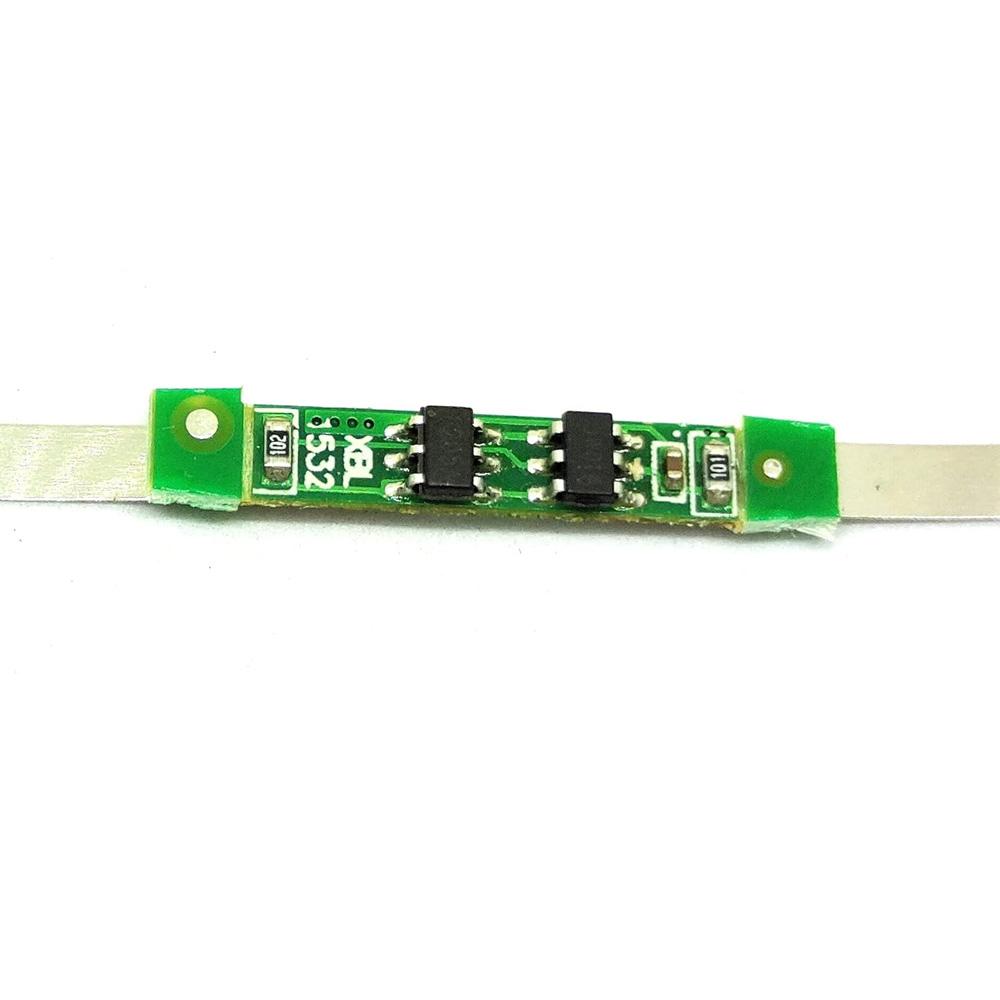

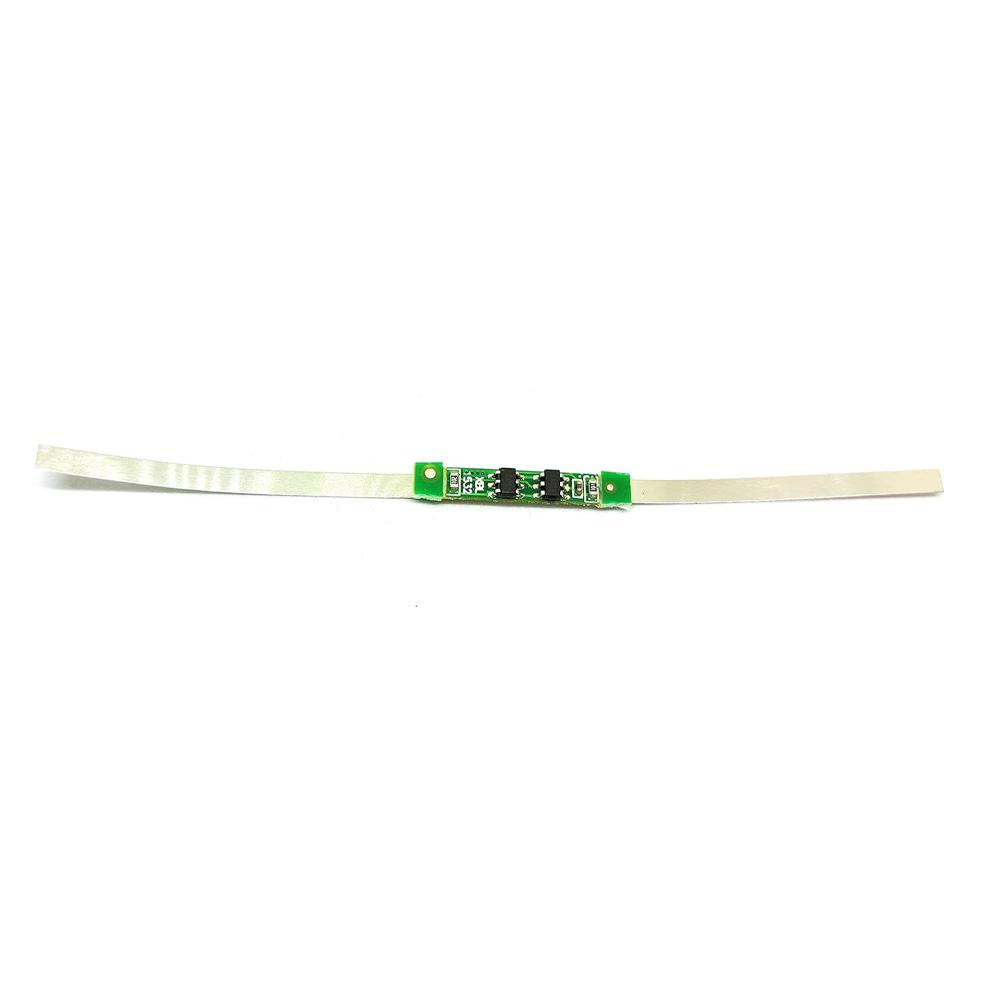

1S 3.7V BMS 2A 1 Cell 18650 Lithium Battery Charging Protection Board Battery Management System 4.2V charging voltage

Specification:

Over charge detection voltage: 4.3±0.05V
Over discharge detection voltage: 2.5±0.1V
Over current detection voltage: 0.015±0.03V
Suitable for: 18650 Li-Ion battery
Over current detection current: 2～6A;

SKU: RDNA-334.3

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹23.60 (Inc. GST)
₹20.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

12 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Over charge Protection – Over charge detection voltage: 4.3±0.05V; Over charge detection delay time: 1-200ms; Over charge release voltage: 4.1±0.05V.

Over discharge protection – Over discharge detection voltage: 2.5±0.1V; Over discharge detection delay time: 1-100ms; Over discharge release voltage: 2.9±0.1V.

Over current protection – Over current detection voltage: 0.015±0.03V; Over current detection current: 2～6A; Release condition: Cut load.

No of cells compatible with: 1; Suitable for: 18650 Li-Ion battery; Current consumption: ≤6μA;
