12 Wires 2A Circuits 250Rpm Capsule Slip Ring 220V For Monitor Robotic

Specification:

  • Make: MOFLON
  • Model: MC260
  • Voltage: 600 VAC/DC
  • Current: 2A per circuits
  • Speed: 0-250 Rpm
  • Circuits: 2 Wires
  • Housing Material: Engineering Plastics
  • Work Humidity:10% to 80%RH
  • Work Temp.: -40℃~+80℃
  • Contact material: Gold plated ring-Gold plated brush
  • insulation resistance: 1000 MΩ @ 600 VDC
  • Lead Length: Approx. 300mm
  • Dielectric strength: Between each circuit and all other circuits, ≥ 1000 VAC @ 50Hz
  • Electrical noise: ≤5mΩ
  • Work-life: Depending on speed and working environment, ≥60,000,000 runs ref
SKU: RDNA-12.668

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

1,496.10 (Inc. GST)
1,267.88 (+18% GST Extra)

Only 1 left in stock

Only 1 left in stock

16 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

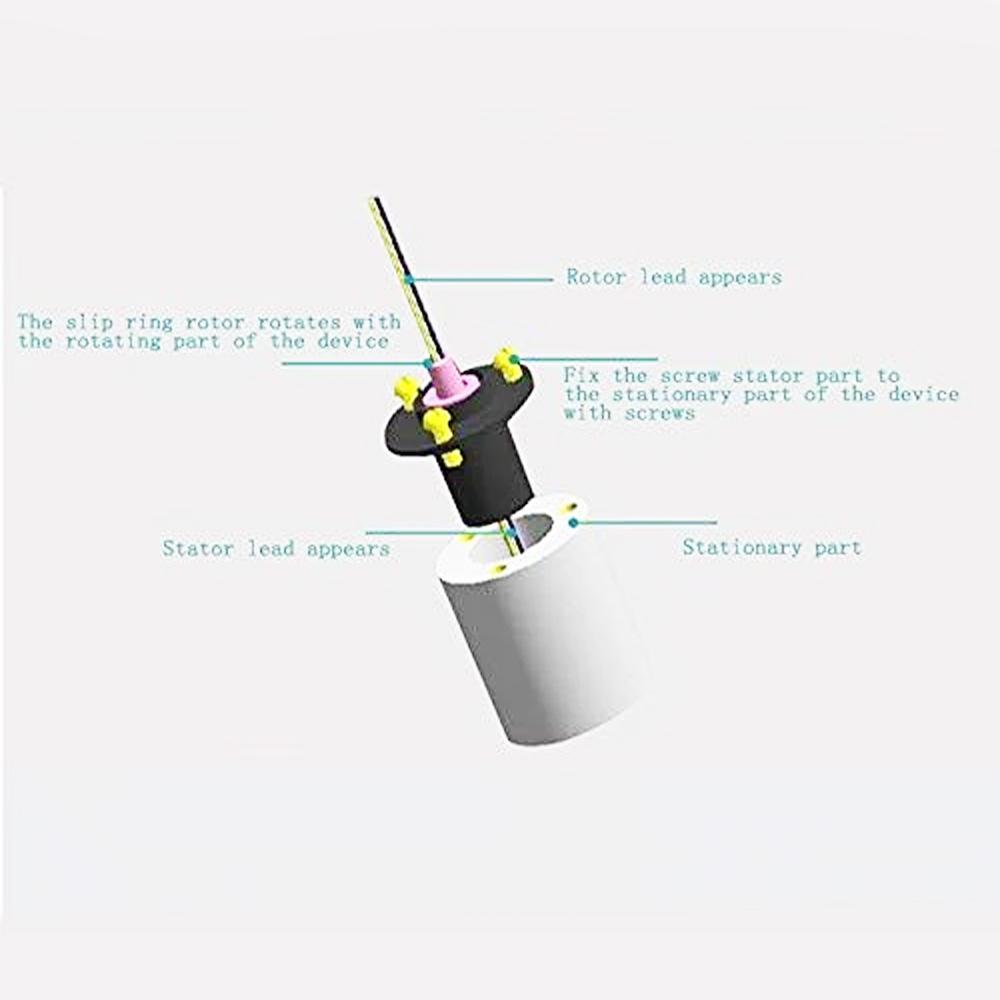

slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

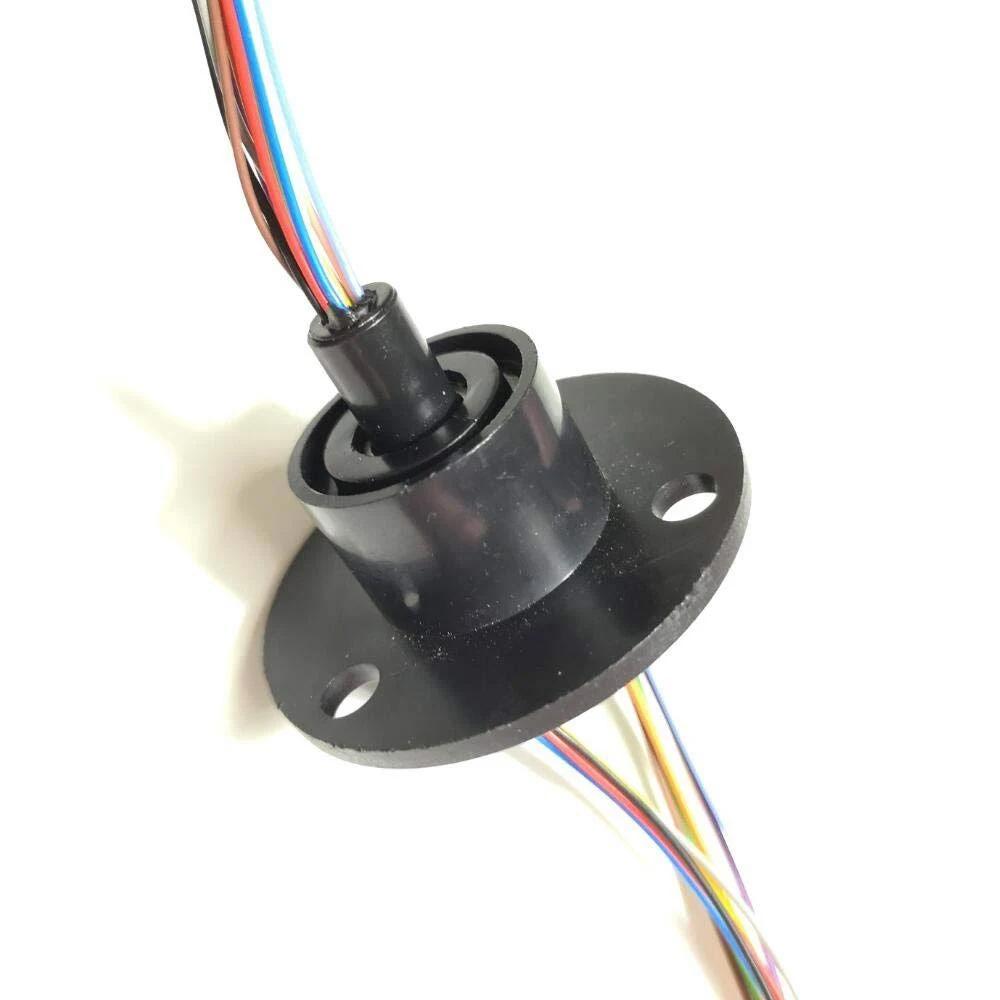

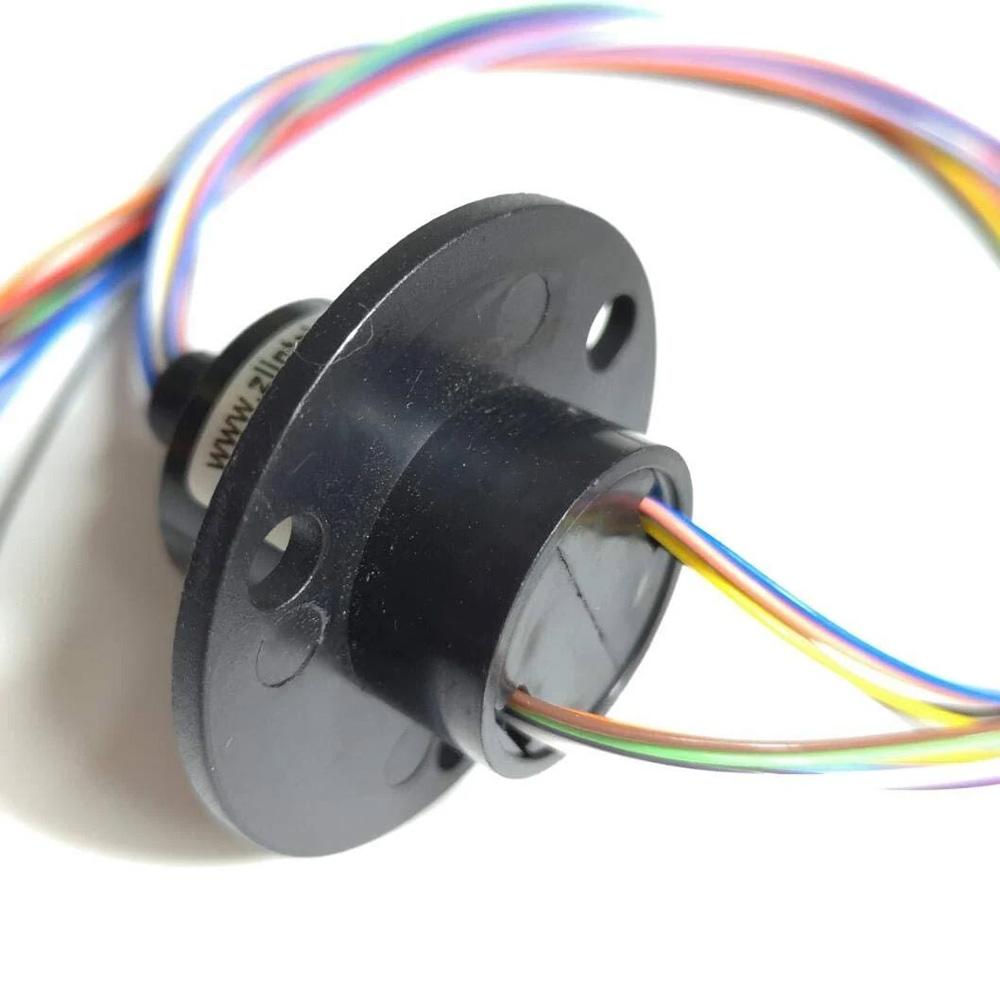

MC260 slip rings are small and compact with OD 22mm * L 26mm, with capsule style, standard, off-the-shelf.Color-coded lead wires are used on both the stator and rotor for
simplified electrical connections. Using a 90° V-groove ring design for each ring.

Actual Make May Be Vary As per stock availability. Above video only for understanding slip ring functions.

The Capsule slip ring is a standard, off-the-shelf series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. Used advanced technology to design, lower consumption. Mini Slip Ring 250RPM 2A 12 Wires 0-220V Multi-channel Transmission Anti-jamming for Wind Turbine Power Generator.

It can combine signal and power in same slip ring, completely satisfying 360 degrees of rotation
Precision module provides long time maintenance-free operation(no cleaning or lubrication required);

Datasheet of 12 Wires 2A Circuits 250Rpm Capsule Slip Ring 220V For Monitor Robotic

Packing List:

1 x 12 Wires 2A Circuits 250Rpm Capsule Slip Ring 220V For Monitor Robotic
