10 Pin Male-Female Pair Right Angle XY2500 Series

69.62 (Including GST)

59.00 ( + 10.62 GST)

Specifications:

  • Maximum rated voltage – 300V
  • Maximum rated current  – 15A
  • Pin spacing – 5.08mm
  • Wire gauge – 28-12AWG
  • Soldering Temperature – +250℃ for 5seconds
  • Insulation –  5000MΩ/1000V

In stock

Purchase this product now and earn 1 Point!

Compare

Share this product

Description

A terminal block connector is a component made of a plastic housing with metal holdings for connecting the wire to the Circuit. A terminal block consists of modular housing with an insulated body that secures two or more wires together. They are ideal for designs requiring secure, well-organized, and semi-permanent wire connections that can be easily swapped out for inspection or repair in the field.
There various types of terminal blocks that can be used in a design. These are some of the most common:

1.Pcb mount is known as a wire-to-board terminal block. it works by inserting a bare wire into the module where a clamp secures the wire and then the module is solder to PCB in common footprint,
2.Barrier strip has a screw-down terminal where spade is attached to a wire and then inserted onto the screw and tightened into housing,
3.Feed-through terminal block also known as wire to wire connector. it has one input and one output contact where 2 distinct wires are fed into the opposite side of the housing.

10P Pluggable Screw Terminal Block Connector – Right Angle – 5.08mm Pitch – 2EDG5.08

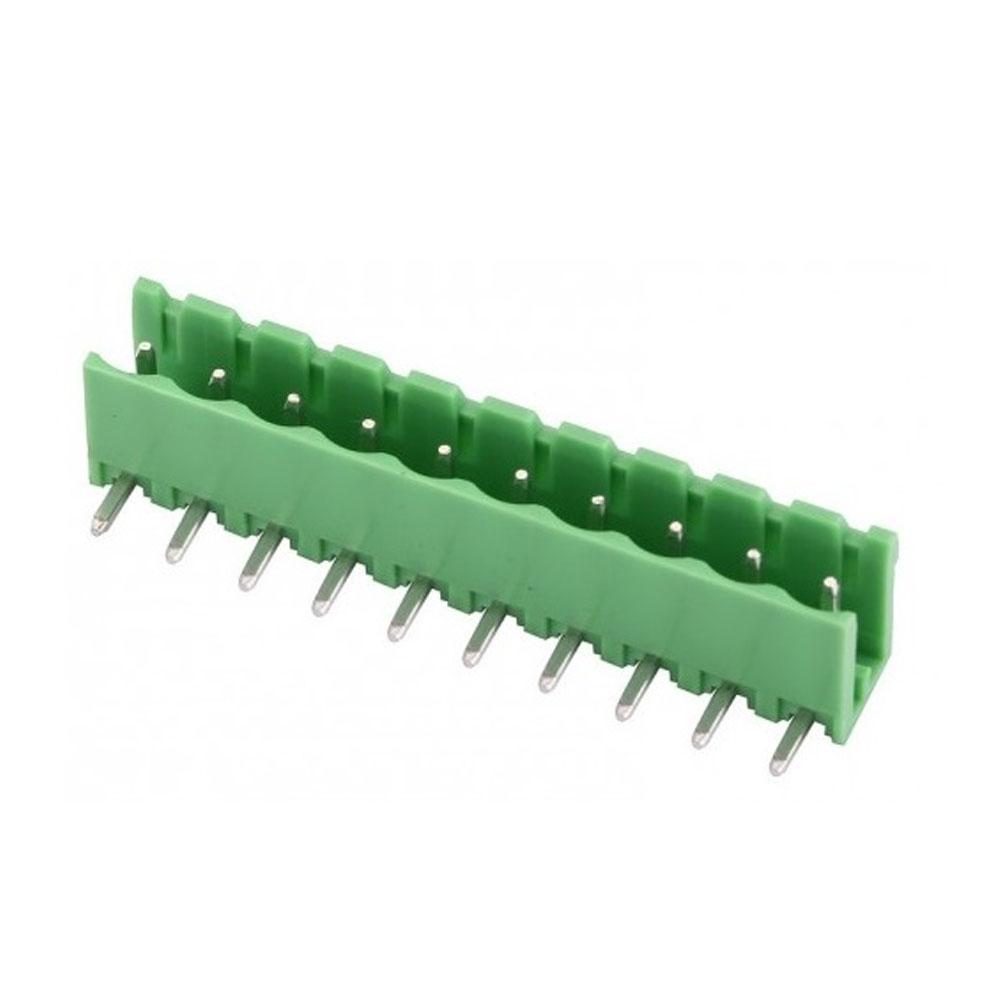

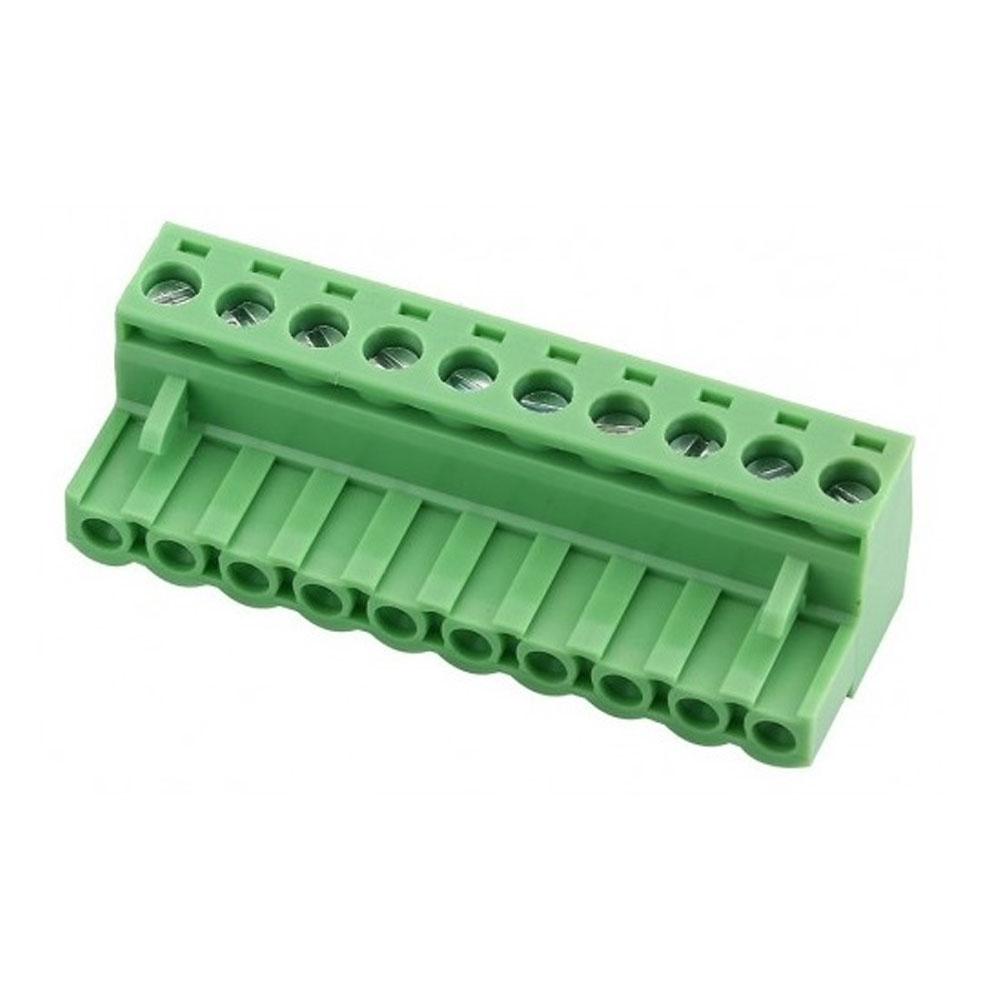

Standard plug-in type screw terminal block with right angle PCB mount male connector. Pin spacing is 5.08mm.

Package Includes:

1x Set of Male + Female Connector (Total 2 units)
