YDLIDAR X4 360 Degree ROS Scanner for Navigation, Collision Avoidance 10M

10,999.96 (Inc. GST)9,322.00 (+18% GST Extra)

Specifications :

  1. Operating Voltage (VDC): 52
  2. Range (m): 0.12-10
  3. Resolution: 0.48-0.52°
  4. Scan Frequency (Hz): 6 – 12

Available on backorder

Notify Me when back in stock

Compare

Share this product

Description

YDLIDAR X4 is a 360-degree two-dimensional rangefinder developed by the YDLIDAR team. Based on the principle of triangulation, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.

Applications:
  1. Robot navigation and obstacle avoidance
  2. Robot ROS teaching and research
  3. Regional security
  4. Environmental scanning and 3D reconstruction
  5. Commercial robot /Robot vacuum cleaner

Features:

  1. 360-degree omnidirectional scanning ranging distance measurement
  2. Small distance error, stable performance, and high accuracy
  3. 10m Ranging distance
  4. Strong resistance to ambient light interference
  5. Low power consumption, small size, and long life
  6. Laser power meets Class I laser safety standards
  7. Adjustable motor speed frequency differ from 6Hz~12Hz
  8. Ranging frequency up to 5K Hz

Package Includes:

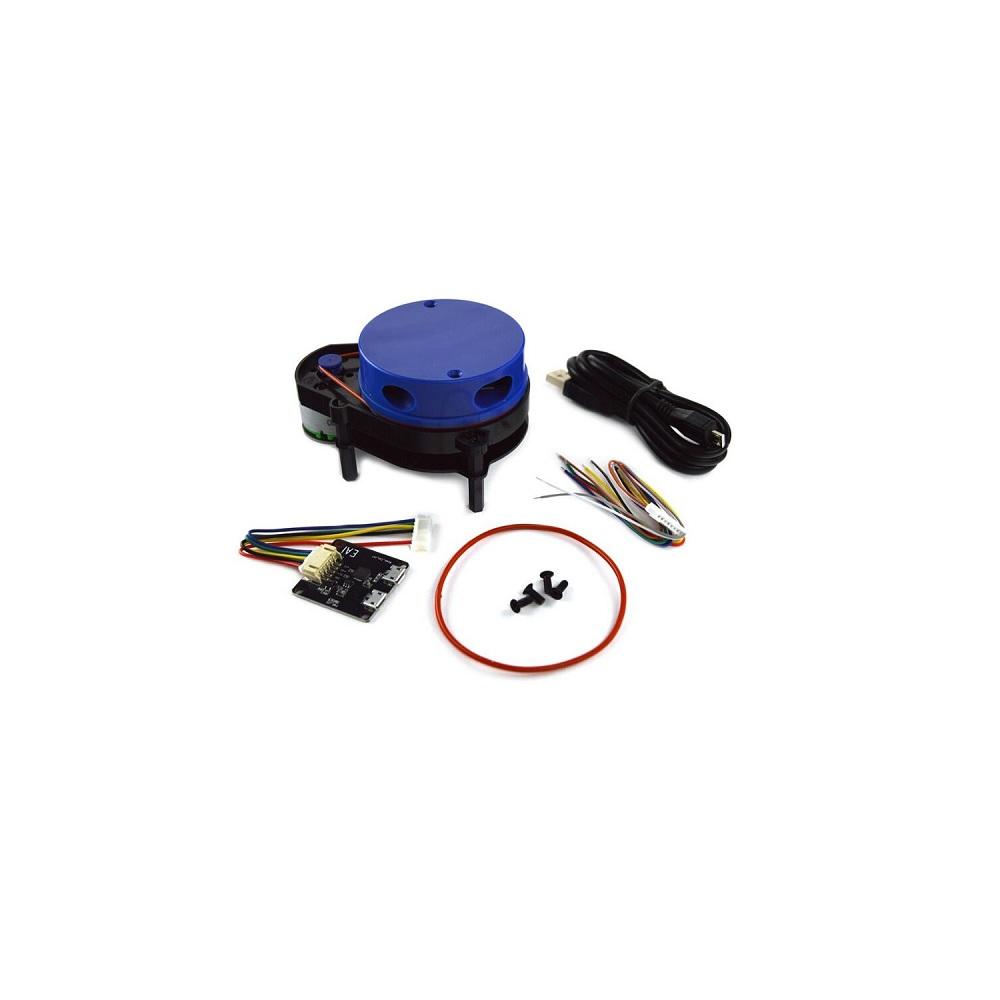

1 x YDLIDAR X4 Range Finder
