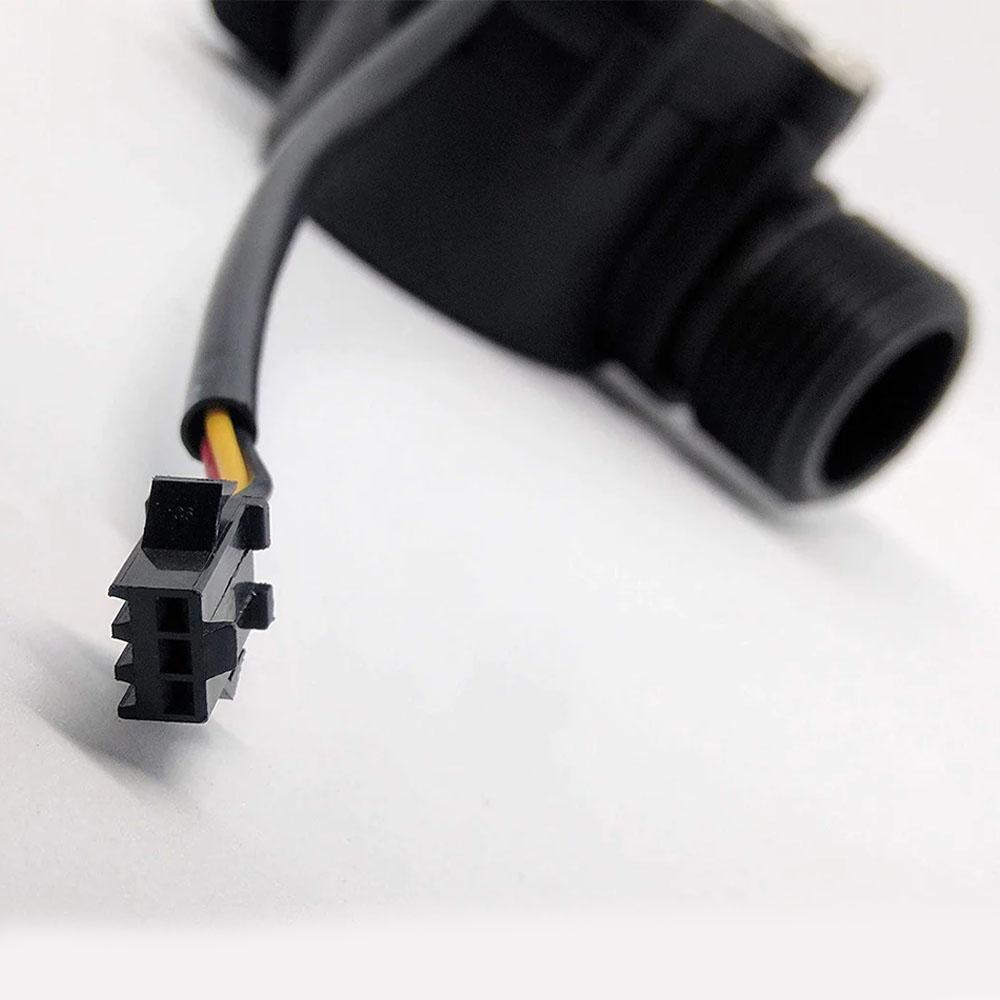

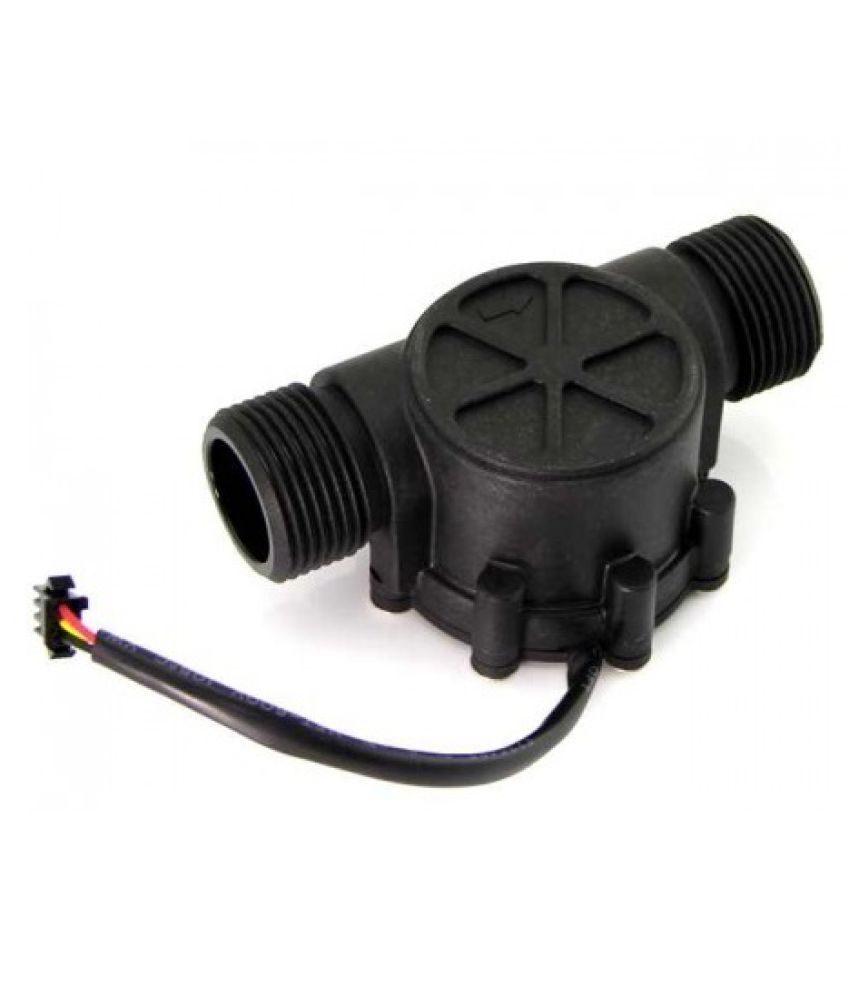

WATER FLOW SENSOR BIG YF-G1

Specifications:

  • Mini. Working Voltage: DC 3.2V
  • Working Voltage: DC 3.5V~24V
  • Flow Rate Range: 2~100L/min
  • Water pressure resistance: = >2MP
  • Output Valve Size: 30mm
  • Operating Temperature: = -20~85C
  • Insulation resistance: = >100MΩ
  • Characteristics of Flow pulse: f=(4.8*Q) Q=L/Min
  • Accuracy: ±3%
  • Connector type: G1
SKU: RDNA-QR46.3

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

1,121.00 (Inc. GST)
950.00 (+18% GST Extra)

In stock

In stock

14 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

–Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

You may also look for :

Features:

  1. Compact, Easy to Install
  2. High Sealing Performance
  3. High-Quality Hall Effect Sensor
  4. RoHS Compliant

Refer to the below Datasheet for more detail.

Datasheet available here.

Package includes:

1 x WATER FLOW SENSOR BIG YF-G1
