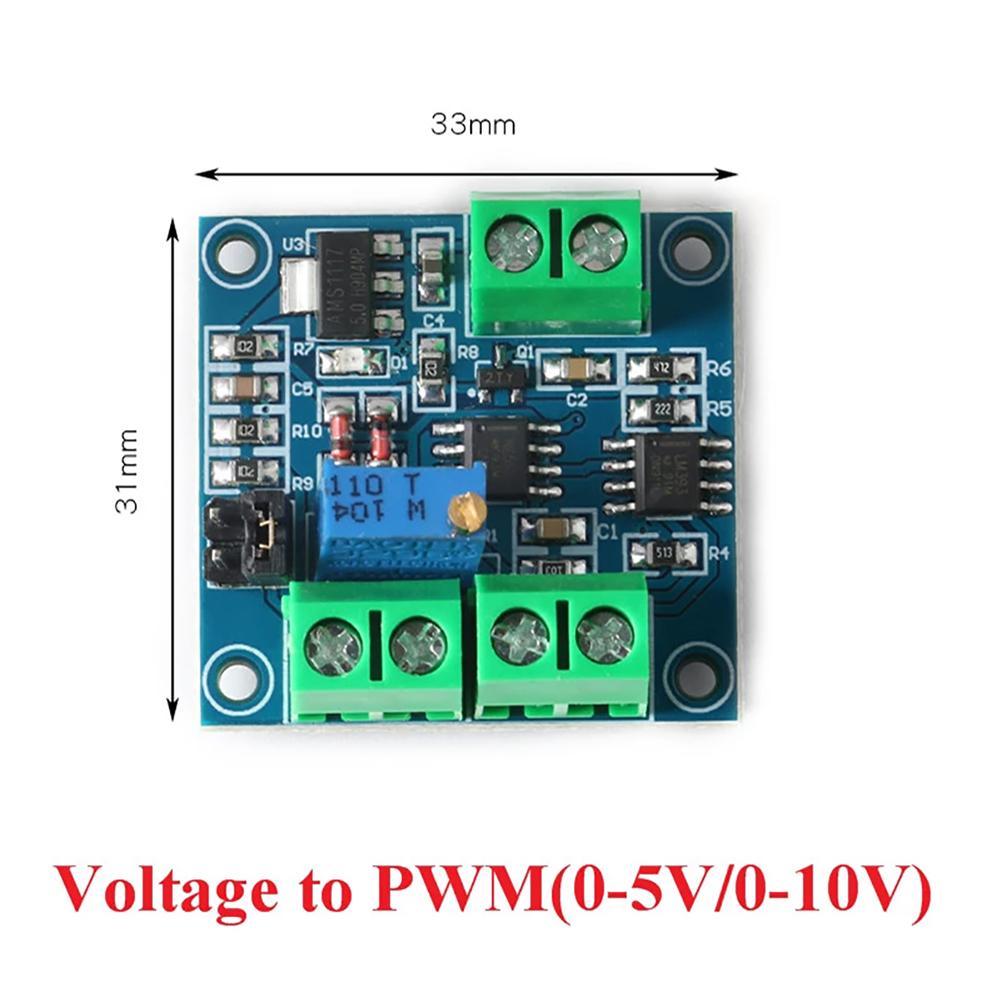

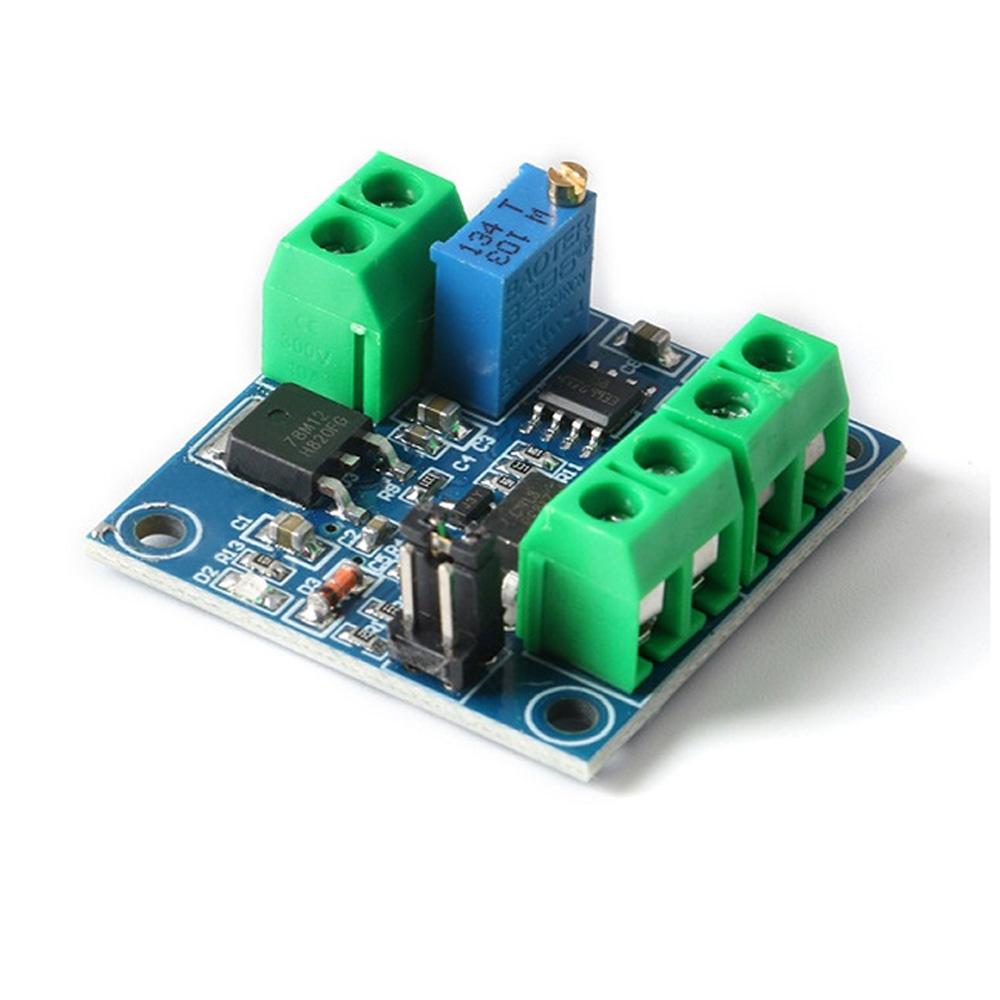

Voltage to PWM Converter Module 0-5V 0-10V to 0%-100% Digital to Analog Signal PWM Adjustable Power Module

352.82 (Inc. GST)299.00 (+18% GST Extra)

Specifications:

  • Module working voltage: DC 5V-12V
  • Output PWM frequency: about 50KHZ
  • PWM amplitude: 5V
  • Conversion range: 0-5V/0-10V
  • Voltage conversion: 0%-100%6PWM
  • Tolerance: 1%-3%

In stock

Compare
SKU: RDNA-AB53 Category:

Share this product

Description

Connect the working voltage to VCC and GND. Do not connect them in reverse to avoid damage to the board and devices. Connect a controllable voltage at the VIN terminal. The voltage range is divided into two types: 0-5V and 0-1 0V according to the selected mode.

The PWM output is PWM. The duty cycle can be adjusted by adjusting the voltage. The accuracy can be controlled by adjusting the potentiometer.

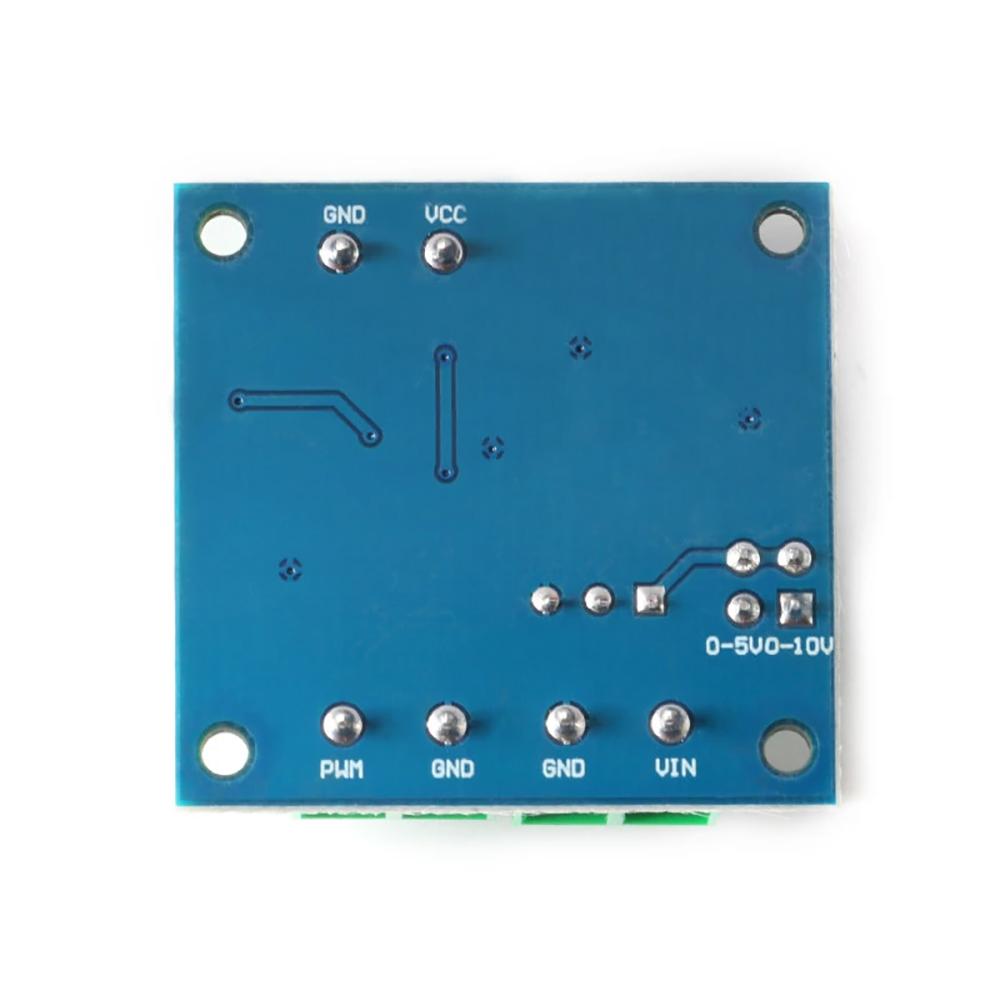

Voltage to PWM Pinouts:

  • VCC: Working power supply 5V-12V.
  • GND: working power ground
  • VIN: input voltage 0-10V
  • GND: Input signal negative terminal.
  • GND: Output PWM ground.
  • PWM: output PWM

Package Includes:

1 x Voltage to PWM Converter Module 0-5V 0-10V to 0%-100% Digital to Analog Signal PWM Adjustable Power Module
