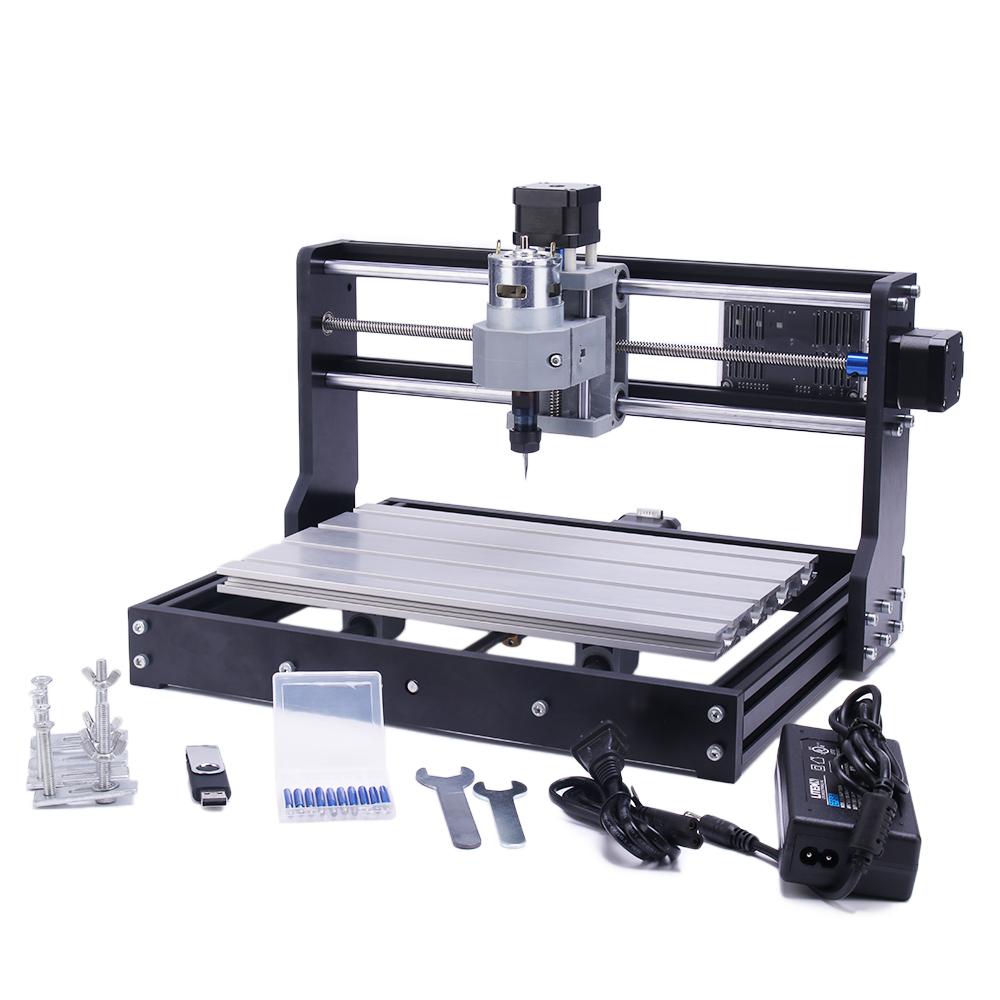

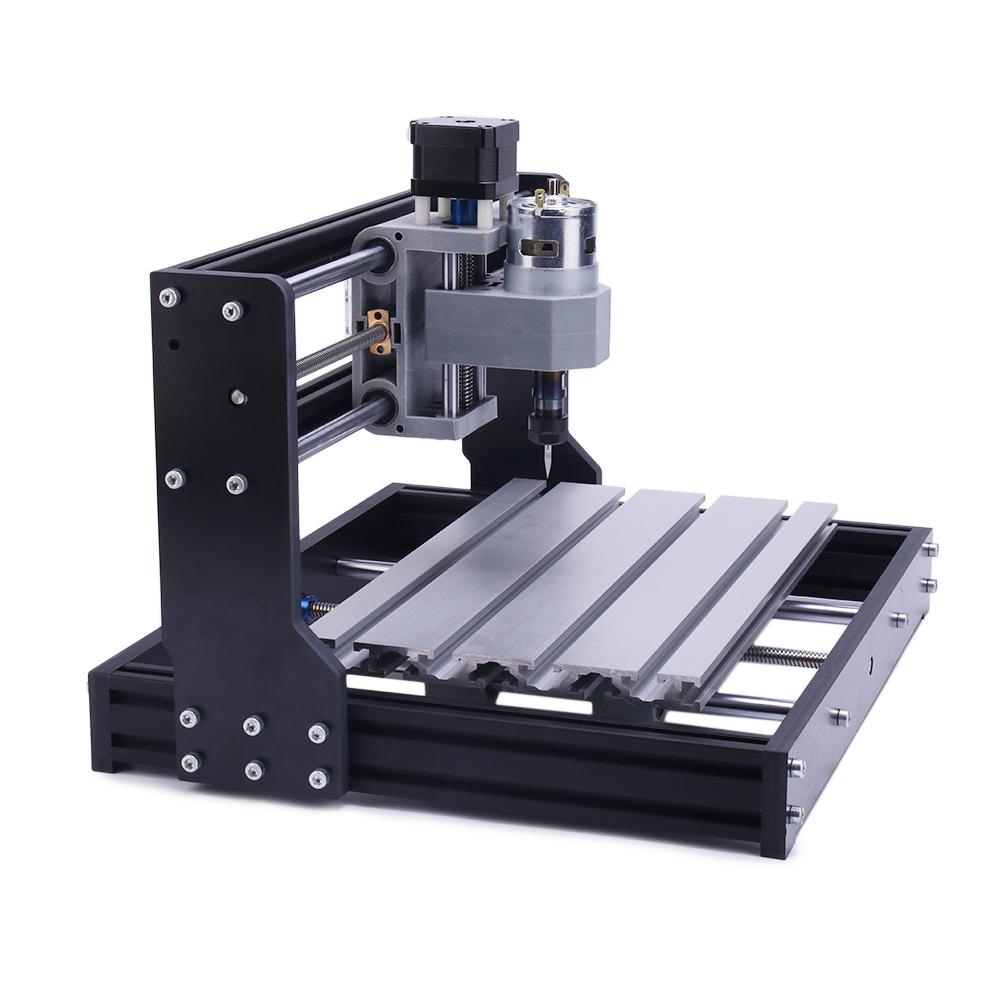

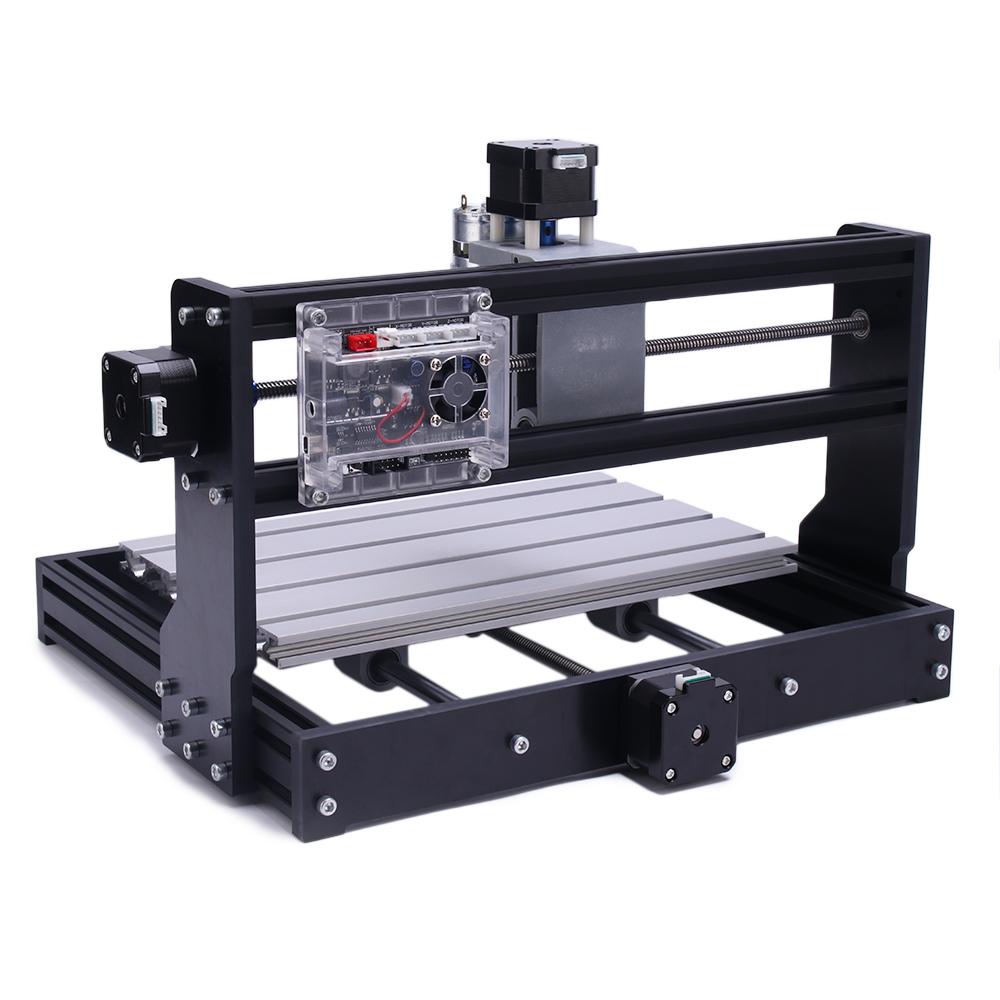

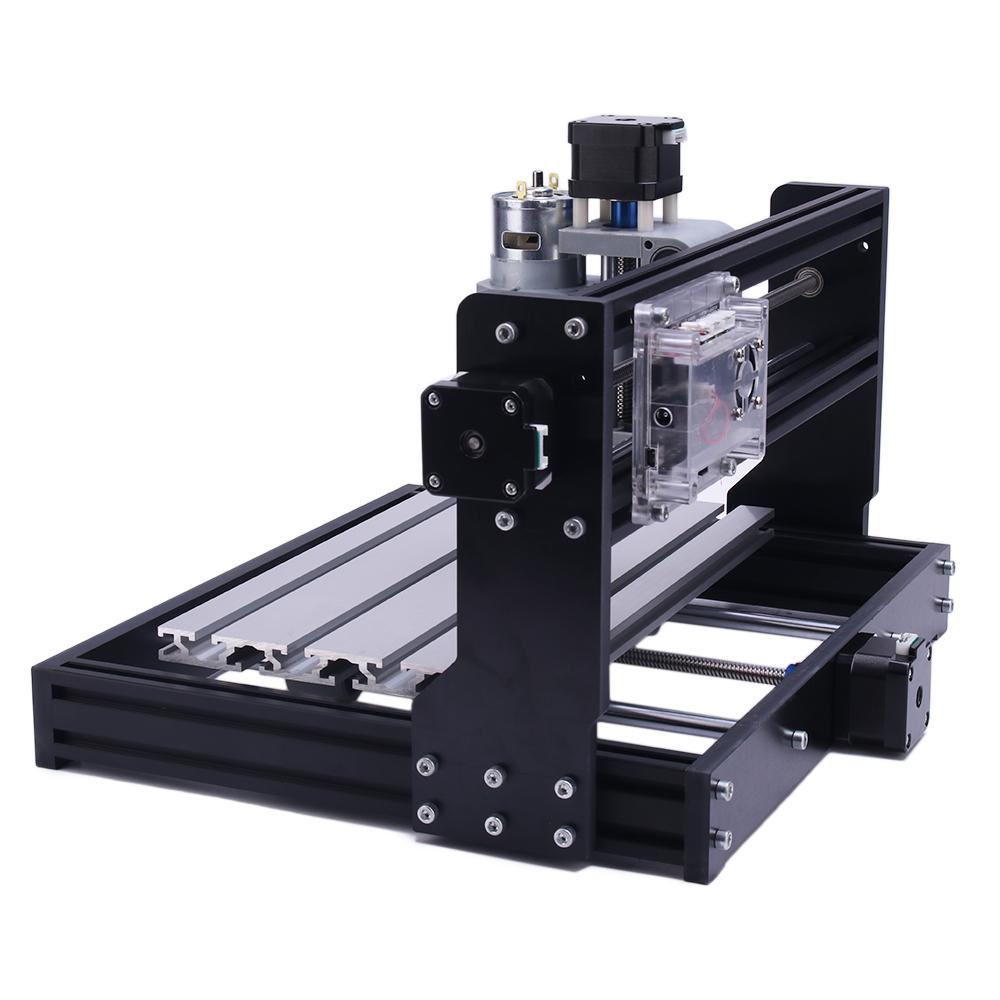

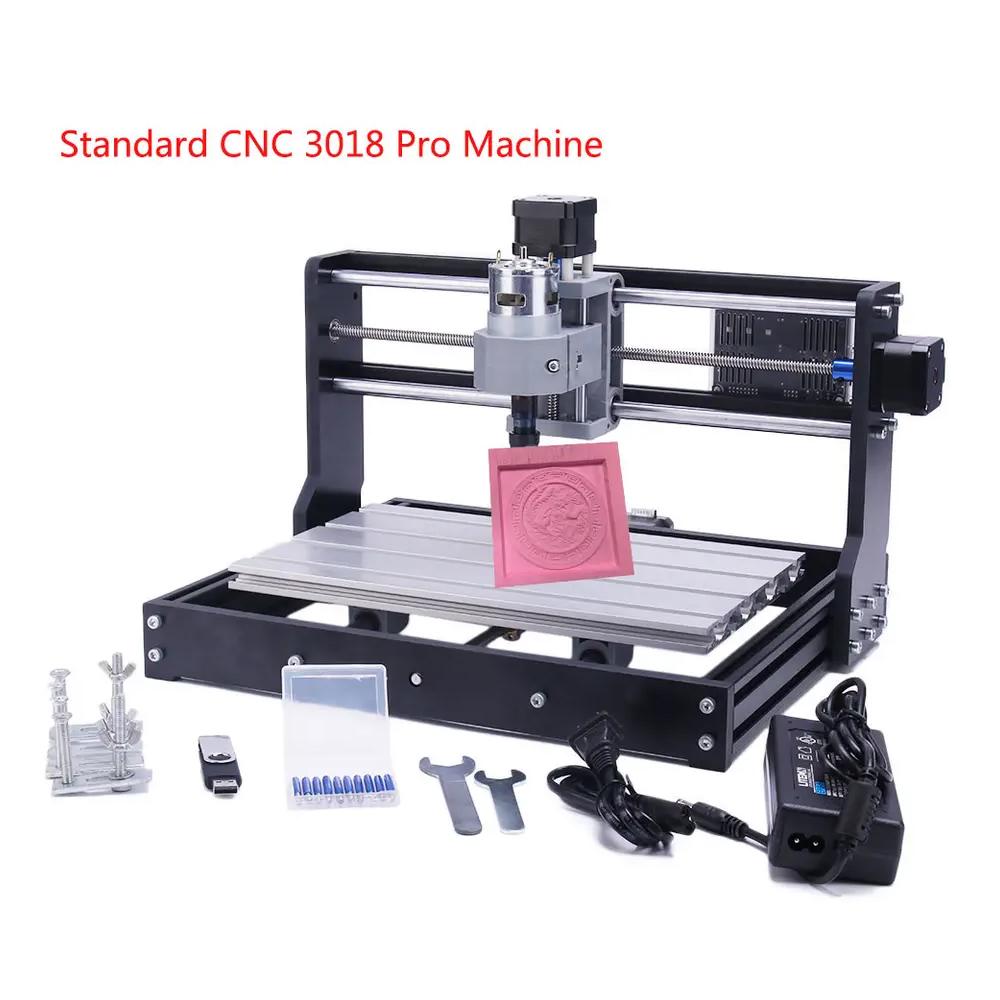

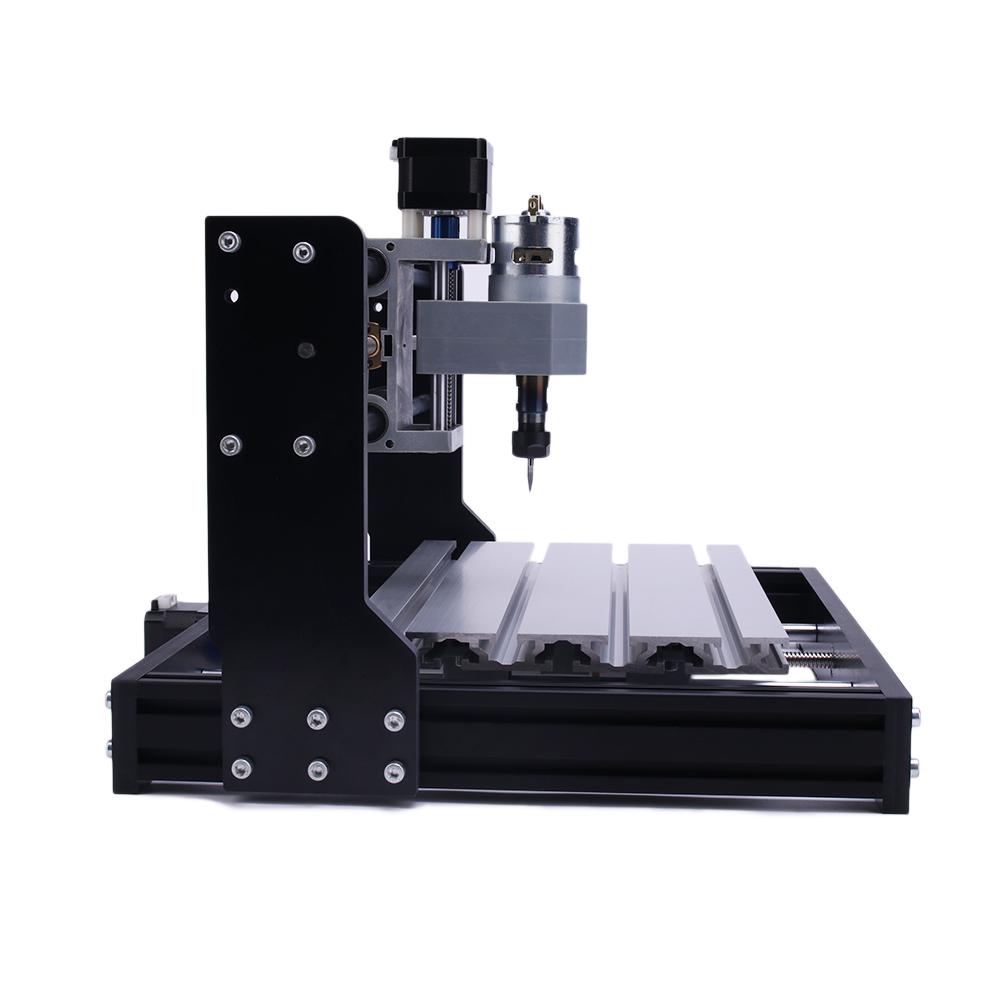

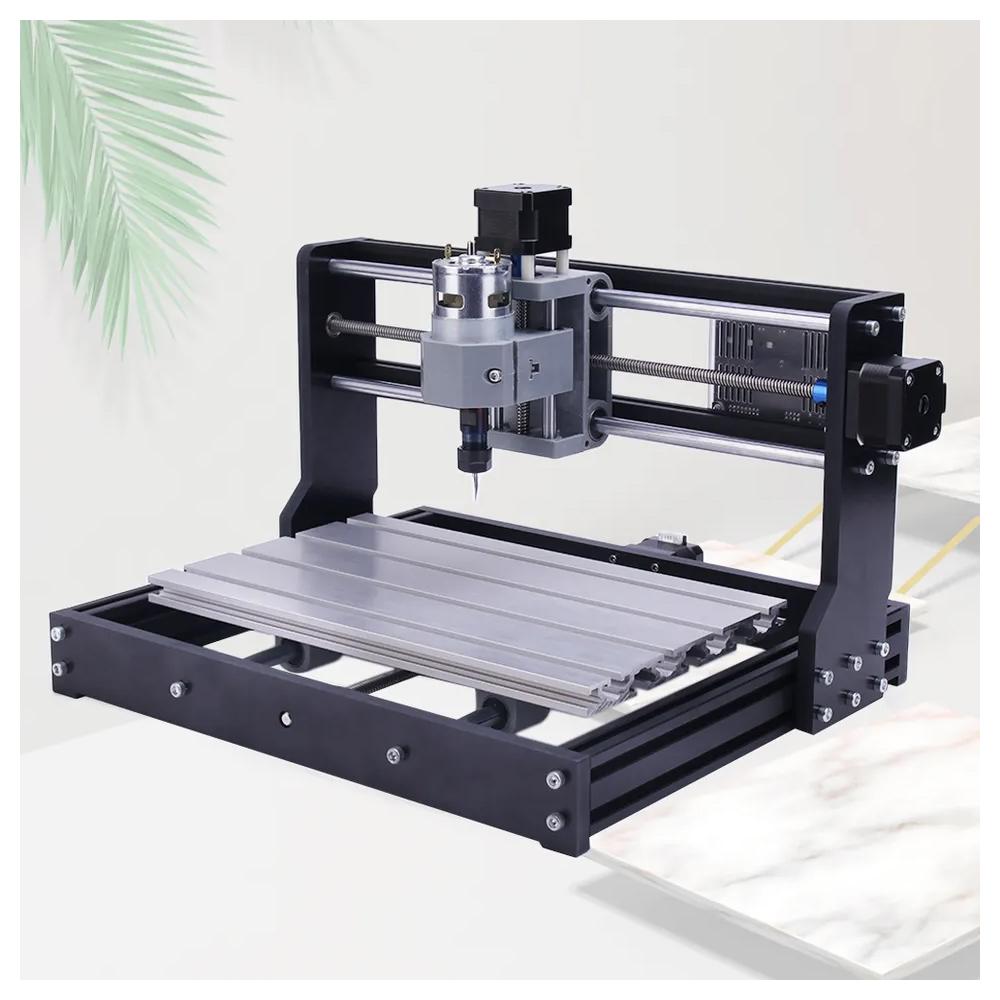

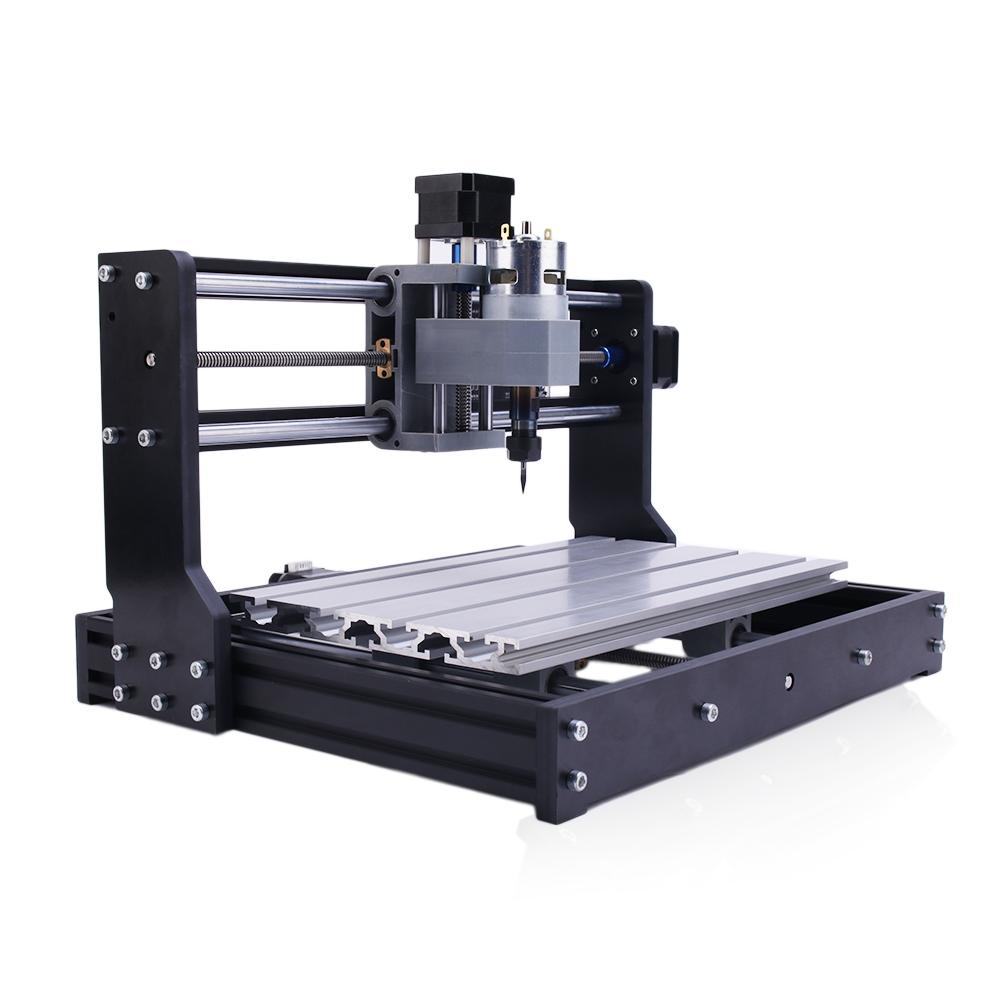

CNC 3018 Pro Router Kit Wood Acrylic Plastic PCB MDF Milling Engraver , CNC Router Bit(Unassembled)


  • Model: CNC3018Pro
  • Control Software: Grbl
  • Material: aluminium + plastic
  • Colour: silver & black

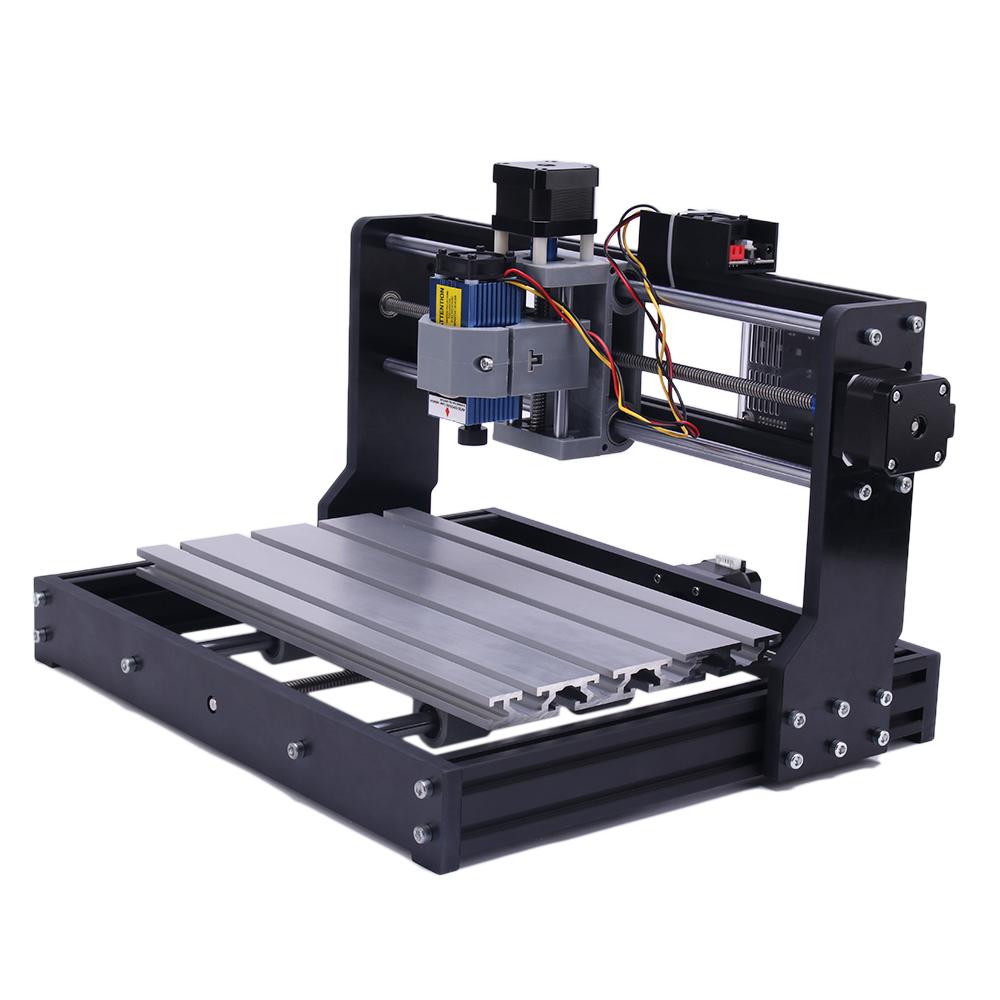

  • No Laser with this kit, need to buy it separately.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%


13,568.82 (Inc. GST)
11,499.00 (+18% GST Extra)

Out of stock

Out of stock

11 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today


  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:



  • Router machine, operated through computer numerical control (CNC), can cut along various axis, no matter horizontal or vertical it is.
  • CNC engraver can make a precision part made of one soft solid material (like wood), ensure a strong whole part, better than 3D printing.

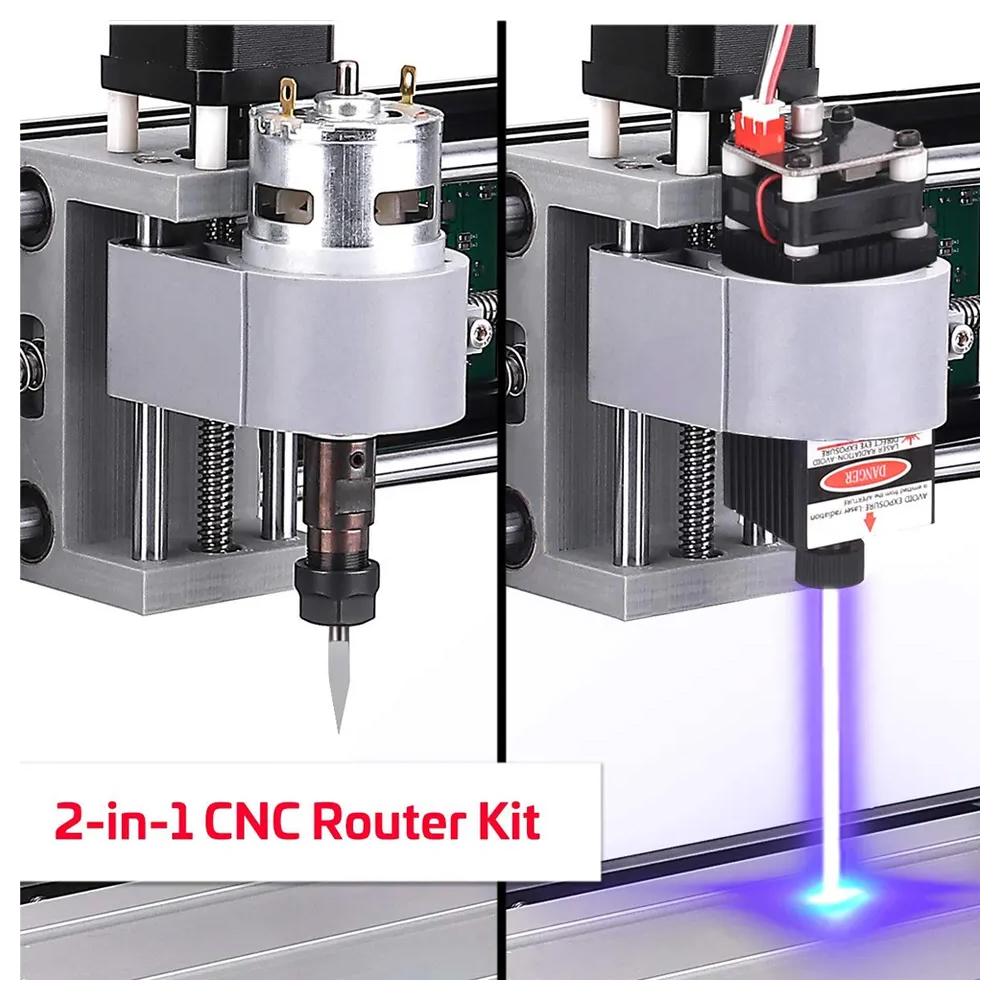

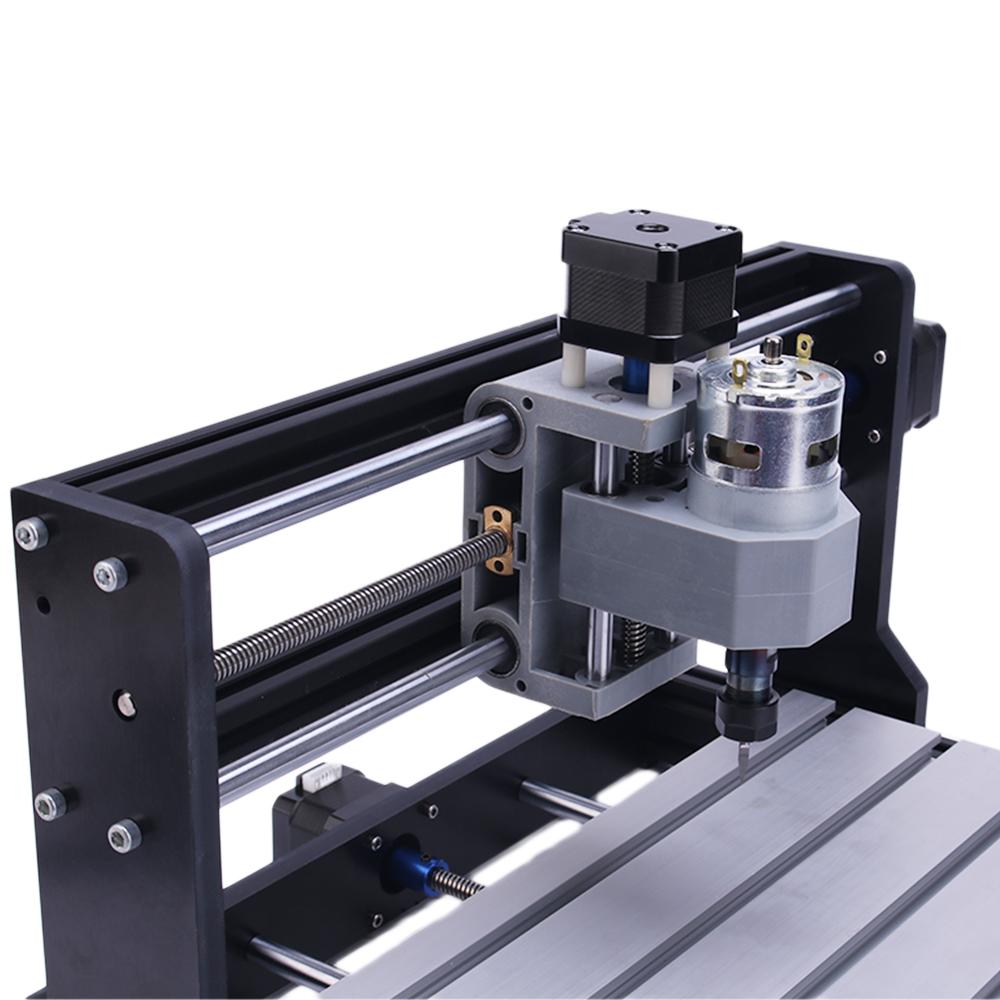

  • 775 spindle motor with an ER11-style chuck, efficiently drives the machining process, determines it to cut wide range of materials.
  • The engraving machine uses ER11 collet (3.175mm) that fast, easily attaches the bit to the spindle, for better work.

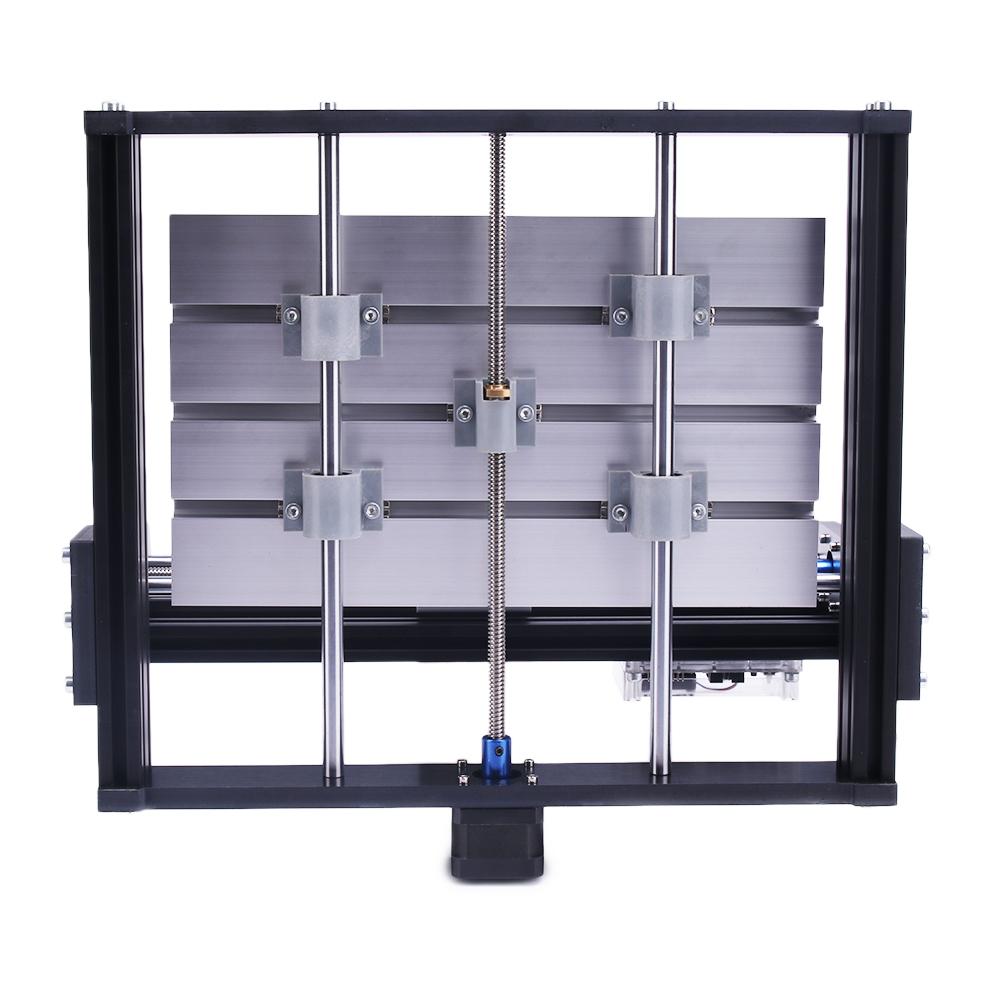

  • Three refined axis, to achieve flat engraving, provide a large effective working area of 300(X)x180(Y)x40(Z)mm (11.8inx7.1inx1.57in).

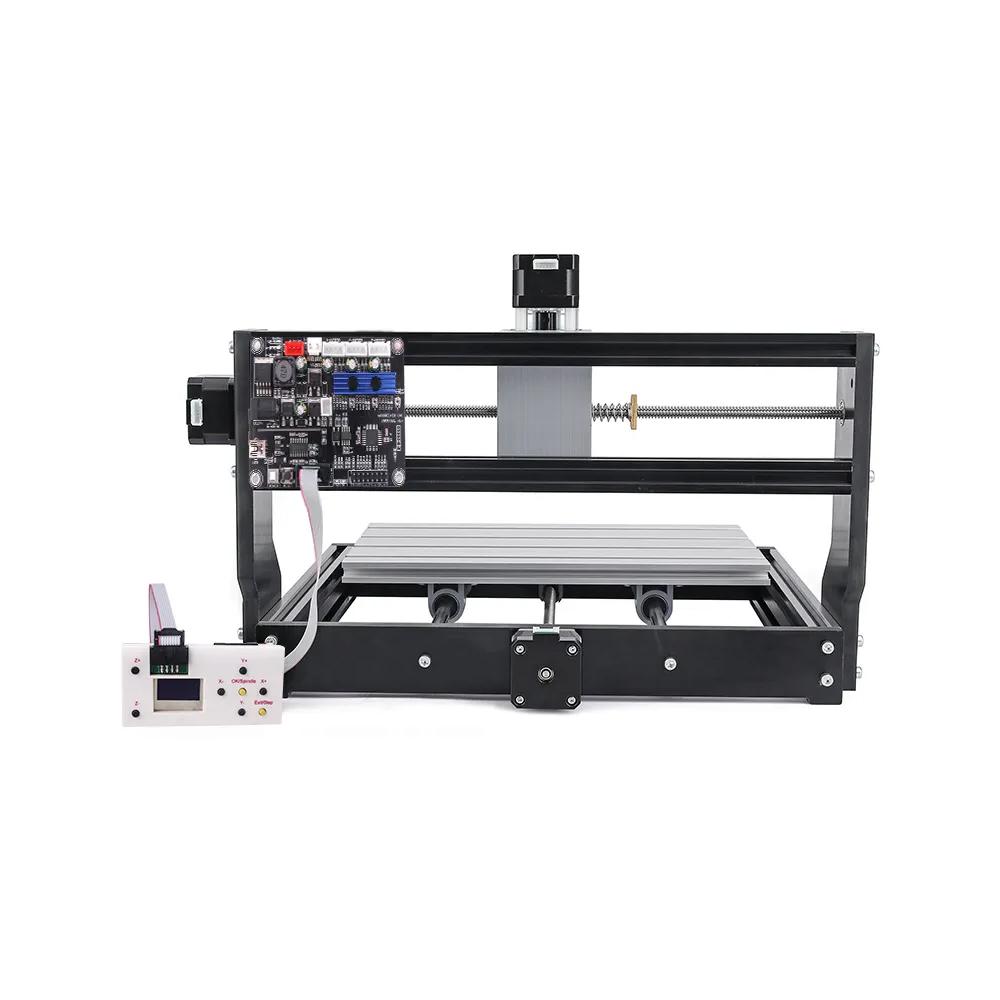

  • Offline controller can download and save files (no need to connect a computer), control to directly do some simple carving (no need to download any files).
  • You can connect the engraving machine to computer via USB port, control its movement with stable GRBL software, very convenient.
  • Whole machine body made of high hardness aluminium, coated with black finish to resist rust, looks nice and lasts for a long while.
  • It is suitable for DIY enthusiasts to have engraving or milling on wood board, plastic, leather, PCB, bamboo, PVC and more.


  • Model: CNC3018Pro
  • Control Software: Grbl
  • Material: aluminium + plastic
  • Color: silver & black

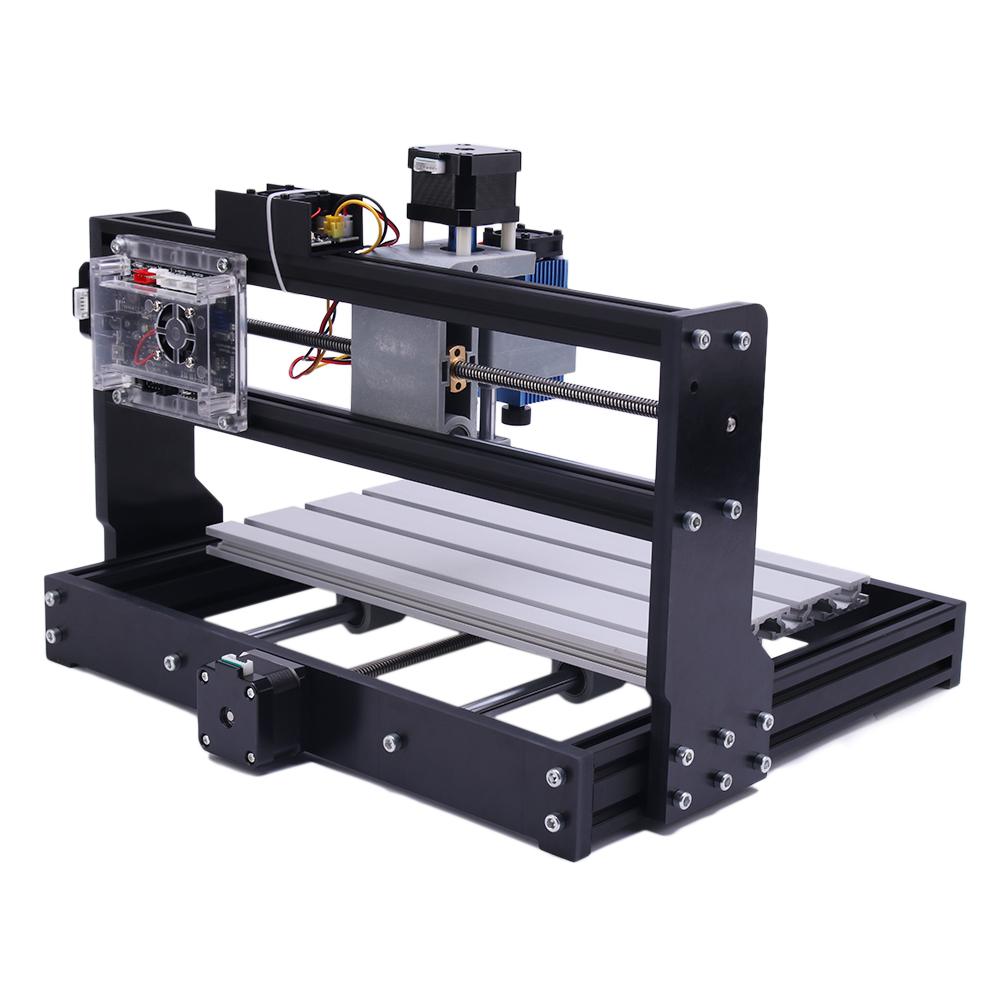

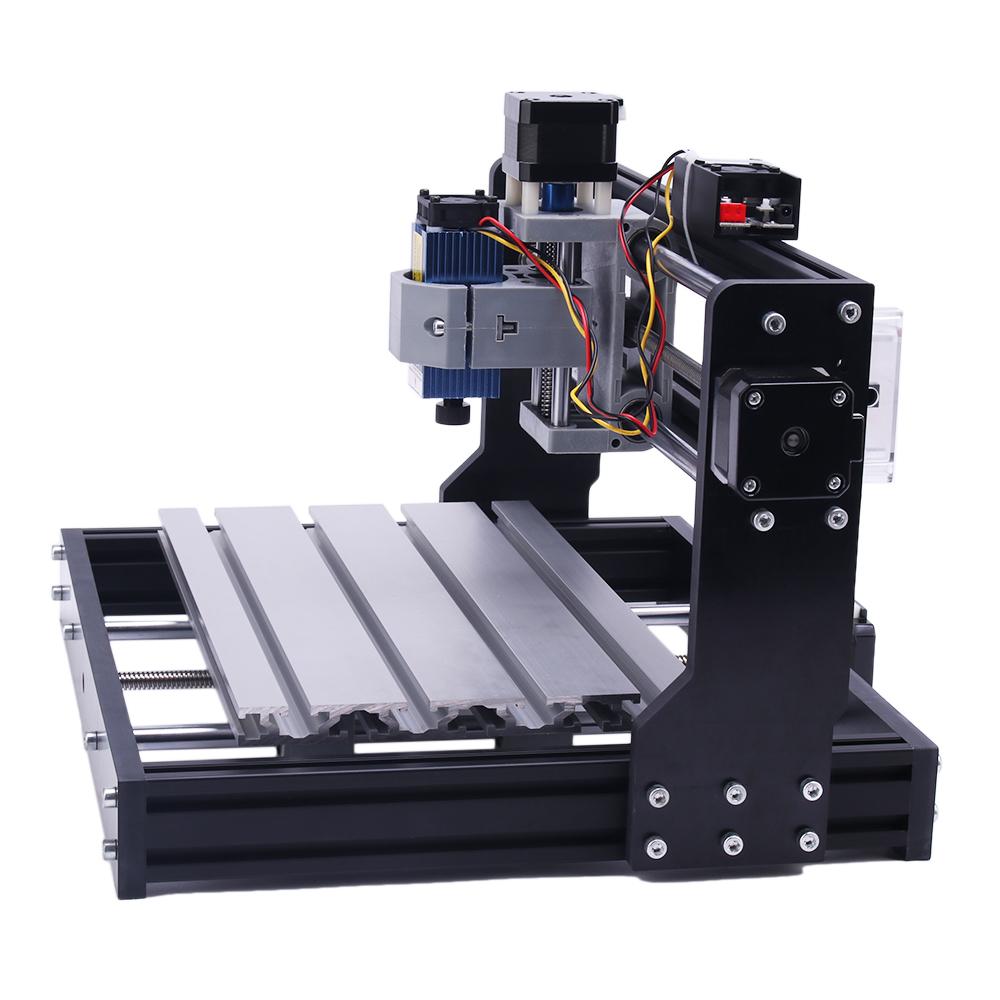

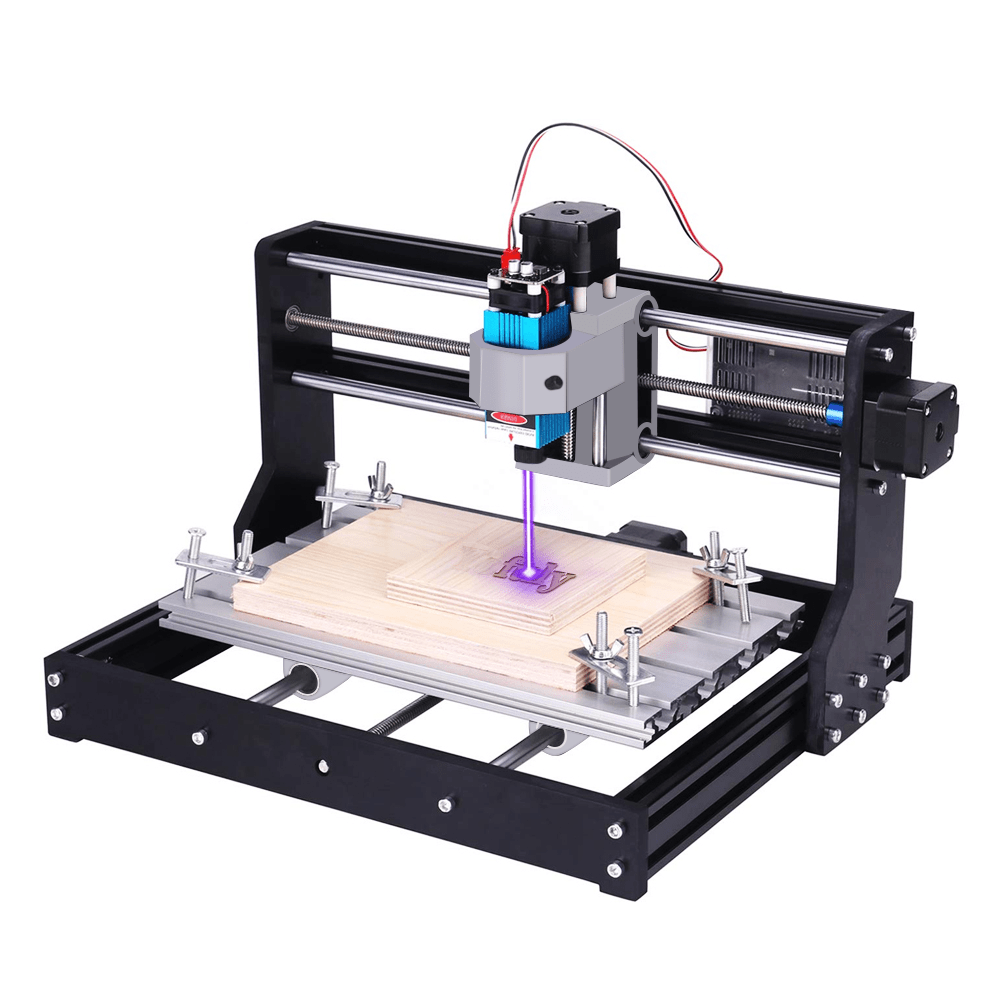

  • Combo: no laser head / 5.5w laser head / 10w laser head / 20w laser head / 30w laser head / 40w laser head (optional)
  • Working Area: 300*180*40mm (11.8*7.1*1.6in)
  • Frame Size: 420*355*280mm (16.5*14*11in)
  • Spindle: 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
  • Spindle Chuck: ER11
  • Step Motor: 1.3A / 0.25N.m
  • Power Supply: 24V / 5.6A (110-240V)
  • Supported System: windows XP / win 7 / win 8 / win 10
  • Can Carve Materials: plastic, wood, acrylic, pvc, pcb and more (depend on )
  • Supported Formats: jpg / bmp / png
  • Communication Port: micro USB
  • Package Weight: 7100g / 250.44oz
  • Package Size: 44*26.5*18cm / 17.32*10.43*7.08in


  • DIY router machine only, others in pictures are not included.
  • This product requires some assembly to get started.
  • It cannot engrave on hard metal, jade and other hard materials.
  • Due to manual measurement, there may be deviation.
  • Due to lighting or other, product may slightly differ from pictures.

CNC 3018 Pro Router Kit User Manual

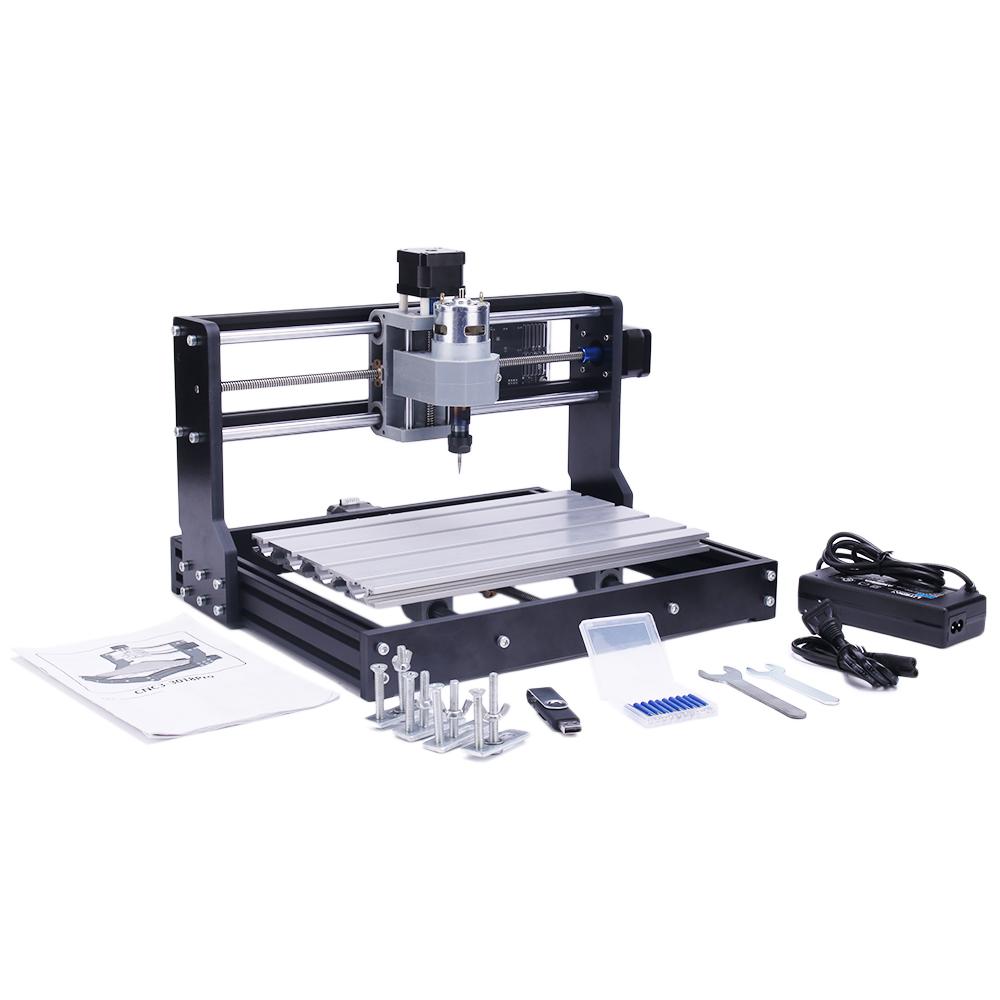

Packing List:

1 x CNC 3018 Pro Router Kit
