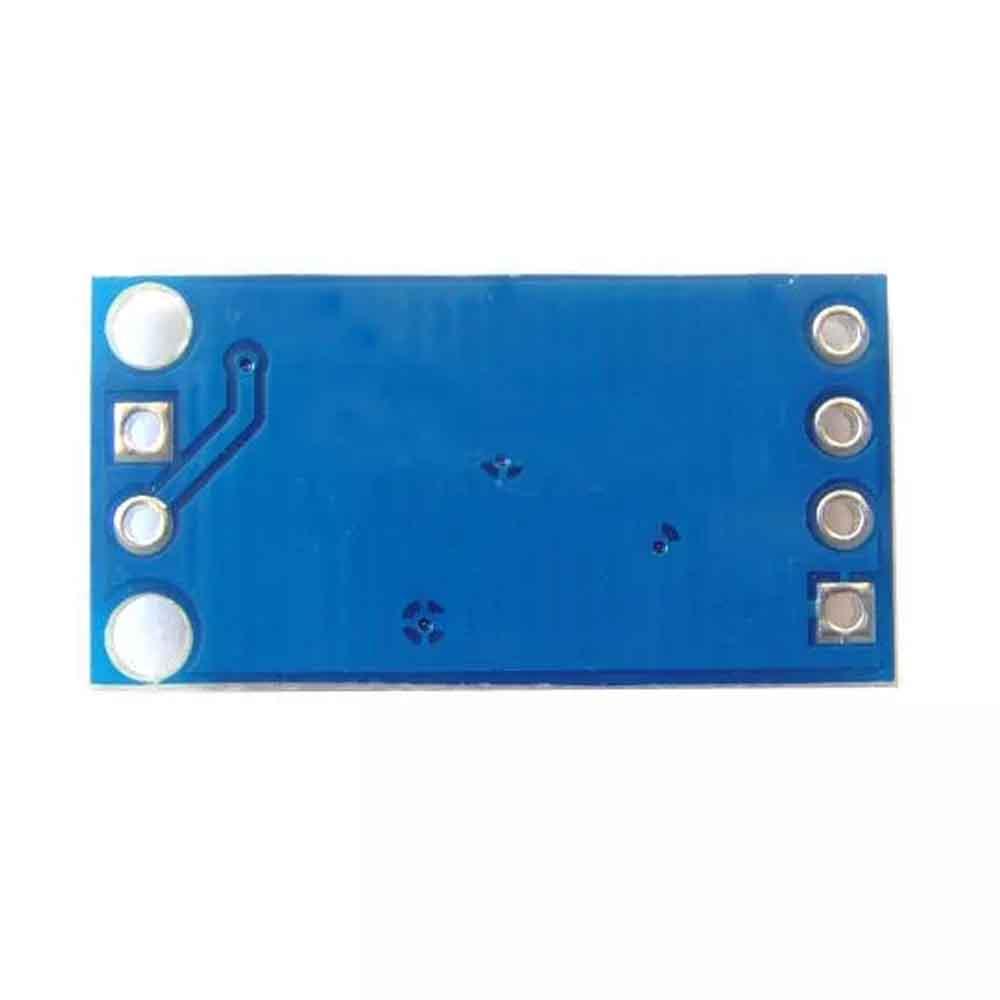

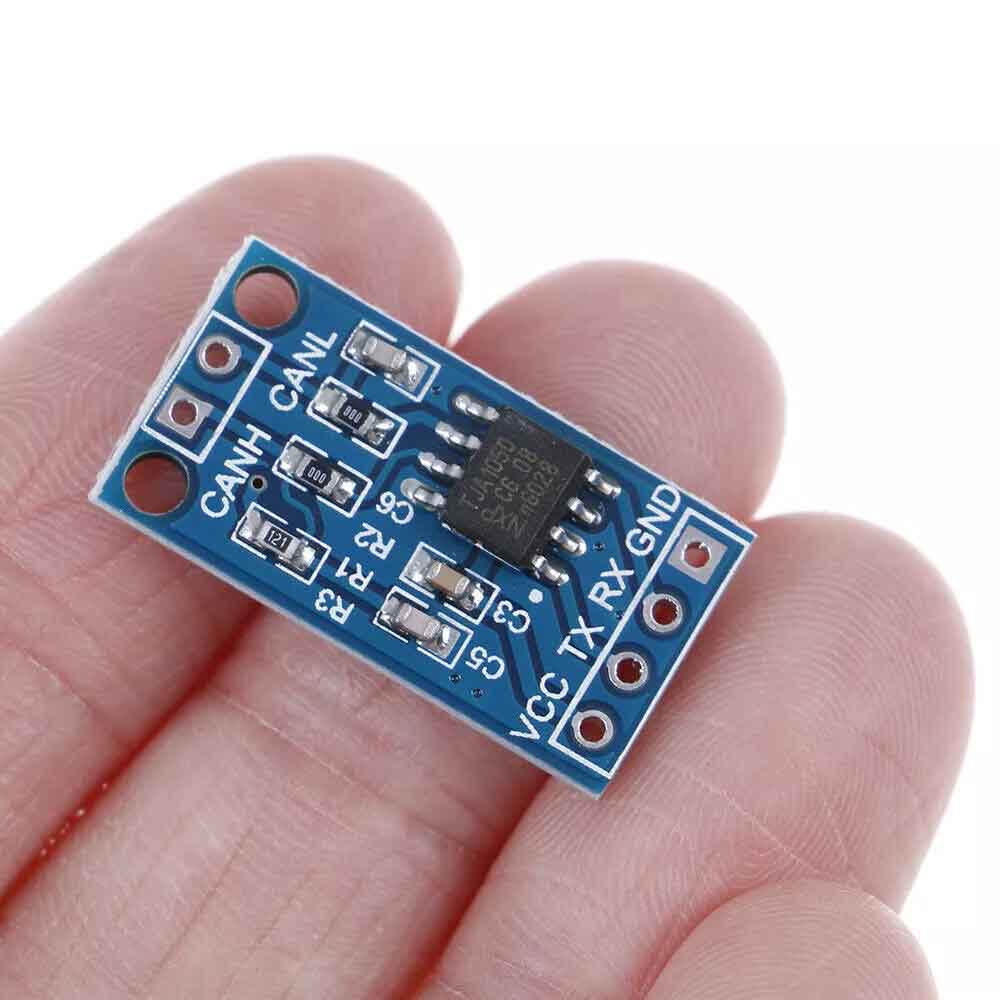

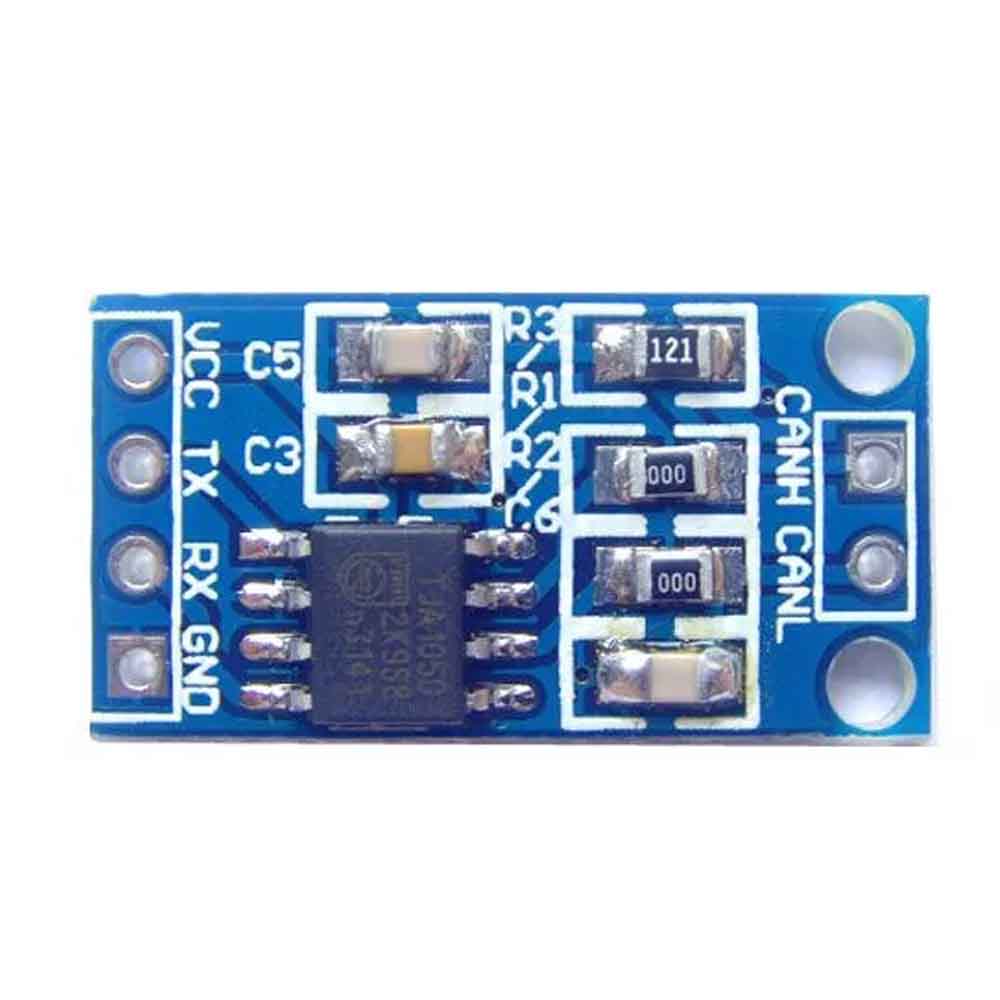

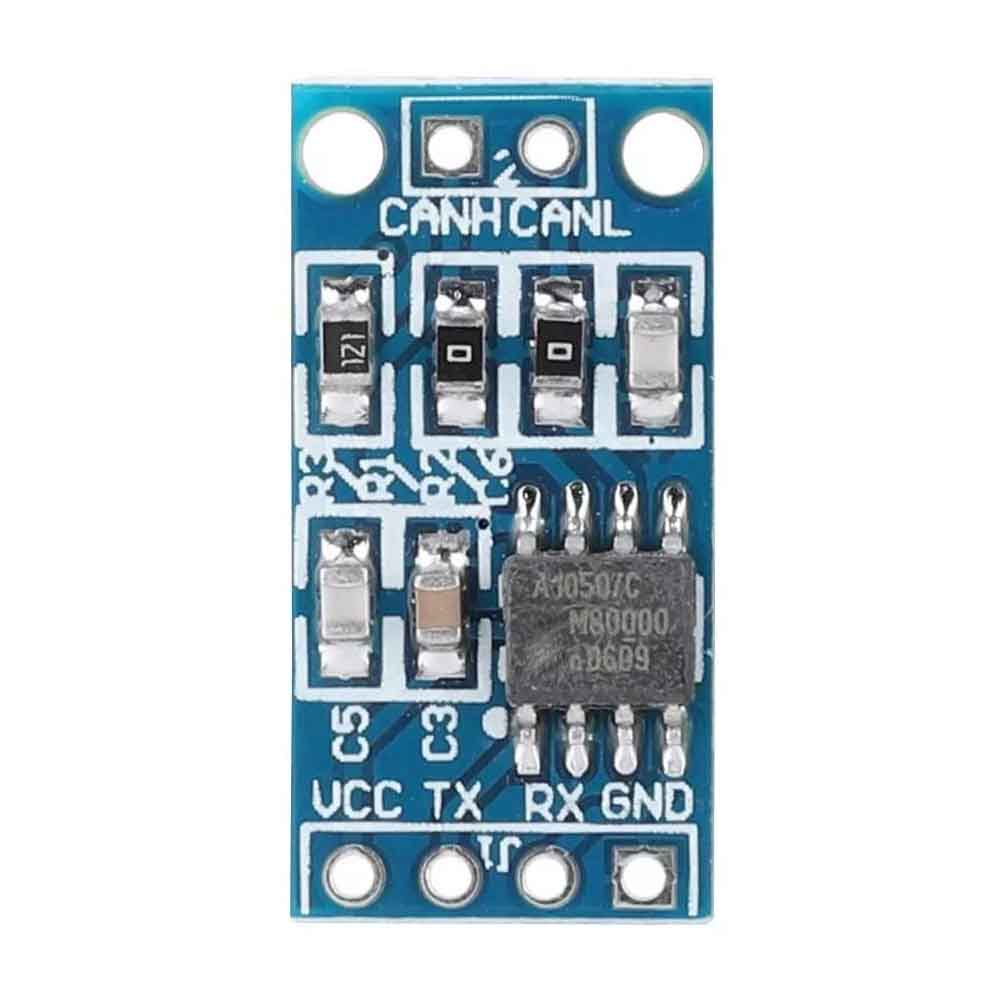

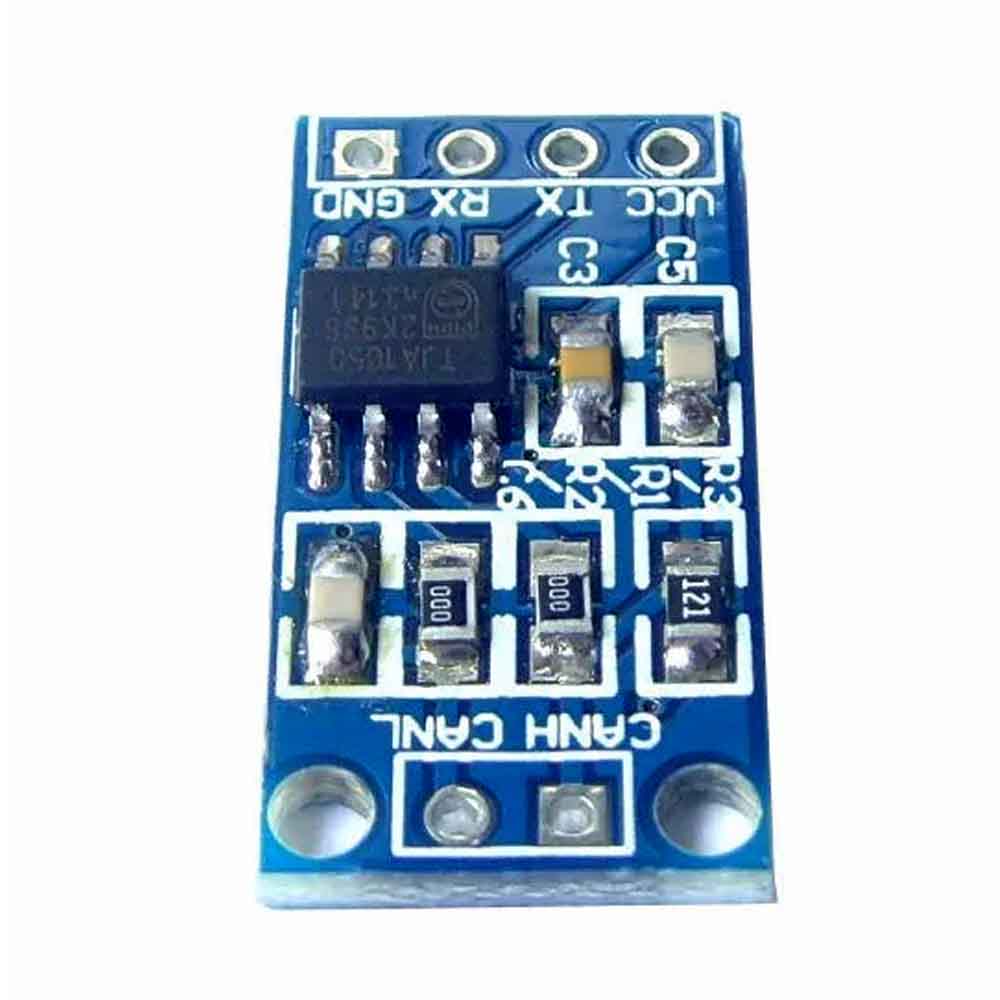

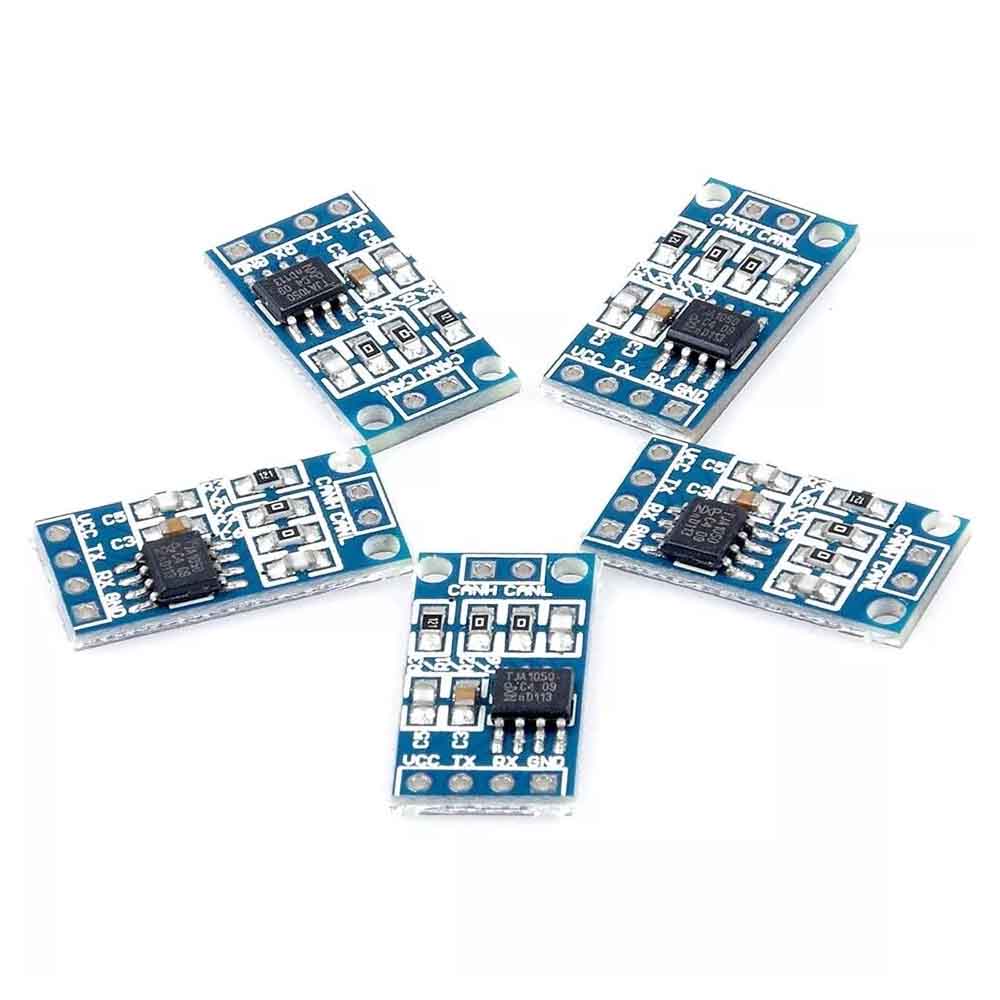

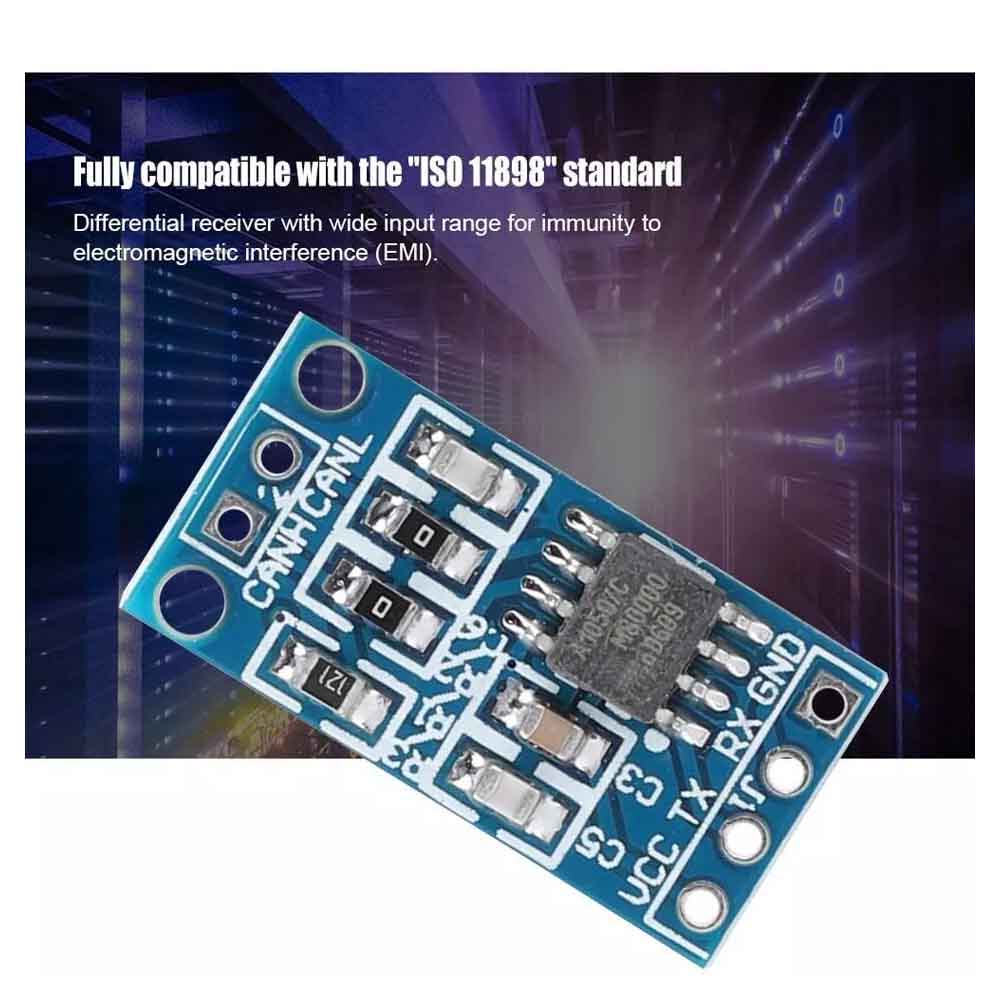

TJA1050 CAN Controller Bus Driver Interface Module

Features :

Onboard TJA1050 CAN controller interface chip
Chip commonly used pin has led, convenient connection to use
Pin 5 v to the power supply

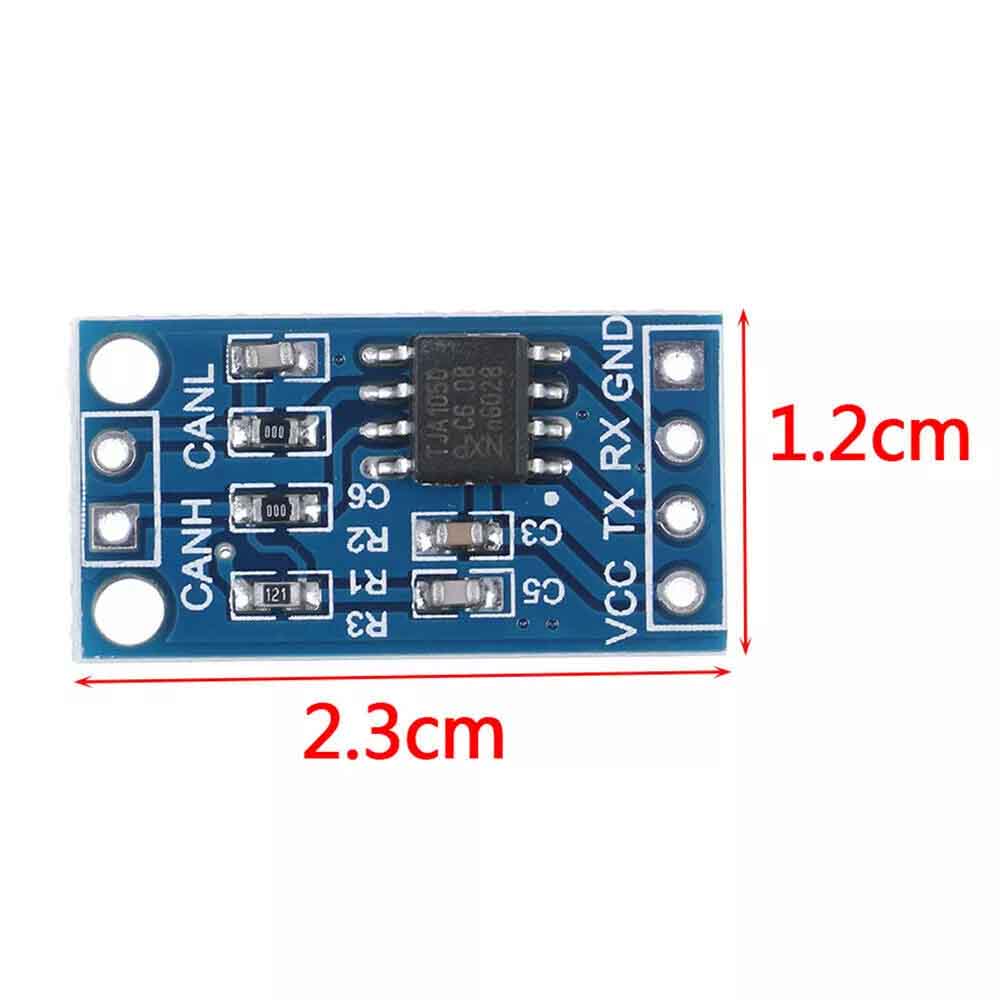

PCB board size: 22 (mm) x11.5 (mm)
Fully compatible with the ISO 11898 standard

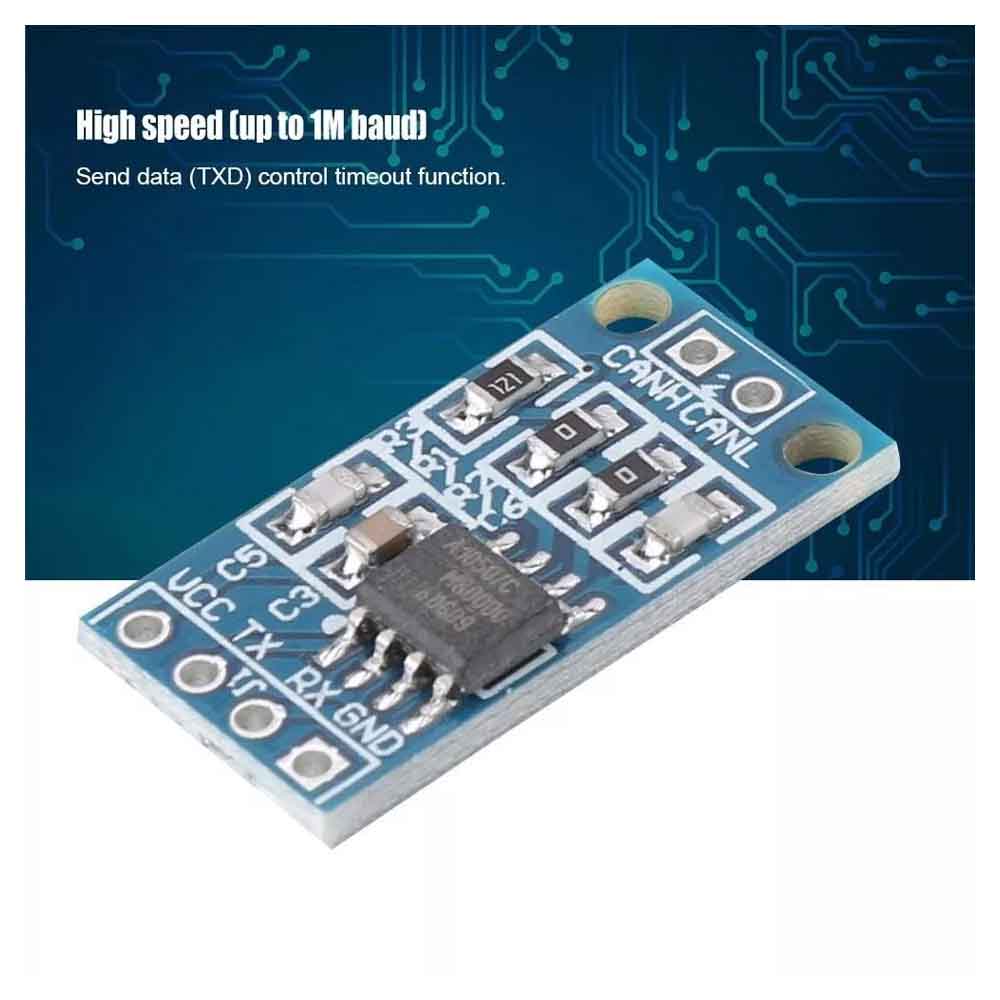

High speed (up to 1 Mbaud)
Very low Electro-Magnetic Emission (EME)
Differential receiver with wide common-mode range for high Electro-Magnetic Immunity (EMI)
An unpowered node does not disturb the bus lines
Transmit Data (TXD) dominant time-out function
A silent mode in which the transmitter is disabled
Bus pins protected against transients in an automotive environment
Input levels compatible with 3.3 V and 5 V devices
Thermally protected
Short-circuit proof to the battery and to ground

SKU: RDNA-121.17

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹74.94 (Inc. GST)
₹63.50 (+18% GST Extra)

In stock

Compare

Add to wishlist

18 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

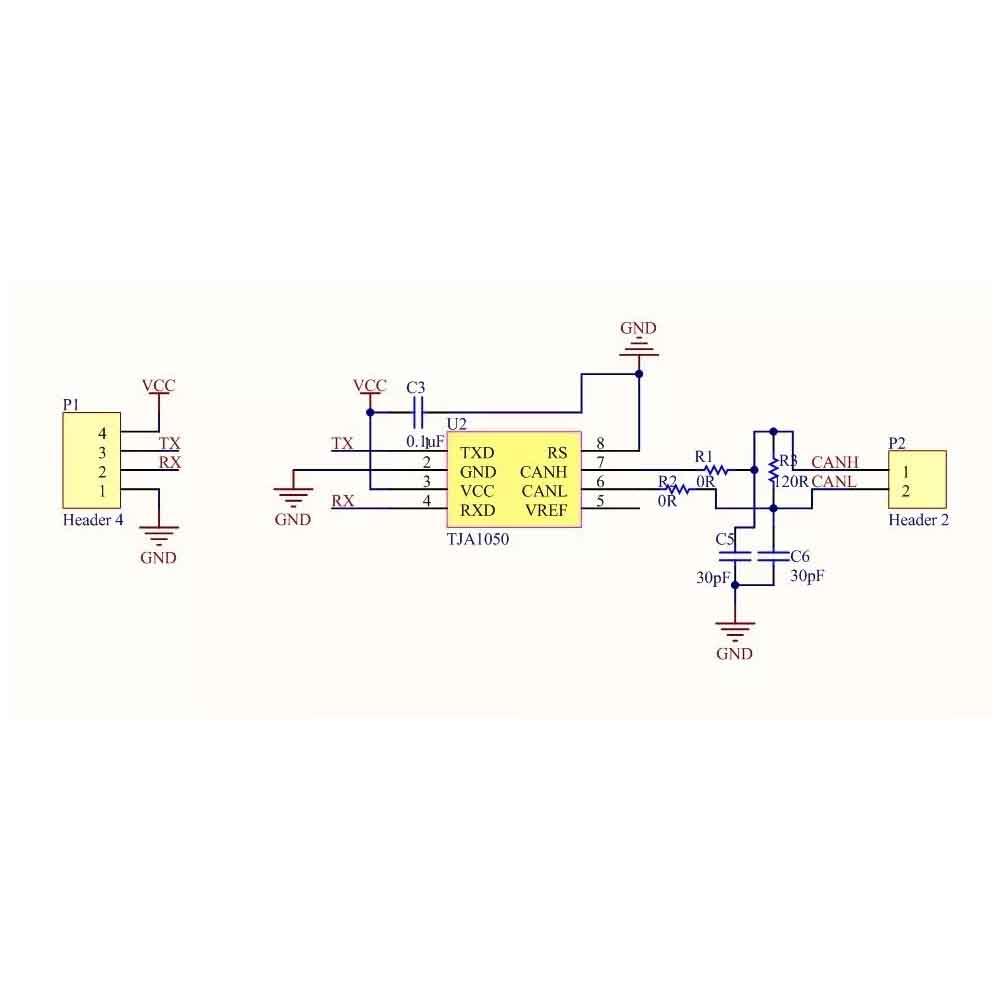

TJA1050 CAN Controller Bus Driver Interface Module is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller. The TJA1050 is the third Philips high-speed CAN transceiver after the PCA82C250 and the PCA82C251. The most important differences are:

Much lower electromagnetic emission due to optimal matching of the output signals CANH and CANL
Improved behavior in case of an unpowered node
No standby mode.
