Thermoelectric Peltier Refrigeration Cooling System DIY Kit

Semiconductor coolers are a form of solid state cooling that incorporates both semiconductor technologies and electronic assembly techniques. One such example is the Thermoelectric Peltier Refrigeration Cooling System DIY Kit.

The DIY kit is a semiconductor cooling kit which uses a TEC1-12706 Thermoelectric Cooler 6A Peltier Module. The kit has 2 heat sinks: the bigger one is for the hotter side and the smaller one is for the cooler side. The bigger the heat sink, the greater dissipation of the heat.

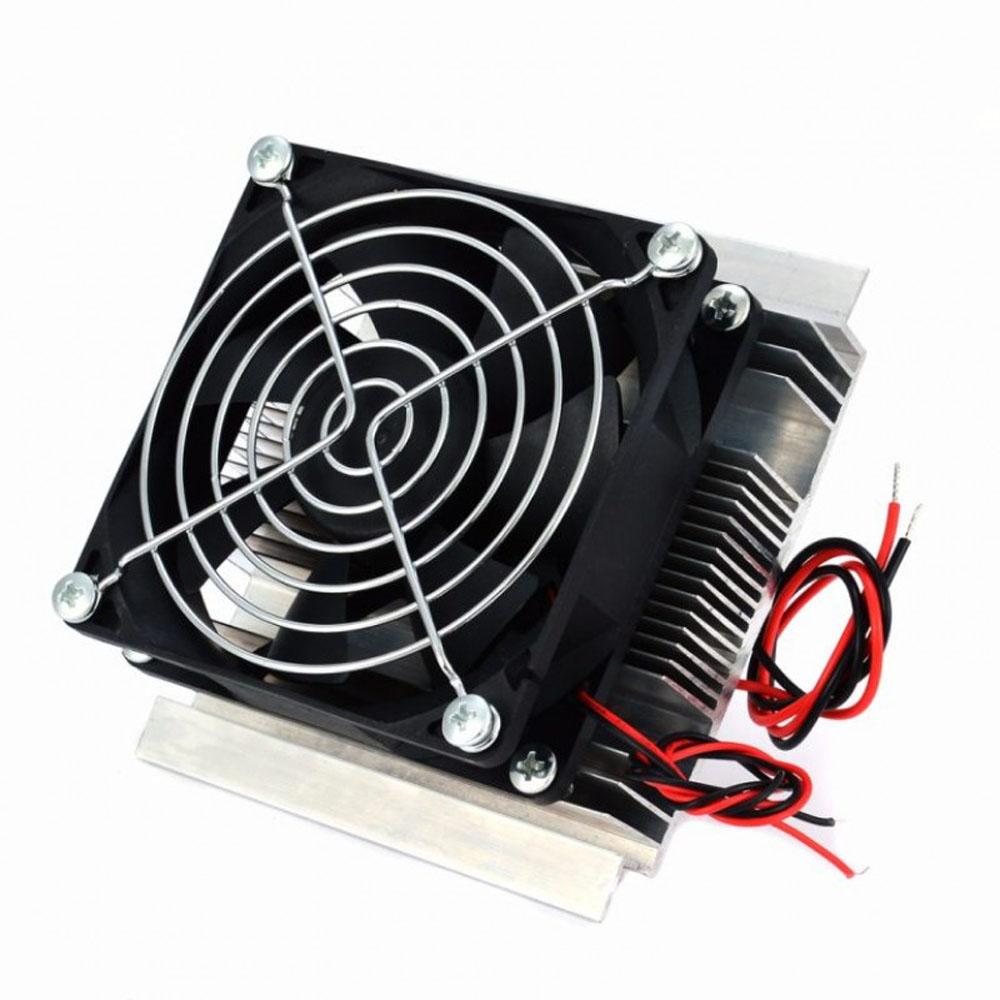

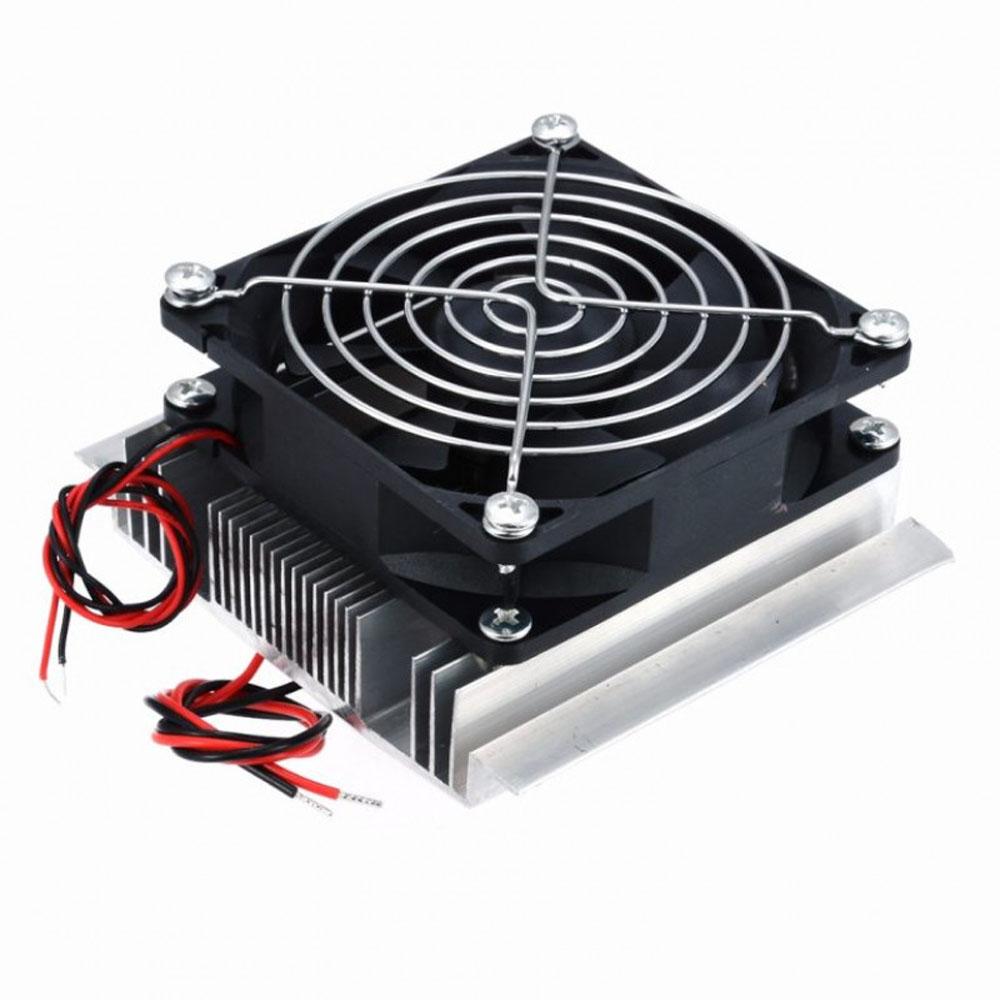

The fan, also included in this kit acts as a radiator. This is attached to the bigger heat sink. The TEC1-12706 thermoelectric Peltier module is sandwiched between the two heat sinks. The module will reduce the temperature.

The kit when assembled takes up less space and is ideal for Pet Space air conditioning( dogs house, chicken, etc),  small refrigerator.

Note:

1. This is an unassembled kit.
2. The kit does not include TEC1-12706 Thermoelectric Peltier Module which is available at Roboticsdna.in
3. Please allow a tolerance of 5% on all dimensions as it is done manually.

Dimensions:

1. Cooling fan: approx. 92mm x 25mm
2. Heatsink 1 (Big): approx. 120mm x 100 mm x 25mm
3. Heatsink 2 (Small): approx. 60mm x 45mm x 25mm

Package includes:

• 1 x Cooling fan
• 1 x Fan gauze
• 1 x Guide cold plate
• 1 x Radiator
• 1 x Thermal insulation gasket
• 1 x Semiconductor refrigeration piece
• 1 x Silicon grease
• 10 x Screws
