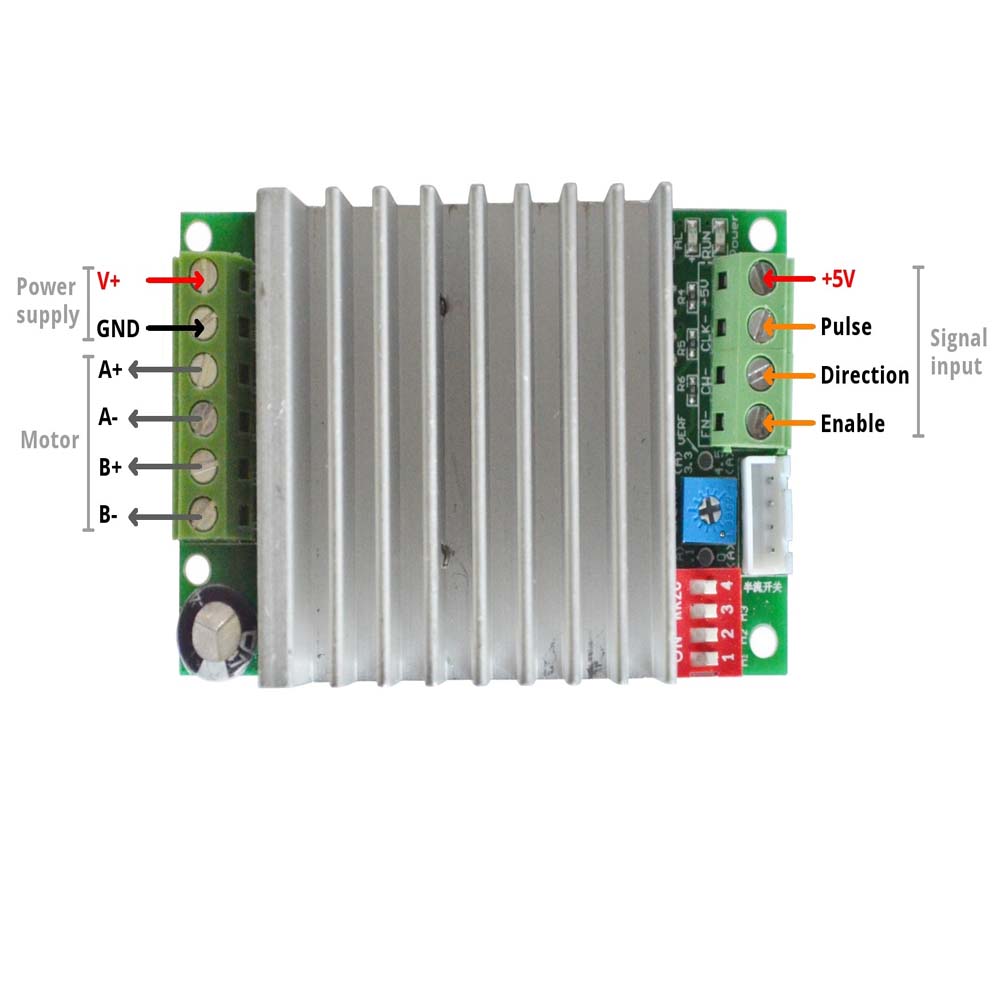

TB6600 Stepper Motor Driver Controller 8~50V 4.5A

Specifications:

  1. Supply Voltage:  8V – 50V DC (36V recommended).
  2. Output current: 0.3A – 4.5A (peak value of 5A).
  3. Micro Step: 1, 2, 8, 16.
  4. Maximum PWM frequency: 200kHz.
  5. Adjustments for the maximum current of the LED: 1A, 2.2A, 3.3A, 4.5A.
  6. Operating temperature: -10 to + 45 ° С.
SKU: RDNA-X5.27

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

948.72 (Inc. GST)
804.00 (+18% GST Extra)

Only 2 left in stock

Only 2 left in stock

12 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This driver controller is suitable for building not only amateur CNC systems but also professional ones based on high power engines. Compared to the previous generation of the TB6560AHG, the output of the TB6600HG has increased to 200W (as we see a practical doubling in power value), the operating voltage is raised from 35V (TB6560AHG) to 50V, the operating current is increased to 4.5A (5A peak value).

The main aspects of this driver include intelligent current control and the use of PWM modulation, which makes it possible to connect stepper motors of any supply voltage and current to the driver – at a fixed level; the chip itself will limit the maximum current.

Package Includes:

1 x TB6600 stepper motor Driver Controller

How to use link is here :

Specification

Overview

Weight 0.100 kg
Dimensions 14 × 11.5 × 2.8 cm

Processor

Weight 0.100 kg
Dimensions 14 × 11.5 × 2.8 cm

Display

Weight 0.100 kg
Dimensions 14 × 11.5 × 2.8 cm

RAM

Weight 0.100 kg
Dimensions 14 × 11.5 × 2.8 cm

Storage

Weight 0.100 kg
Dimensions 14 × 11.5 × 2.8 cm

Video Card

Weight 0.100 kg
Dimensions 14 × 11.5 × 2.8 cm

Connectivity

Weight 0.100 kg
Dimensions 14 × 11.5 × 2.8 cm

Features

Weight 0.100 kg
Dimensions 14 × 11.5 × 2.8 cm

Battery

Weight 0.100 kg
Dimensions 14 × 11.5 × 2.8 cm

General

Weight 0.100 kg
Dimensions 14 × 11.5 × 2.8 cm
