STM32F103C8T6 Microcontroller IC

Specifications:

Operating voltage range from 2V to 3.6V
64Kbytes of flash memory
20Kbytes of SRAM
CRC calculation unit, 96bit unique ID
Two 12bit, 1µs A/D converter (up to 10 channels)
7 channel DMA controller, 3 general-purpose timer and 1 advanced control timer
37 fast I/O ports
Serial wire debug (SWD) and JTAG interfaces
Two SPI, two I2C, three USART, one USB and one CAN interfaces
Ambient operating temperature range from -40°C to 85°

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹584.10 (Inc. GST)
₹495.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

10 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

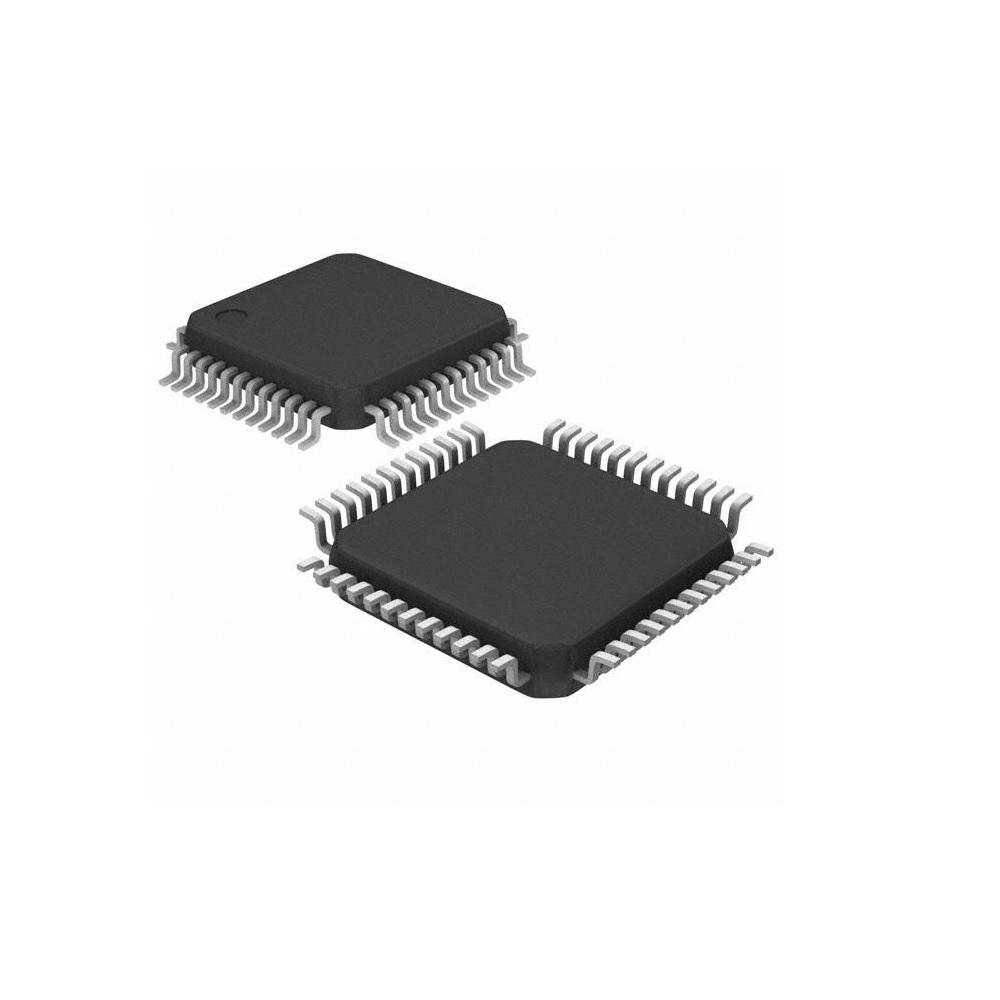

The STM32F103C8T6 LQFP-48 ARM Microcontroller-MCU is a medium-density performance line, ARM Cortex-M3 32bit microcontroller in 48 pin LQFP package. It incorporates a high-performance RISC core with a 72MHz operating frequency, high-speed embedded memories, an extensive range of enhanced I/Os, and peripherals connected to two APB buses. The STM32F103C8T6 features 12bit ADC, timers, PWM timer, standard and advanced communication interfaces. A comprehensive set of power-saving modes allows the design of low-power applications.

The features of STM32F103xx medium-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

Package Includes:

1 x STM32F103C8T6 Microcontroller ic
