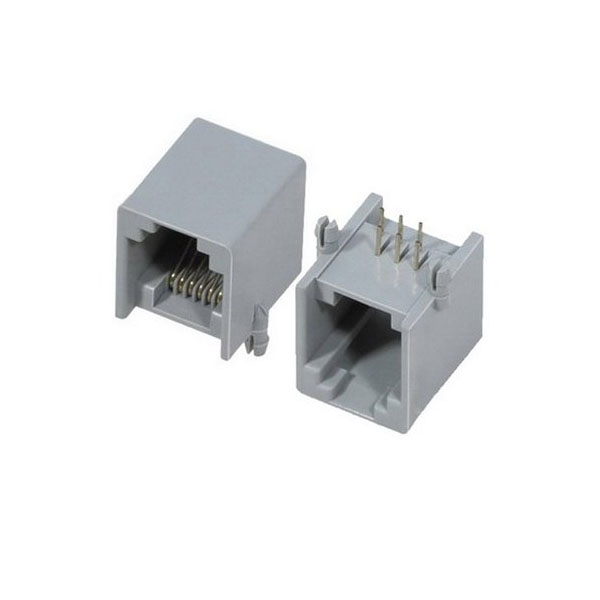

RJ11 Connector Female 6P6C (5 Pieces)

Specifications:

Model: RJ11-6P6C-SMT
Positions: 1 x 1 port
Plastics height: 16.5mm
Plastic width: 15.6 length 110.7mm
Pitch: 1.27mm
Current rating: 1.5A
Insulation-resistance: 500MΩ min
Dielectric withstanding voltage: 1000V AC
Contact-resistance: 30mΩ max
Operating temperature: -30 to +80°C
Insulation material: glass filled polyester UL94V-0
Contact material: copper alloy
Plating: nickel
Maximum processing temperature: 260°C

SKU: RDNA-E4.32

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹70.80 (Inc. GST)
₹60.00 (+18% GST Extra)

Only 1 left in stock

Compare

Add to wishlist

20 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This is an RJ11 (6P-6C) Female Plug. It finds its use in telecom, communications, and networking. Data connectors accept stranded cables from 26 – 24 AWG. It has an 6P6C configuration i.e. it has 6 positions and 6 conductors. This plug has gold plated phosphor bronze contacts, which provide longevity.
