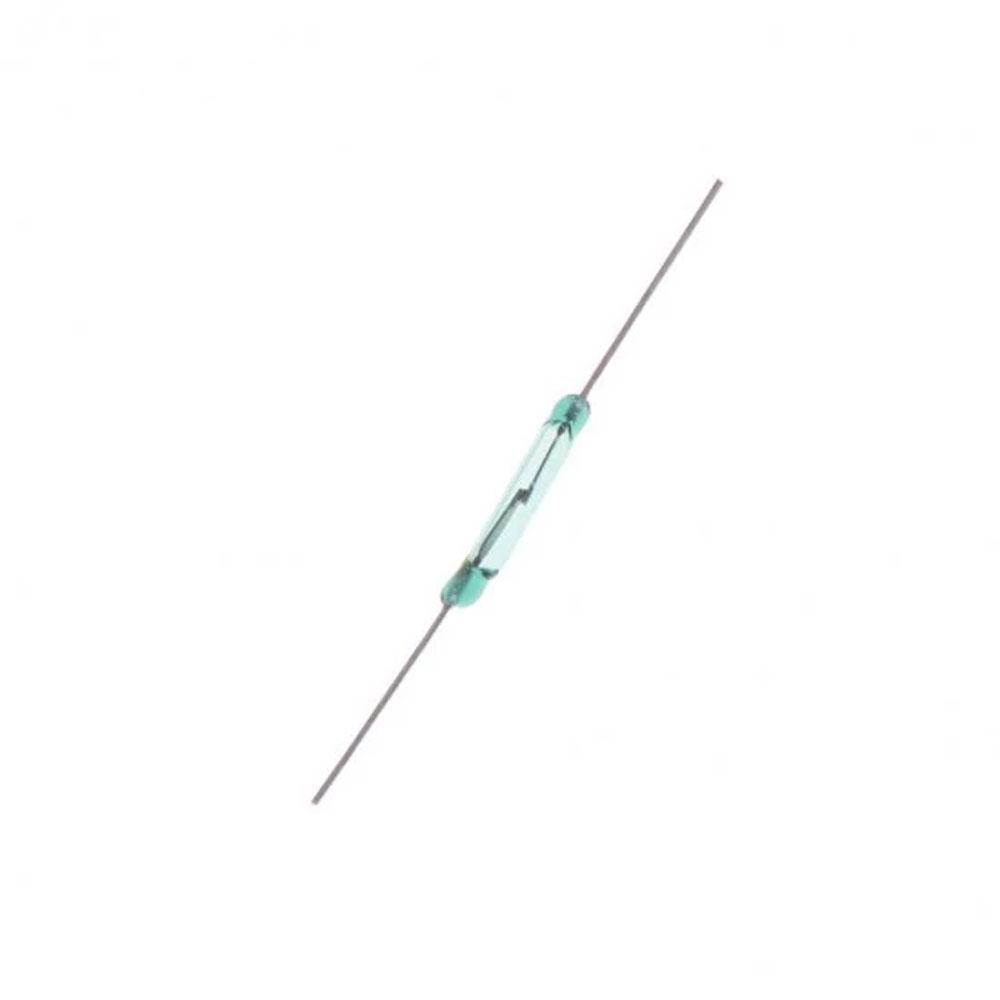

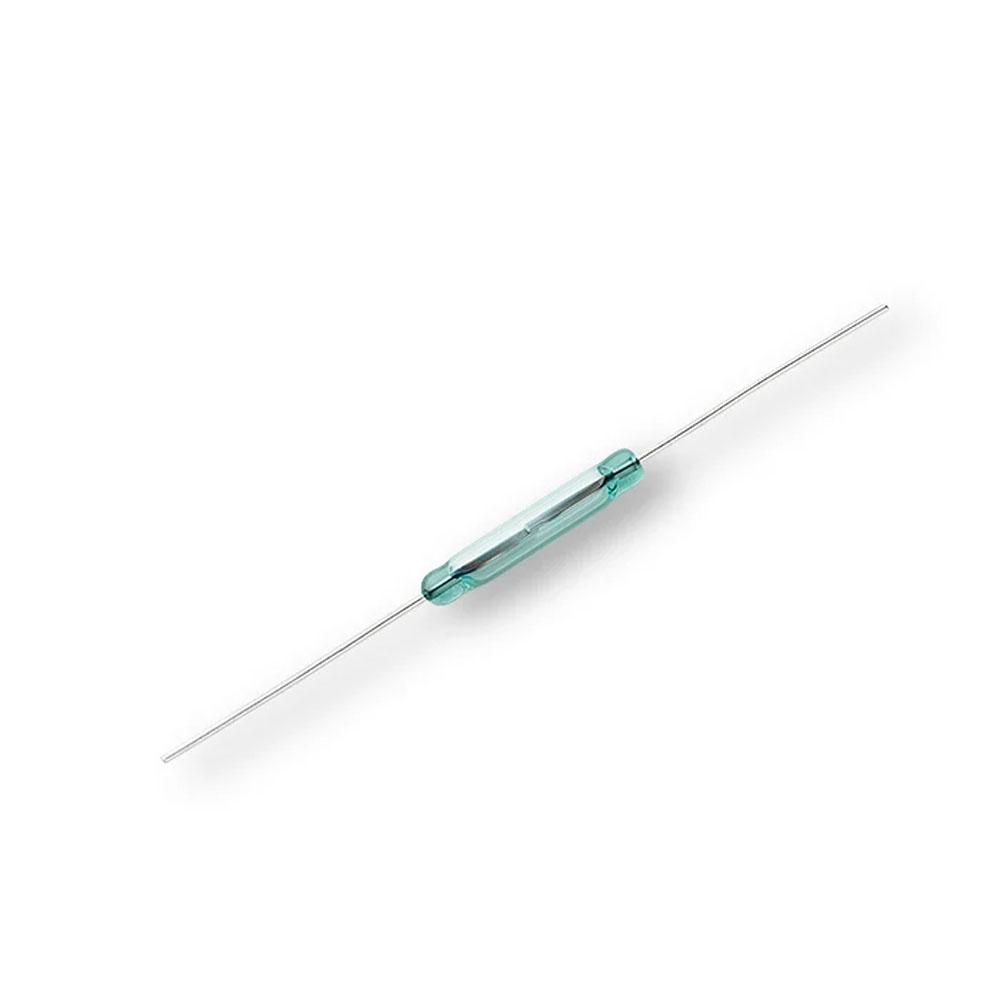

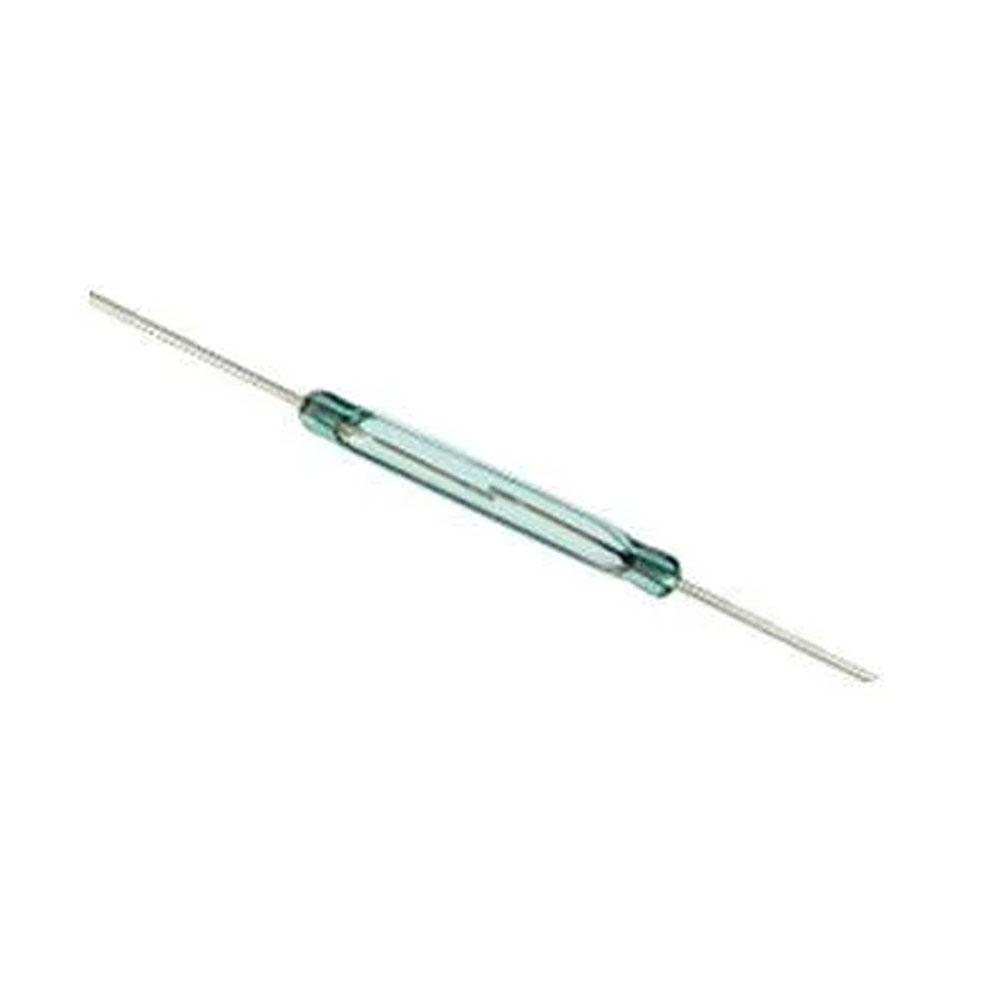

Reed Switch 2 x 14 mm Magnetic Control Switch -Normally Open Contact( PACK OF 2 )

Specifications:

Glass Length: 14mm
Glass Diameter: 2mm
Total Length: 45mm
Max. Switching Voltage: 300 VDC
Min. Breakdown Voltage: 150 VDC
Max. Contact Rating: 10W
Max. Switching Current: 0.55 A
Max. Operate time: 0.45 ms

SKU: RDNA-764.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹22.99 (Inc. GST)
₹19.49 (+18% GST Extra)

In stock

Compare

Add to wishlist

14 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This is Reed Switch 2 x 14 mm Magnetic Control Switch with Normally Open Contact.

When the device is exposed to a magnetic field, the two ferrous pins inside the switch pull together and the switch closes. When the magnetic field is removed, The Reed Switch separates and the switch opens. This makes for a great non-contact switch. This switch can carry up to 1.2A.

This small and easy to use module can be used in a variety of environmental conditions, it operates very reliably in the -50°C to +140°C temperature range.
